Ubiquiti UniFi Access Magnetic Lock 540 kg - Magnetic lock lock holding force 540 kg

Ubiquiti UniFi Access Magnetic Lock 540 kg

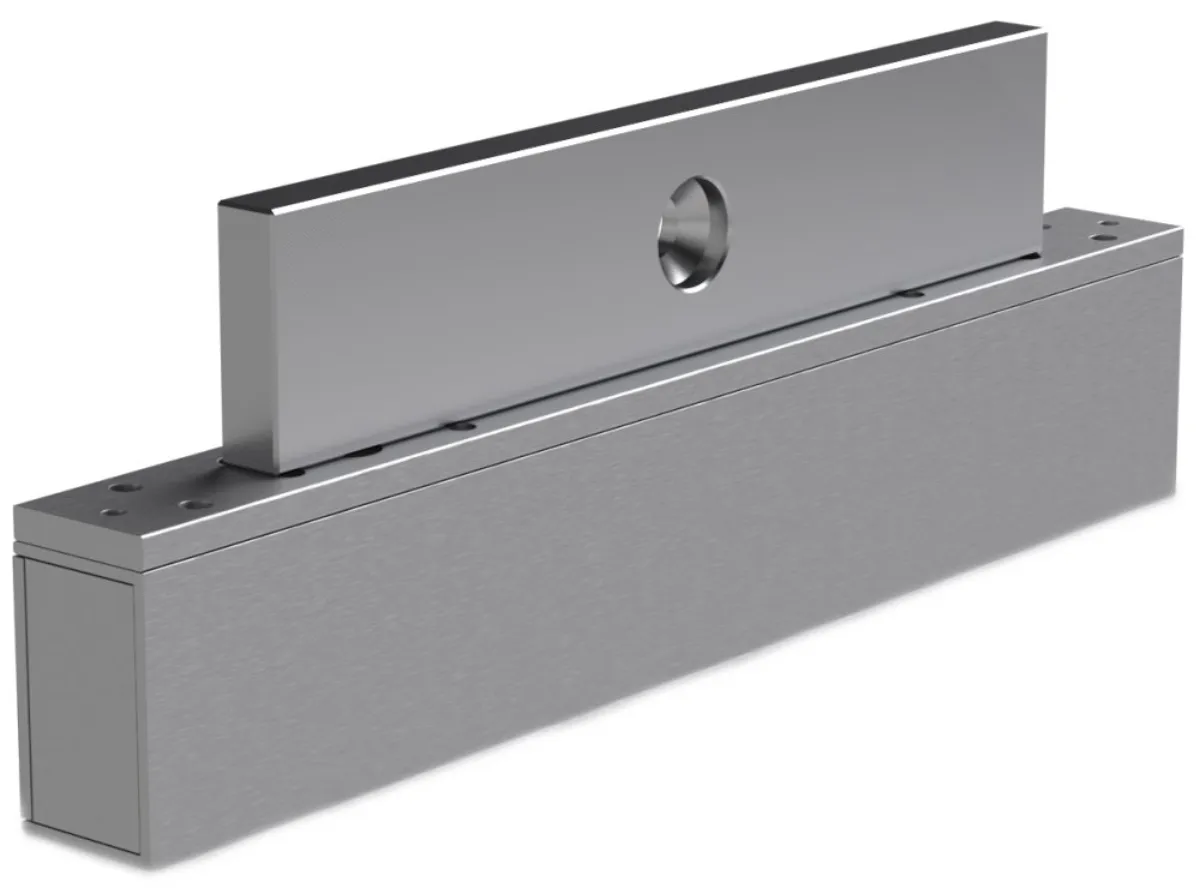

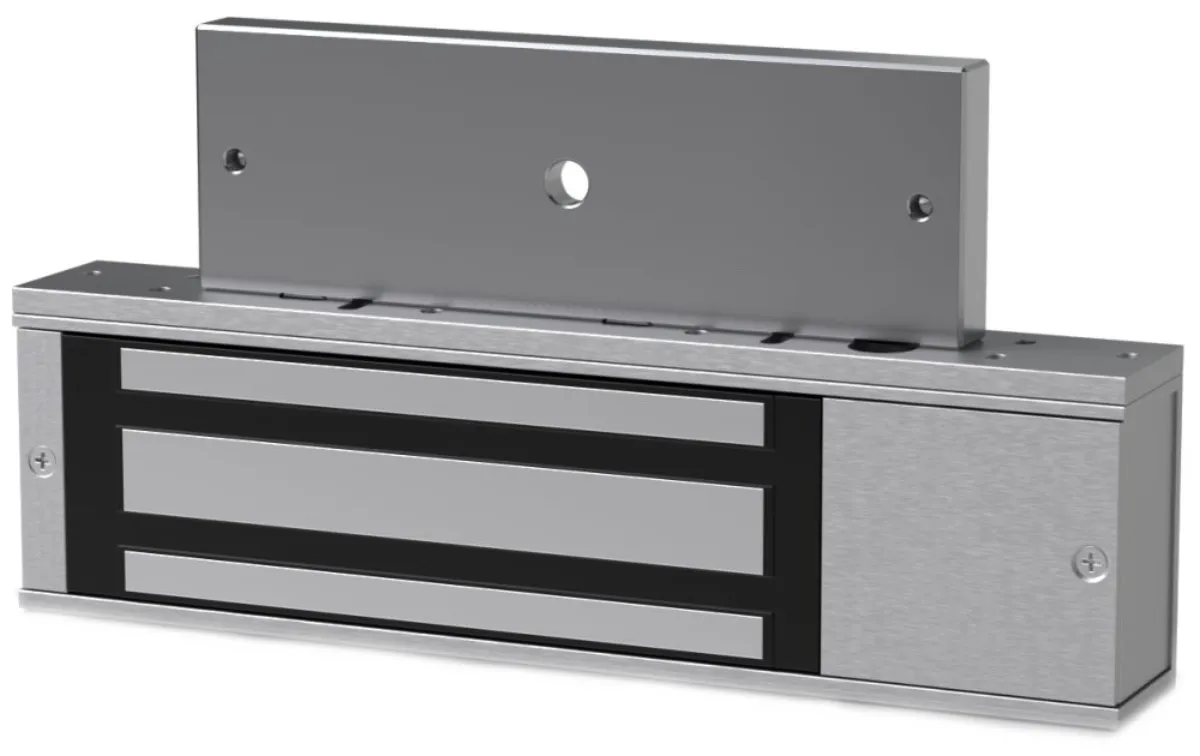

A magnetic fail-safe lock that connects to a UniFi access point (UA Hub).

• Resistance up to 540 kg (holding force of the lock)
• Can be installed on a metal or wooden door frame
• Signal LED - green (unlocked), red (locked)
• Material - aluminum, steel

Compatibility

• Ubiquiti UA-G2-SK-Pro
• UA-G2-SK
• EAH-8
• UA-Hub

Power supply: DC 12 V (500 mA ± 10%)

Holding force of the lock: 540 kg

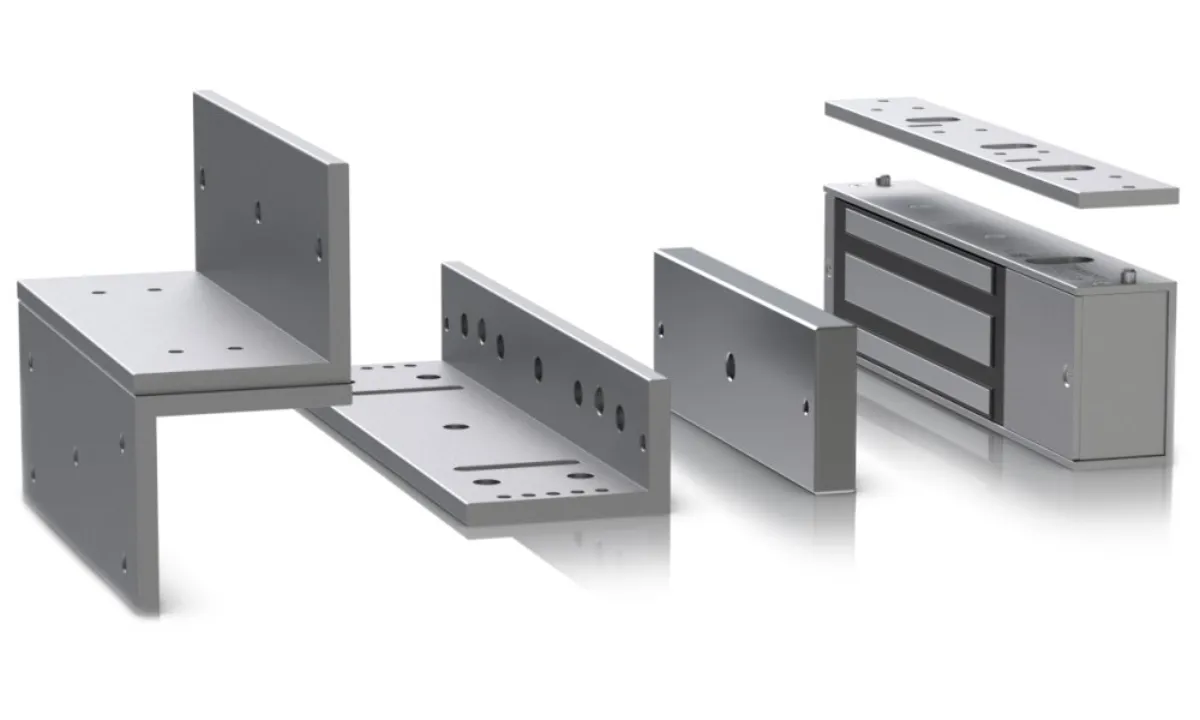

Dimensions

• 266 × 67.5 × 40 mm (lock)
• 266 x 40 x 6 mm (smaller front/lock cover)
• 185 x 61 x 16 mm (larger front/lock cover)

Weight

• 2900 g (lock)
• 145 g (smaller forehead/lock cover)
• 1400 g (larger forehead/lock cover)

Connecting to UniFi Access Hub

Lock 12V/NC: connect to the Power Lock Relay NC terminal on the UA-Hub

Lock 12V/COM: connect to the Powered Lock Relay COM terminal on the UA-Hub

DPS/+: connect to the DPS+ terminal on the UA-Hub

DPS/-: connect to the DPS- terminal on the UA-Hub
