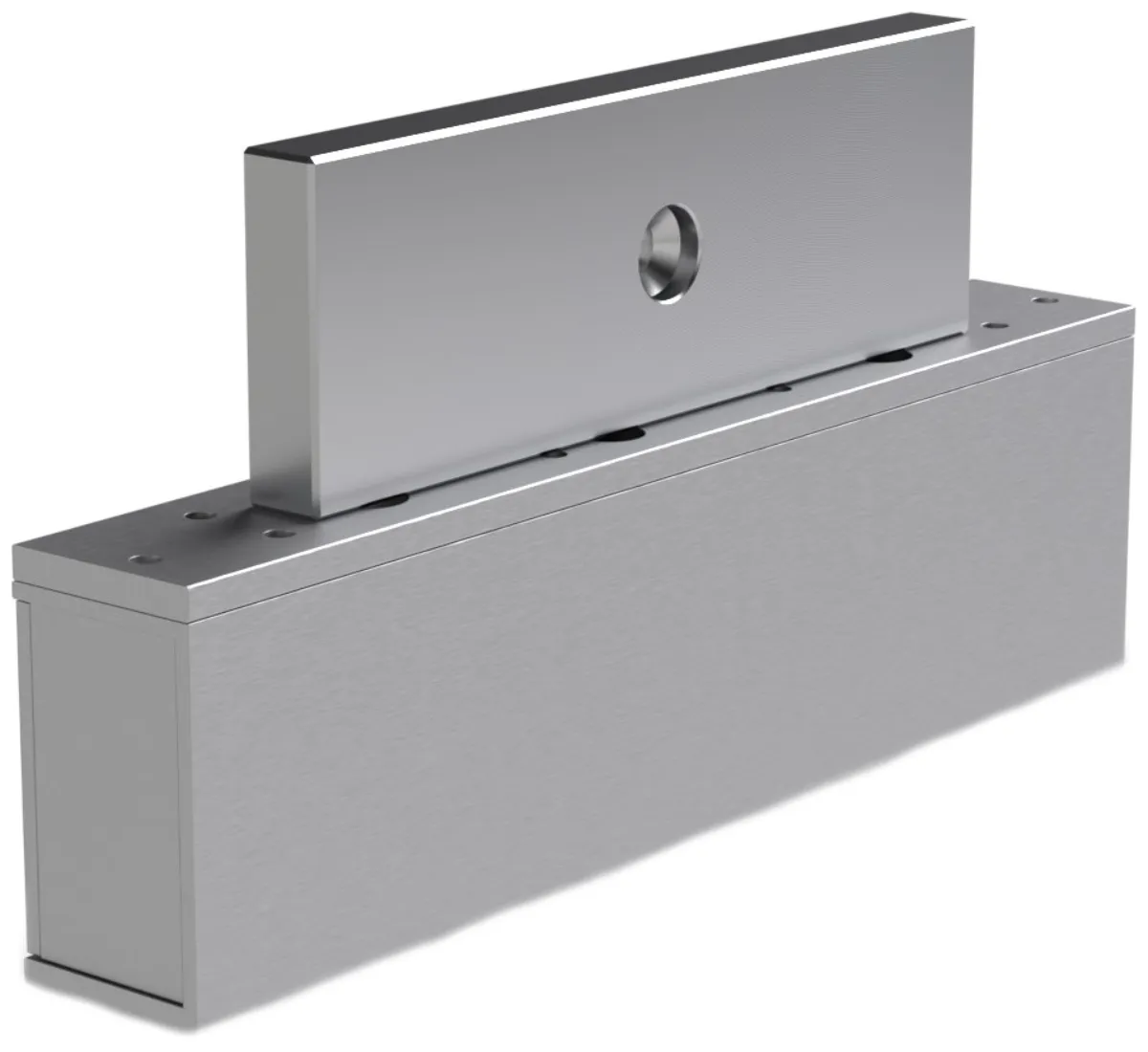

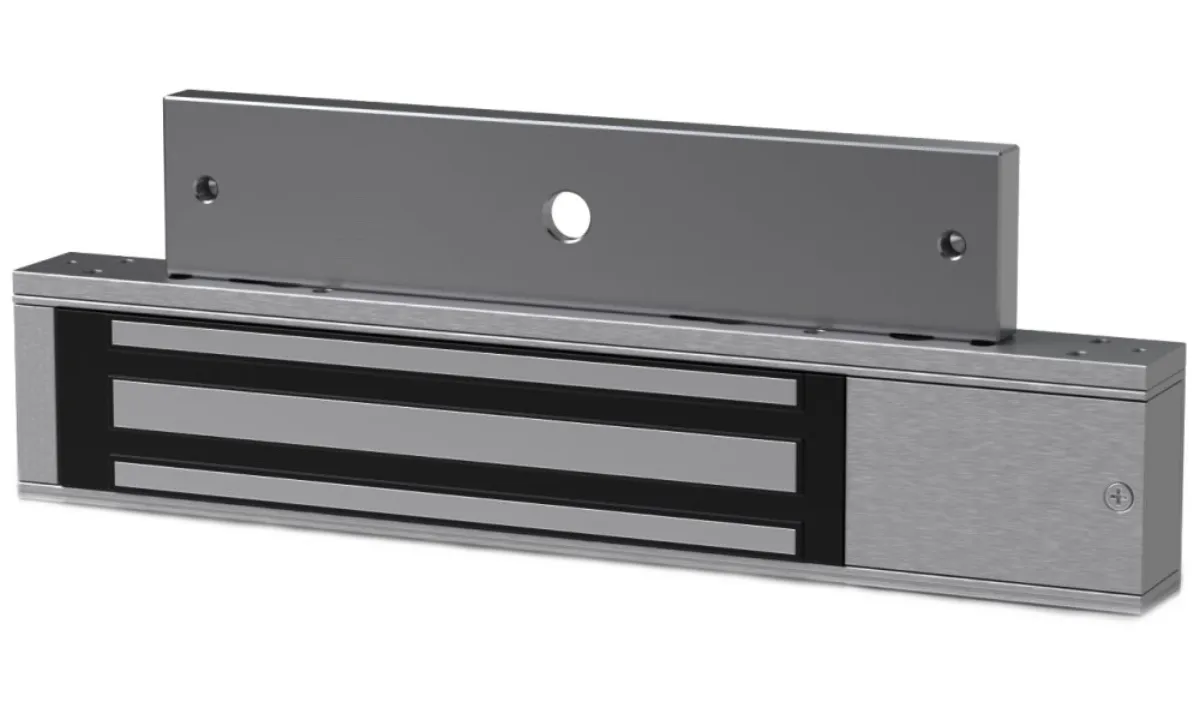

Ubiquiti UniFi Access Magnetic Lock 270 kg - Magnetic lock lock holding force 270 kg

Ubiquiti UniFi Access Magnetic Lock 270 kg

A magnetic fail-safe lock that connects to a UniFi access point (UA Hub).

• Resistance up to 270 kg (holding force of the lock)
• Can be installed on a metal, wooden or glass door frame
• Signal LED - green (unlocked), red (locked)
• Material - aluminum, steel

Compatibility

• Ubiquiti UA-G2-SK-Pro
• UA-G2-SK
• EAH-8
• UA-Hub

Power supply: DC 12 V (800 mA ± 10%)

Holding force of the lock: 270 kg

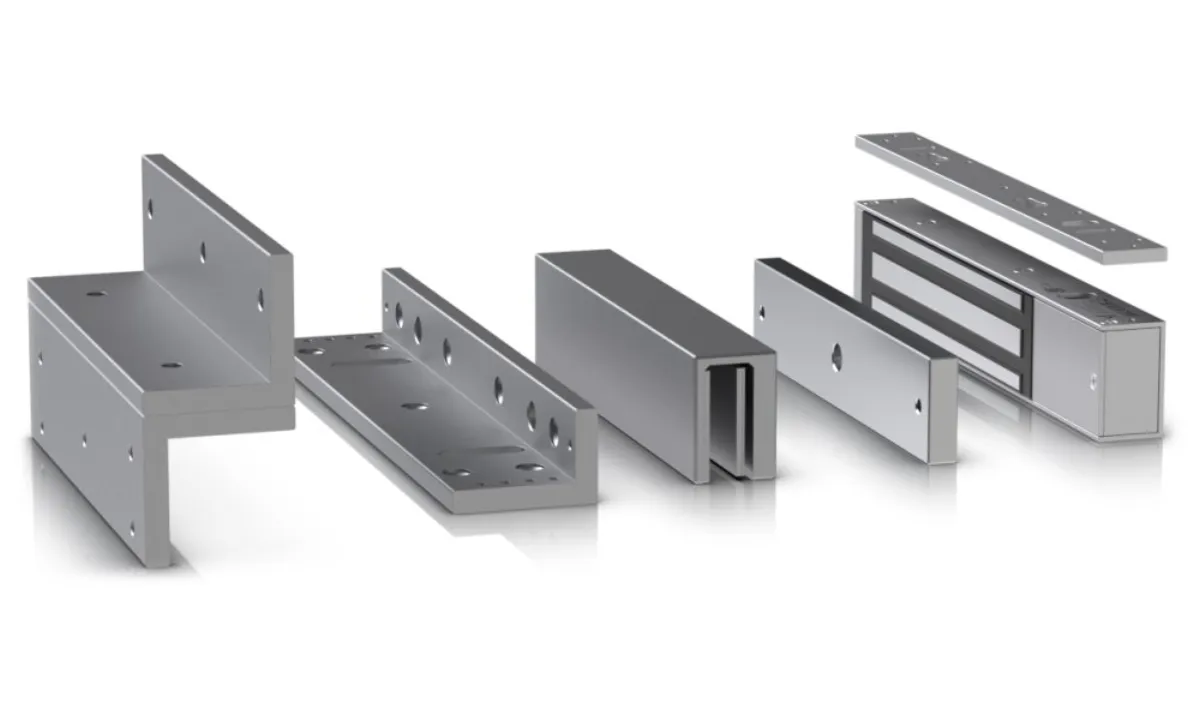

Dimensions

• 250 × 42.5 × 26 mm (lock)
• 250 × 25 × 5 mm (smaller front/lock cover)
• 185.5 x 38.5 x 11 mm (larger front/lock cover)

Weight

• 1000 g (lock)
• 70 g (smaller forehead/lock cover)
• 600 g (larger forehead/lock cover)

Connecting to UniFi Access Hub

Lock 12V/NC: connect to the Power Lock Relay NC terminal on the UA-Hub

Lock 12V/COM: connect to the Powered Lock Relay COM terminal on the UA-Hub

DPS/+: connect to the DPS+ terminal on the UA-Hub

DPS/-: connect to the DPS- terminal on the UA-Hub
