Ubiquiti UniFi Access G3 Starter Kit Pro Set 1x Hub Door 1x G3 Pro reader 1x G3 reader 2x chip

Ubiquiti UniFi Access G3 Starter Kit Pro

A starter kit that provides complete entry and exit control for a single door with two readers and Apple Touch Pass support.

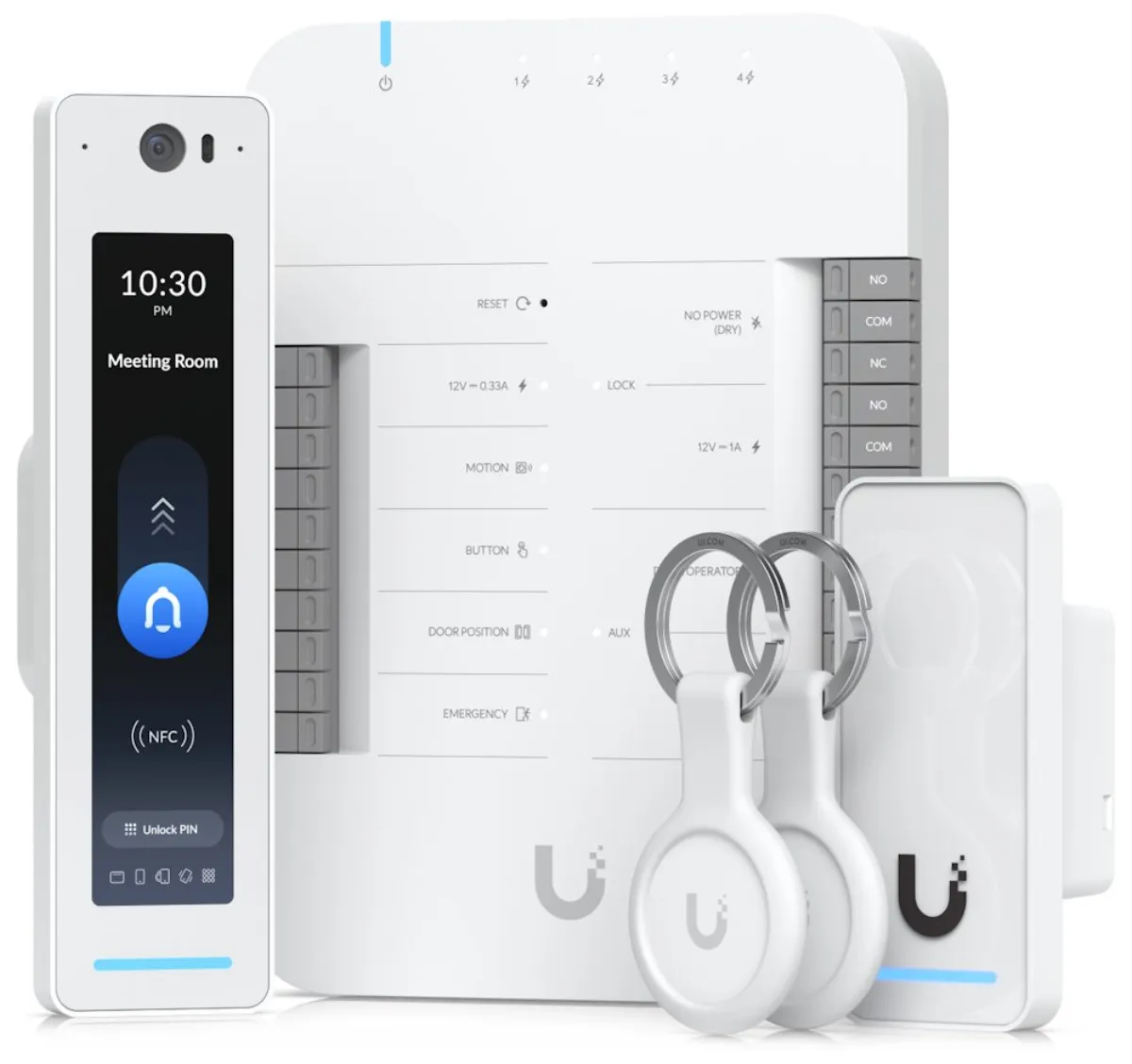

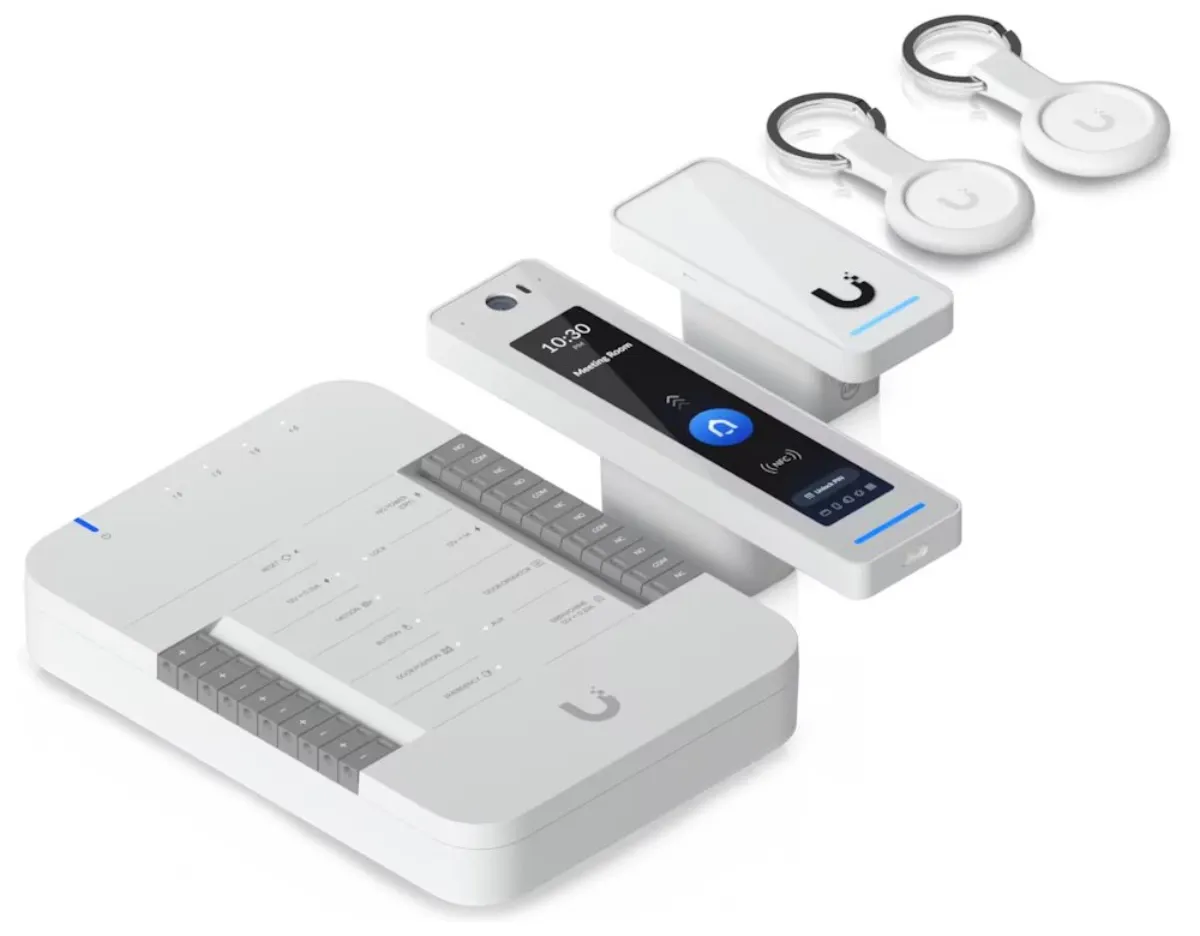

Starter Kit Contents

• 1× UA-Hub-Door (hub/controller)
• 1× Ubiquiti UniFi Access Reader G3 Pro (access reader)
• 1× Ubiquiti UniFi Access Reader G3 (access reader)
• 2× UA-Pocket ID Chip (ID/access card)

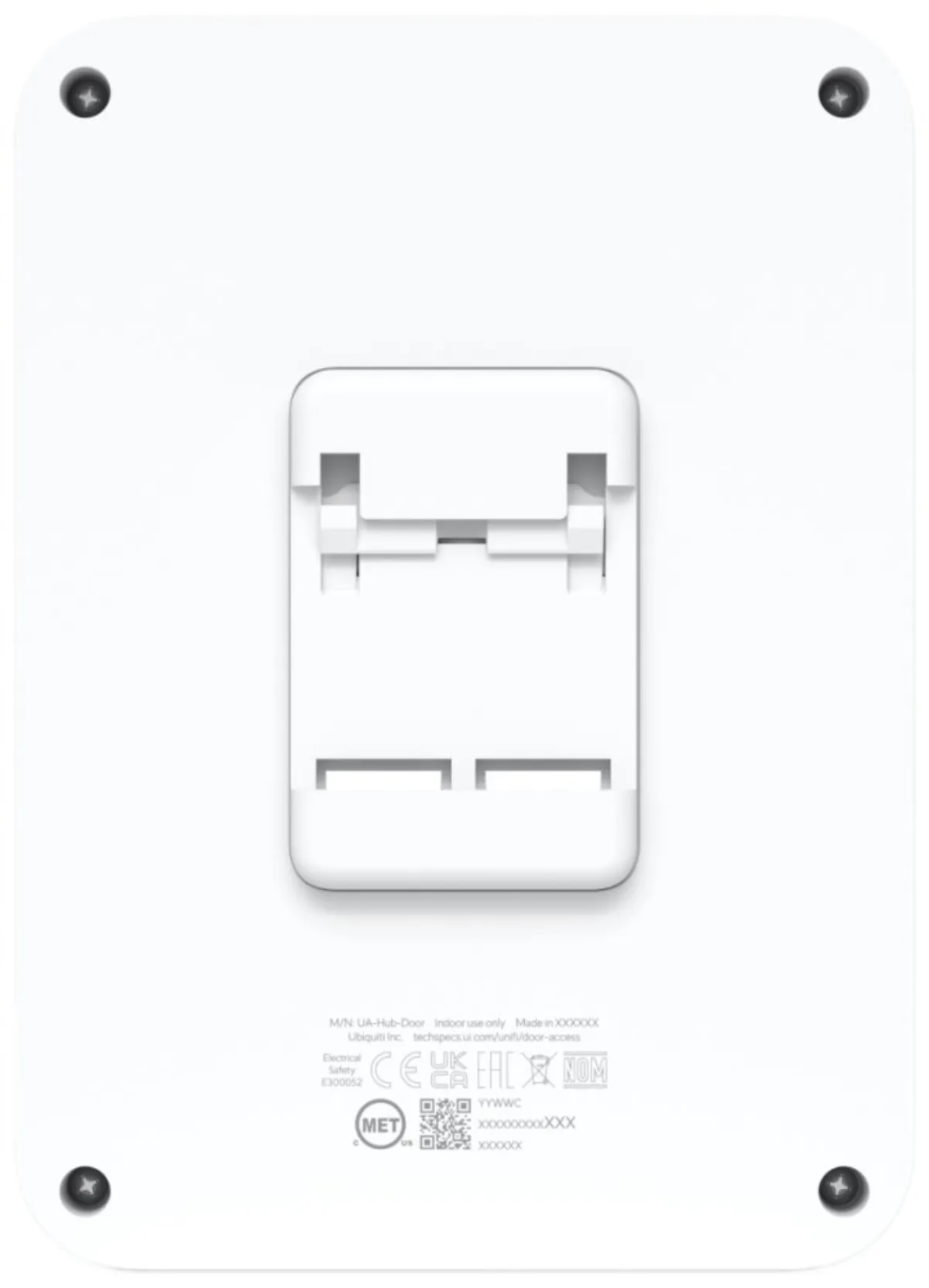

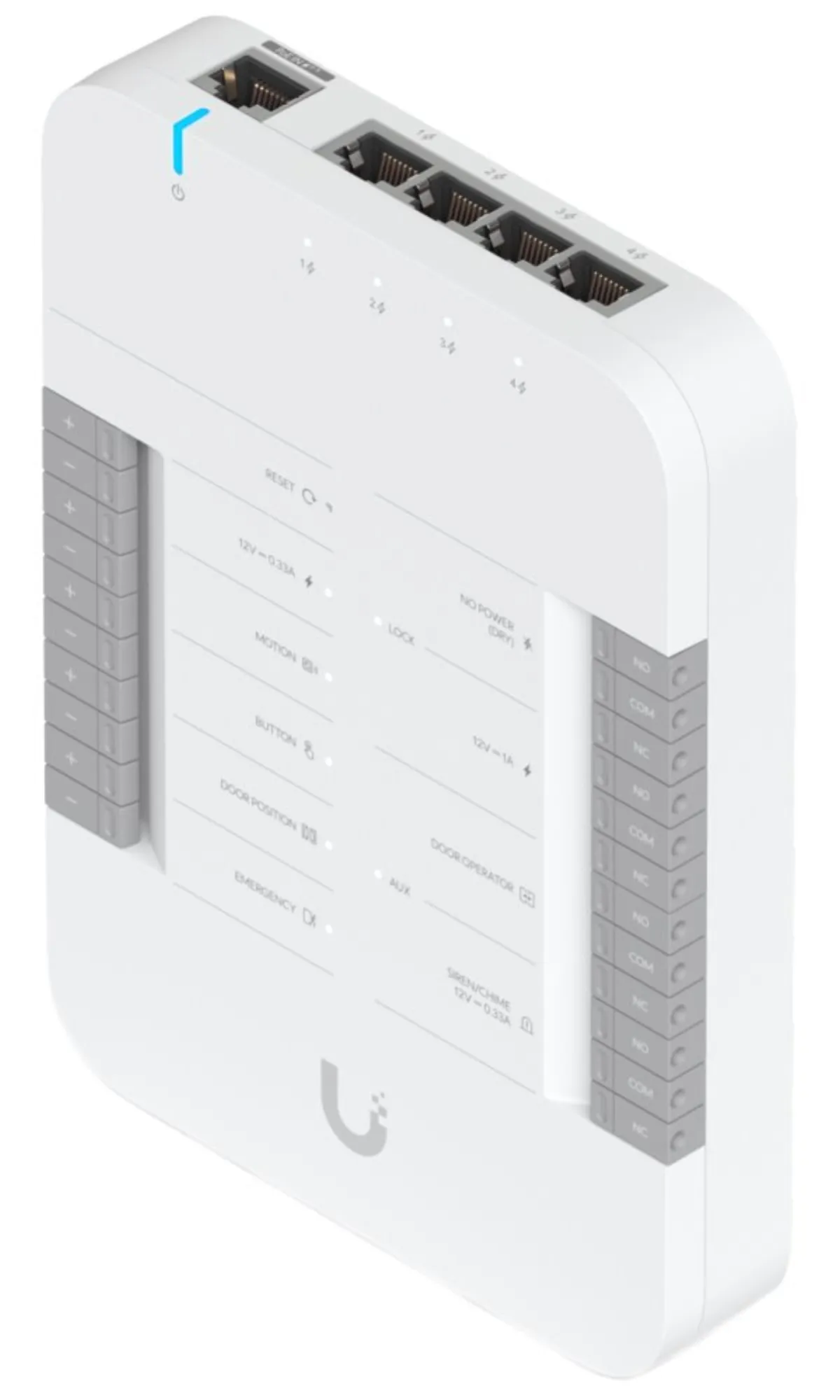

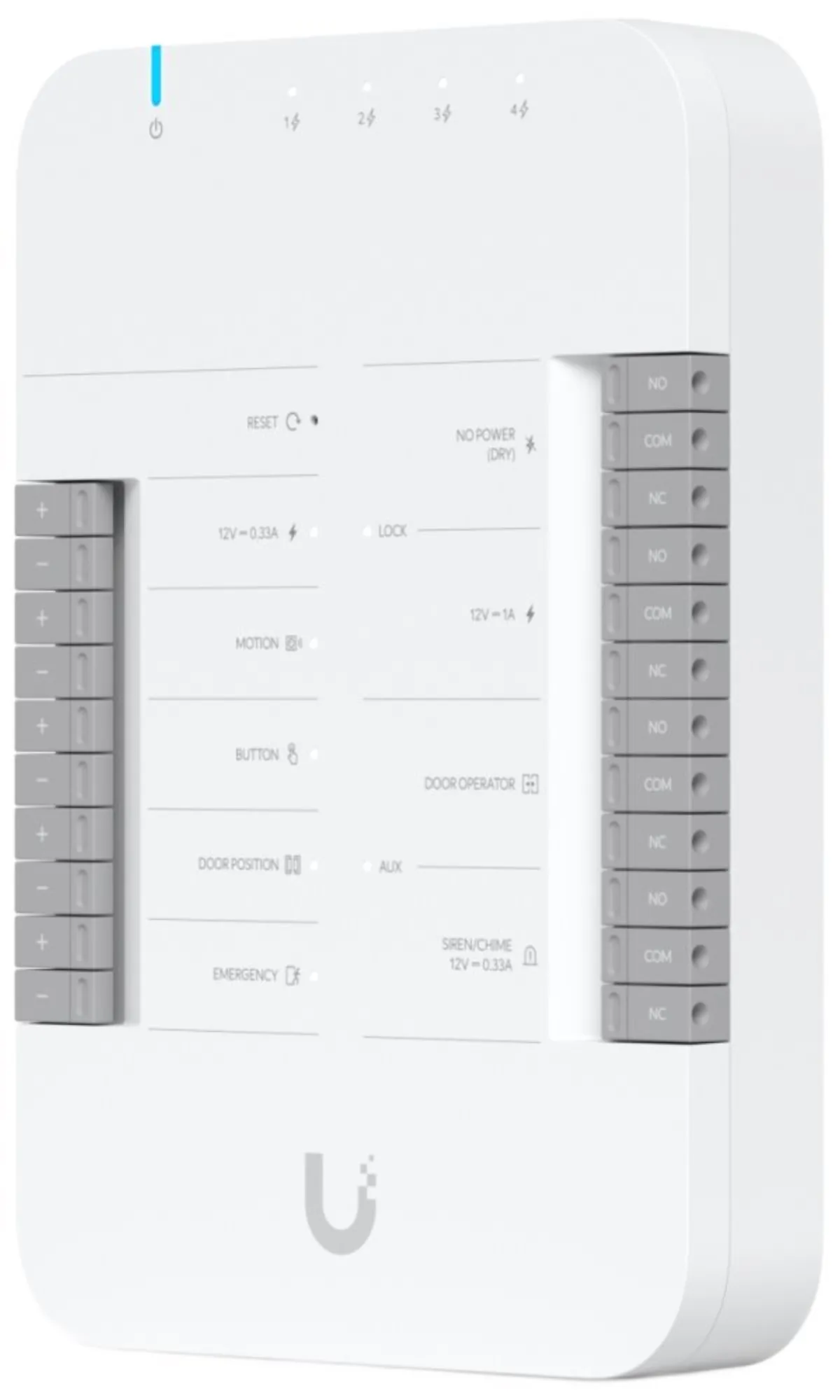

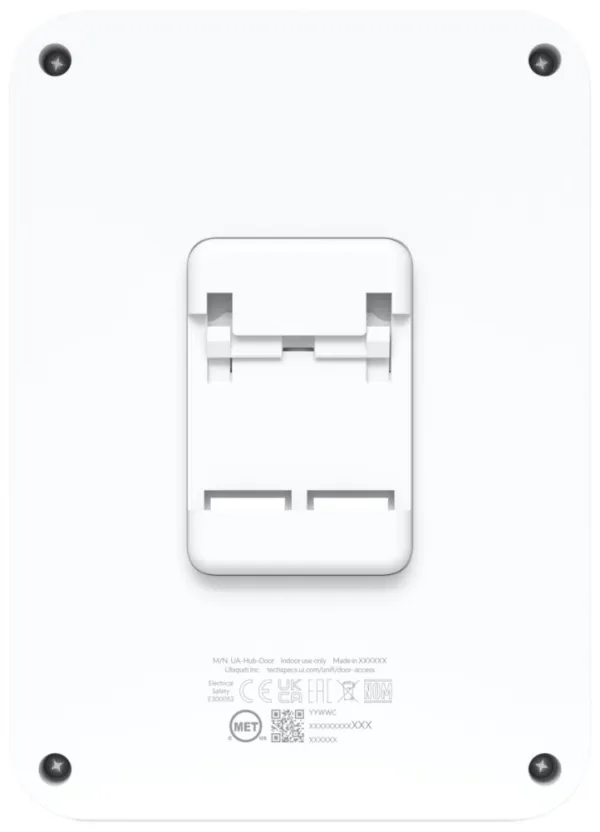

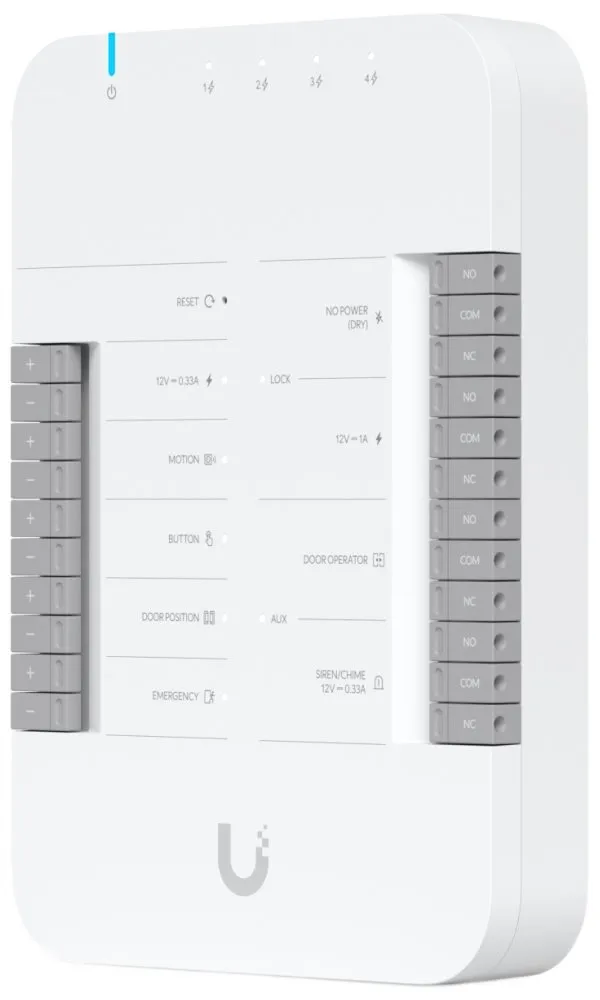

UA-Hub-Door

Mounting

• DIN
• wall

Interface

• 5× GbE RJ-45
• 2× lock output
• 2× AUX output
• 4× digital input (for sensors and buttons)
• 1× DC 12 V/ 0.33A output

Power

• PoE++ 802.3bt
• max. power consumption 50 W

Weight: 363 g

Dimensions: 174.9 × 126 × 32.9 mm

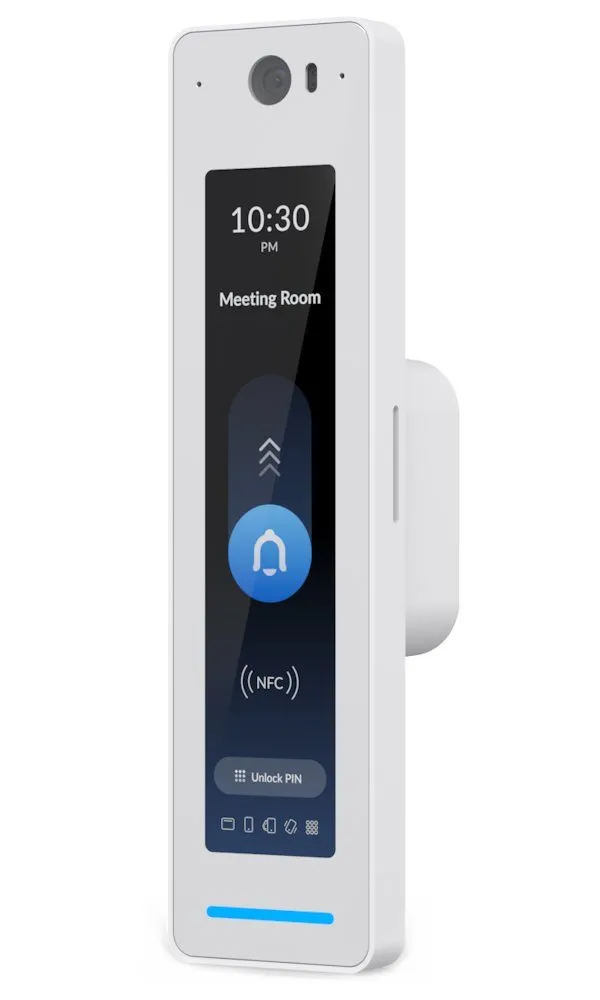

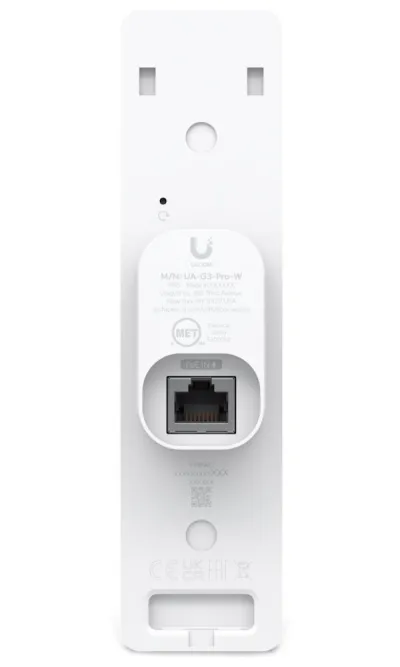

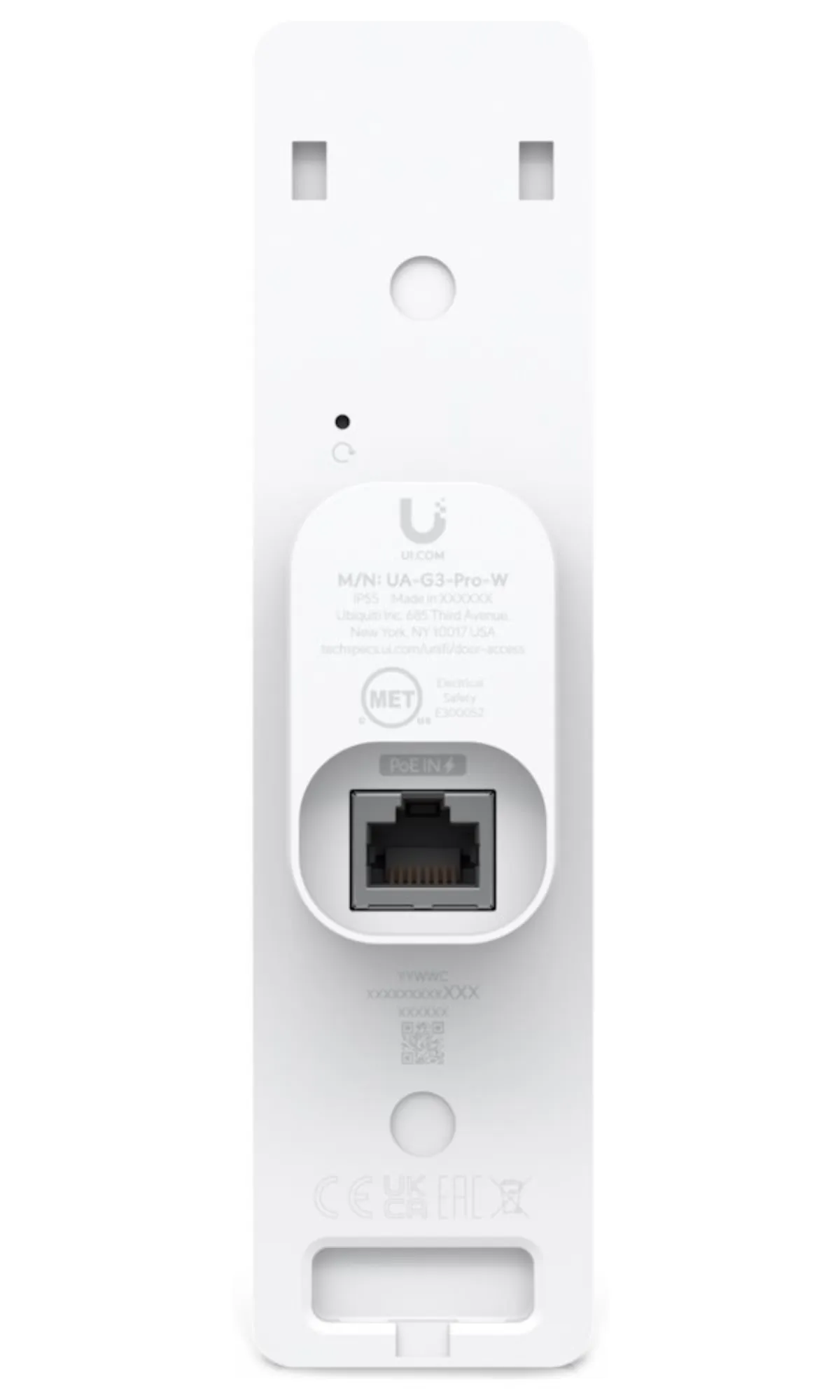

UA-G3-Pro-W

Mounting: on the wall

Interfaces

• 1× GbE RJ-45
• Bluetooth 4.2
• NFC (13.56 MHz
• Mifare)

Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

Technology

• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa (ID only)
• NFC forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0

Camera resolution: 12 Mpx (4000 × 3000 at 30 fps)

Power

• PoE
• 48 V DC
• max. power consumption 6 W

Protection: IP55

Weight: 136 g

Dimensions: 160 × 40.55 × 40.4 mm

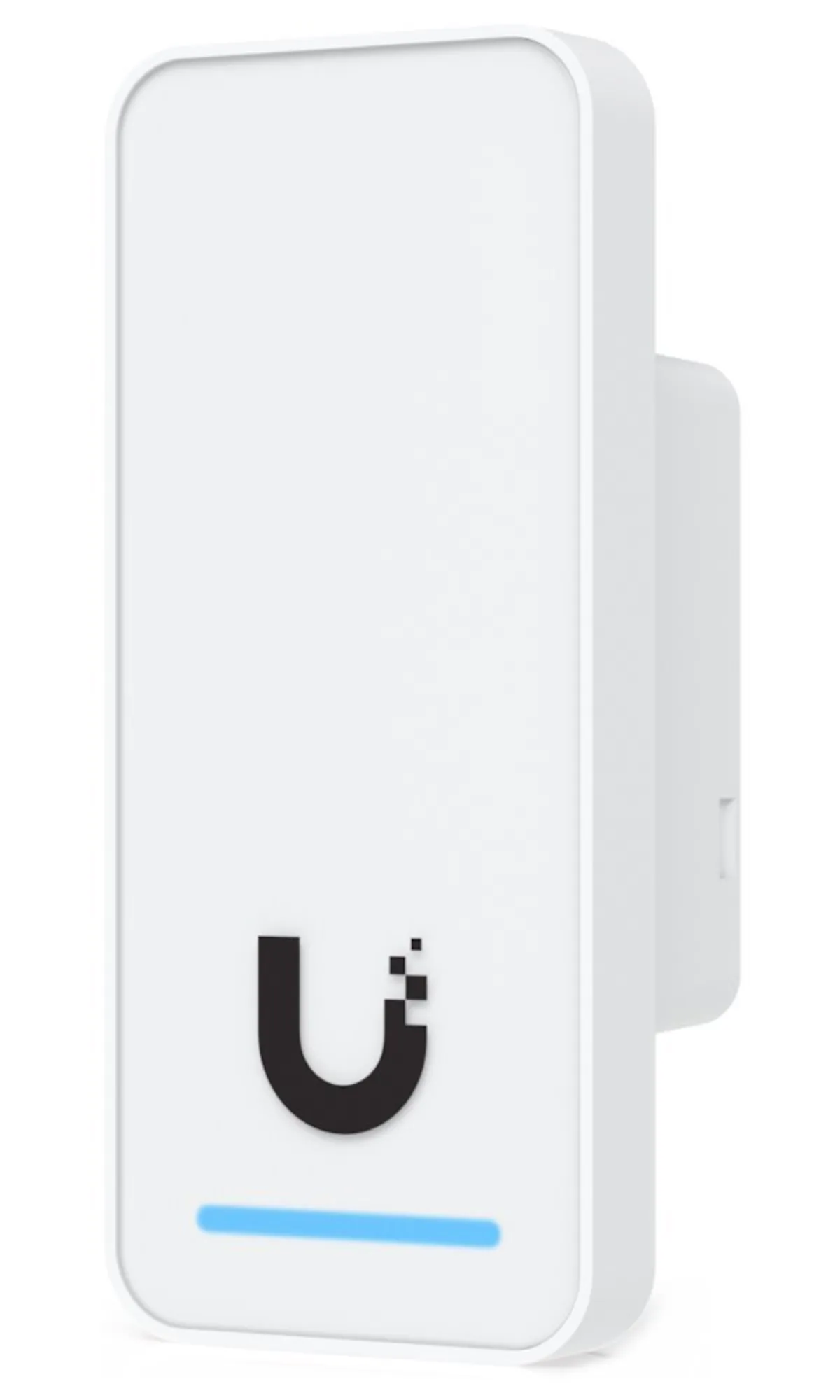

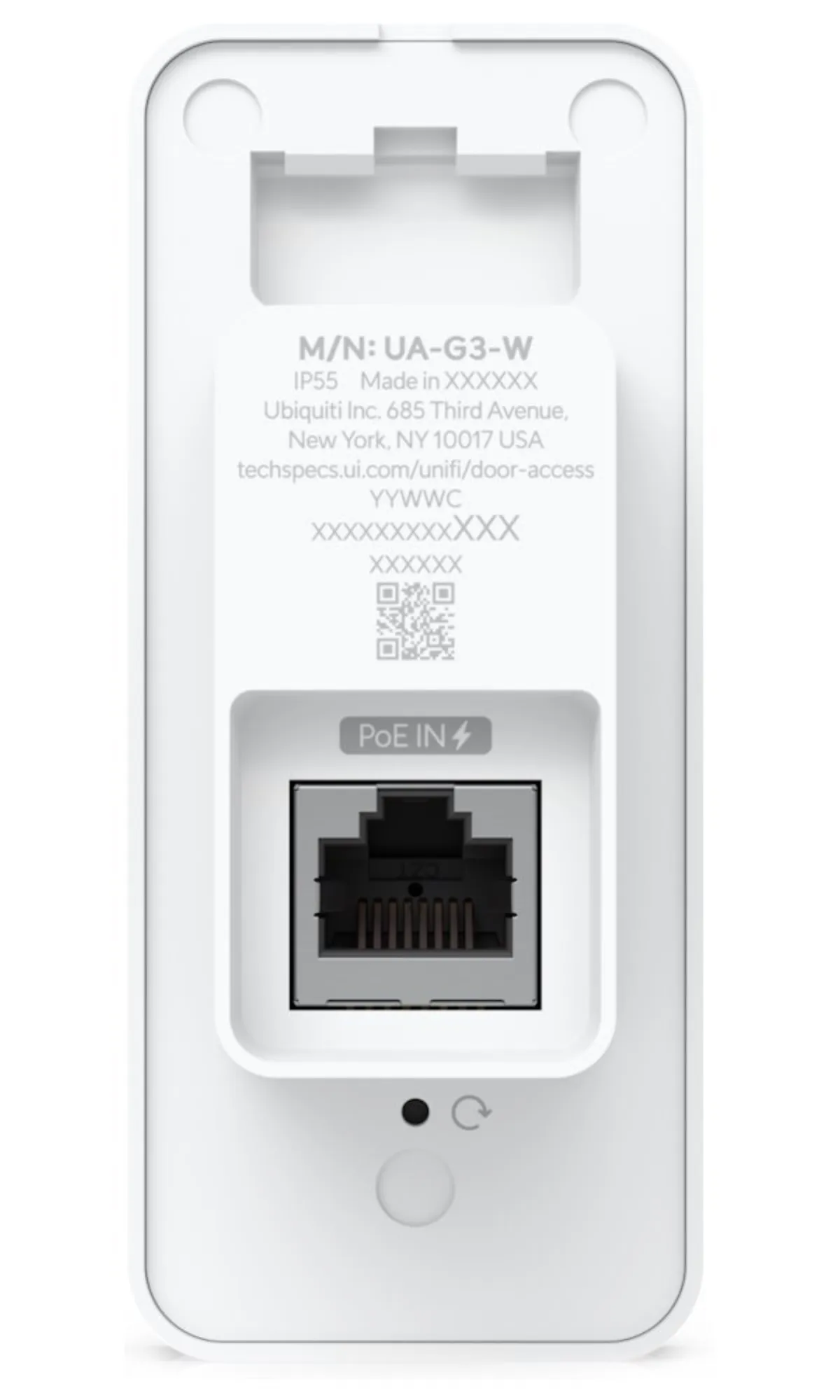

UA-G3-W

Mounting: flush

Interface

• 1× 10/100 Mbps RJ-45
• Bluetooth 4.1
• NFC (13.56 MHz
• Mifare)

Standards: ISO/IEC 14443A / 14443B / 15693 / 18092 (Ecma 340)

Technology

• MIFARE Classic / MIFARE DESFIRE
• Sony FeliCa (ID only)
• NFC Forum tags T1T, T2T, T3T, T4T and T5T
• ECP 2.0

Power

• PoE
• 48 V DC
• max. power consumption 5 W

Protection: IP55

Weight: 82 g

Dimensions: 93 × 40 × 36.5 mm

UA-Pocket

RFID standard: 13.56 MHz

Dimensions: 84 × 39 × 7.4 mm

Weight: 16 g
