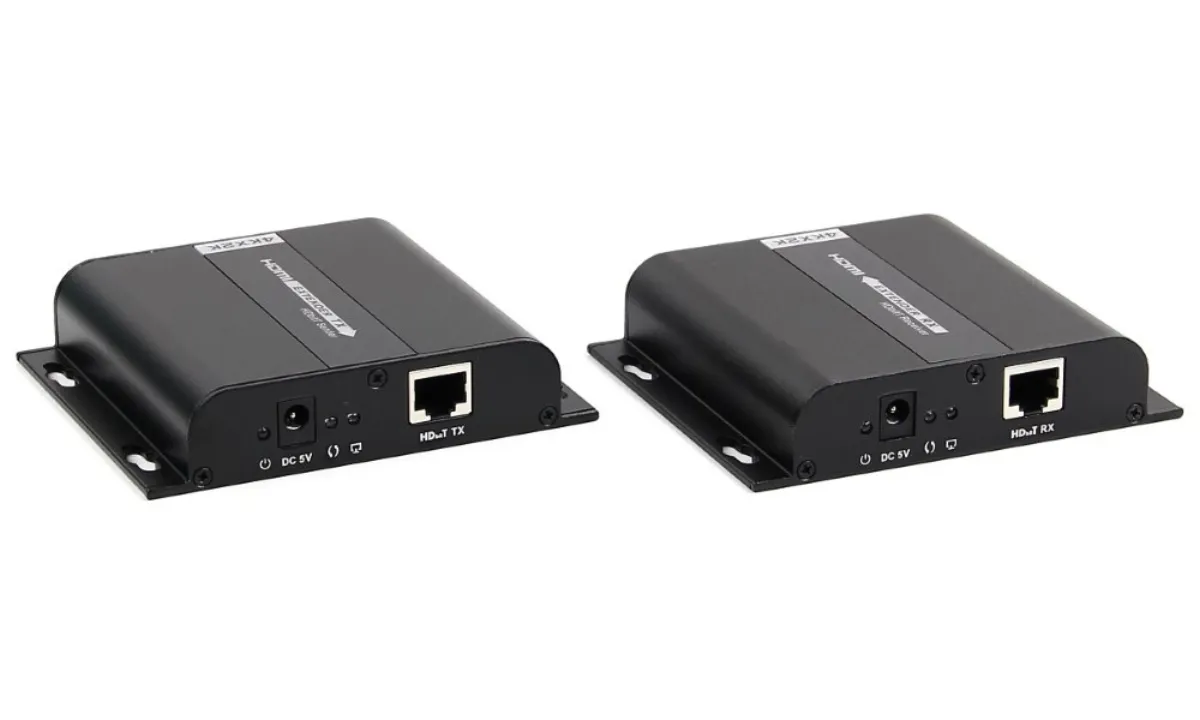

XtendLan HDMI transmission over LAN transmitter and receiver UDP Multicast 4k 2k 1080p with IR transmission control price per pair

XtendLan extender HDMI over LAN

With this extender, you can easily transmit an HDMI signal up to 120 m away. The converter (transmitter) converts a standard HDMI signal to a network LAN and uses standard Cat5/5e/6/7 cables to transmit it to the destination, where it is converted back to HDMI. This allows you to transmit images with a resolution of up to 4K safely and without loss of quality. The converters can be controlled remotely using an IR remote control. Both converters are powered by power adapters.

Supported resolutions

• 2K/4K at 24/25/30 Hz
• 1080p/i at 50/60 Hz
• 720p at 50/60 Hz
• 576p/i at 50 Hz
• 480p/i at 60Hz

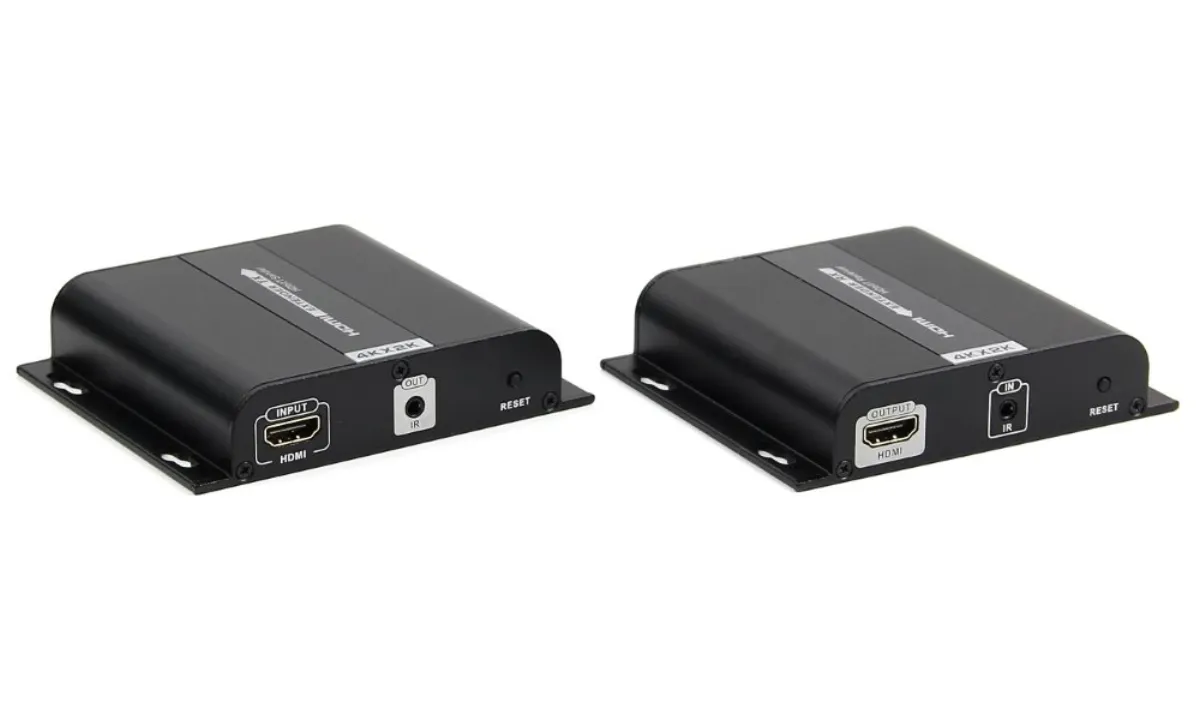

Connectors

• 1× HDMI input
• 1× HDMI output
• 2× RJ-45
• 2× IR input for remote control sensor

Transmission technology: via LAN cable

Maximum transmission distance: up to 120 m (on Cat6/Cat7 cabling for 1080p resolution (1920 × 1080 at 60 Hz)

Compatibility

• HDMI 1.4
• HDCP 1.4

Dimensions: 119 × 94 × 23.8 mm
