XtendLan HDMI transmission over LAN transmitter and receiver UDP Multicast 100Mbps@1080p

XtendLan HDMI LAN Transmission — Efficient Signal Distribution

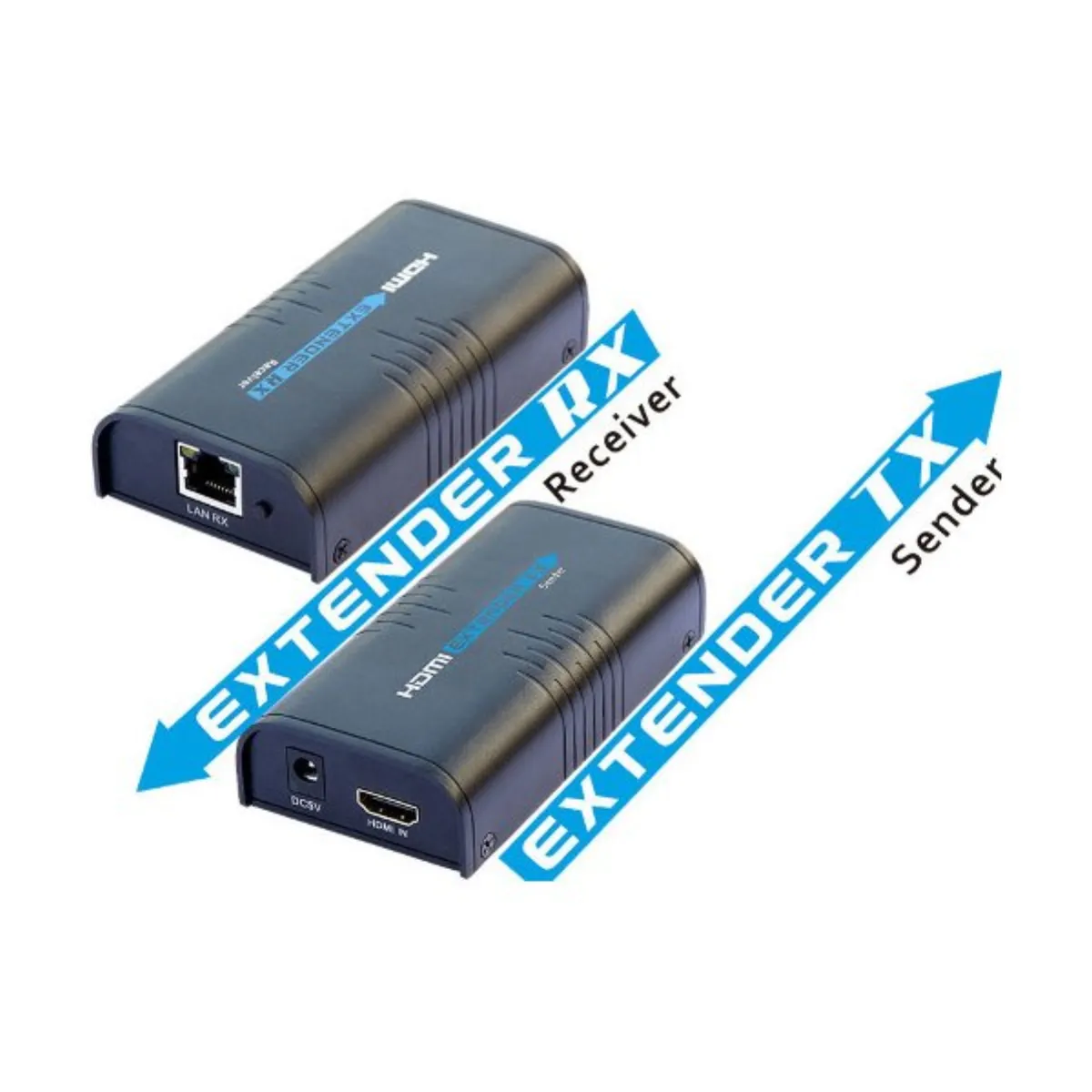

Do you need an efficient solution for transmitting HDMI signals over your existing network infrastructure? The XtendLan EHDMIC11-TRv2 kit includes a transmitter and receiver that enable the transmission of HDMI video and audio over a standard 100Mbps LAN network using the UDP/Multicast protocol. With support for resolutions up to 1920 × 1200 @ 60 Hz, the image is sharp and detailed, making it ideal for both professional and home applications. ipcolor STREAM™ technology ensures low latency of 80-130 ms, which is key for smooth, lag-free transmission. This solution is exceptional in its flexibility, with support for 1:1, 1:N, N:1 and N:N topologies and a capacity of up to 256 transmitters and 256 receivers.

Flexible installation and network compatibility

XtendLan HDMI LAN Transmission is designed to meet all your HDMI signal distribution needs. It supports Cat5e, Cat6 and higher cables with a range of up to 120 meters when using Cat6 cable, which makes installation easier even in large spaces. A gigabit IGMP switch is required for network connection, thanks to which the device can handle complex multicast transmissions. Switching and managing resources is conveniently done via the iMMS mobile application on iOS and Android devices, which ensures user-friendliness.

Reliability and protection

The device is designed for continuous operation 24/7 with minimal power consumption - the transmitter has a power consumption of ≤ 3.5 W and the receiver ≤ 3 W. The high-quality construction with an aluminum and steel housing provides long service life and durability. The device is protected against surges, lightning and electrostatic discharge according to the IEC 61000-4-2 standard, which increases its reliability in all conditions. The operating temperature range is -20 to +60 °C, which allows use in various environments.

Technical data

• Video interface (TX input / RX output): 1× HDMI 1.3
• Network interface: 1× RJ-45 (TX output / RX input), compatible with Cat5e/6
• Transmission protocol: UDP/Multicast
• Maximum resolution: 1920 × 1200 px @ 60 Hz
• Transmission range: Cat5 80 m, Cat5e 100 m, Cat6 120 m
• Audio: LPCM 2.0
• Power supply: DC 5V/1A (for TX and RX)
• Operating humidity: 0-90% RH (non-condensing)
• Transmission latency: 80-130 ms

Package contents

• Transmitter (TX)
• Receiver (RX)
• 2× DC 5V/1A power adapter
• User manual manual
