XtendLan HDMI transmission over LAN IP transmitter and receiver UDP 100Mbps@1080p transmission USB KVM function

XtendLan EHDMIC11U-TR

Transmission HDMI over LAN, especially KVM extender - HDMI signal transmission simultaneously with USB mouse and keyboard transmission, pair of devices (transmitter and receiver), HDMI is transmitted compressed (up to 100 Mbps), transmission in IPv4 UDP, unlimited range in terms of connection in LAN or Internet.

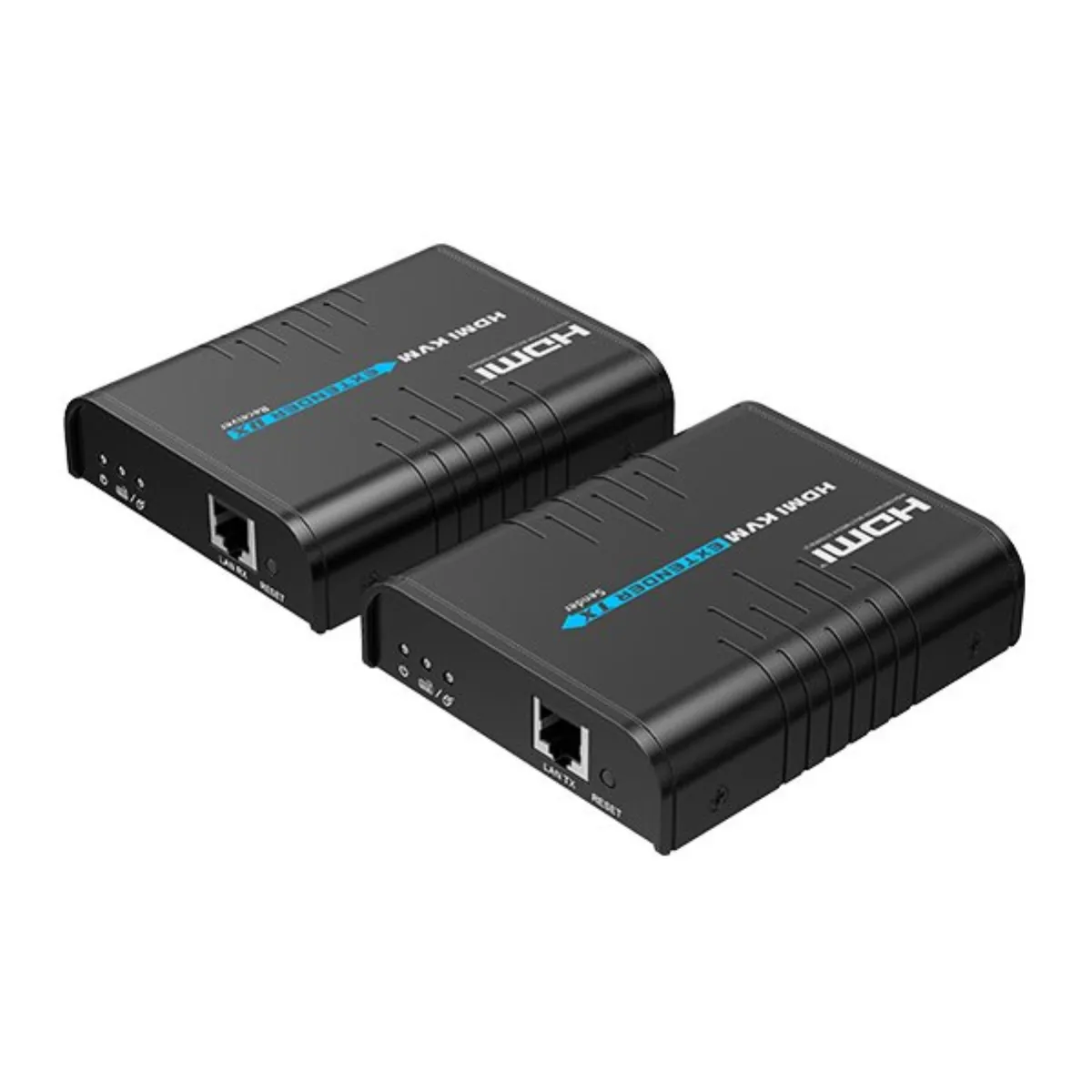

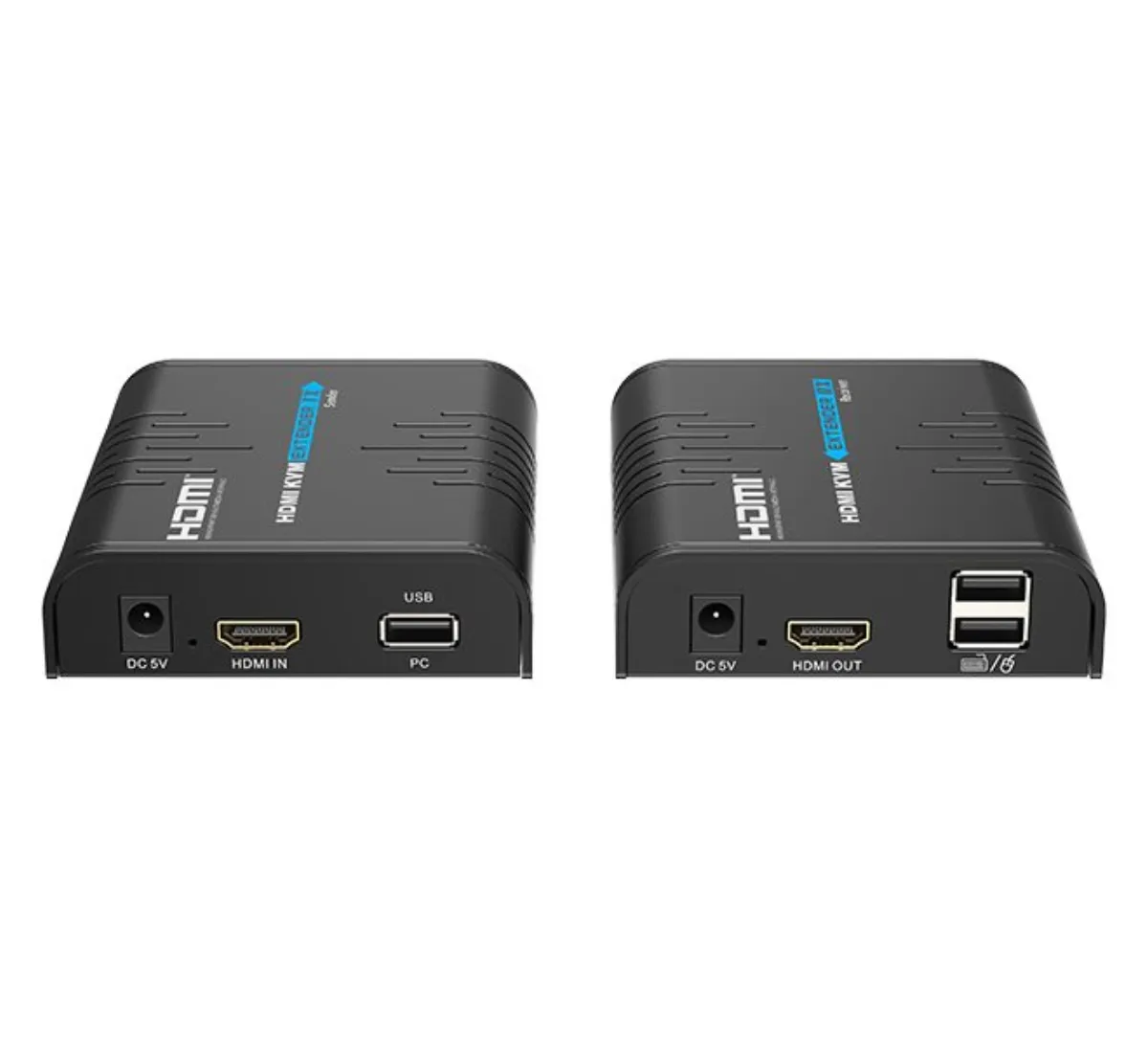

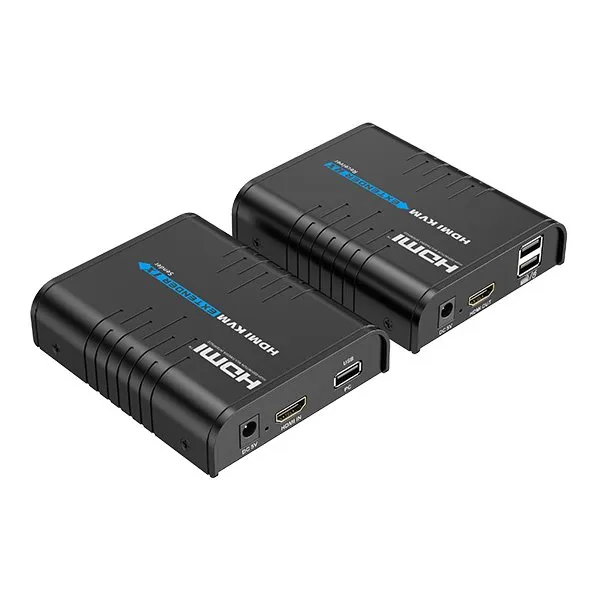

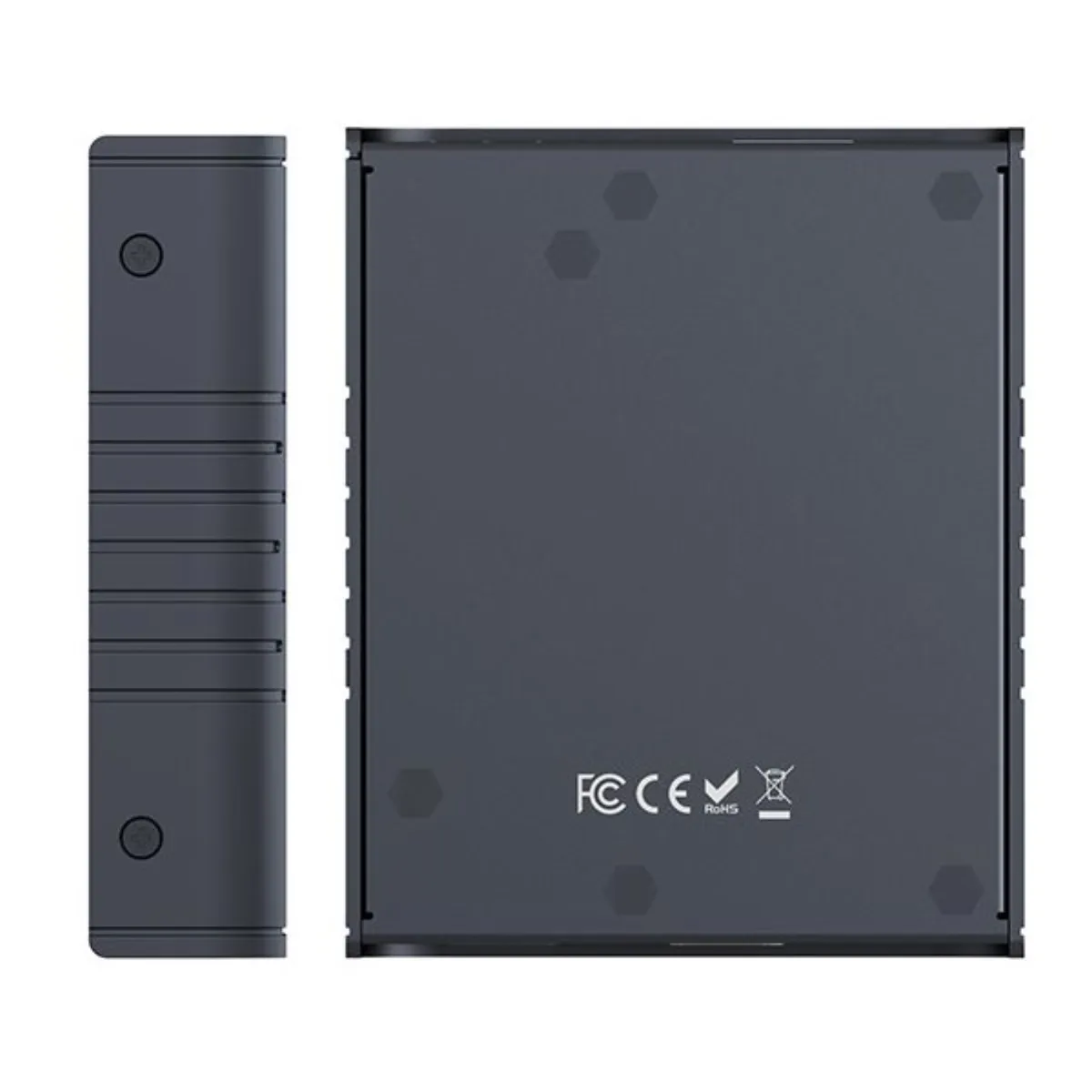

A pair of transmitter and receiver units that allow transmission of HDMI video and USB over IP networks. Typically intended for KVM applications, i.e. remote control of computers. The advantage is that it has practically unlimited range, the only condition is a LAN network. We therefore recommend it where the distance no longer allows the use of uncompressed HDMI transmissions over Cat5 cabling. Transmission is performed using the IP protocol, video in UDP multicast, bidirectional USB communication in UDP unicast.

To operate the mouse and keyboard, a USB driver must be installed in the controlled computer, for Windows platforms it is included. For Linux, it is already included in modern kernels, it is a driver for CH341 USB/RS-232 (in kernels since 2009). The capacity of the used transmission bandwidth was about 85 Mbps in our tests. The device is from the EHDMIC11xx model series and is therefore compatible with, for example, the EHDMIC11-R device. That is, you can use this EHDMIC11U-TR set as a source transmitter for many receivers without changing the KVM functionality in any way.

Note: The USB port cannot be used to transfer data from flash drives.

Features

• HDMI input, compatible with HDMI 1.3b, up to 1080p
• Supported resolutions (for 60 Hz): 640 x 480, 800 x 600, 1024 x 768, 1280 x 720, 1360 x 768, 1440 x 900, 1400 x 1050, 1680 x 1050, 1920 x 1080
• Connection via IP network (Ethernet, UDP multicast)
• Range given by the existence of a LAN network, e.g. using Ethernet converters and hubs can be expanded unlimitedly
• HDMI signal is compressed to a level of up to 100 Mbit/s, it is not a lossless transmission
• LED activity/power indicator
• USB transmission for keyboard and mouse, USB 1.0 standard, also accepts USB 2.0 only reduces them to 1.0

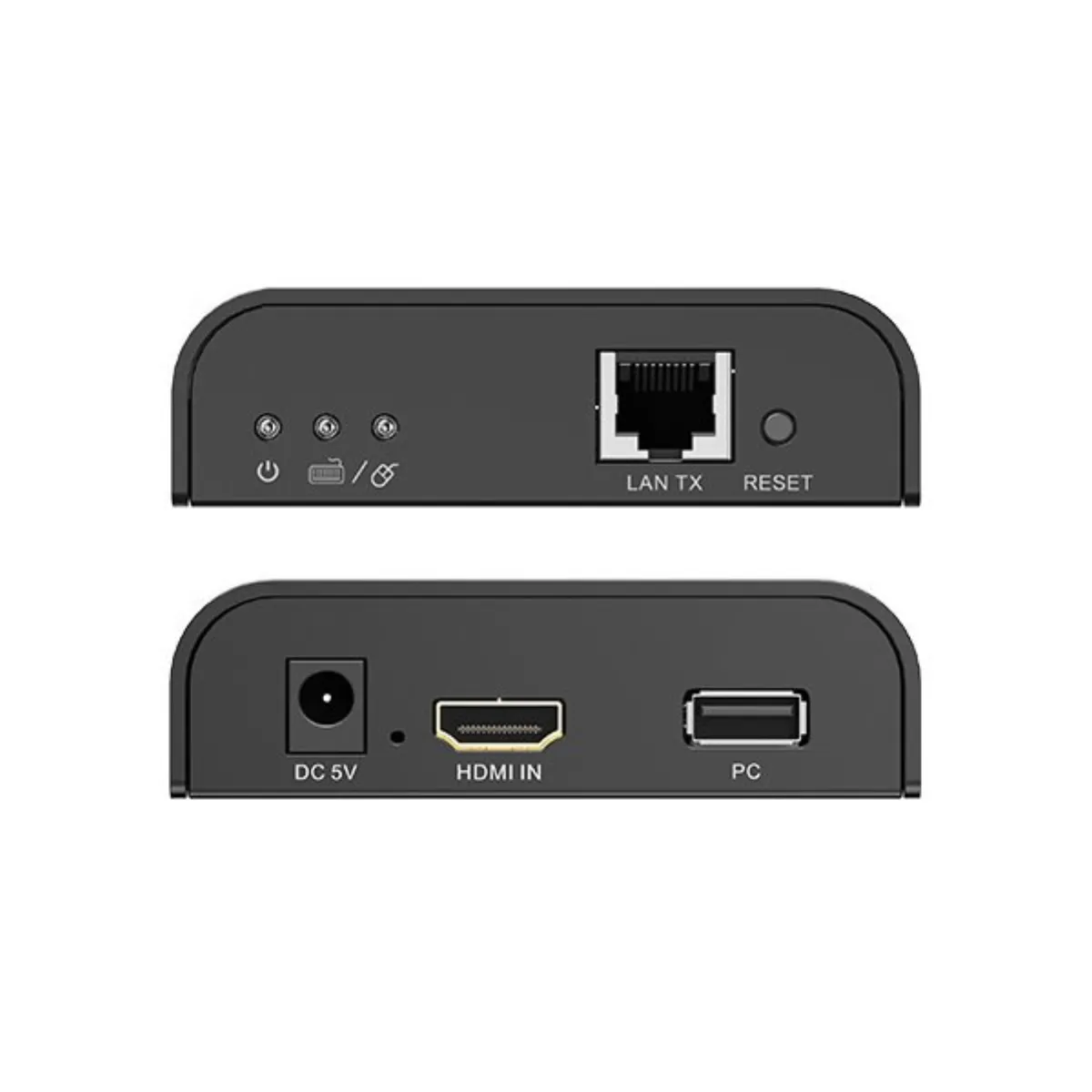

Transmitting side

Input

• 1x HDMI
• typically connected to the output of the PC graphics card

LAN

• 10/100 Mbps
• RJ-45
• 10/100 Base-TX

USB

• 1x USB port
• typically for connecting to a USB port in a PC

Power

• DC 5 V (component power supply)
• power consumption up to 3.5 W

Dimensions: 109.6 x 89.5 x 26.3 mm

Weight: 240 g

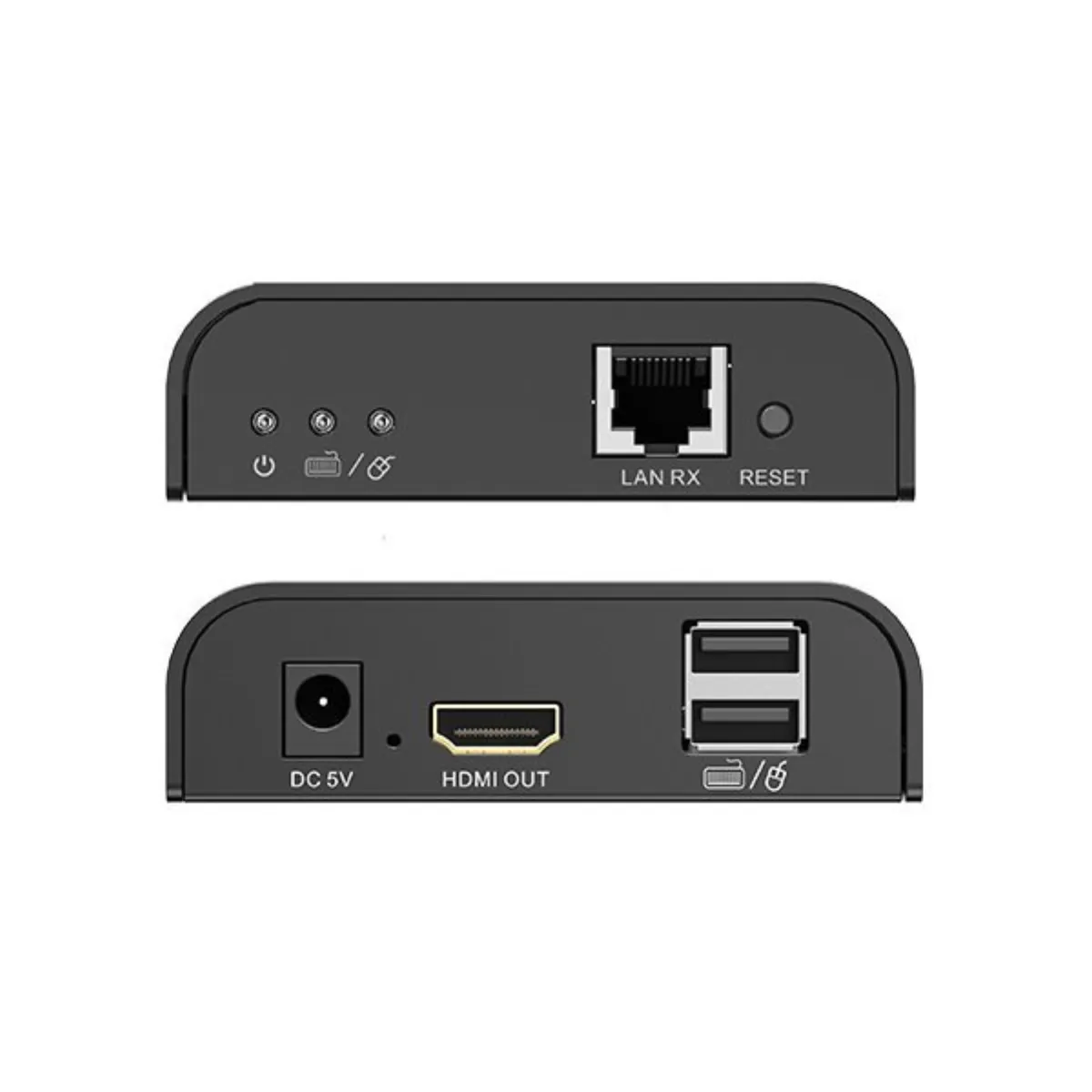

Receiving side

Output: 1x HDMI

LAN

• 10/100 Mbps
• RJ-45
• 10/100 Base-TX

USB

• 2x USB port
• typically for connecting a keyboard and mouse

Power supply

• DC 5 V DC (included power supply)
• Power consumption up to 3.5 W

Dimensions: 109.6 x 89.5 x 26.3 mm

Weight: 240 g
