Ubiquiti UISP Wave MLO5 5GHz radio for PtP connections MLO 4096QAM SFP+ port throughput 5+ Gbps

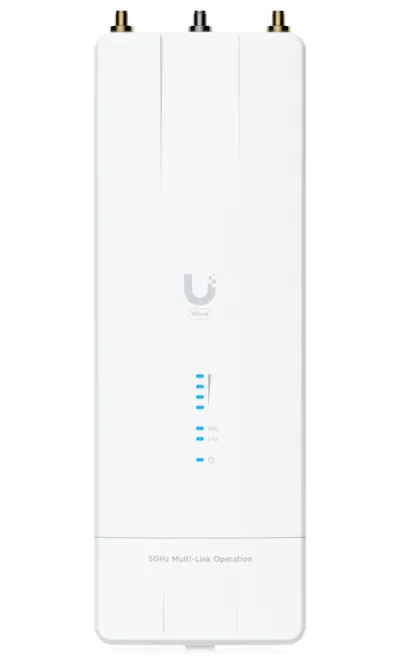

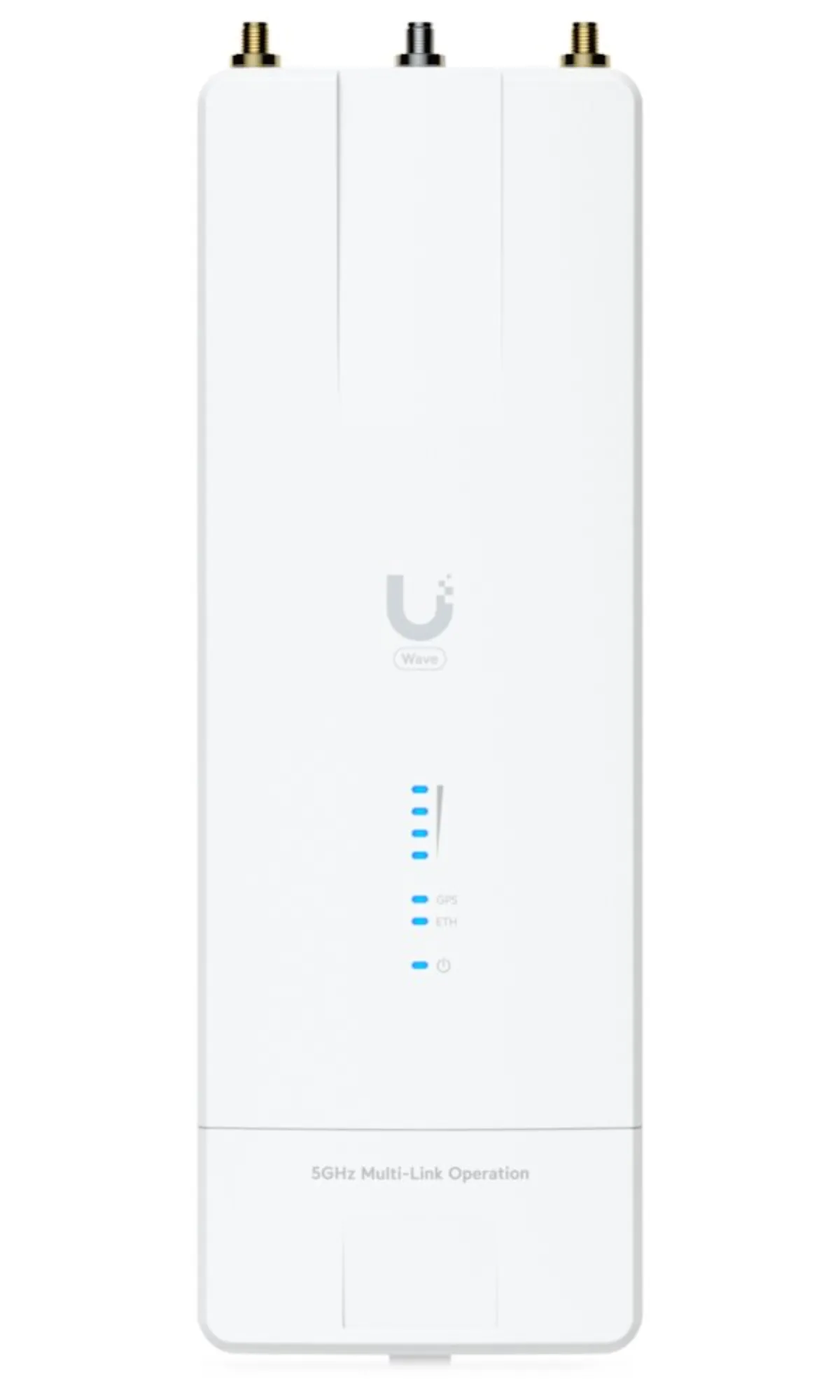

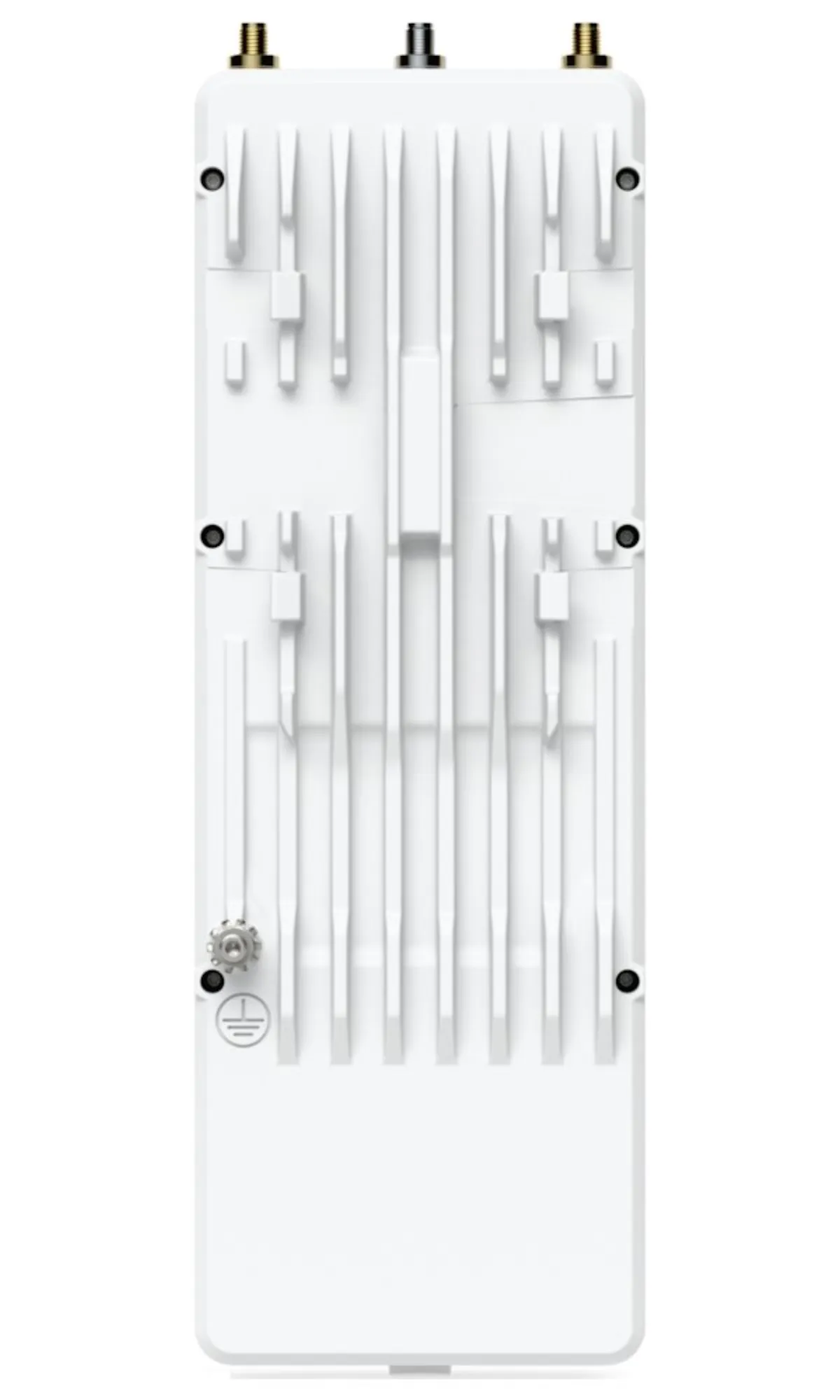

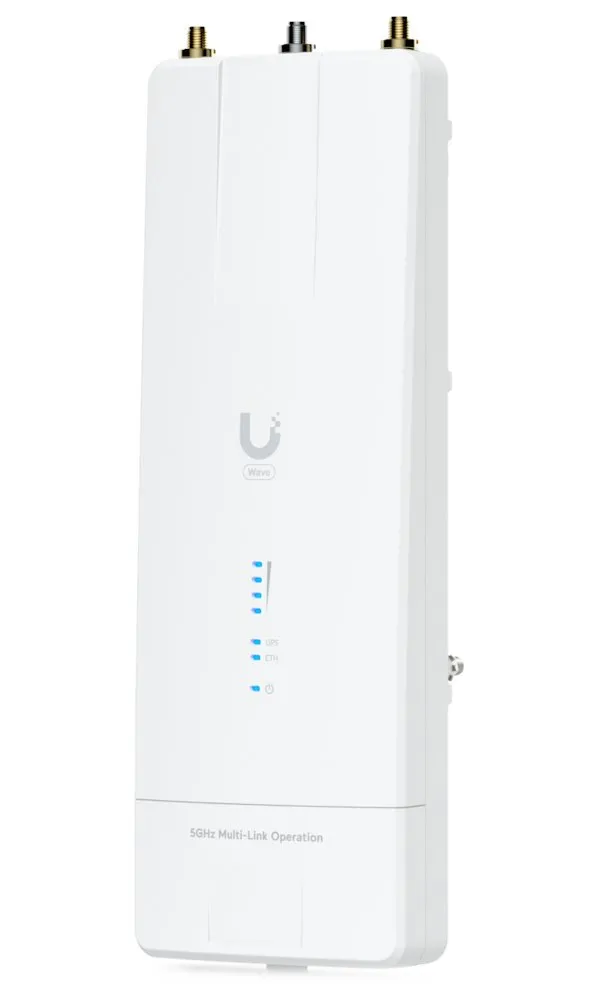

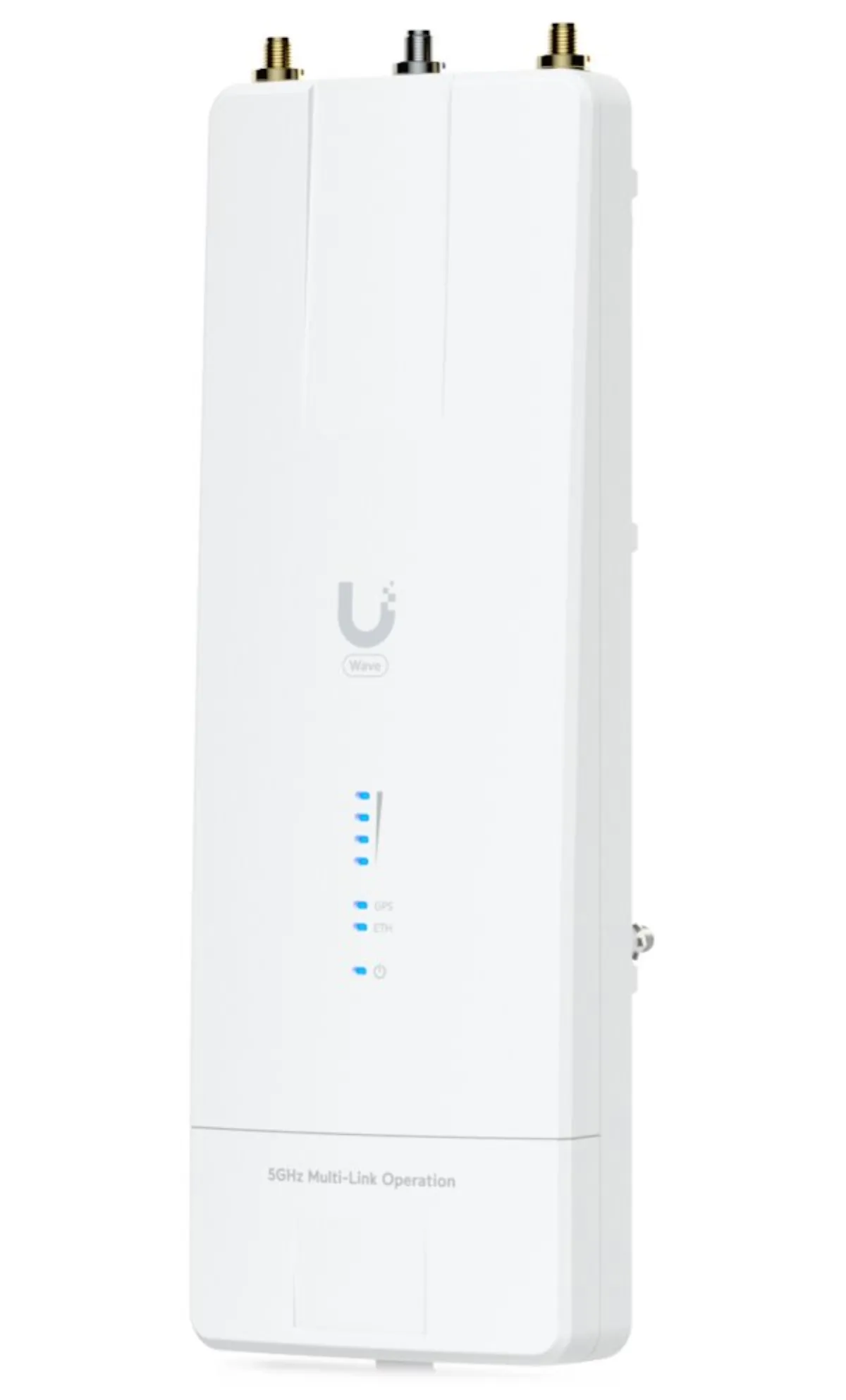

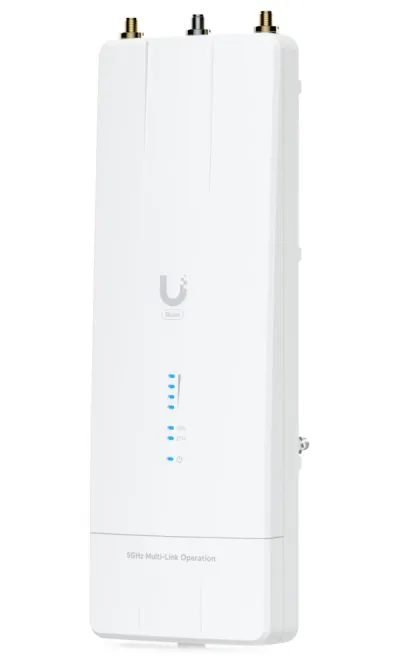

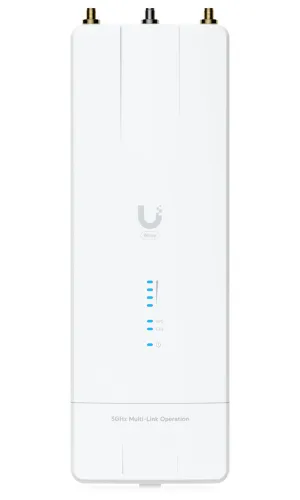

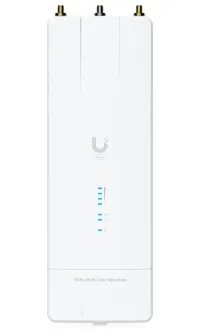

Ubiquiti UISP Wave MLO5

High-performance dual-band 5 GHz Wi-Fi 7 Based unit with Multi-Link Operation (MLO) technology, which ensures higher throughput and reliable connection. Top performance is guaranteed by the quad-core IPQ5322 processor with a clock speed of 1.5 GHz and DDR4 memory 1 GB. The device is fully compatible with airMAX, airFiber X, UISP Dish and UISP Horn antennas, which ensures maximum deployment flexibility. Designed for easy mounting on a mast.

• 1× 10GbE RJ-45 and 1× SFP+
• Dedicated radio for spectrum analysis
• 5 GHz, 100+ km range
• GPS support
• 5+ Gbps throughput
• Channel Puncturing
• Bluetooth wireless connection

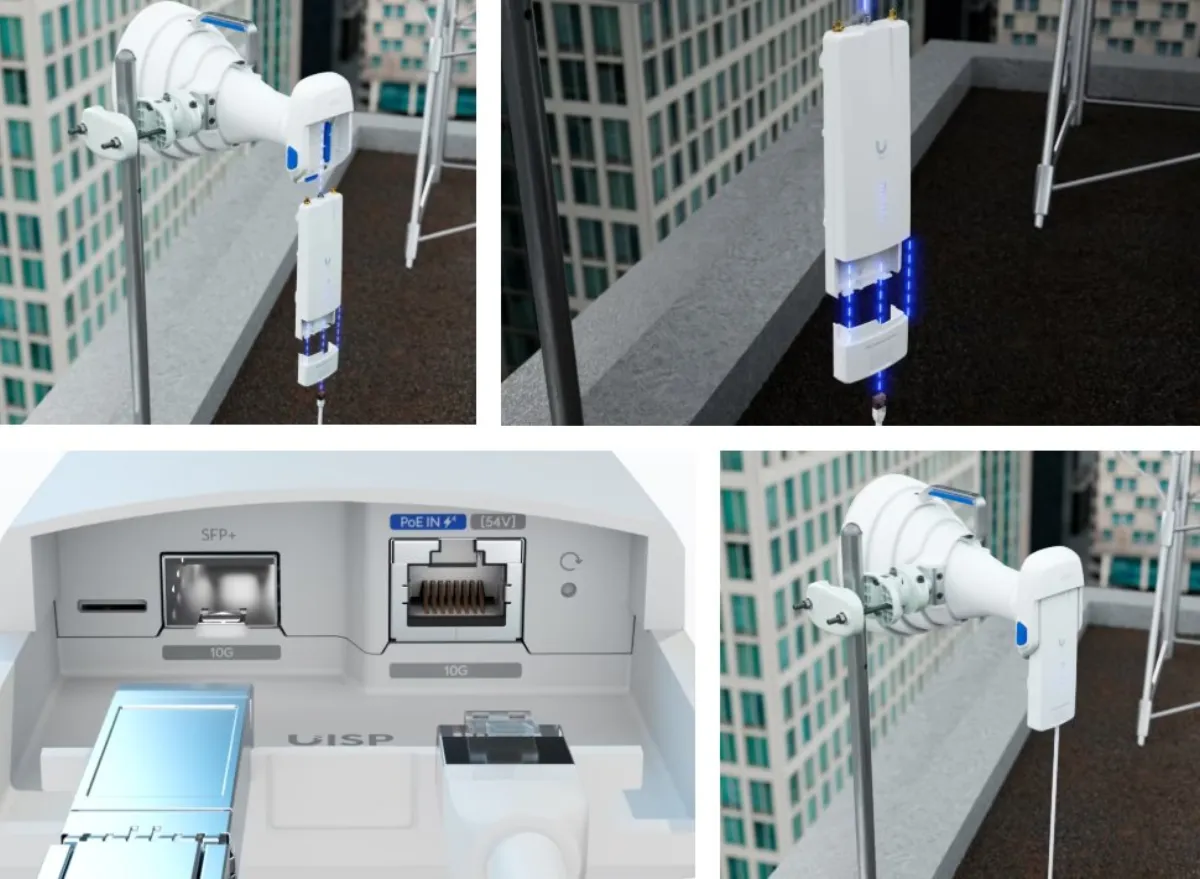

• Pole mounting diameter: 25.4-50.8 mm (1" to 2") on the outer diameter of the pipe/mast

Compatibility

• airMAX antenna
• airFiber X antenna
• UISP Dish and UISP Horn

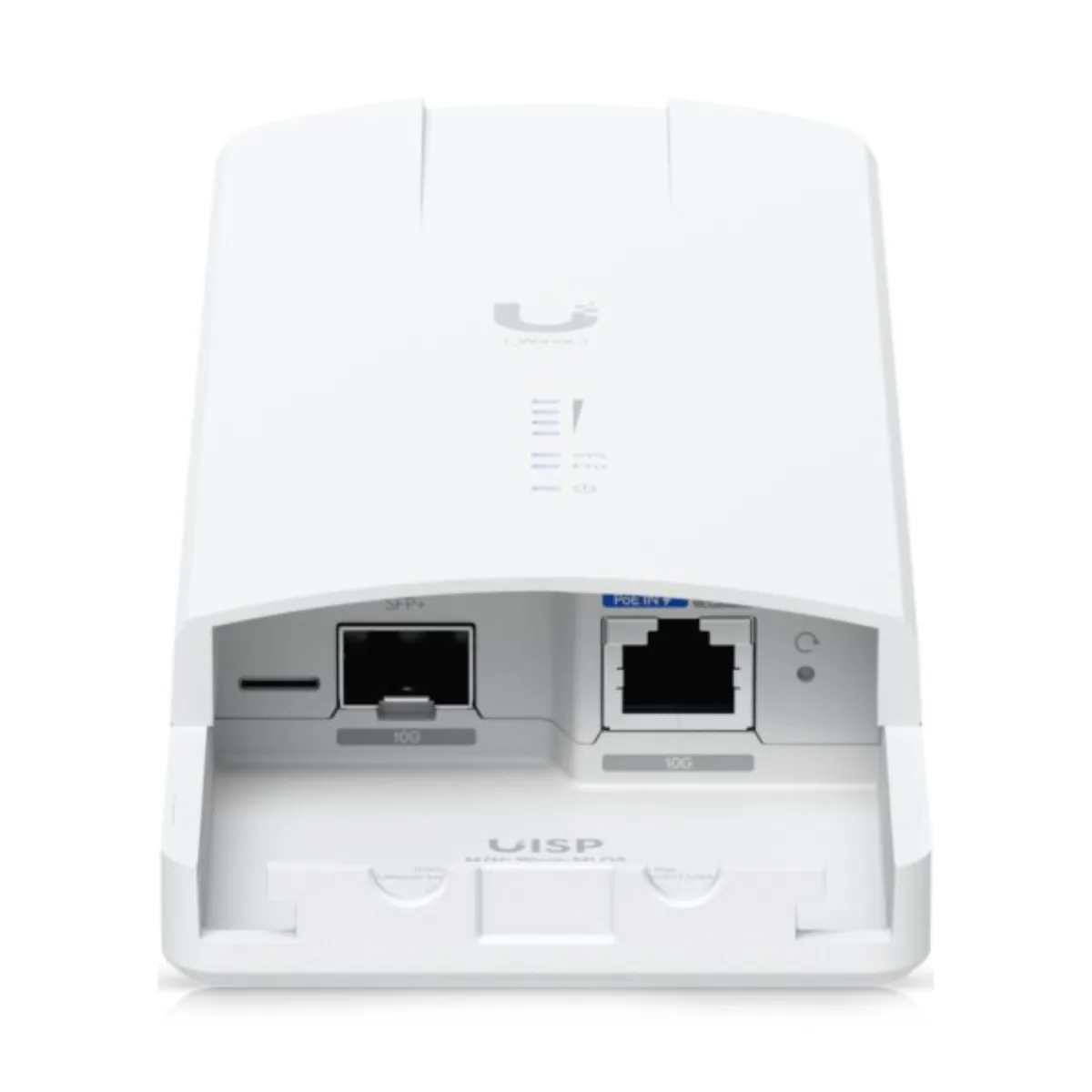

Interface

• 1× 10G RJ-45
• 1× 10G SFP+

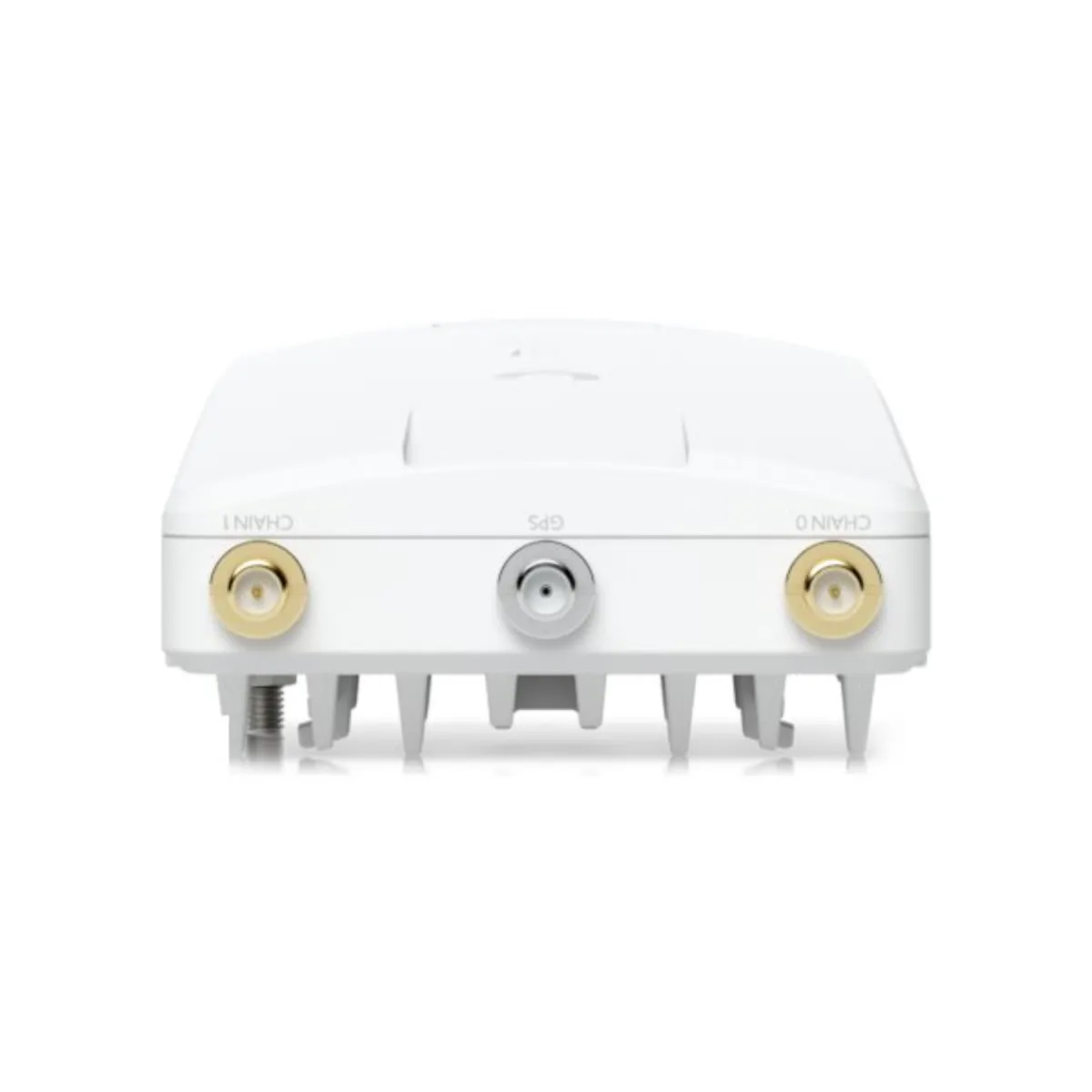

• 2× RP-SMA connector
• 1× GPS antenna connector

PoE support

• yes
• passive PoE

Power

• 54 V DC
• 0.56 A
• 10 GbE PoE adapter (included)

Supported voltage range

• 44-54 V DC
• 22-27 V DC

Power supply method

• passive PoE 4 pairs (1
• 2+; 3
• 6-) (4
• 5+; 7
• 8-)
• passive PoE 2 pairs (4
• 5+; 7
• 8-)
• only for 44-54 V DC

Power consumption: max. 20 W

Protection rating: IPX6

Operating temperature: -40 to +60 °C

Dimensions: 249.3 × 82 × 47.6 mm
