Ubiquiti Wave AP - 60GHz PtMP AP 24 dBi 5GHz backup angle 30° SFP+ port throughput 5.4Gbps

Ubiquiti UISP Wave Access Point

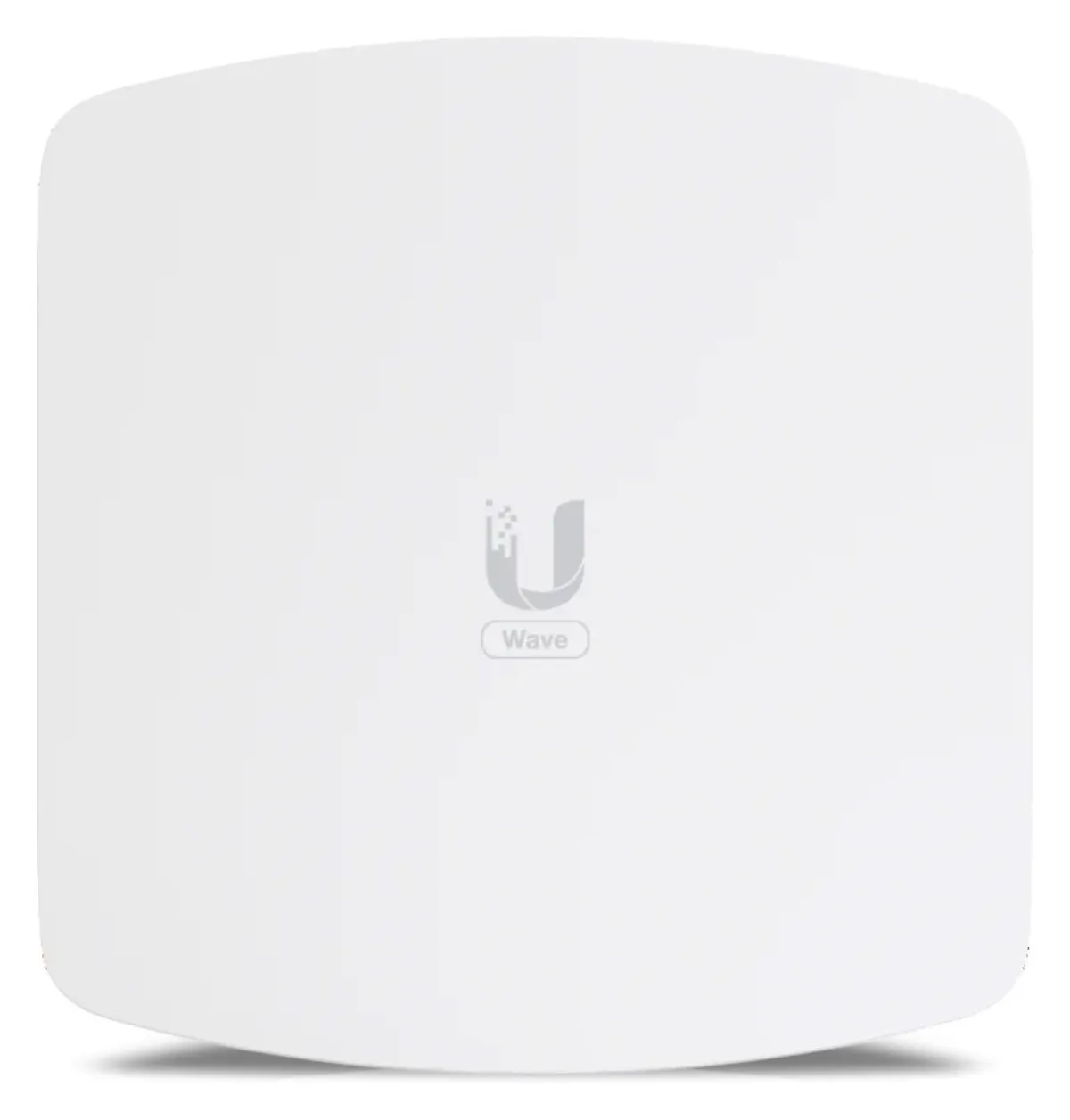

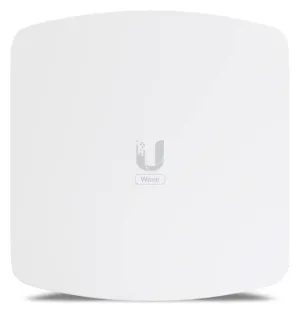

Wave-AP is a 60 GHz outdoor access point designed for PtMP connections (Point-to-Multipoint) with Wave technology. It is compatible with Wave Long-Range and Wave Nano units. The range of the AP is 5 or 8 km (depending on the station), the gain is 24 dBi and the total throughput is 5.4 Gbps (2.7 Gbps duplex). The Wave-AP access point is also equipped with a powerful backup 5 GHz radio that ensures an uninterrupted connection. The unit is also equipped with a Bluetooth management interface, so it can be easily set up and configured using the UISP Mobile app.

Features

• Wave technology, PtMP access point, for connecting up to 15 stations/units
• Total throughput up to 5.4 Gb/s (2.7 Gb/s duplex)
• Quad ARM Cortex-A53 (1.4 GHz) + 512 MB DDR3L, airOS operating system
• Backup 5 GHz connection (802.11ax Wi-Fi 6)
• Connection range 5 or 8 km (depending on the station)
• Integrated GPS
• Connection planning support through ISP Design Center

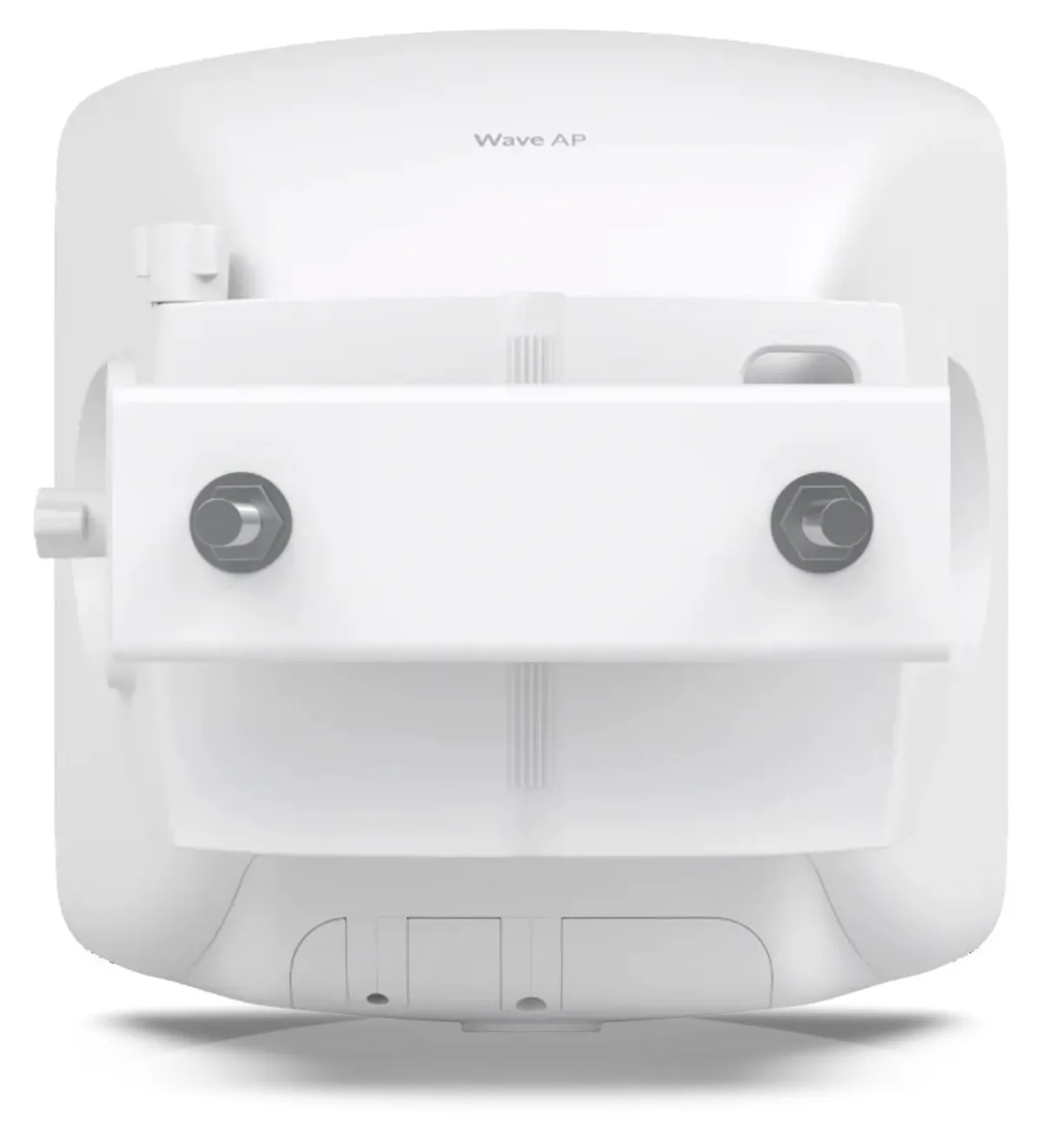

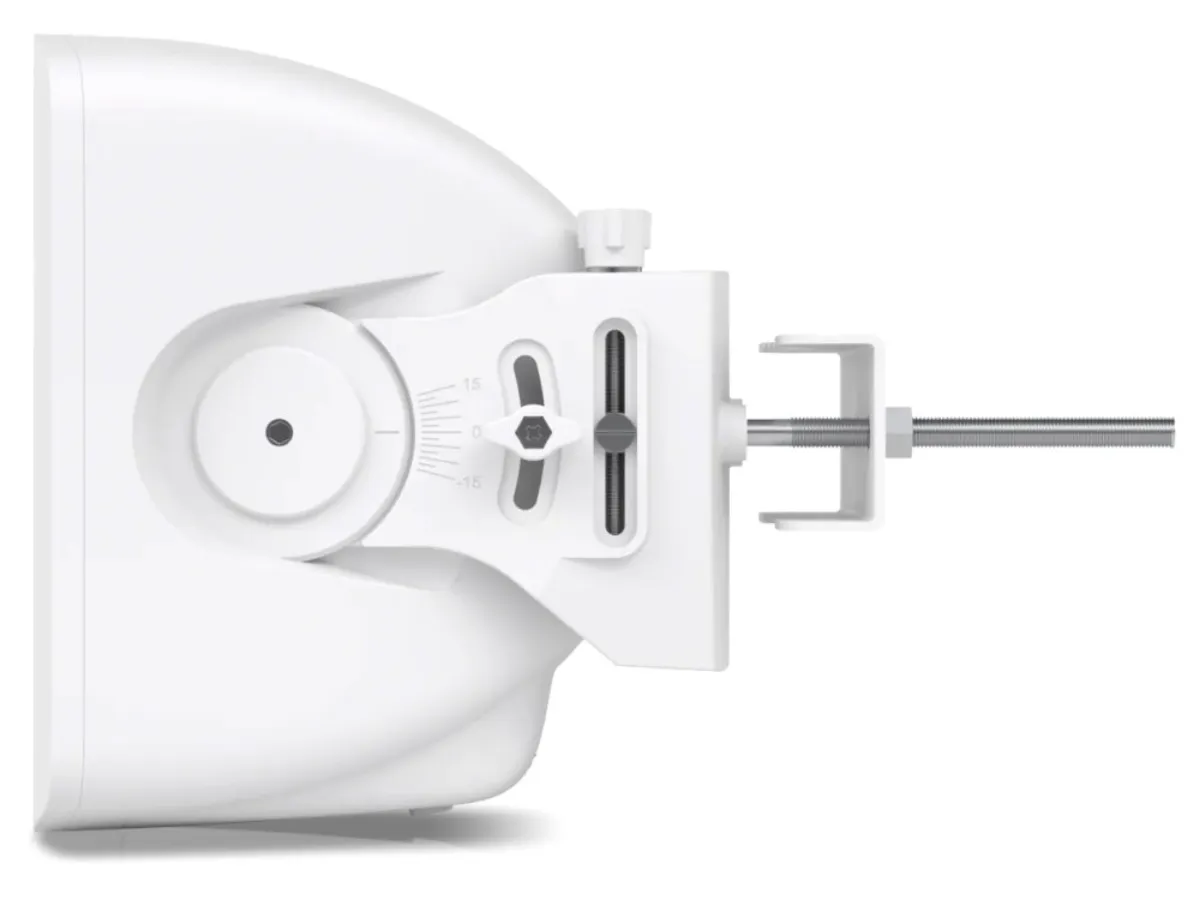

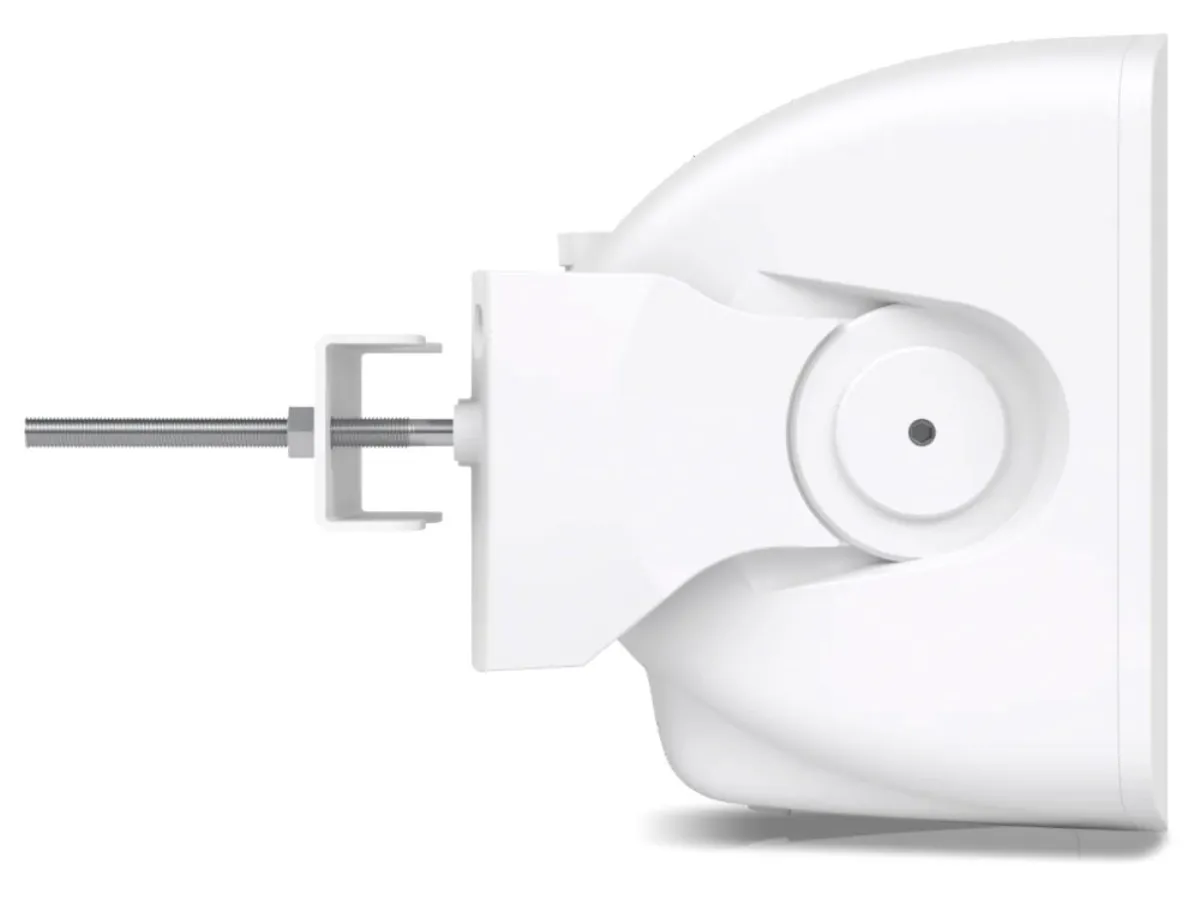

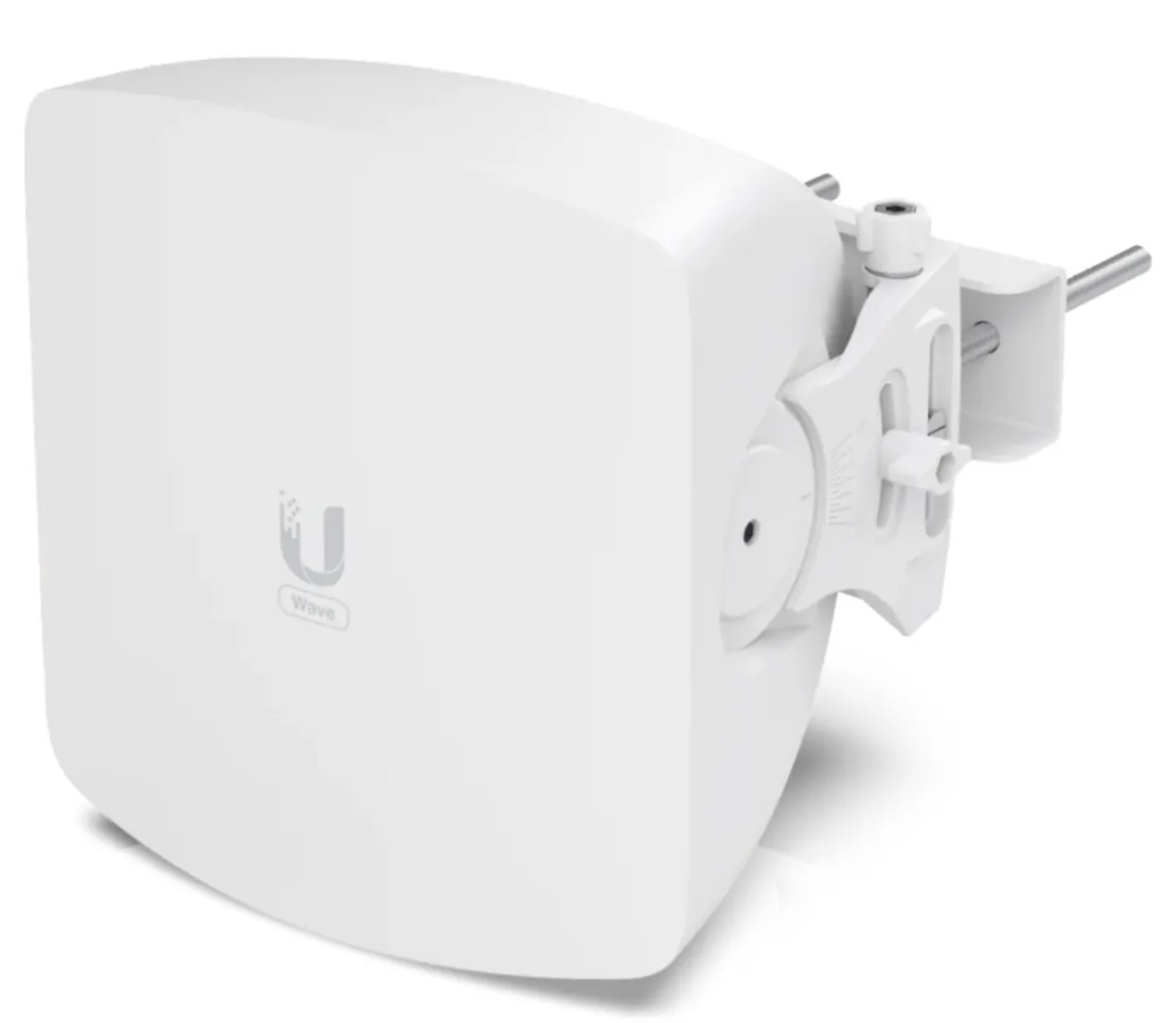

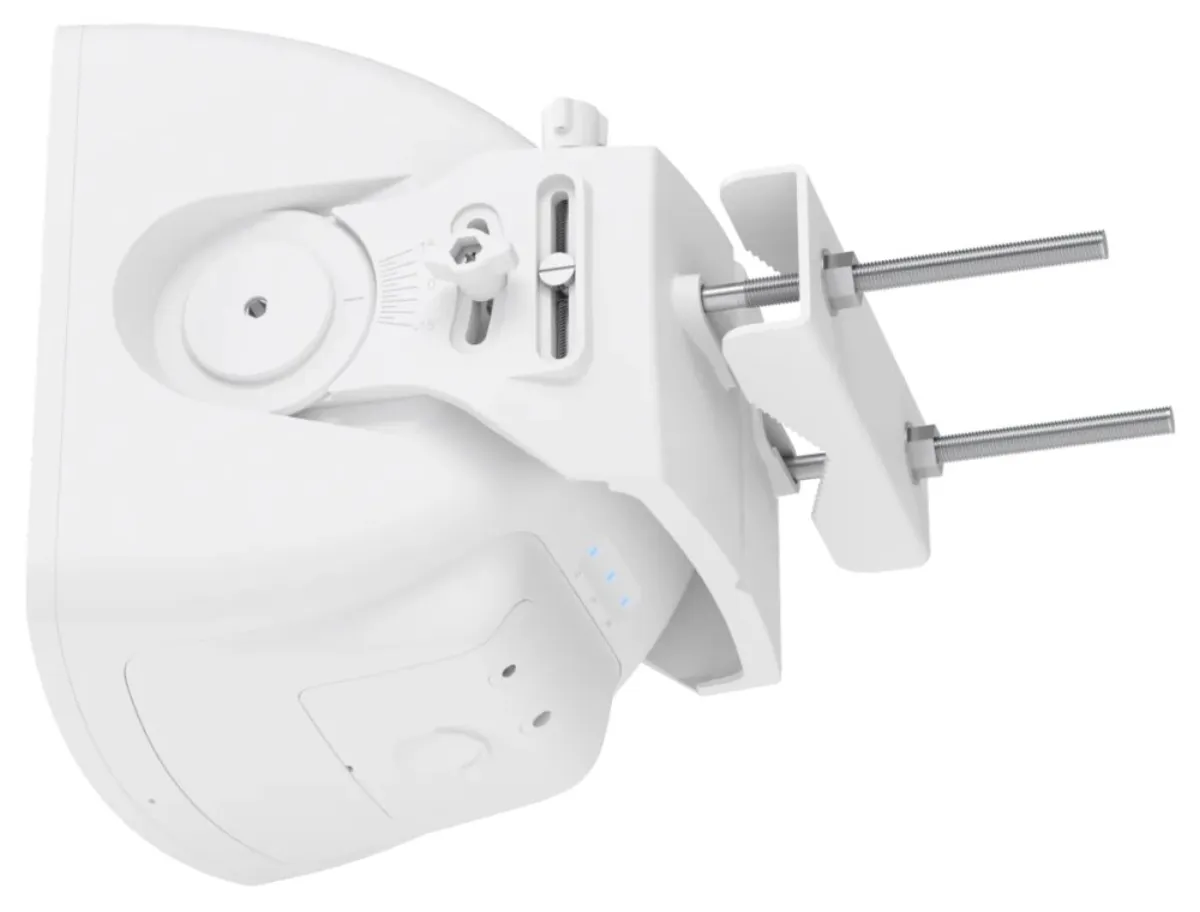

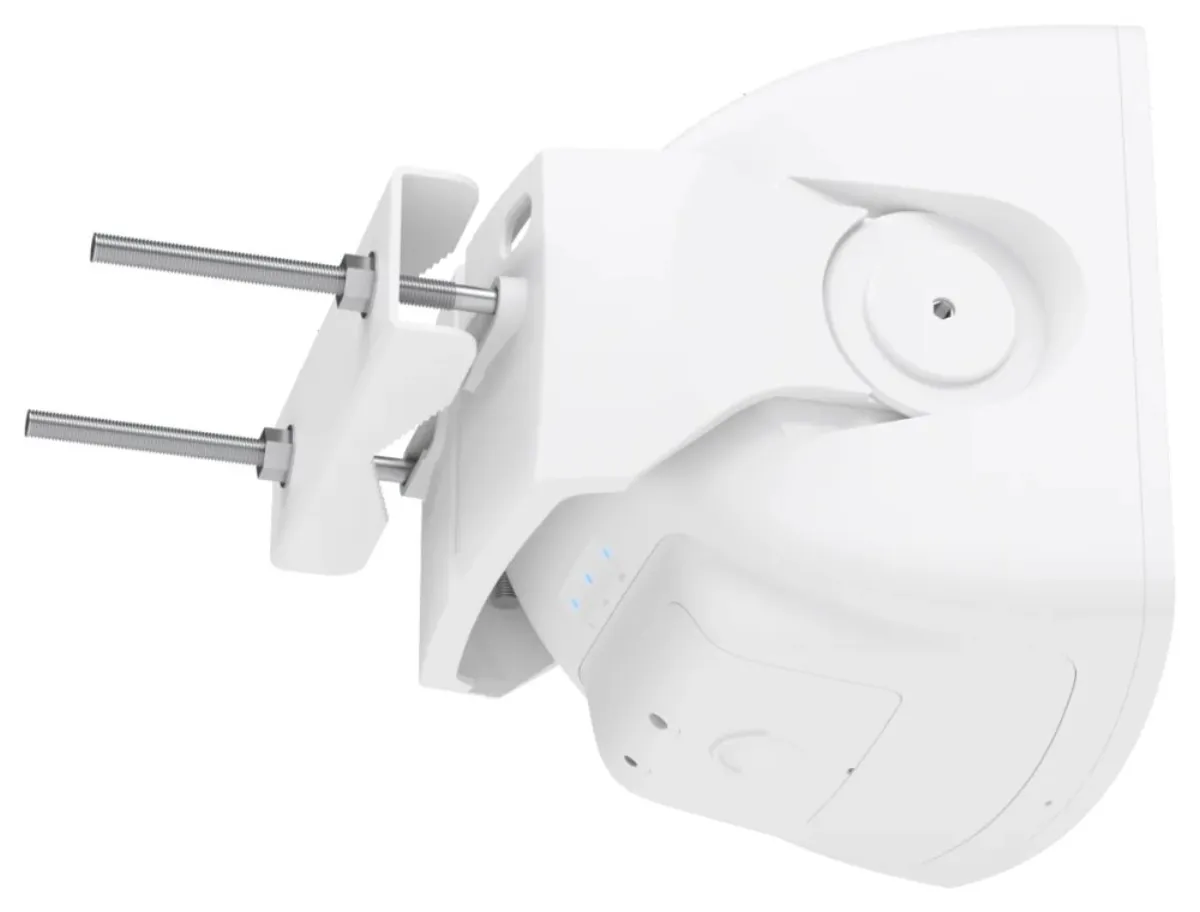

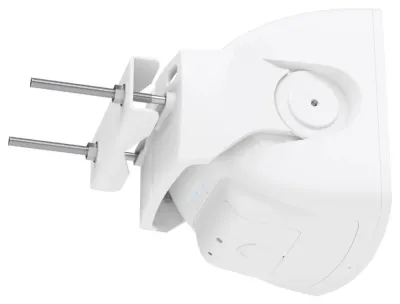

• Pole mounting (⌀ 25 to 76 mm)

Management with UISP application: version 1.5.7 or later

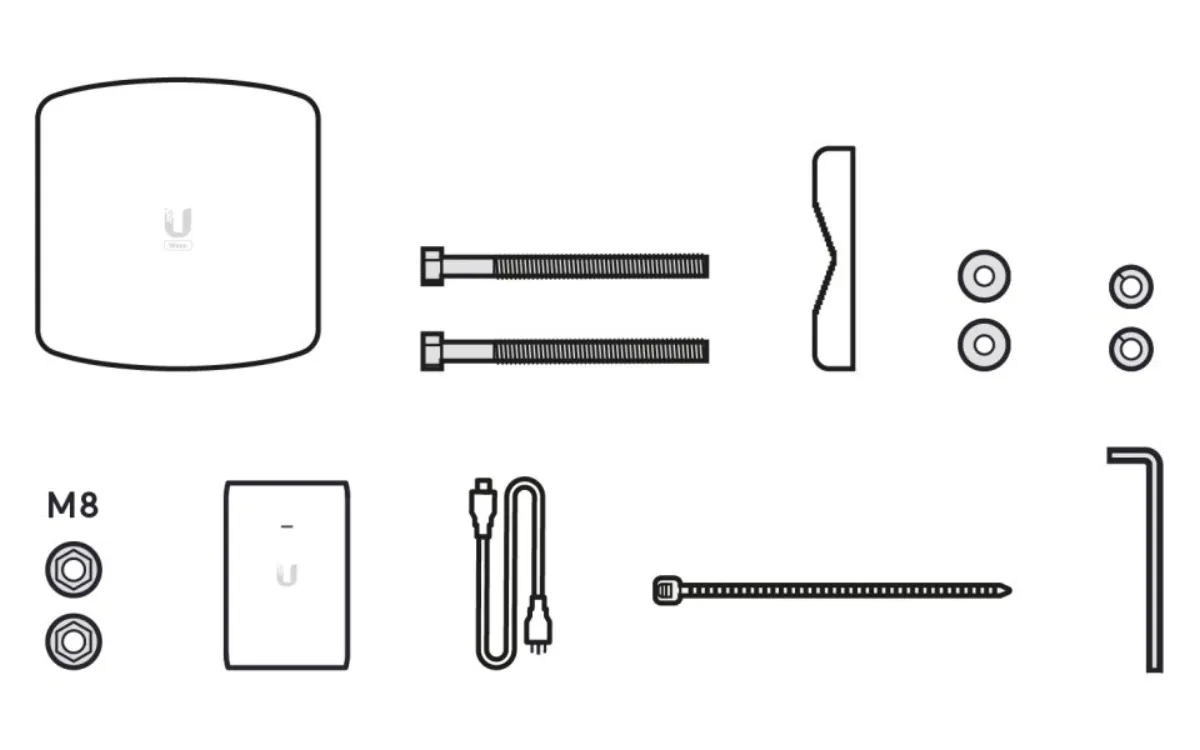

Package includes 2.5GbE Power PoE Injector 48V (0.65A) and Pole Mount.

Frequency band

• 60 GHz (operating 57-71 GHz)
• 5 GHz backups

Throughput: 5.4 Gbps (2.7 Gbps duplex)

Interface

• 1× 2.5 GbE RJ-45
• 1× 10G SFP+
• Wave technology

Antenna gain: 24 dBi (12 dBi for 5 GHz backup)

Beam width

• azimuth 30°
• elevation 3° (3 dB); 4° (6dB)

PoE support

• yes
• passive PoE 48 V or 24 V

Max. range

• 5 km (Wave Nano)
• 8 km (Wave Long-Range)

Weather resistance: IPX6

Dimensions: 212 x 205 x 187 mm

Weight: 2.3 kg
