TP-Link VIGI NVR1016H 16-channel network video recorder VIGI remote access ONVIF two-way audio up to 10TB HDD

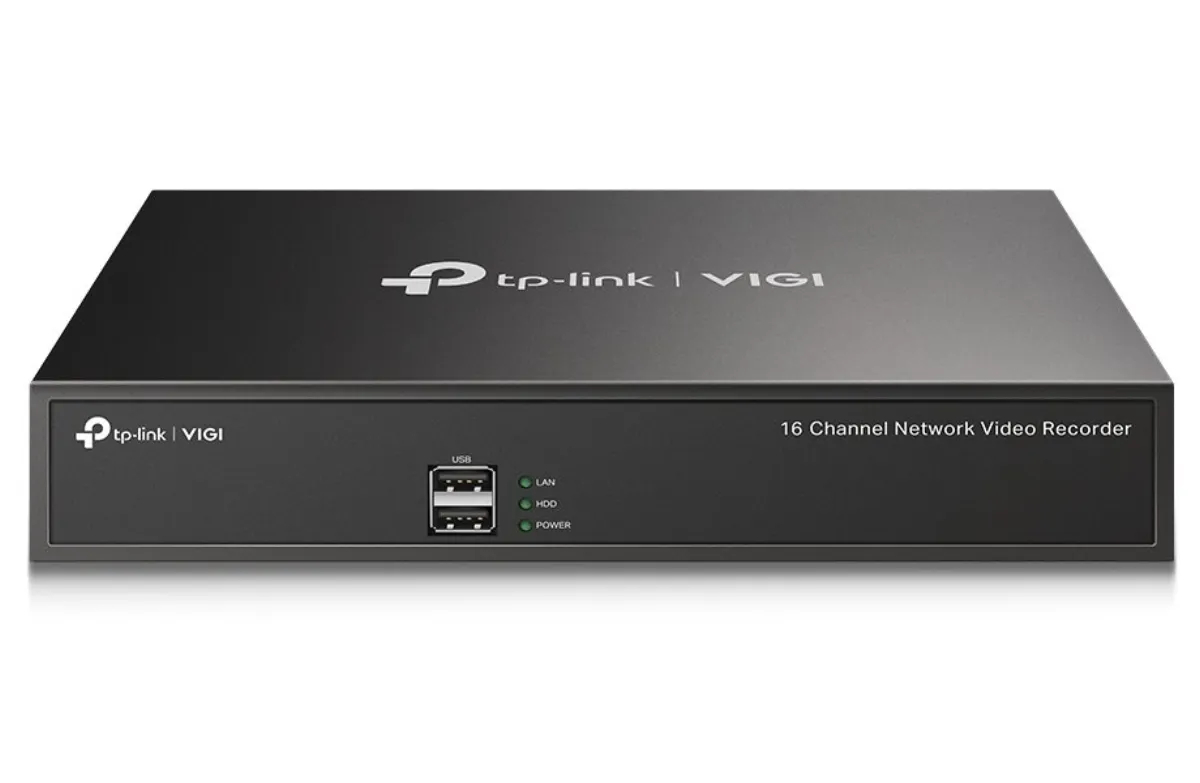

TP-Link VIGI NVR1016H

16-channel VIGI network video recorder

Recording device for 16 IP cameras. Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mbps are allowed. Support live view, storage and playback of connected cameras. The device also supports third-party cameras (ONVIF) and H.265+ decoding, which saves data volume/traffic. There is 1 SATA hard disk slot with a capacity of up to 10 TB/disk.

• 24/7 continuous recording: Stores up to 10 TB of recordings from connected cameras and secures data for quick and convenient access.
• 16-channel real-time live view: Sharp image resolution of up to 8 Mpx and 16-channel display ensure that all details are captured from every angle.
• Quick Search and Playback: Easily search for target footage by date, event types and tags. Variable speed playback for quick viewing of recordings.
• Remote Monitoring: The special VIGI APP is developed for easy and convenient remote monitoring.
• H.265+: The camera transmits compressed crystal clear images without using any additional bandwidth, saving disk space, reducing network load and monitoring costs without losing image quality.
• ONVIF Compatibility Assurance*: With barrier-free compatibility, you can easily add IPCs from VIGI and other brands to create a powerful and diverse network.
• Single HDD Interface (up to 10TB): Up to 10TB (up to 720 days of video) can be stored on the SATA HDD, so your data is safely stored locally.
• Two-way audio: With voice intercom support, you can have a two-way conversation while monitoring your channel from anywhere. Suitable for management.
• 80 Mbit/s video access bandwidth: With the large video access bandwidth, the NVR can handle multiple high-definition cameras. Based on laboratory tests with VIGI cameras, the VIGI NVR can handle up to 16 4Mpx cameras.

Number of channels: 16

Supported resolutions (recording)

• 8 Mpx
• 5 Mpx
• 4 Mpx
• 3 Mpx
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

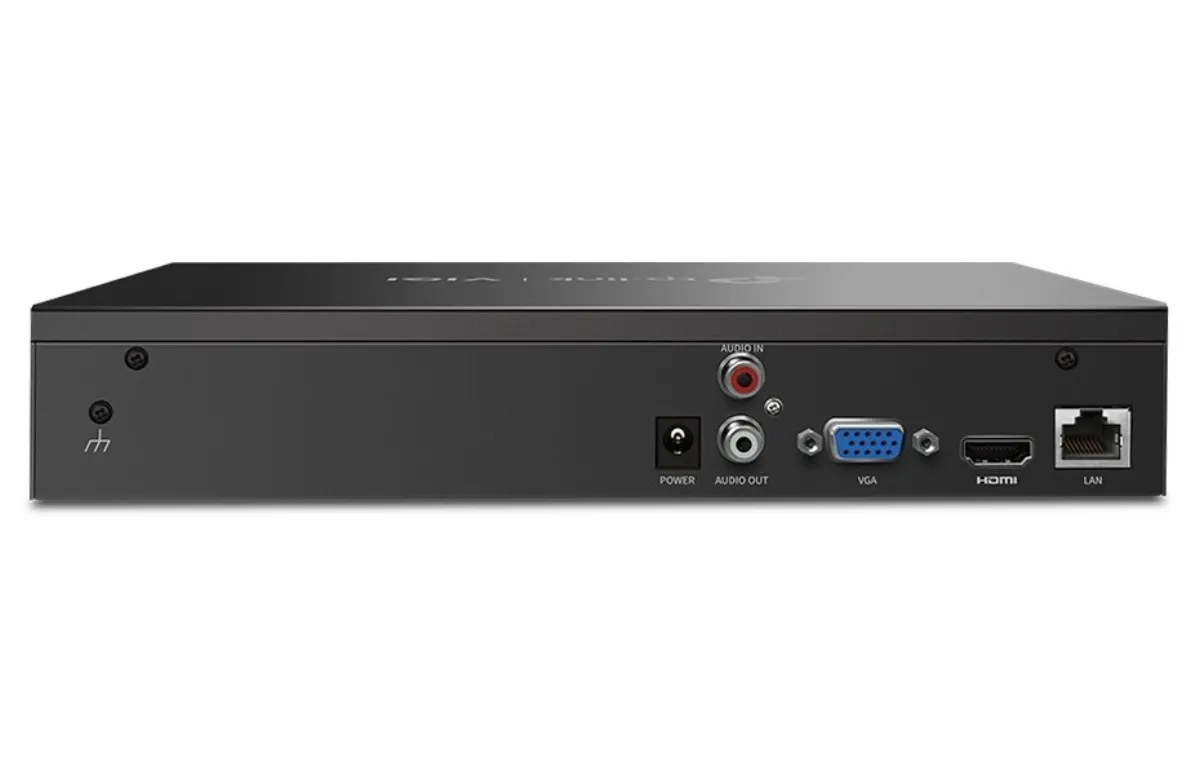

Ports

• 1× HDMI output (4K)
• 1× VGA output
• 1× RJ-45 (10/100 Mbps)
• 2× USB 2.0
• 1× audio input (RCA)
• 1× audio output (RCA)

HDD: 1× SATA (max. 10 TB)

PoE support: no

Dimensions: 246.2 × 148.2 × 45 mm

Weight: 578.5 g

* Some functions may not work optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
