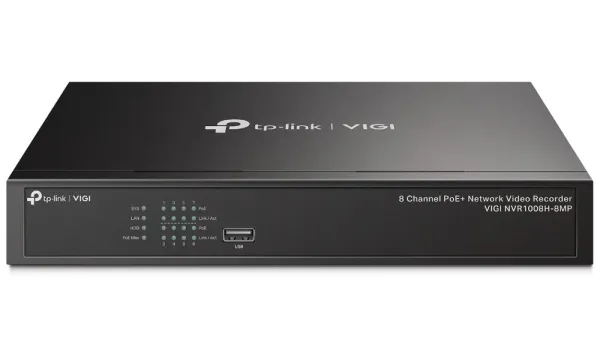

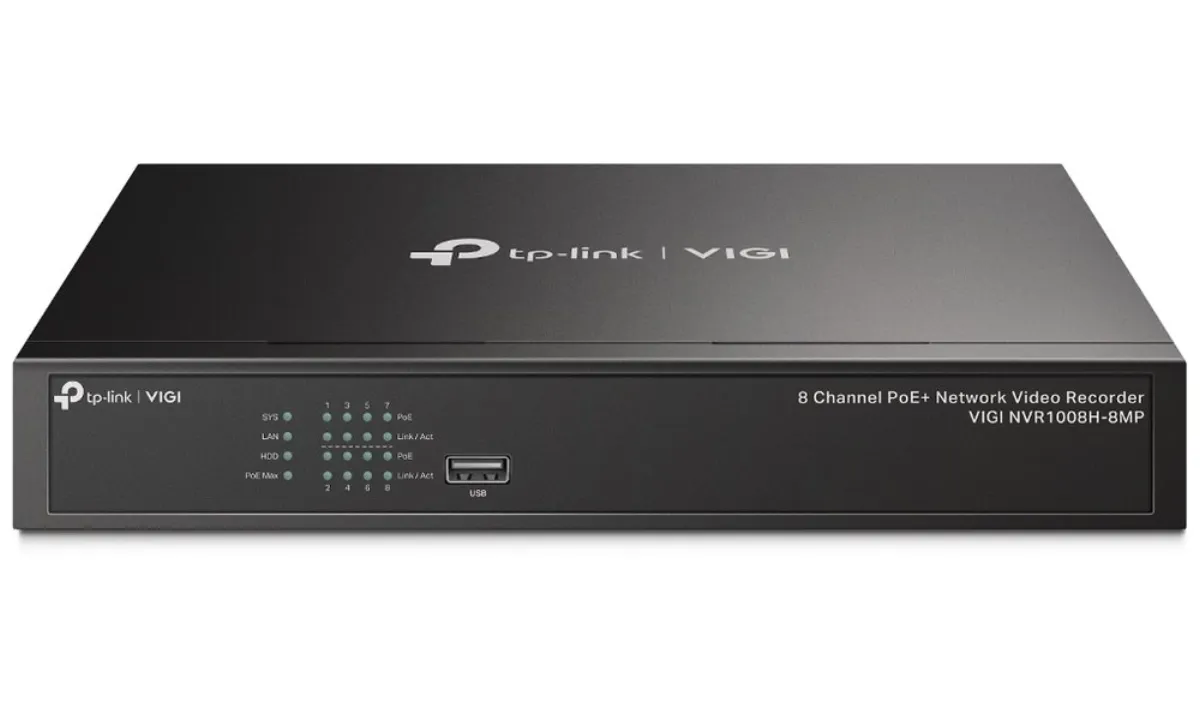

TP-Link VIGI NVR1008H-8MP network video recorder 8 channels 8x Lan with PoE 2x USB

TP-Link VIGI NVR1008H-8MP

8-channel VIGI network video recorder with PoE+ support

Recording device for 8 IP cameras. Combinations of different resolutions up to 8 Mpx and data flow up to 80 Mbps are allowed. Support for live view, storage and playback of connected cameras. The device also supports third-party cameras (ONVIF) and H.265+ decoding, which saves data volume/traffic. There is 1 SATA hard disk slot with a capacity of up to 10 TB.

• 4K HDMI video output and 16 Mpx decoding capacity: Sharp image resolution of up to 8 Mpx and 8-channel display ensure that you capture every detail from every angle.
• Simplified deployment with PoE+: Easily connect and power the PoE camera with a single RJ-45 cable that transmits both data and power. No power adapter required.
• 8-channel simultaneous playback: Play back footage from up to 8 cameras simultaneously, increase playback speed, and search for events in the video schedule to easily review footage.
• H.265+: Without using additional bandwidth, your camera transmits compressed crystal-clear video, saving disk space, easing network load, and reducing monitoring costs without compromising image quality.
• ONVIF* ensures compatibility: Easily add IP cameras from VIGI and other brands to create a powerful and diverse network with barrier-free compatibility.
• 24/7 continuous recording: Stores up to 10TB of footage from connected cameras to secure your data for quick and convenient access.
• Remote monitoring: Dedicated VIGI app, web UI, and VIGI Security Manager enable remote monitoring.
• Flexible Installation: Choose a suitable installation method by simply placing your NVR in a rack or placing it on a table or under a desk for added convenience.
• Two-way Audio: With voice intercom support, conduct two-way conversations and monitor your channel from anywhere. Convenient for management.

Every angle on one screen

Offers 4K HDMI video output and up to 16MP decoding capability.

8× PoE+ ports for simplified IP camera connection

The NVR is equipped with 8× 10/100Mbps PoE+ ports and supports up to 30W on each PoE+ port.

View recordings faster than ever

Play back footage from up to 8 cameras simultaneously, increase playback speed, and search for events in the video schedule to easily review footage.

More compression. More savings. Same quality

Cameras transmit compressed crystal-clear images without using additional bandwidth, saving disk space, reducing network load and monitoring costs - all without compromising image quality.

No need to check long compatibility lists

Easily add IPCs from VIGI and other brands to create a powerful and diverse network with barrier-free compatibility.

Plug & Play

Allows new and unused VIGI IP cameras to be automatically added to a new NVR and activated immediately, making installation faster than ever before.

Security measures for every hour and every day

Stores up to 10 TB of recordings from managed cameras and secures data for quick and convenient access.

Keep an eye on things even when you're on the go

Special VIGI apps, web user interface and VIGI Security Manager enable remote monitoring that is easy and convenient.

Greet visitors before they enter

With voice intercom support, you can have a two-way conversation while monitoring your channel from anywhere. Convenient for management.

One system. Complete security

The professional VIGI surveillance system from TP-Link is designed to protect your business - anytime, anywhere.

Number of channels: 8

Supported resolutions (recording)

• 8 Mpx
• 5 Mpx
• 4 Mpx
• 3 Mpx
• 1080p
• UXGA
• 720p
• VGA
• 4CIF
• DCIF
• 2CIF
• CIF
• QCIF

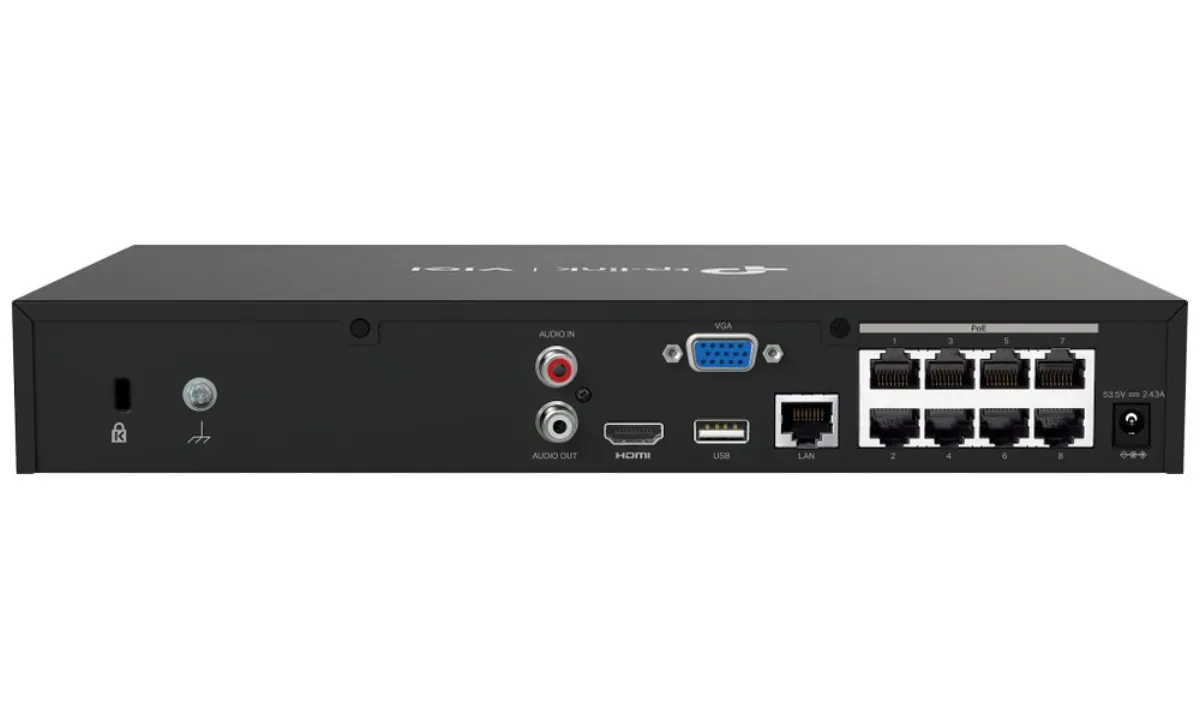

Ports

• 1× HDMI output (4K)
• 1× VGA output
• 1× RJ-45 (10/100 Mbps)
• 8× RJ-45 (PoE support)
• 2× USB 2.0
• 1× audio input (RCA)
• 1× audio output (RCA)

HDD: 1× SATA (max. 10 TB)

PoE support

• yes
• 802.3at/af
• max. 113 W

Dimensions: 294 × 180 × 44 mm

* Some features may not work optimally due to compatibility issues. For best performance, we recommend using VIGI NVR with VIGI cameras.
