Solarmi profile for SC holders for fixing sol. flat roof panel (1pc)

Xtend Solarmi structure for attaching sol. panels

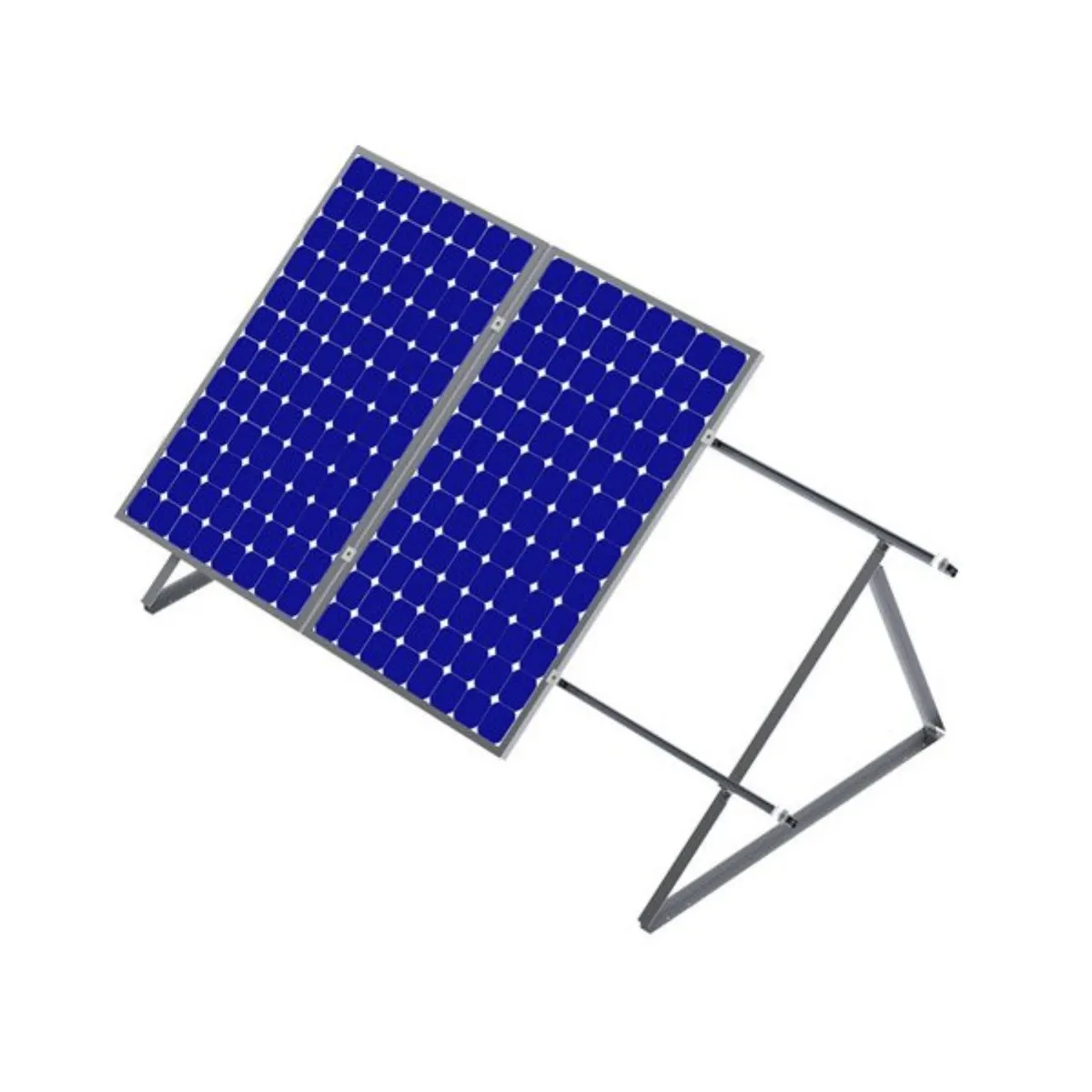

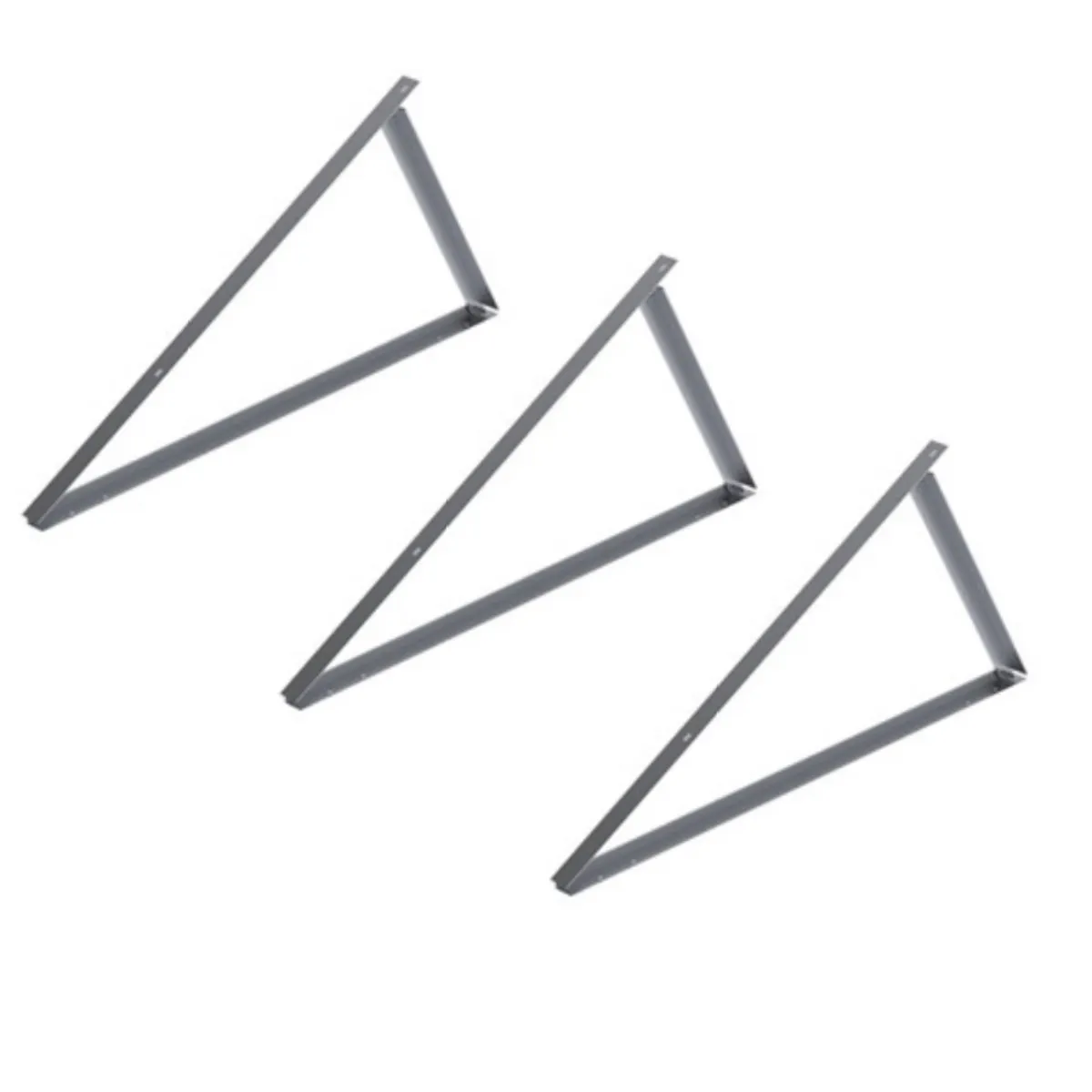

Triangular construction for SC brackets for mounting solar panels on a flat roof. It is intended for the installation of solar rails of the SC series, on which the panels themselves are then installed.

• simple design with pre-assembled components
• high quality and long life

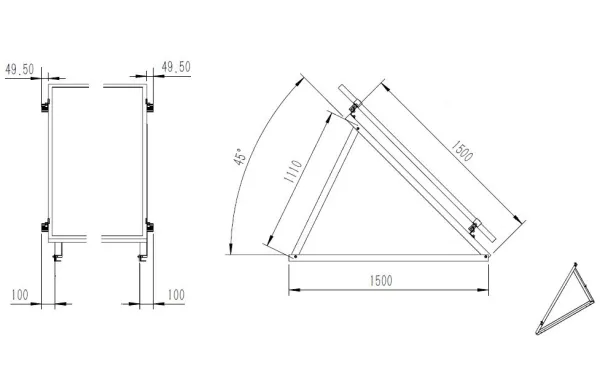

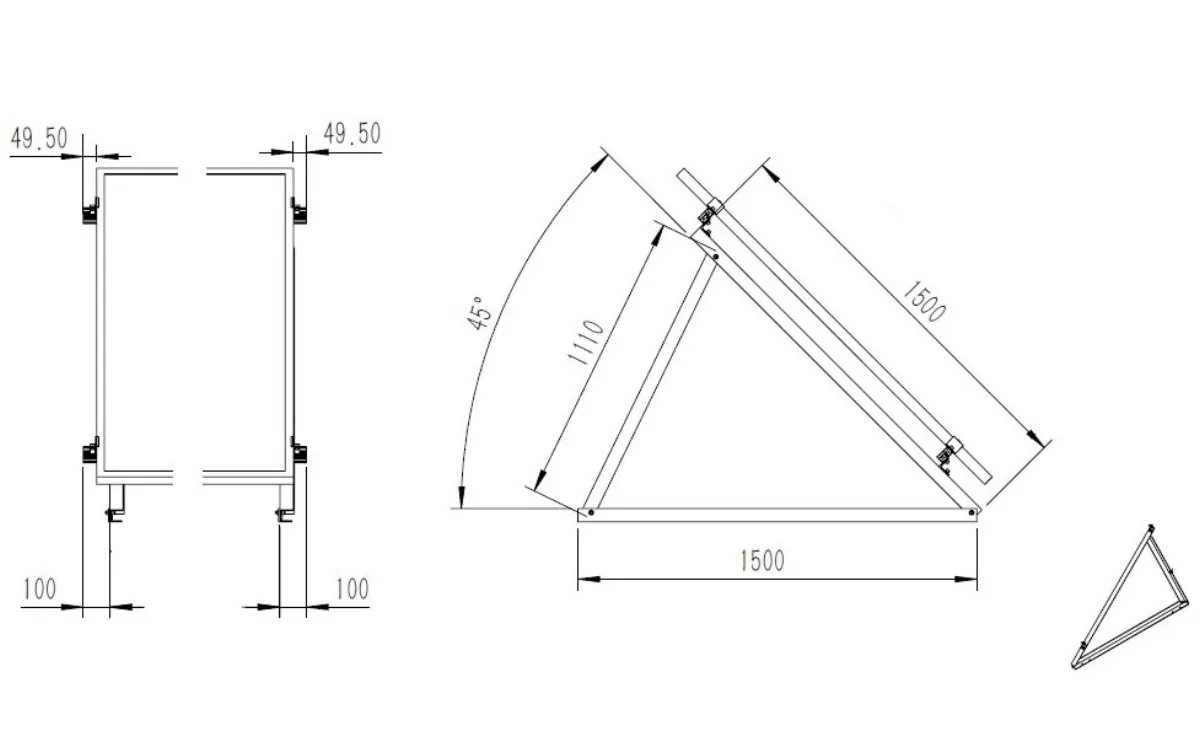

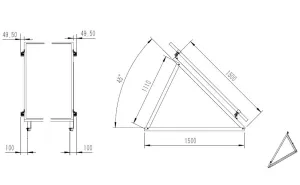

• The 45° slope is also suitable for the winter season, both from the point of view of the angle of the sun and the non-sticking of snow.
• wind-resistant construction up to a speed of 60 m/s
• load up to 143 kg/m2
• anodized aluminum (6005-T5) and stainless steel (AISI 304)

Standard

• AS
• NZS 1170
• JIS H5 302-200

Material

• anodized aluminum
• stainless steel

Load: < 1.4 kN/m2
