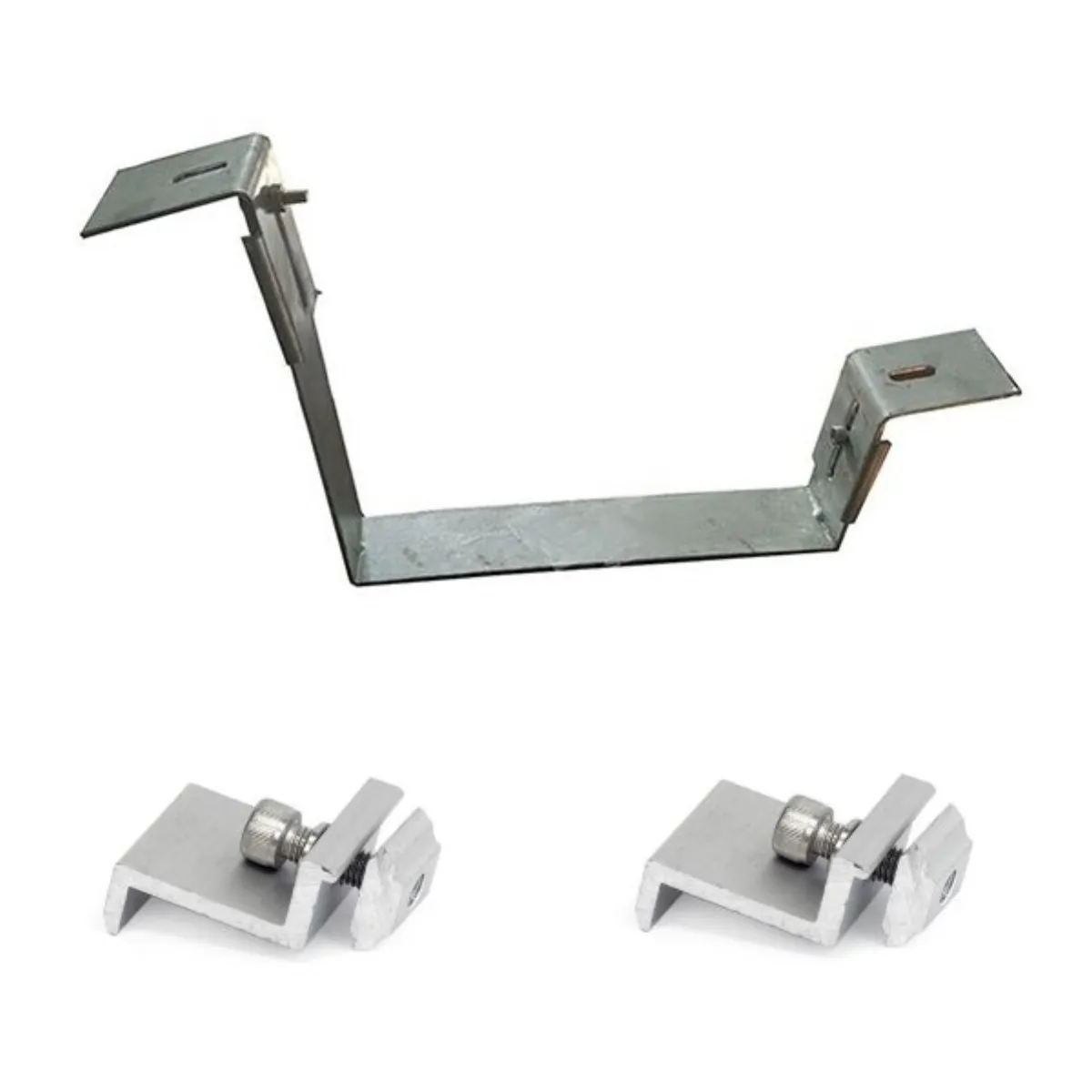

Solarmi holder SC for attaching sol. panel on a flat roof with load

Xtend Solarmi SCECBM35

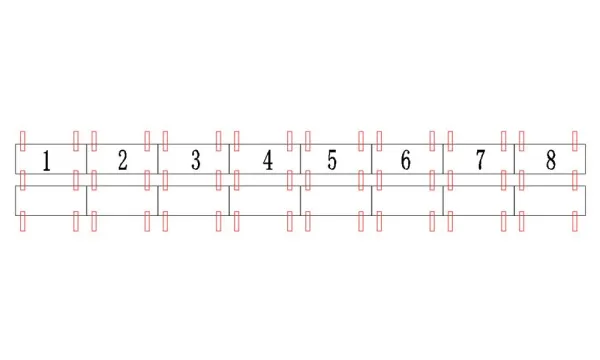

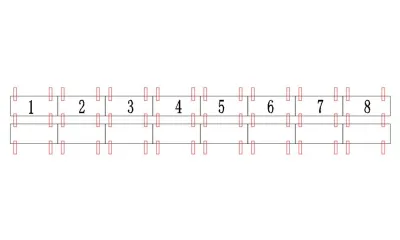

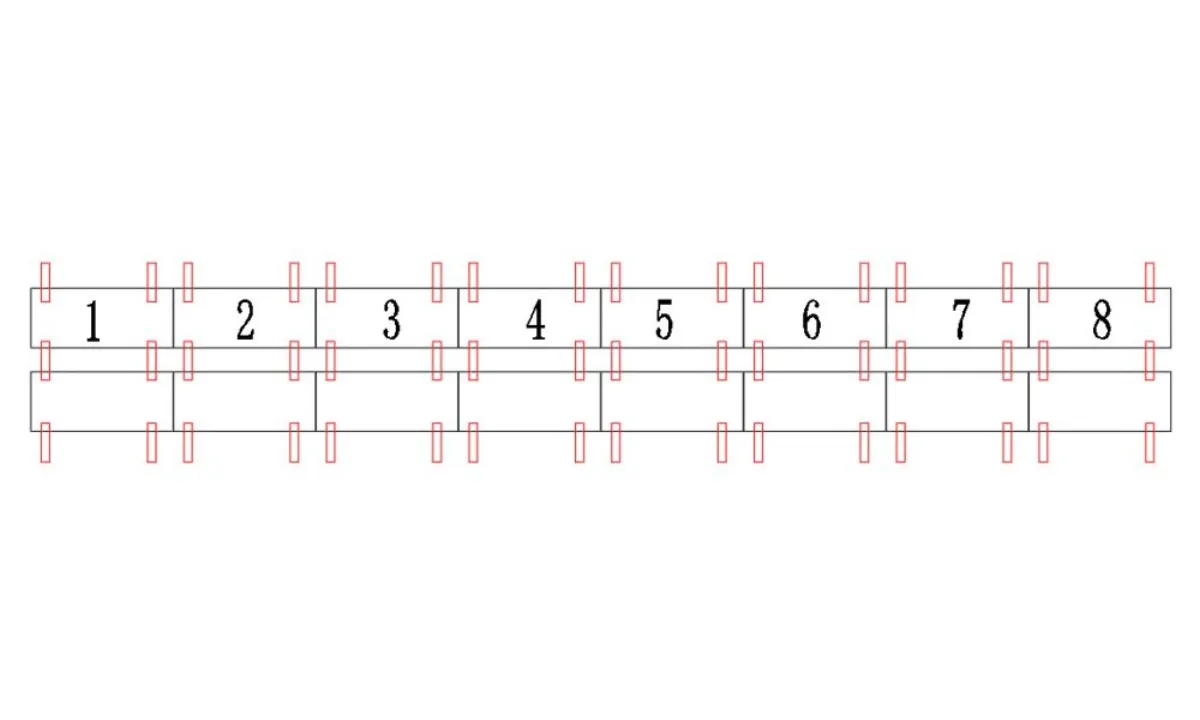

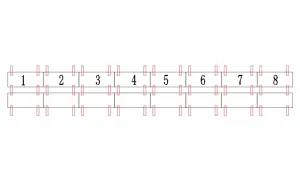

Solar panel holder including 2 clamps for fixing it. Each installed panel needs 4 brackets, but the panels in the adjacent row share a bracket, see the diagram in the attachment. The slope of the panels is approx. 10°.

• Mounting with a load
• Slope 10°
• Adjustable height

Packaging

• bracket
• clamps
• M8 screw/s + washer
• flange nuts

Max. wind load: 60 m/s

Max. snow load: 1.4 kN/m2

Material

• galvanized steel (Q235B)
• aluminum (6005-T5)
• stainless steel (type 304)
