Planet GSW-1820HP PoE switch 16x1Gb + 2x SFP 1Gb PoE 802.3at 30 240W VLAN extend mode 10Mb-250m 802.3az

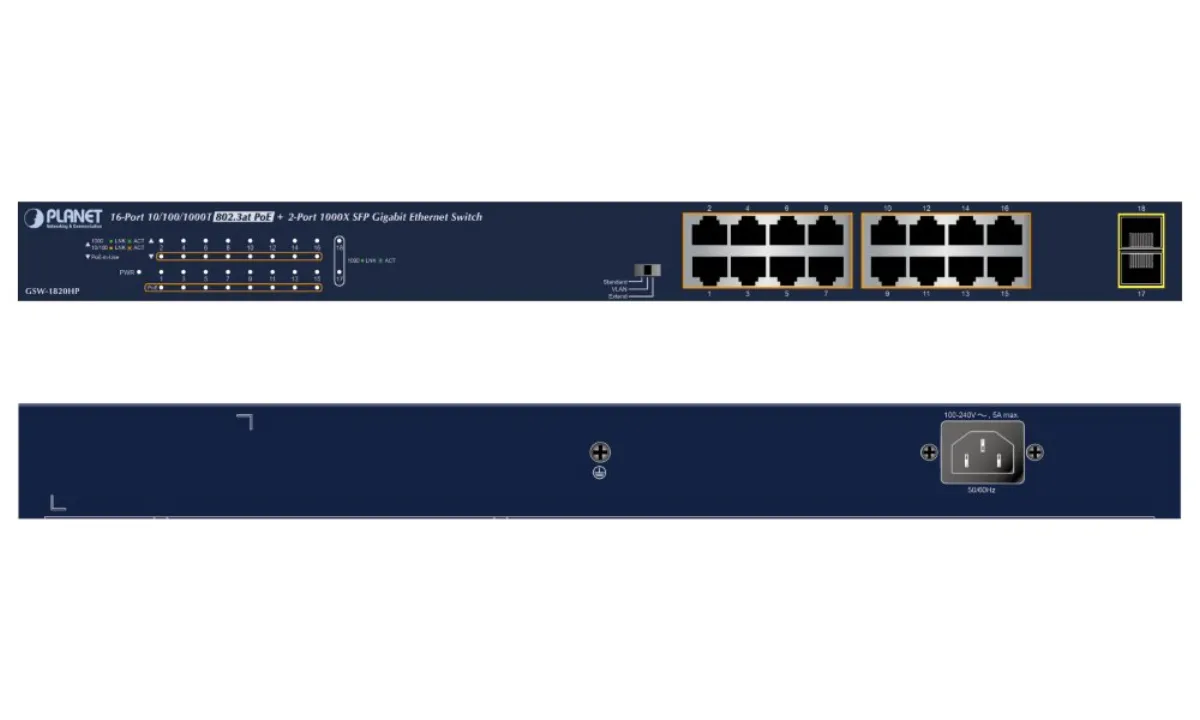

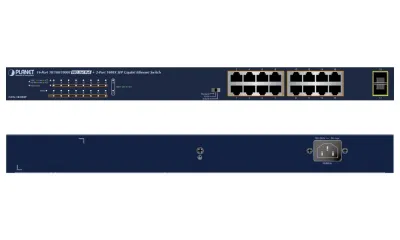

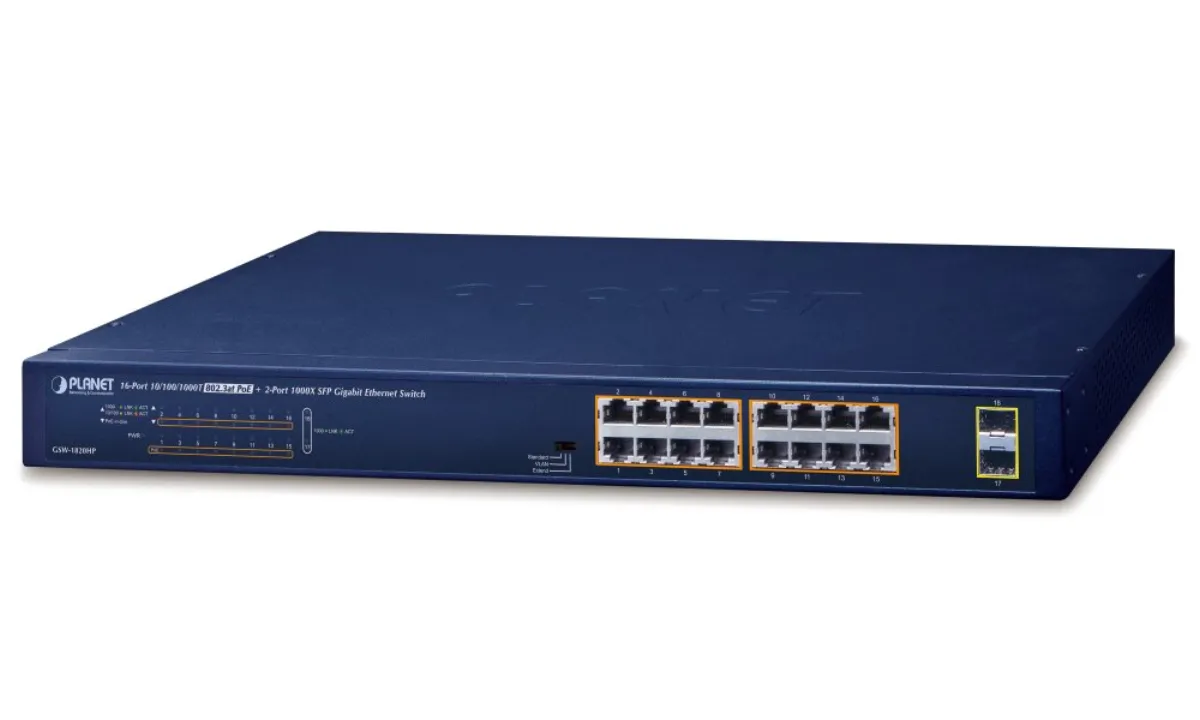

PLANET GSW-1820HP

Gigabit PoE+ switch, 16 x 10/100/1000Base-T RJ-45 with injectors 802.3af/at, two SFP slots 1000Base-X, power output up to 240 W. LED indication of the use of PoE ports, DIP switch for switching Standard/VLAN/Extend mode, power saving mechanisms according to IEEE 802.3az.

Gigabit switch with PoE+ (power over ethernet) ports for centralized power supply of devices via Ethernet such as IP cameras, Wi-Fi elements or VOIP phones and with the option of connecting to the infrastructure using two optical SFP ports. The design of the device is suitable both for installation in home or office spaces and for applications in local switchboards. The output power of the PoE ports is regulated depending on the power input of the powered devices by EEE (Energy-Efficient Ethernet) mechanisms according to IEEE 802.3az.

Switch has a manual mode switch

• Standard - switch powers the device at a distance of max. 100 m.
• VLAN - ports are logically separated from each other, in this mode unwanted multicast and broadcast storms can be avoided.
• Extend - switch powers the device up to 250 m with a reduced throughput of 10 Mb/s per port (power supply support up to 22 W)

Ports

• 16 x RJ-45 10/100/1000Base-T
• 2 x SFP 1000Base-

Memory: 8k MAC addresses

Throughput

• 36 Gbps bus
• operational 26.8 Mpps (64B)

Transmission Support: JumboFrame 9K

Design: rack 1U

Power supply

• internal power source 100-240 V/ 50-60 Hz AC
• total power up to 270 W

Protection

• surge protection up to 6 kV
• ESD up to 8 kV

Operating temperature: 0 to +50 °C

Dimensions: 440 x 208 x 44 mm

Weight: 2.67 kg

Total power output

• 240 W
• IEEE 802.3af
• IEEE 802.3a

Number of injectors: 16 x up to 30 W

Power type: End-span

Advanced features

• protection (circuit) against interference between ports
• automatic detection of powered equipment
