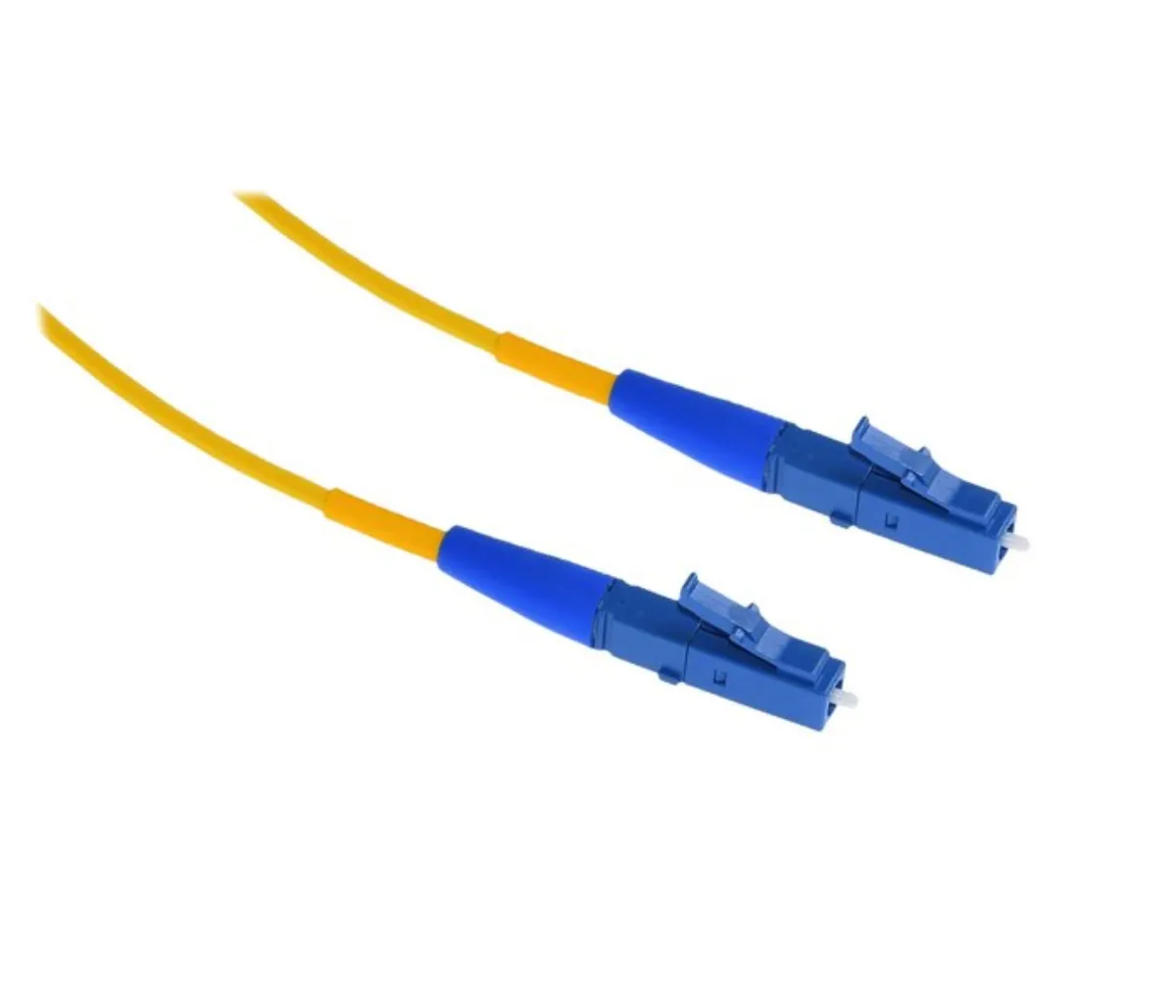

XtendLan FO patch LC-LC 1m 9 125 simplexLS0H ultra-flexible G.657.A1 diameter 2mm short outlet

XtendLan FOP-LCLC-S-1-9-A1

Optical connecting cable used to connect to a regular optical cable and to connect individual optical modules. The ultra-flexible optical cable used allows a very small bending radius without signal attenuation. The connector has a shortened outlet cap, which saves approx. 2 cm of depth in a switchboard or other confined space.

Thread type

• 9/125 µm
• singlemode G.657.A1
• fully compatible with OS1 (G.652 all types)
• flexible
• no light attenuation occurs up to a bending radius of 15 mm and less than 1 dB (at 1550 nm) with a bending radius of 7.5 mm

Cable type

• round
• width 2 mm
• surface insulation type LS0H

Number of fibers in the cable (all connected): 1

A-side connector type

• LC
• vertical grinding (/UPC)
• insertion loss (I/L) typically 0.15 dB
• max. 0.3 dB
• reflection attenuation (R/L) better than 50 dB

B-side connector type

• LC
• vertical grinding (/UPC)
• insertion loss (I/L) typically 0.15 dB
• max. 0.3 dB
• reflection attenuation (R/L) better than 50 dB

Cable length: 1 m
