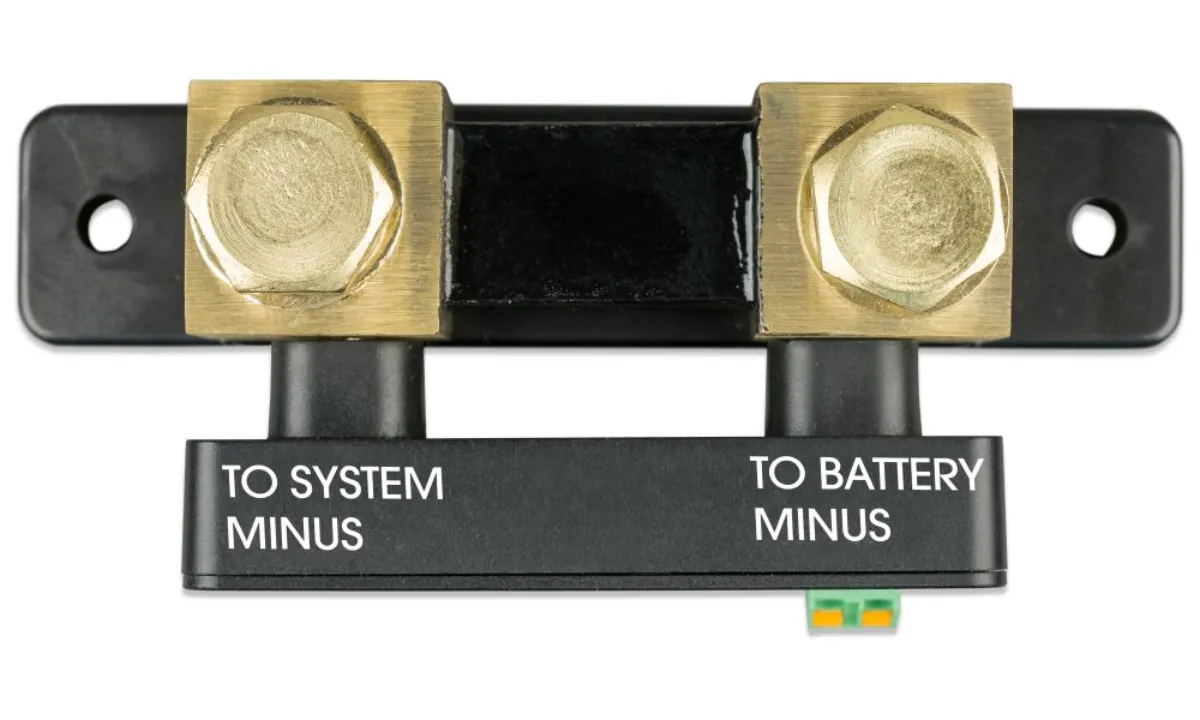

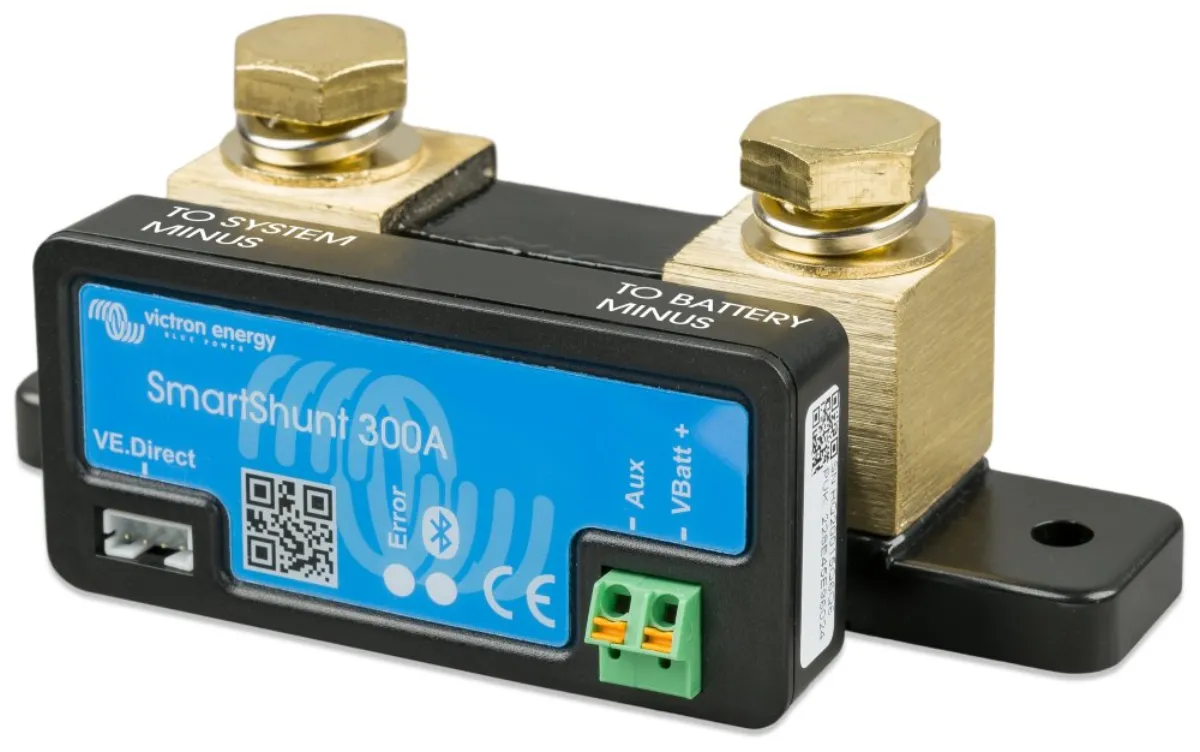

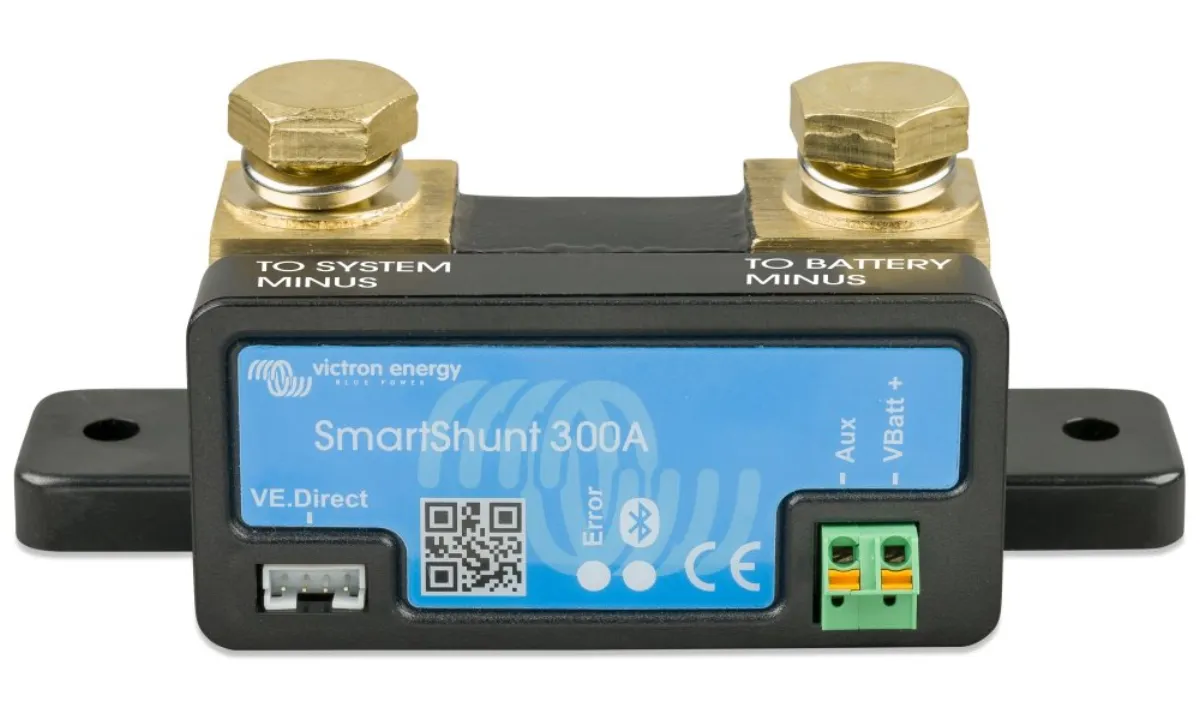

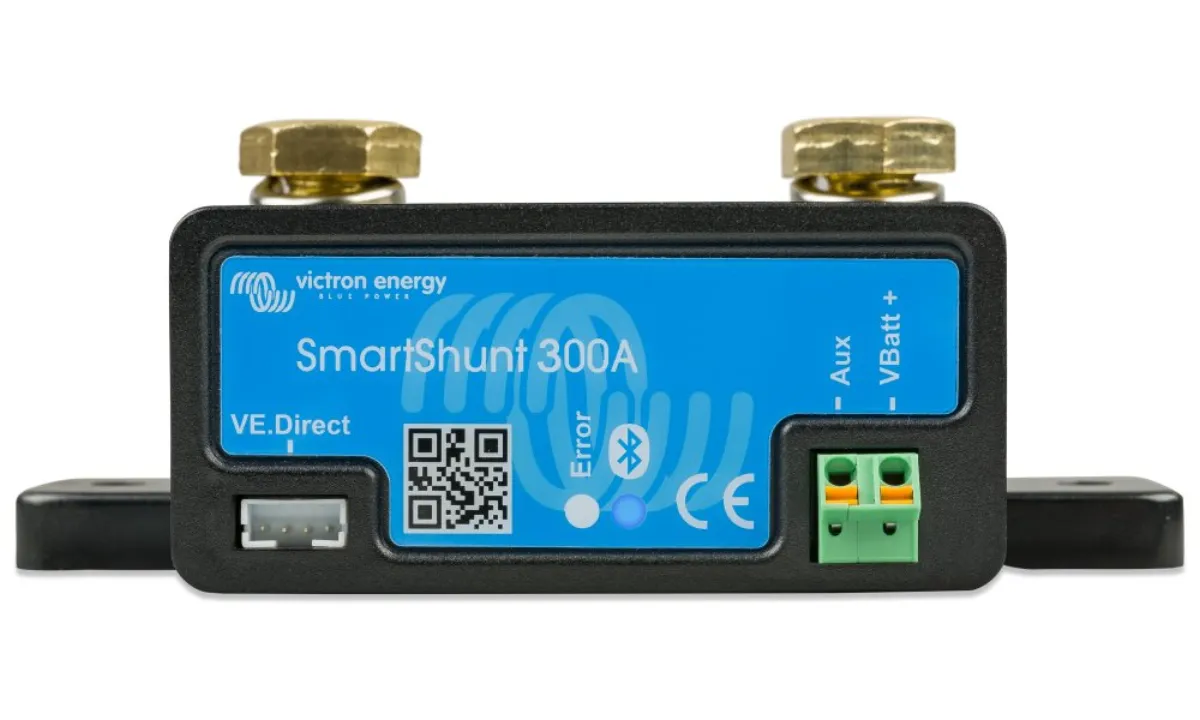

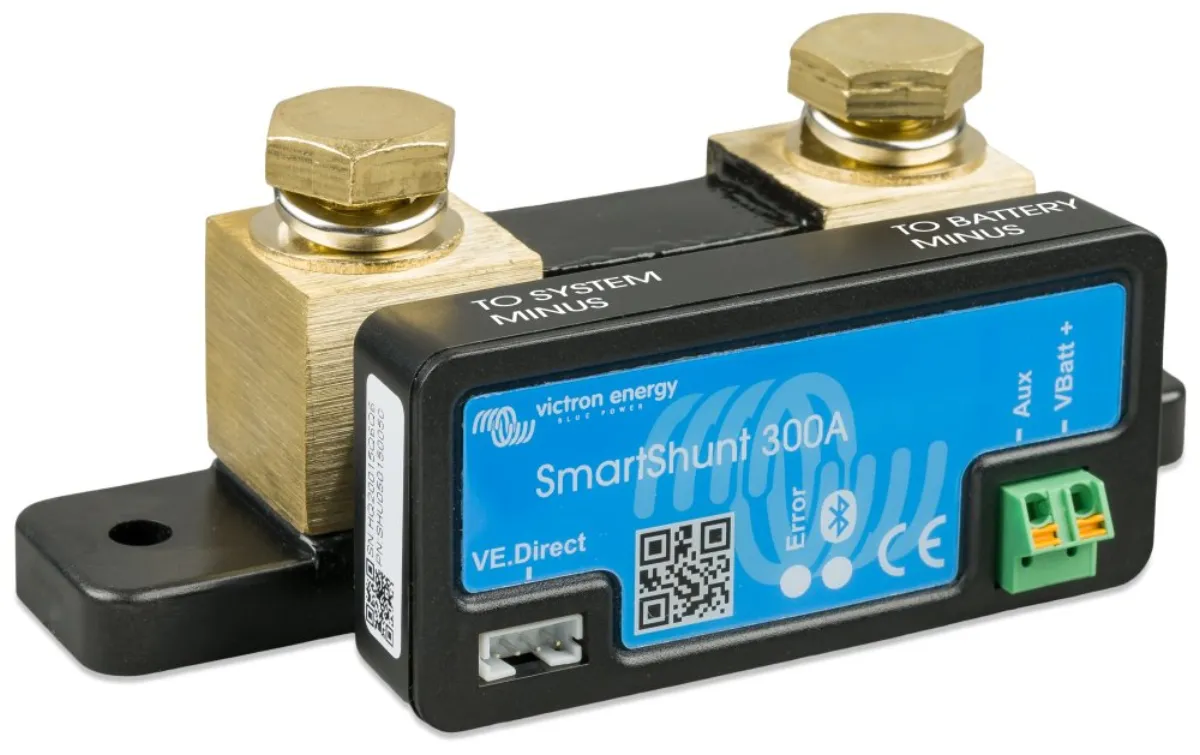

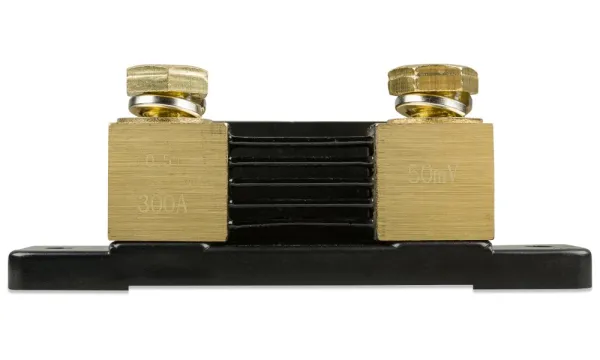

Victron SmartShunt 300A condition monitor

Victron SmartShunt 300 A

SmartShunt monitor is a new model of a highly accurate system monitoring the condition of up to two independent batteries without a display. Two connection cables with fuses are included. Extended warranty 5 years.

SmartShunt is a battery monitor just like the BMV series (only without a display). Your smartphone with the VictronConnect app becomes the display. The device connects via Bluetooth to the VictronConnect app on your smartphone (or tablet) and you can conveniently read all monitored battery parameters. Alternatively, SmartShunt can be connected and read by a GX device. Connection to SmartShunt is made using a VE.Direct cable. SmartShunt is a good alternative to the BMV battery monitor, especially for systems where battery monitoring is needed, but less wiring is required and a classic display is not required.

SmartShunt is equipped with Bluetooth, VE.Direct and connections that can be used to monitor a second battery (midpoint monitoring or to connect a temperature sensor).

Operating voltage: 6.5-70 V

Battery capacity: 1-9999 Ah

Interfaces

• Bluetooth
• VE.Direct port
• 1× 2pin terminal block
• 2× M8 terminal/screw

Protection degree: IP21

Dimensions: 120 × 44 × 44 mm
