Victron GX IO-Extender 150
VICTRON | BPP900800150 | 8719076062882

On stock 1 pcs.
Price of goods is 119,14 €.
Price without tax is 98,46 €.
VAT rate for CZE 🇨🇿 is 21%.
Weight of goods is 0.25 Kg.
Actual in cart 0 pcs.

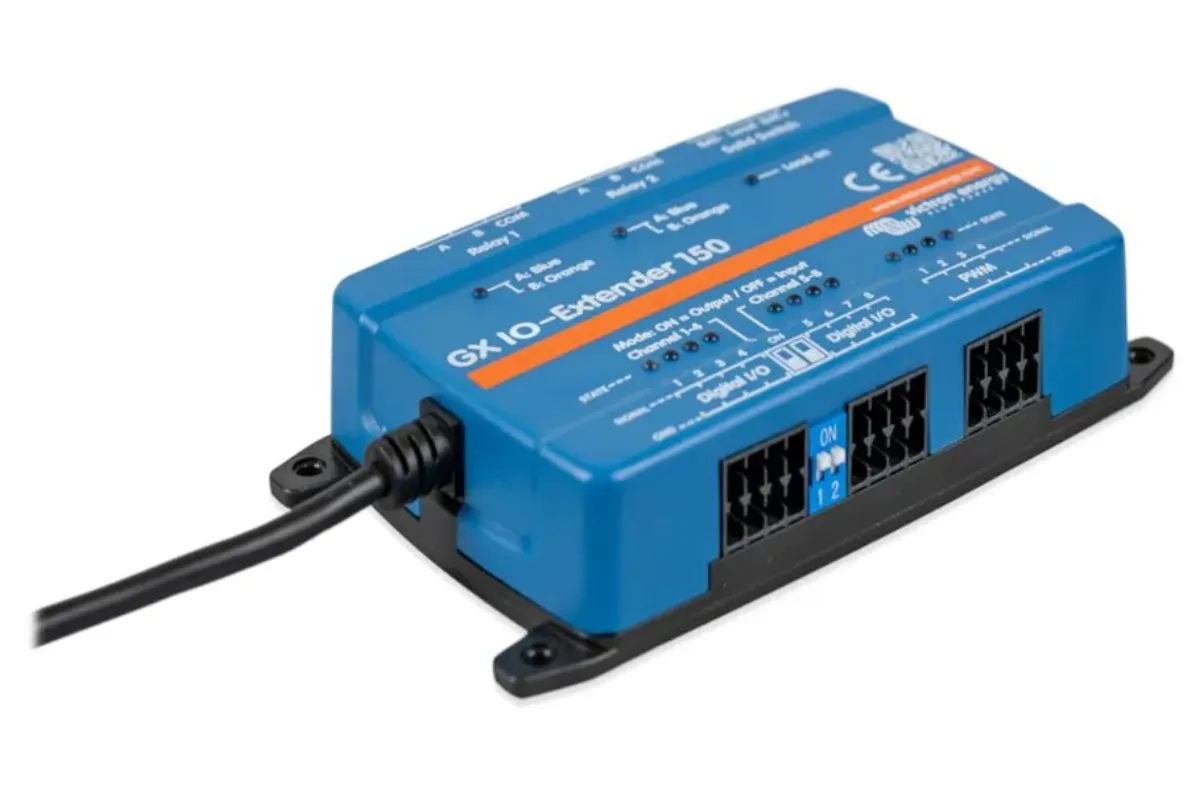

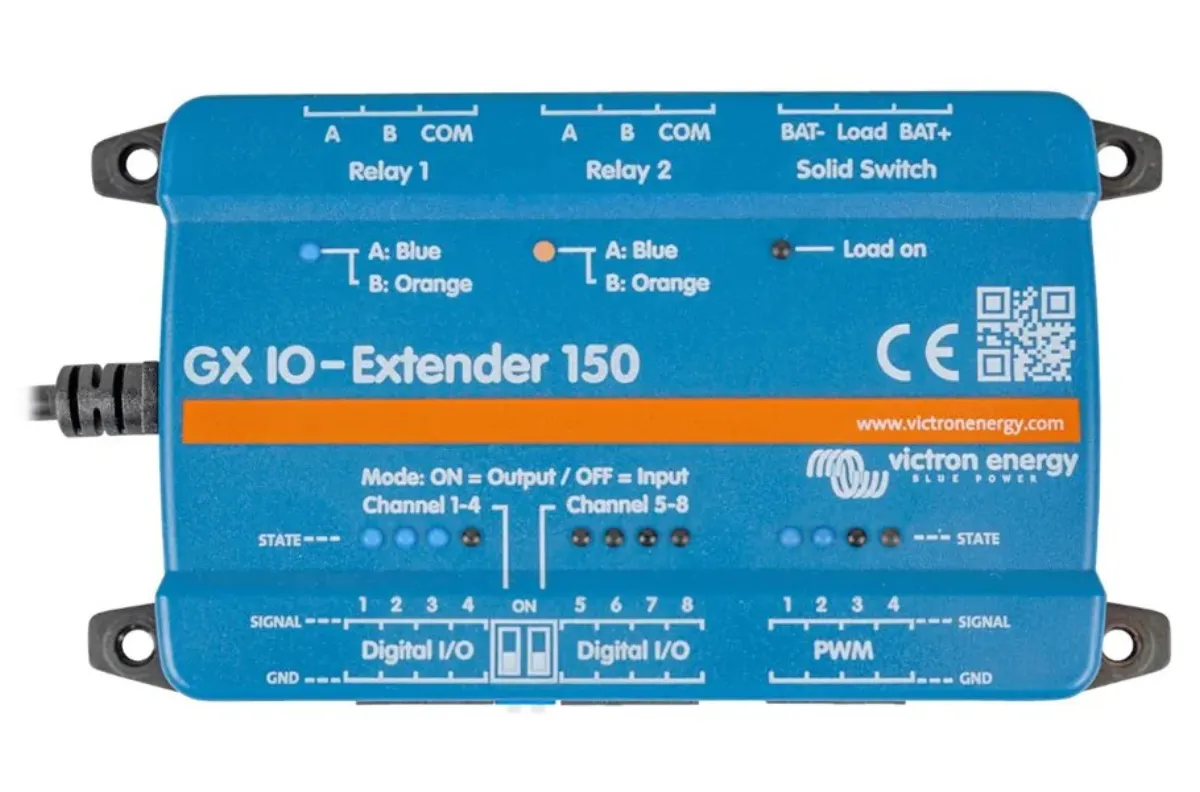

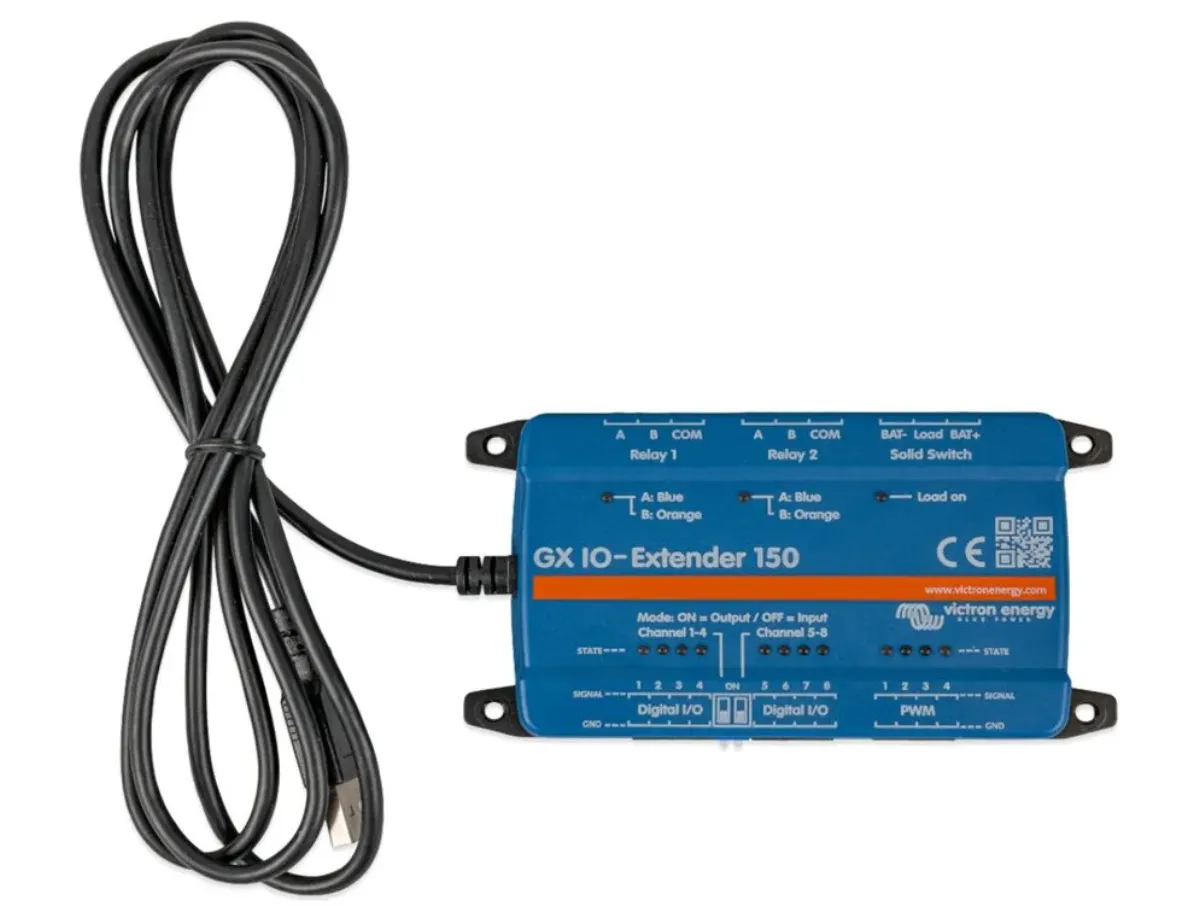

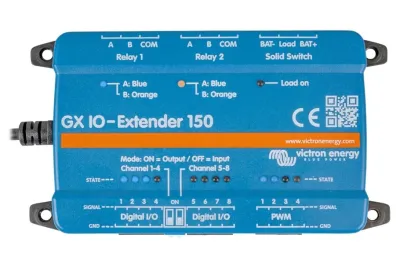

Victron GX IO-Extender 150
A smart expansion module designed to increase the number of inputs and outputs for GX series devices. It is connected via USB interface, which also serves as power supply, and allows for easy connection of additional sensors, switches or control elements. The module can be configured either directly via the Node-RED interface running on the GX device, or using switches in the Switch section of the user interface.
- 8 digital inputs/outputs: Each I/O can be optionally configured as an input or output (including LED status indication).
- PWM outputs: 4 channels for precise control with a voltage of 5 V and a resolution of 8 bits at 1.5625 kHz.
- Two bistable relays: For energy saving, with the ability to switch loads up to 220 V AC or 220 V DC.
- Solid State Relay (SSR): For fast switching of DC loads and support for resistive, capacitive and inductive loads.
- Pluggable spring terminals: Enables quick and reliable wire installation.
- Completely isolated circuitry from USB for maximum connection safety.
Power supply: USB (5 V)
Consumption: max. 1 W (<100 mW in idle state)
PWM outputs
- 4 channels
- 5 V
- 8 bits @ 1.5625 kHz
Lockout relays
- 2×
- DC: 3 A @ 30 V
- AC: 2 A @ 60 V
Mounting
- DIN rail
- wall
Dimensions: 123 × 67 × 23 mm
Weight: 0.17 kg
Name | Value | |
---|---|---|
Input voltage [V] | 5 | |
Weight, brutto [kg] | 0,17 | |
Maximum operating temperature [°C] | 50 | |
Minimum operating temperature [°C] | -20 | |
Height [mm] | 123 | |
Width [mm] | 67 | |
Depth [mm] | 23 |
