Ubiquiti UniFi 6 In-Wall - Wi-Fi 6 AP 2.4 5GHz to 5.3Gbps 5x Gbit RJ45 PoE 802.3af at (without PoE injector)

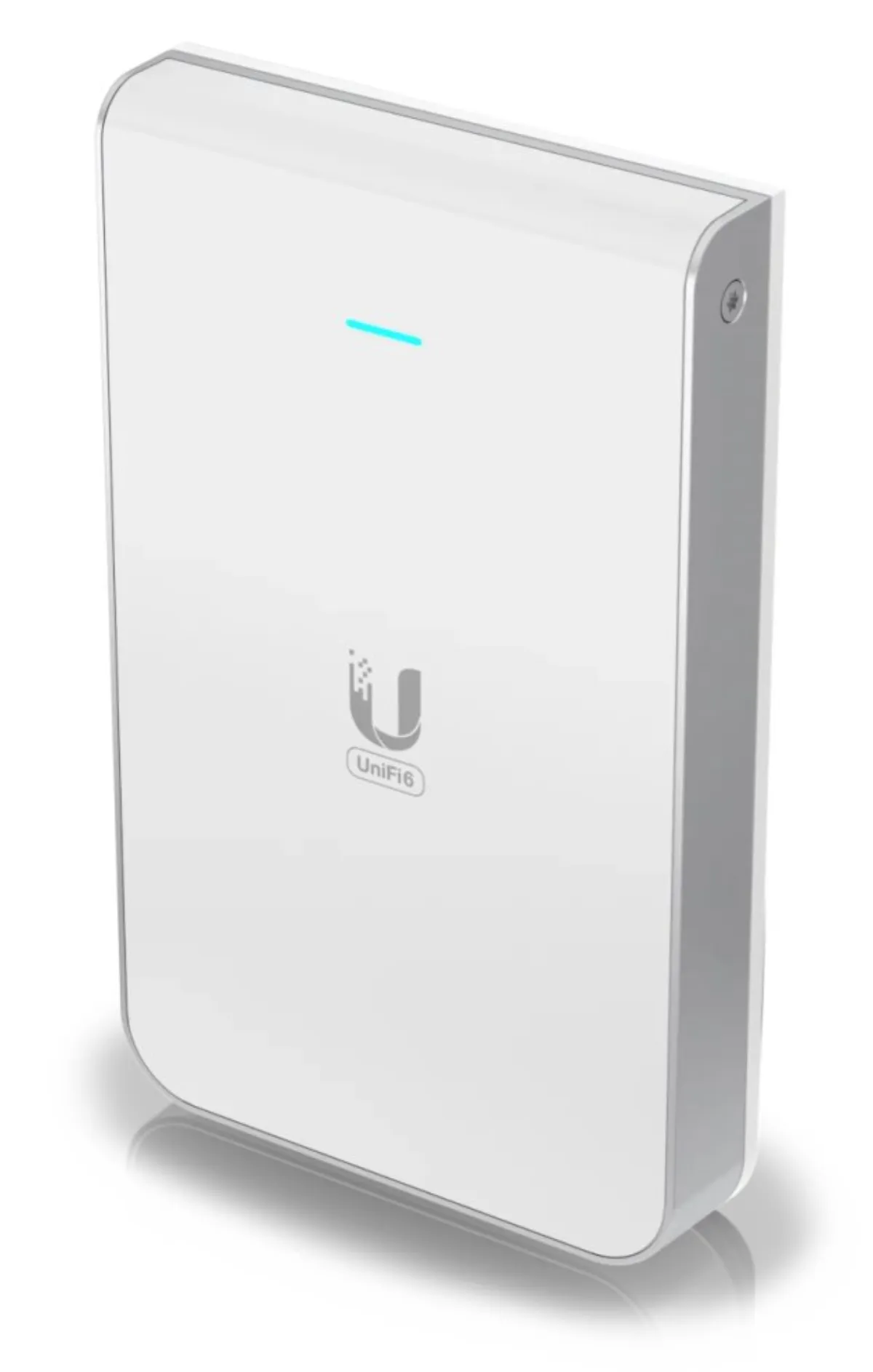

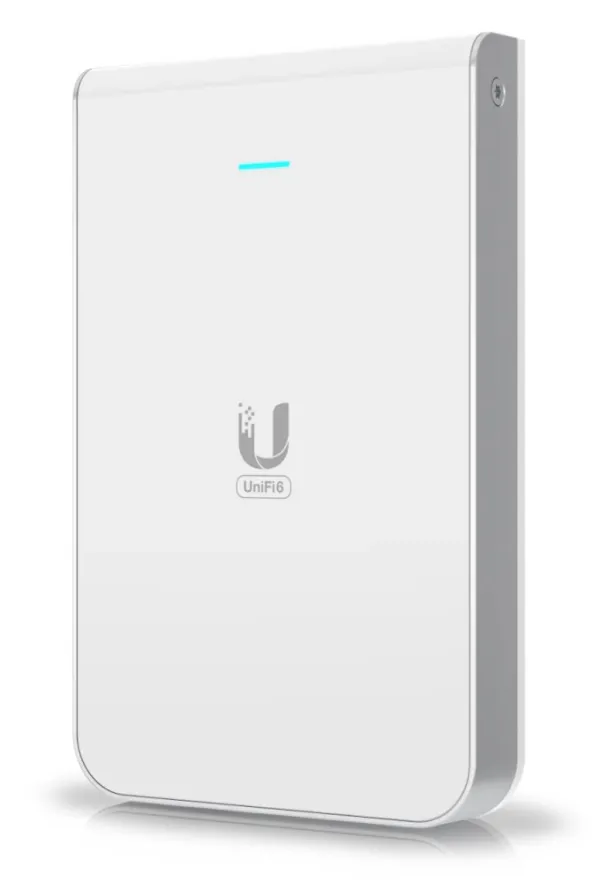

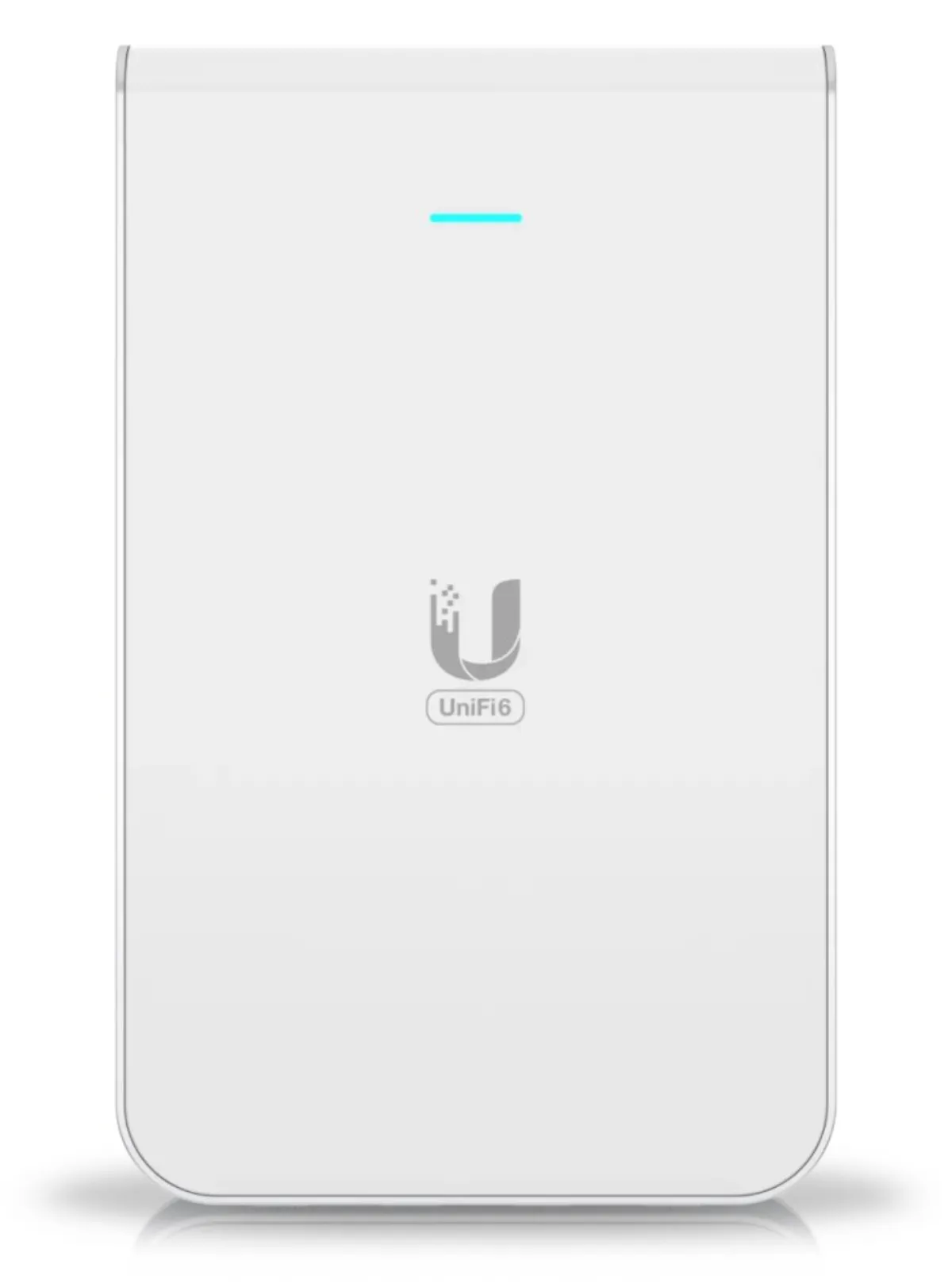

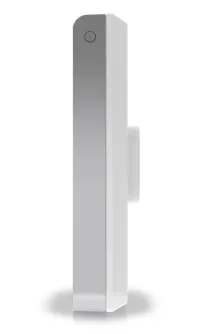

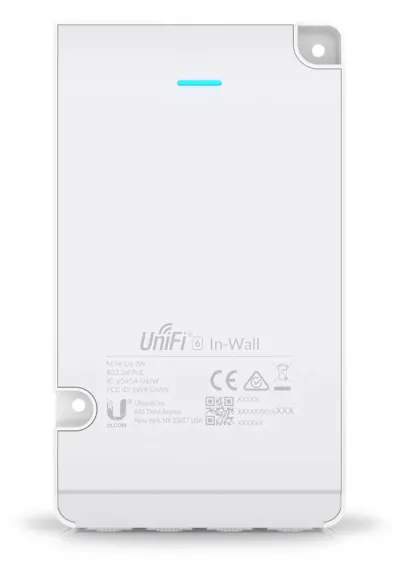

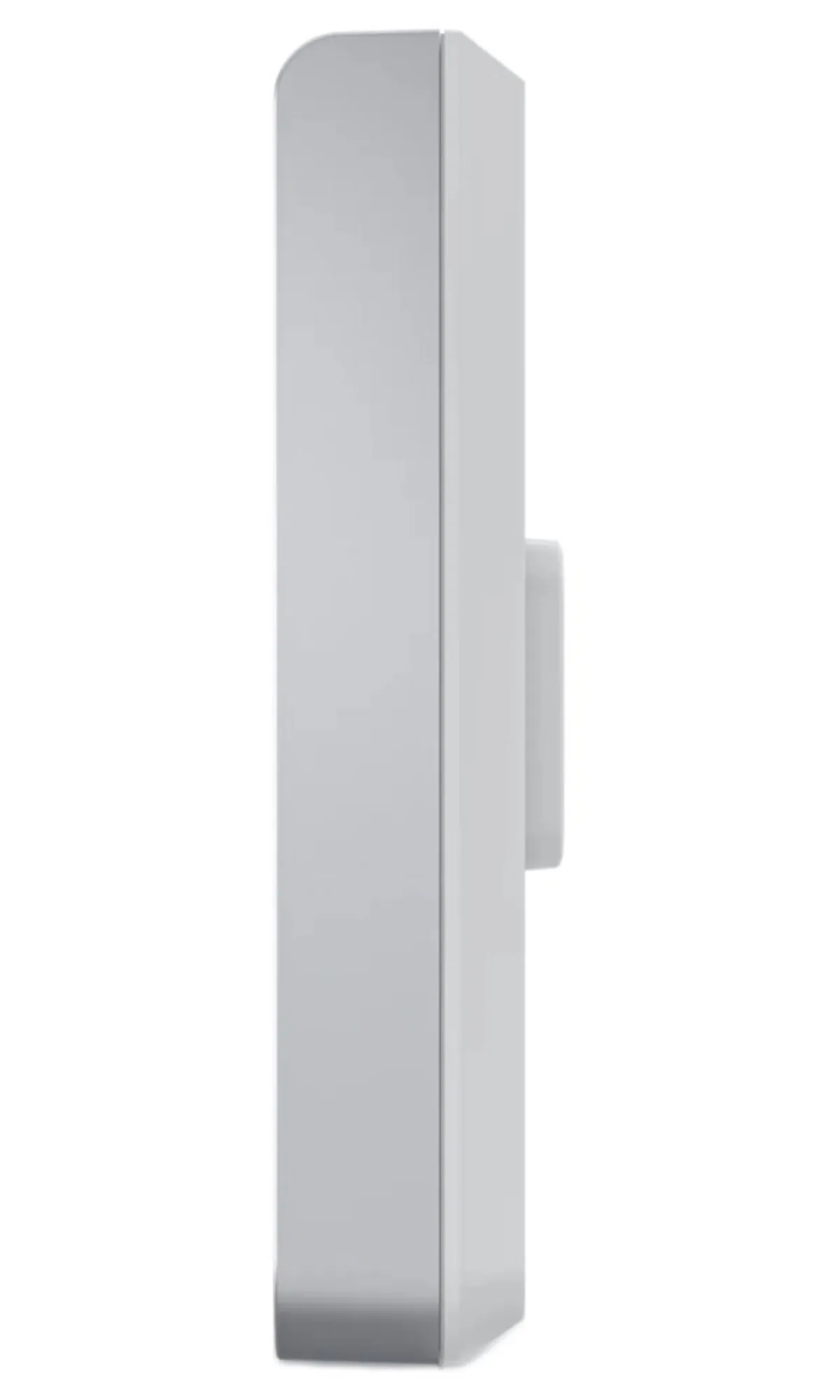

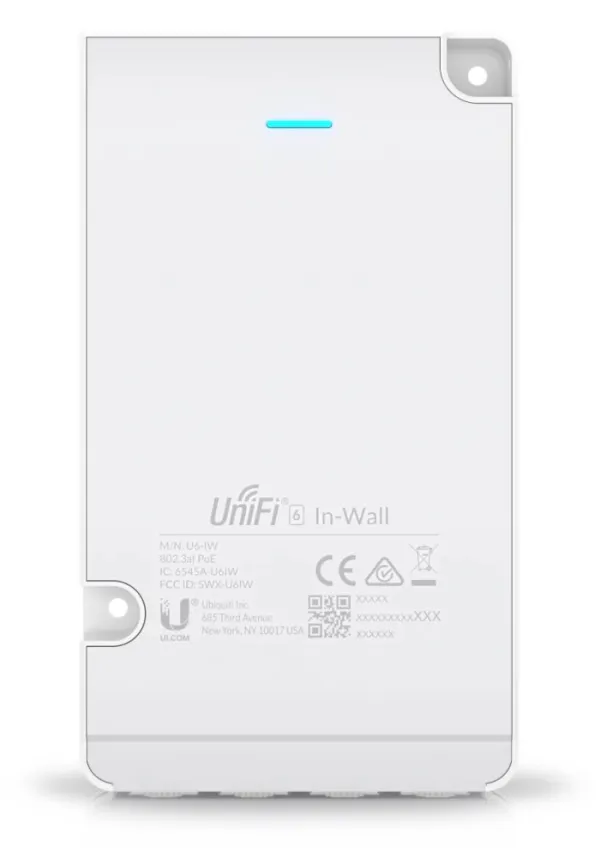

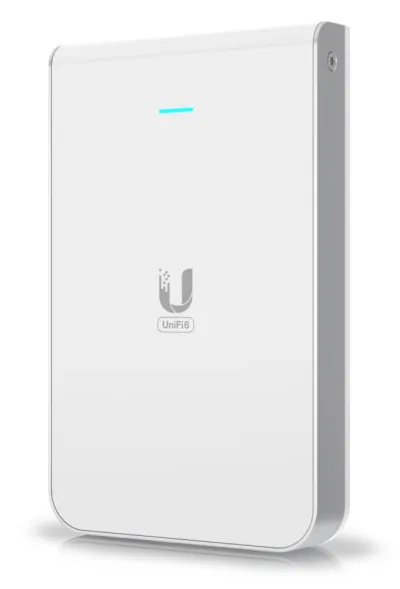

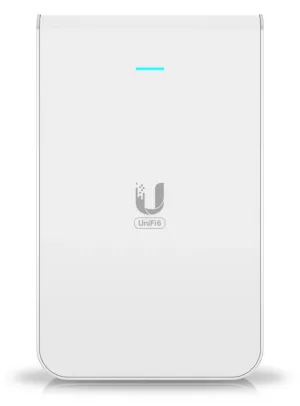

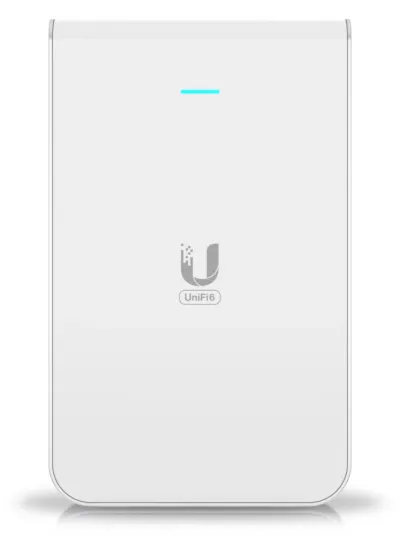

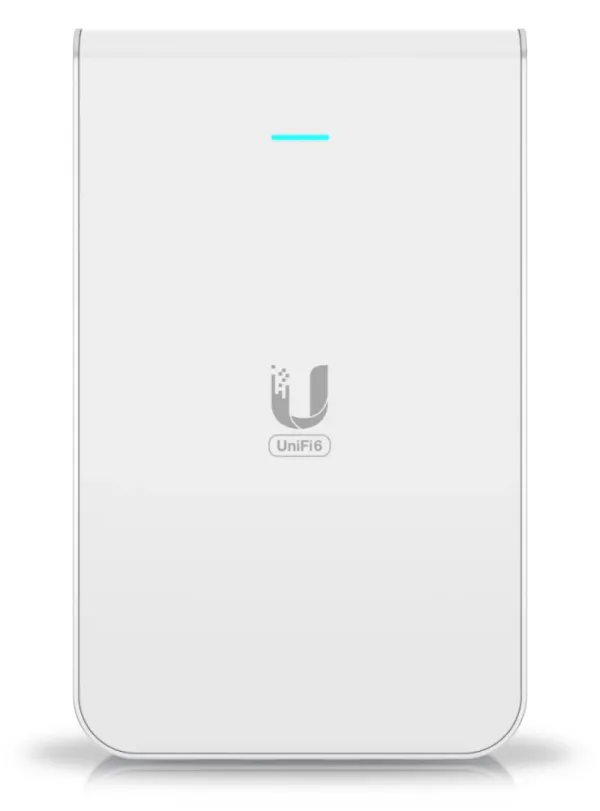

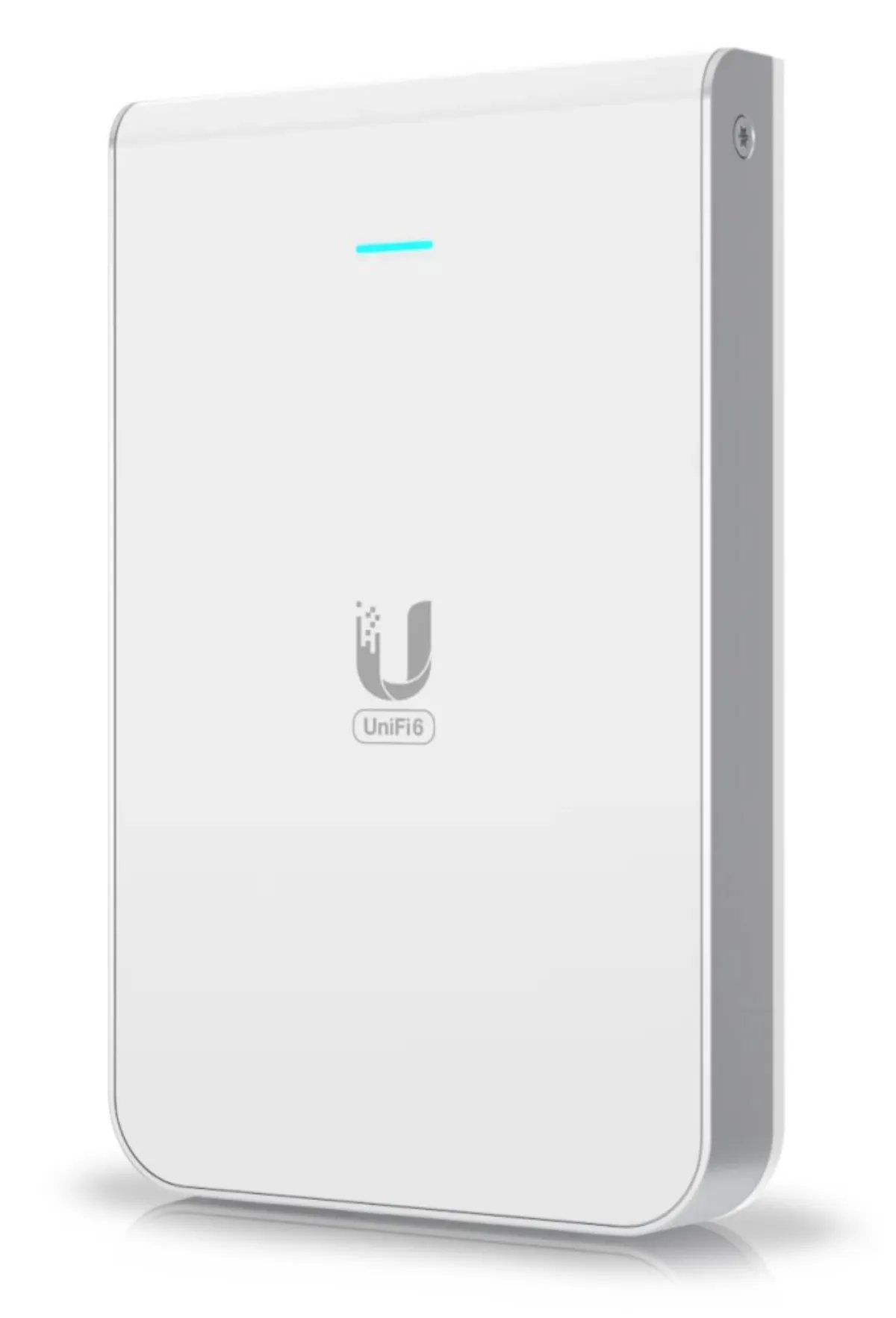

Ubiquiti UniFi 6 In-Wall

The UniFi 6 In-Wall (U6-IW) is a Wi-Fi AP with support for 2.4 GHz and 5 GHz frequency bands and a transfer rate (aggregated throughput) of 5.3 Gbps. The advantage is its small size, making it ideal for business or home use. UniFi 6 In-Wall is a hotspot solution using the 802.11ax (Wi-Fi 6) standard and is equipped with a MU-MIMO 4x4 (5 GHz) antenna system. The access point supports active PoE+ power 802.3af/at.

• Standard 802.11ax (Wi-Fi 6)
• DL/UL MU-MIMO 4x4
• PoE/PoE+ power supply 802.3af/at
• 1x PoE output 802.3af (44-57 V), requires PoE+ power supply
• Management using UniFi Network app version 6.4.52 or later

The package does not include a PoE injector

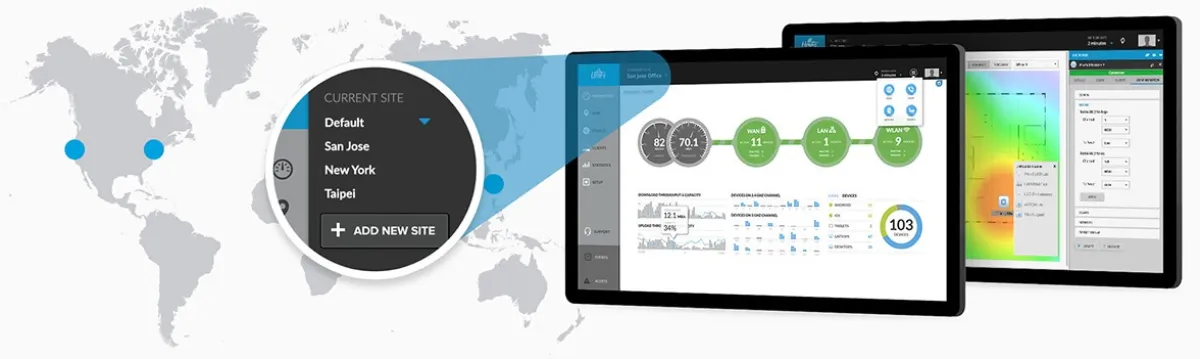

UniFi APs are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.

Standard: 802.11a/b/g/n/ac/a

Antenna: integrated dual-band antenna

Operating frequency

• 2.4 GHz
• 5 GHz

Data transfer speed

• 4.8 Gbps (5 GHz)
• 573.5 Mbps (2.4 GHz)

PoE support

• yes

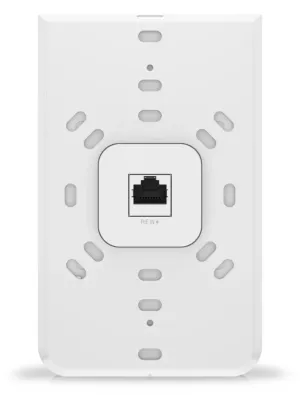

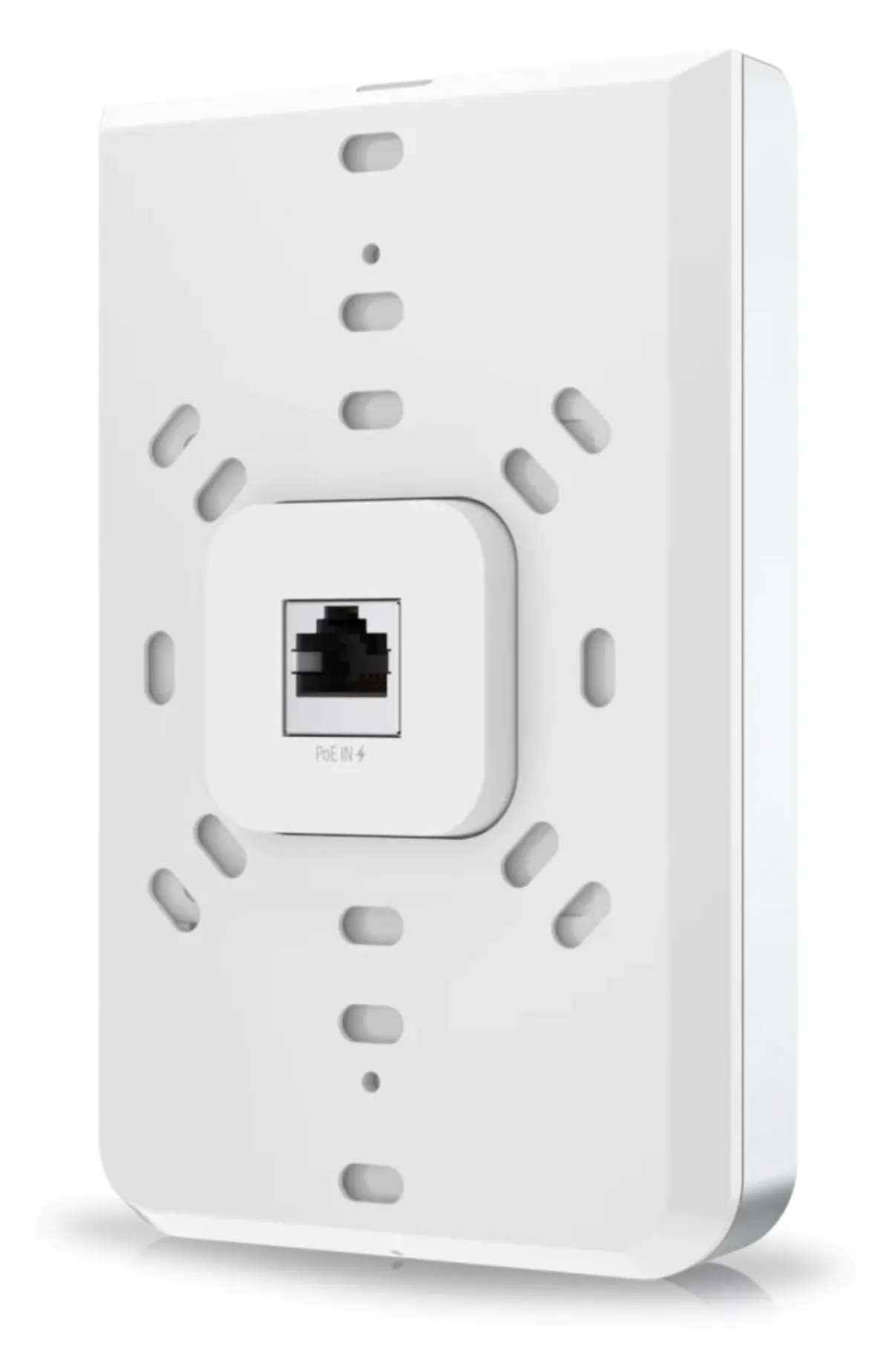

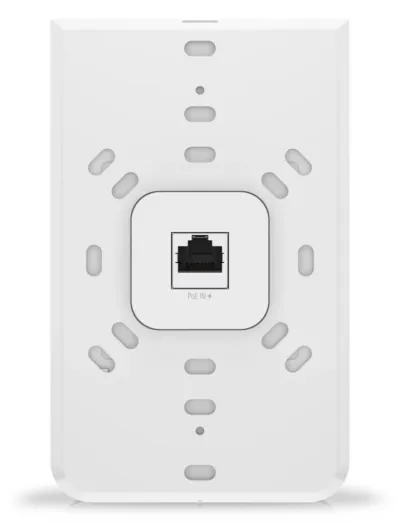

• active PoE/PoE+ 802.3af/at

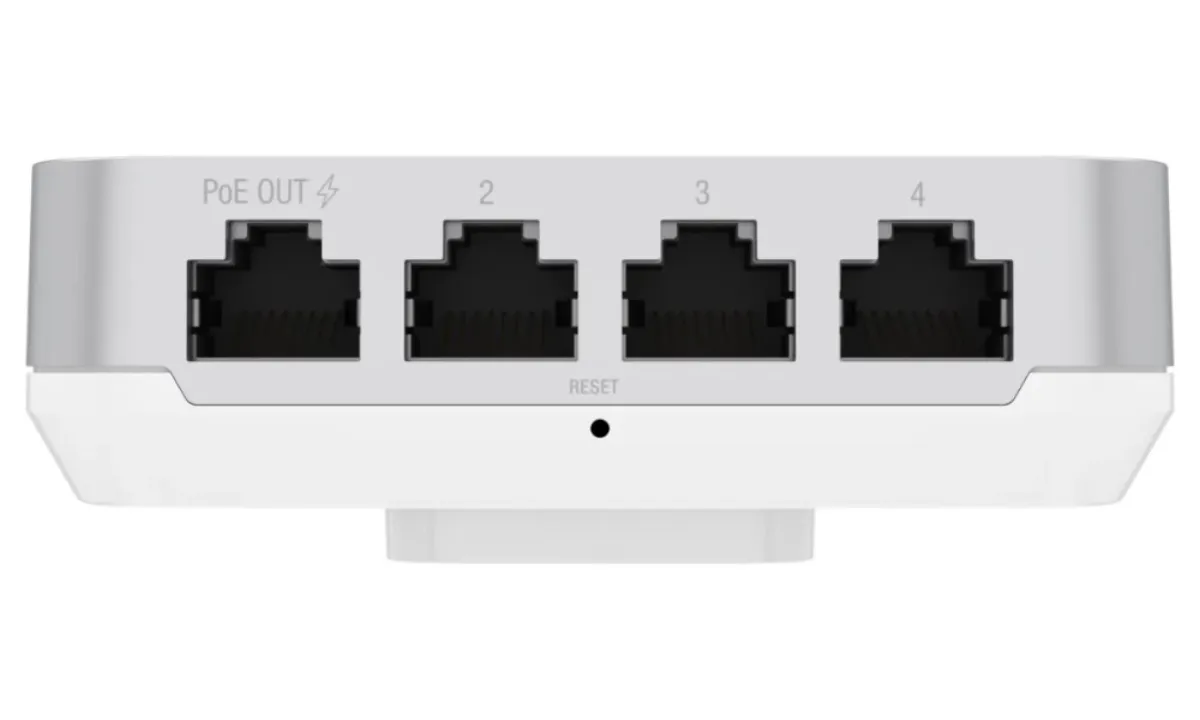

• 1x PoE output

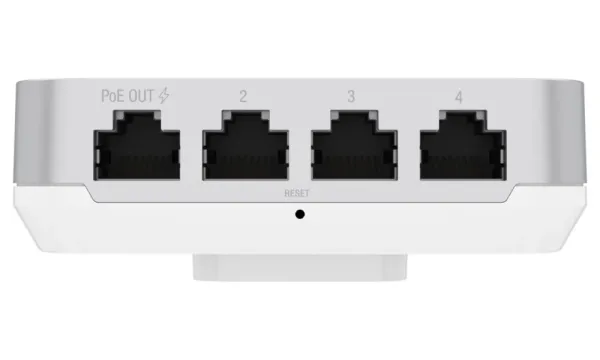

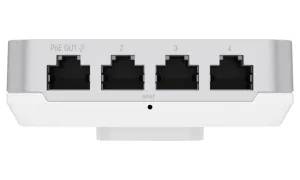

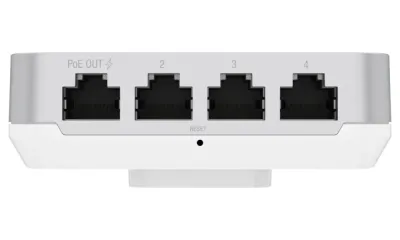

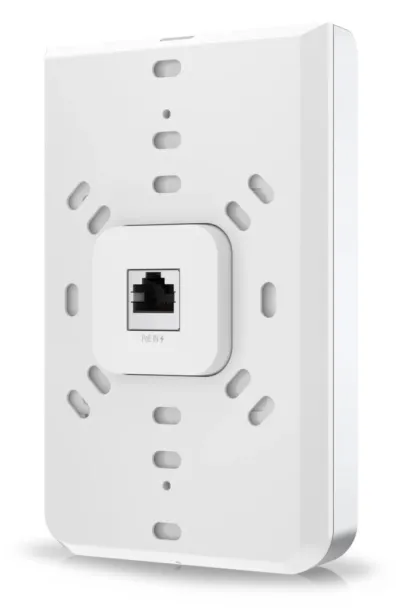

Ports: 5x GbE RJ-45

Dimensions: 139.66 x 96 x 31.19 mm
