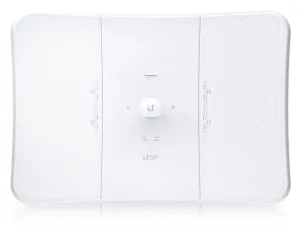

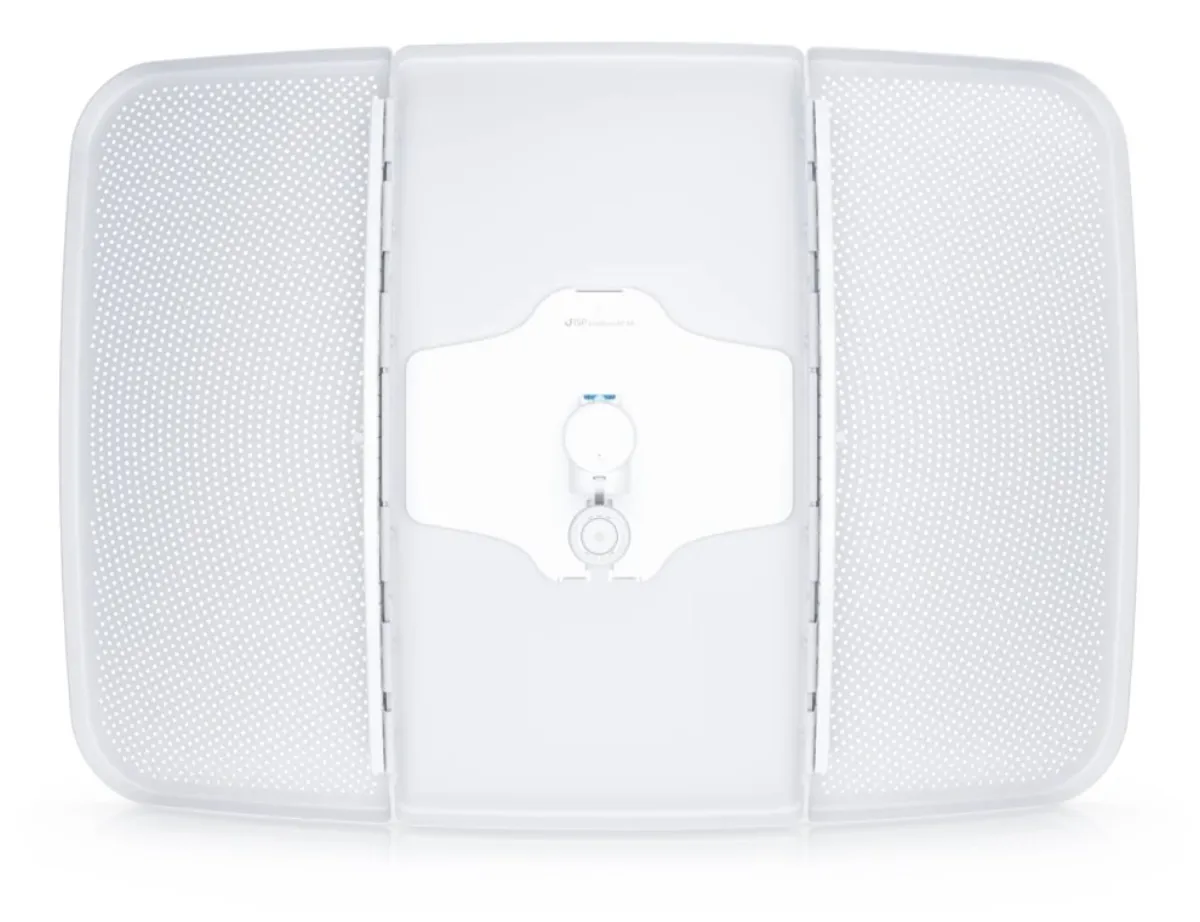

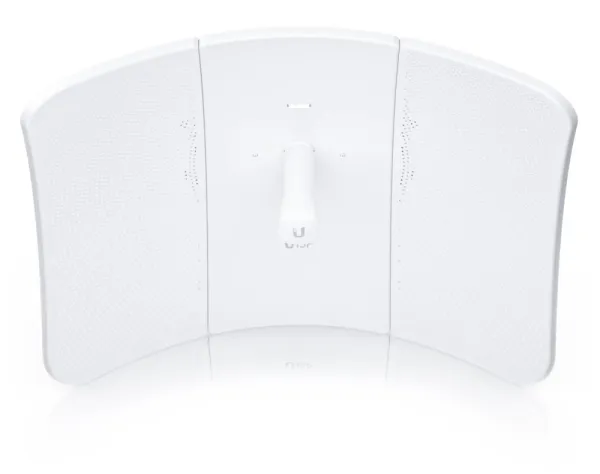

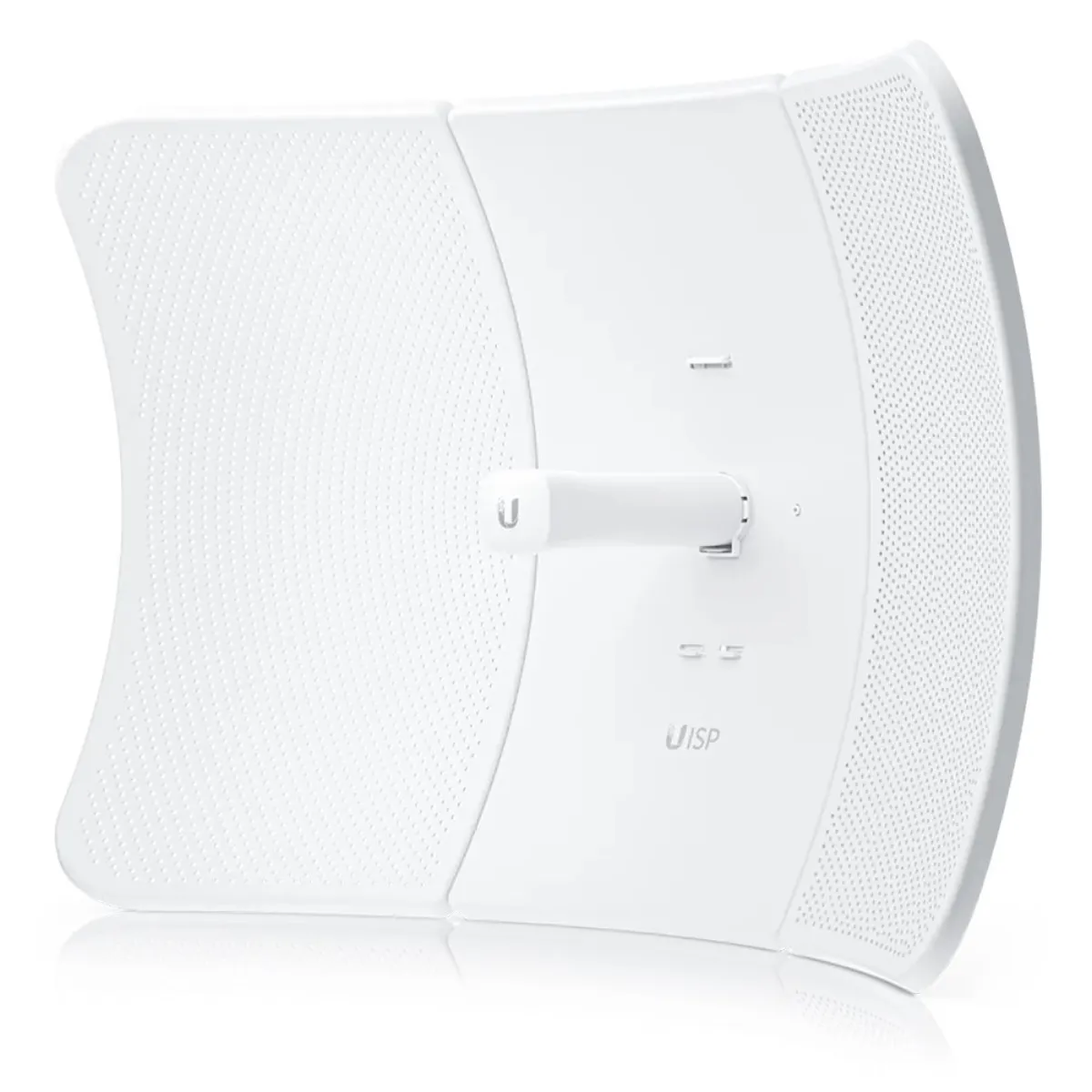

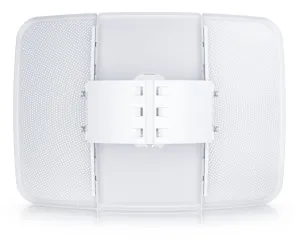

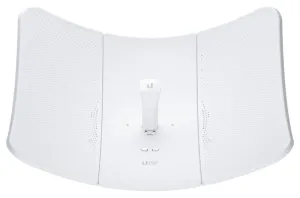

Ubiquiti UISP LiteBeam 5AC XR - AP client 5GHz antenna 29dBi MIMO2x2 airMAX AC 1x Gbit RJ45 PoE 24V

Ubiquiti UISP airMAX LiteBeam AC XR

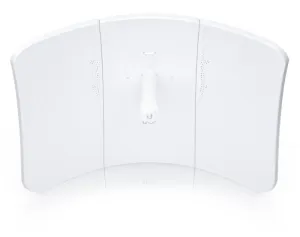

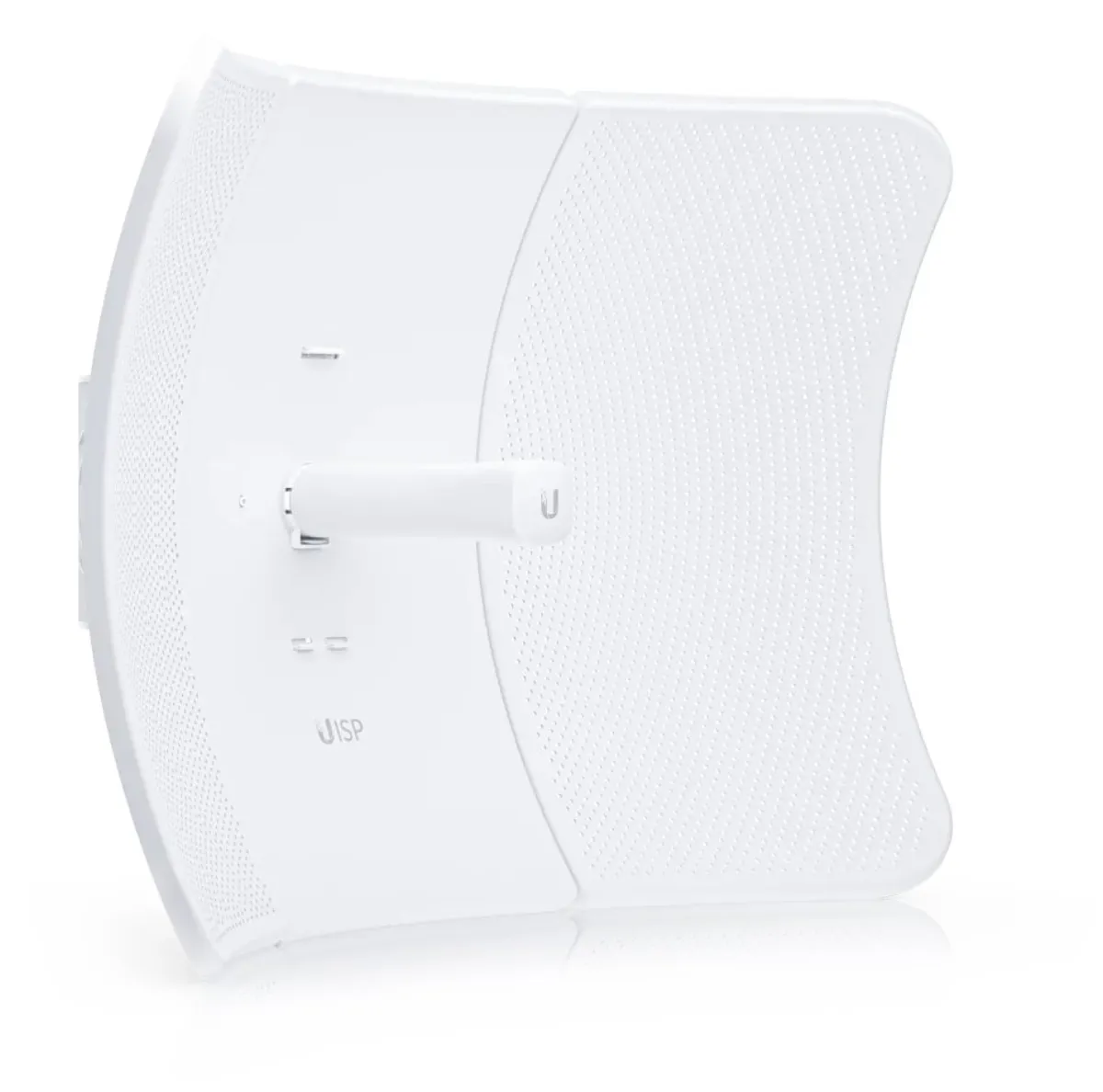

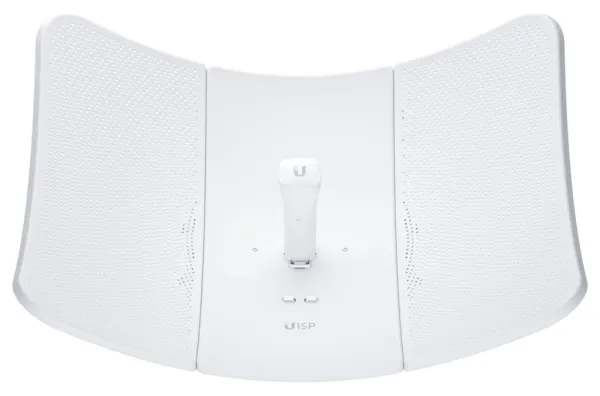

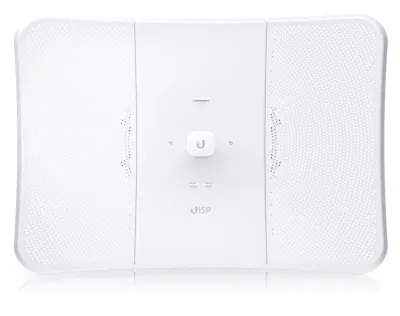

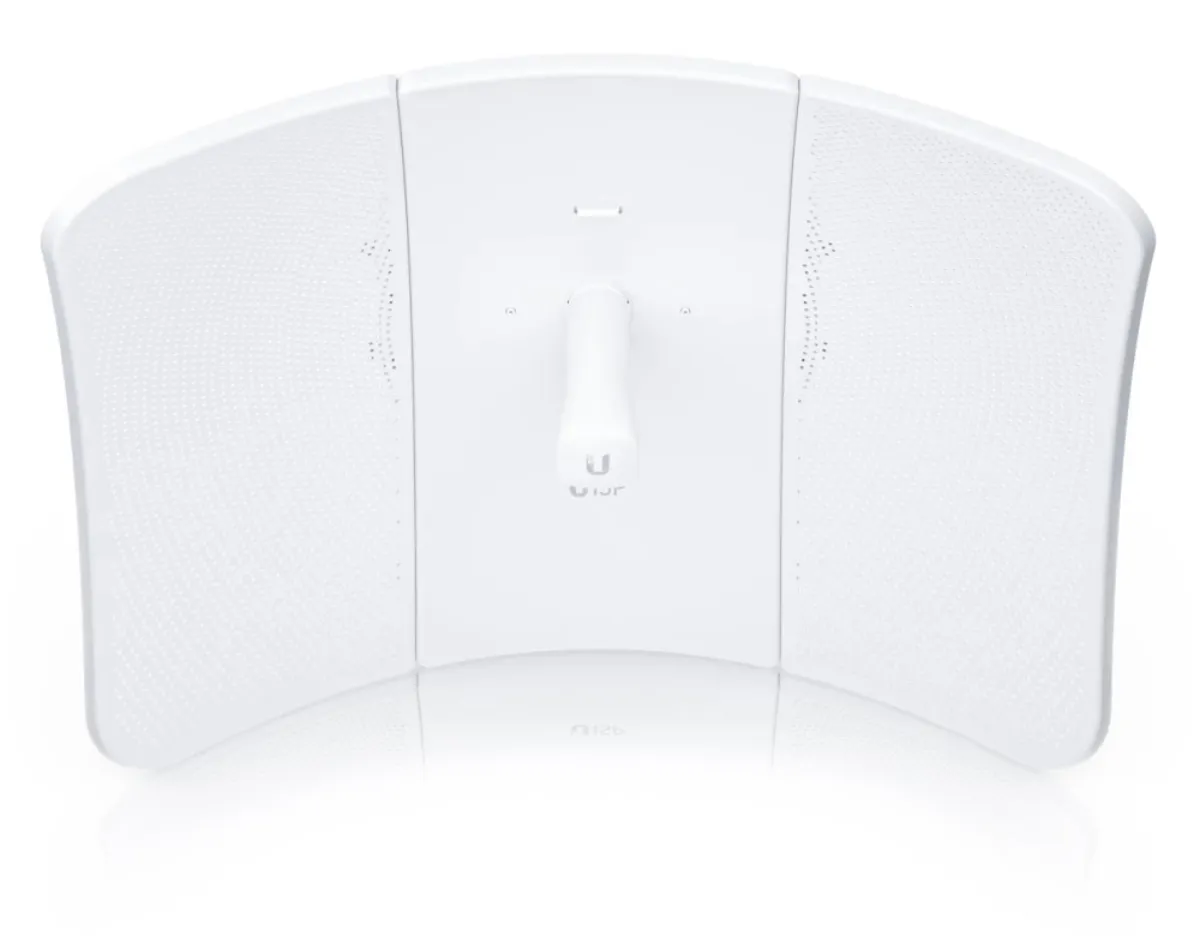

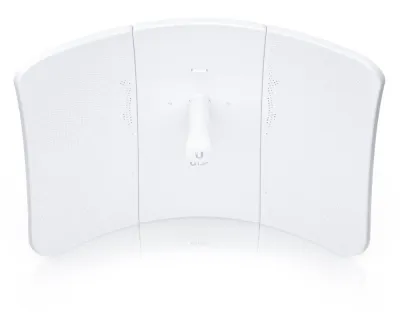

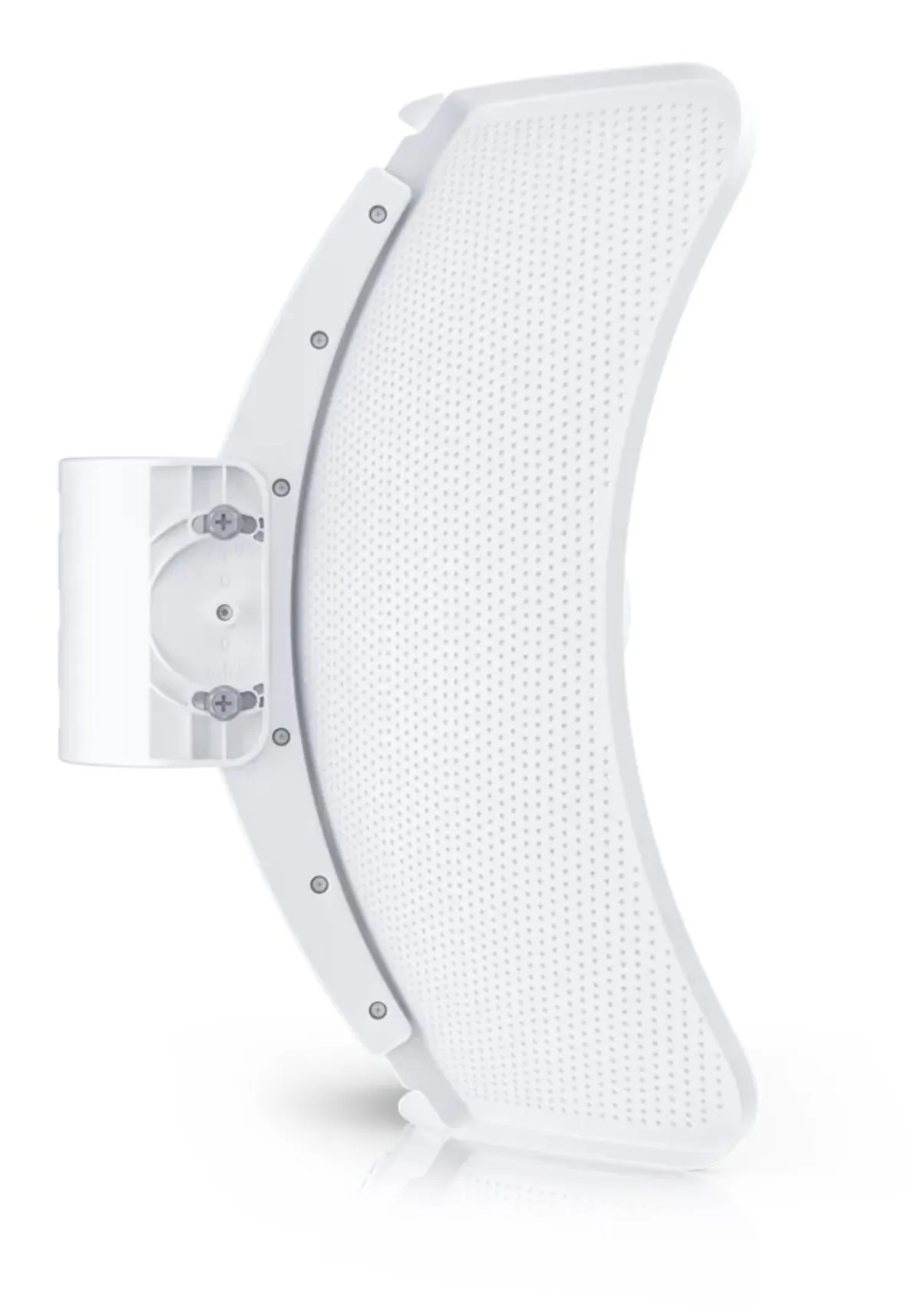

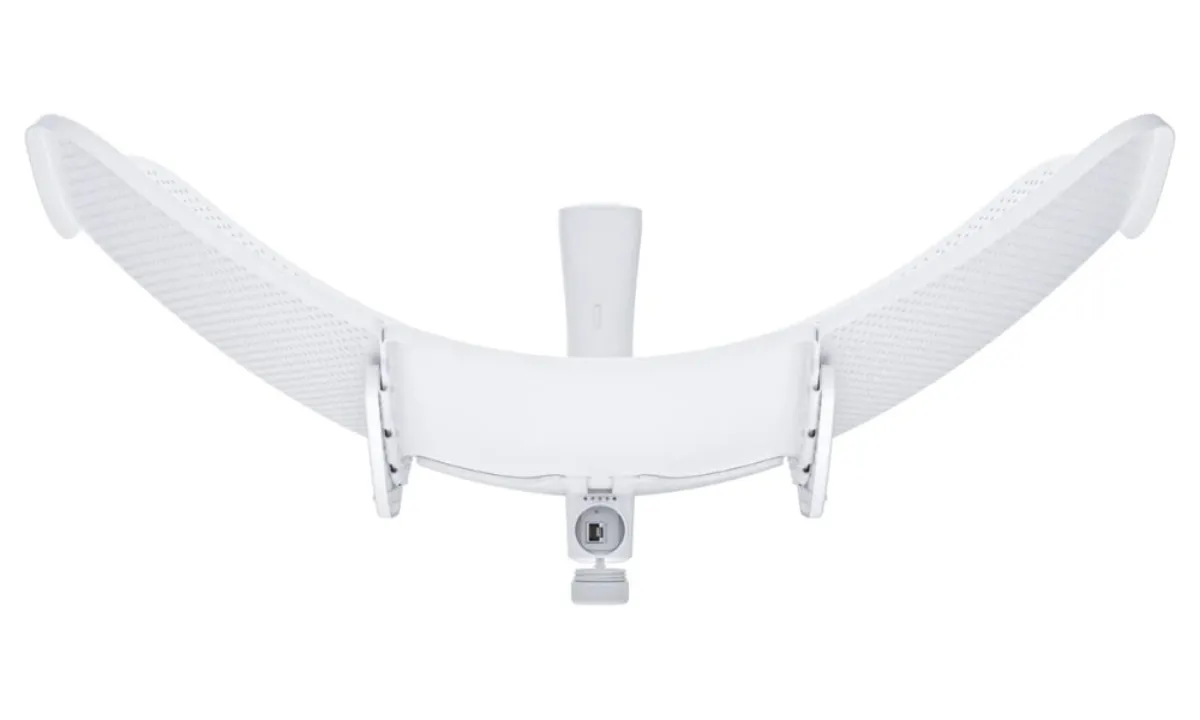

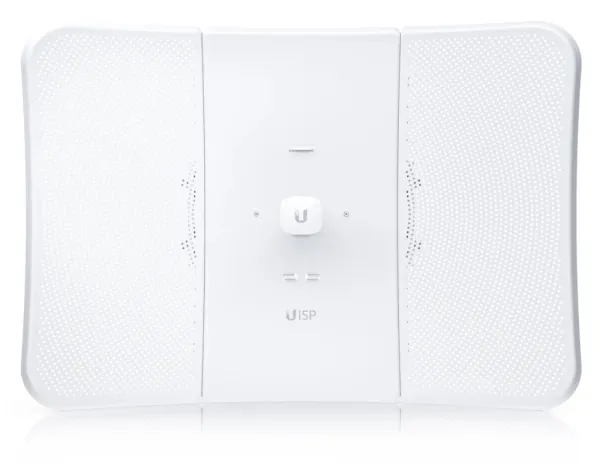

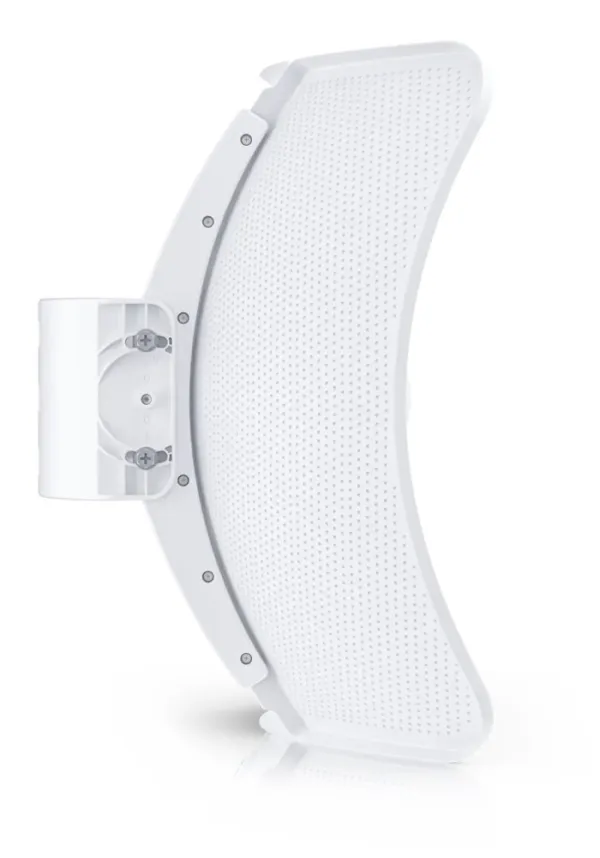

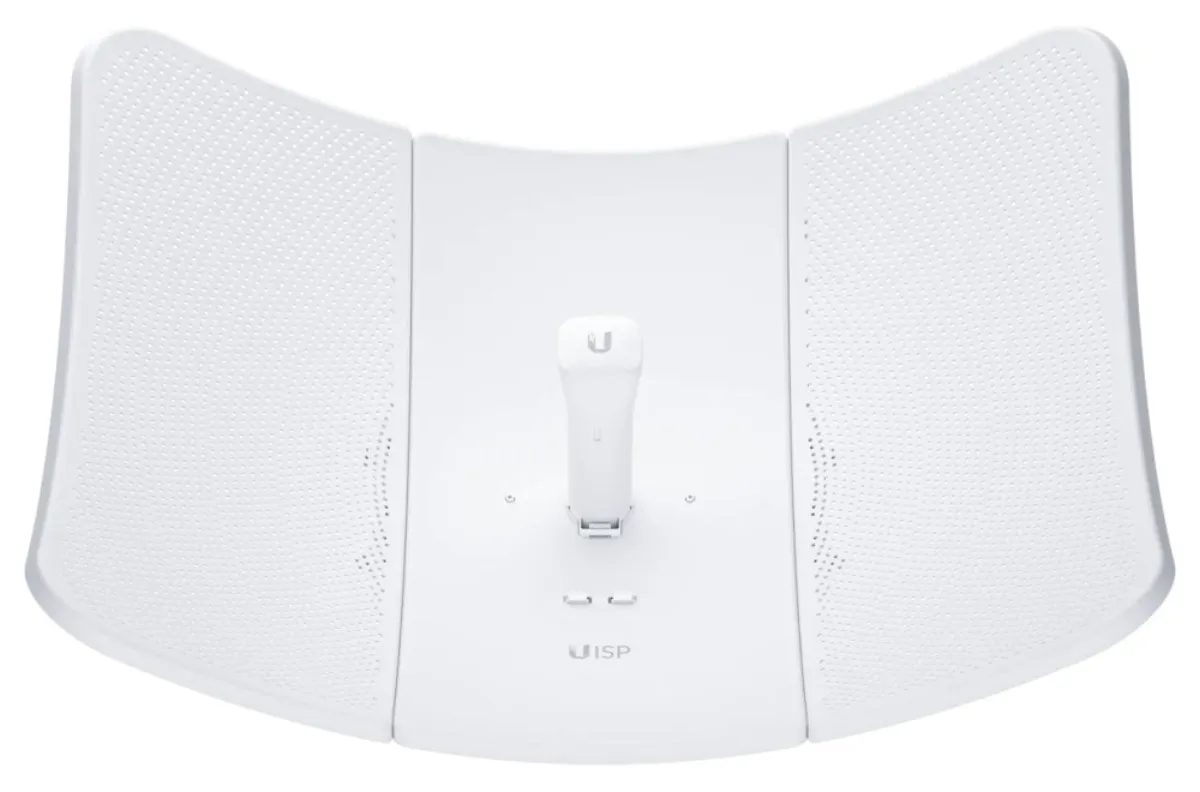

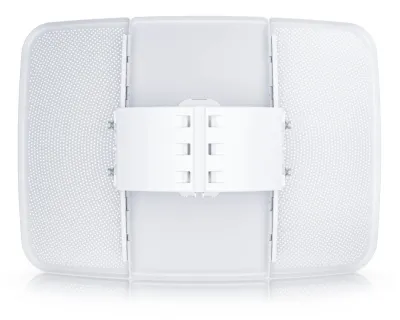

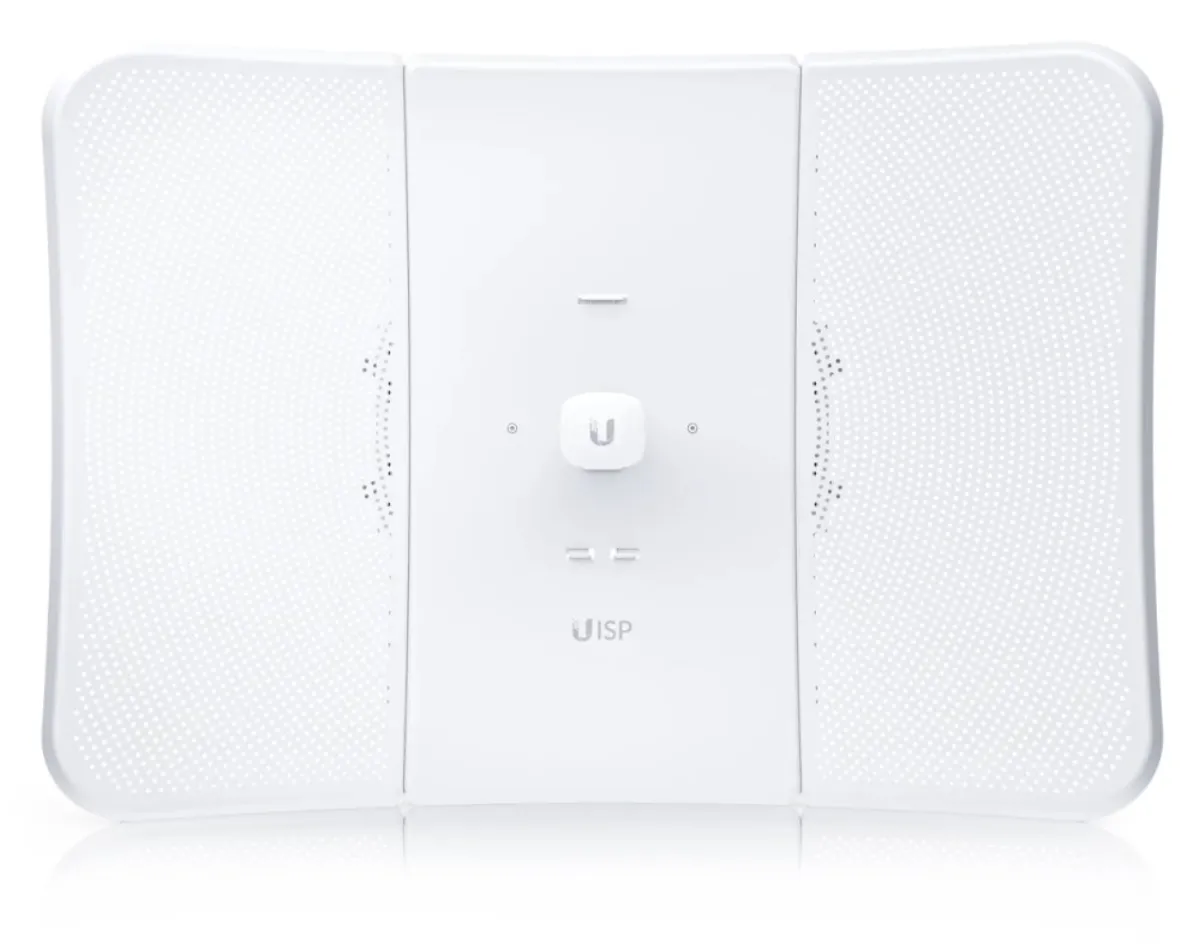

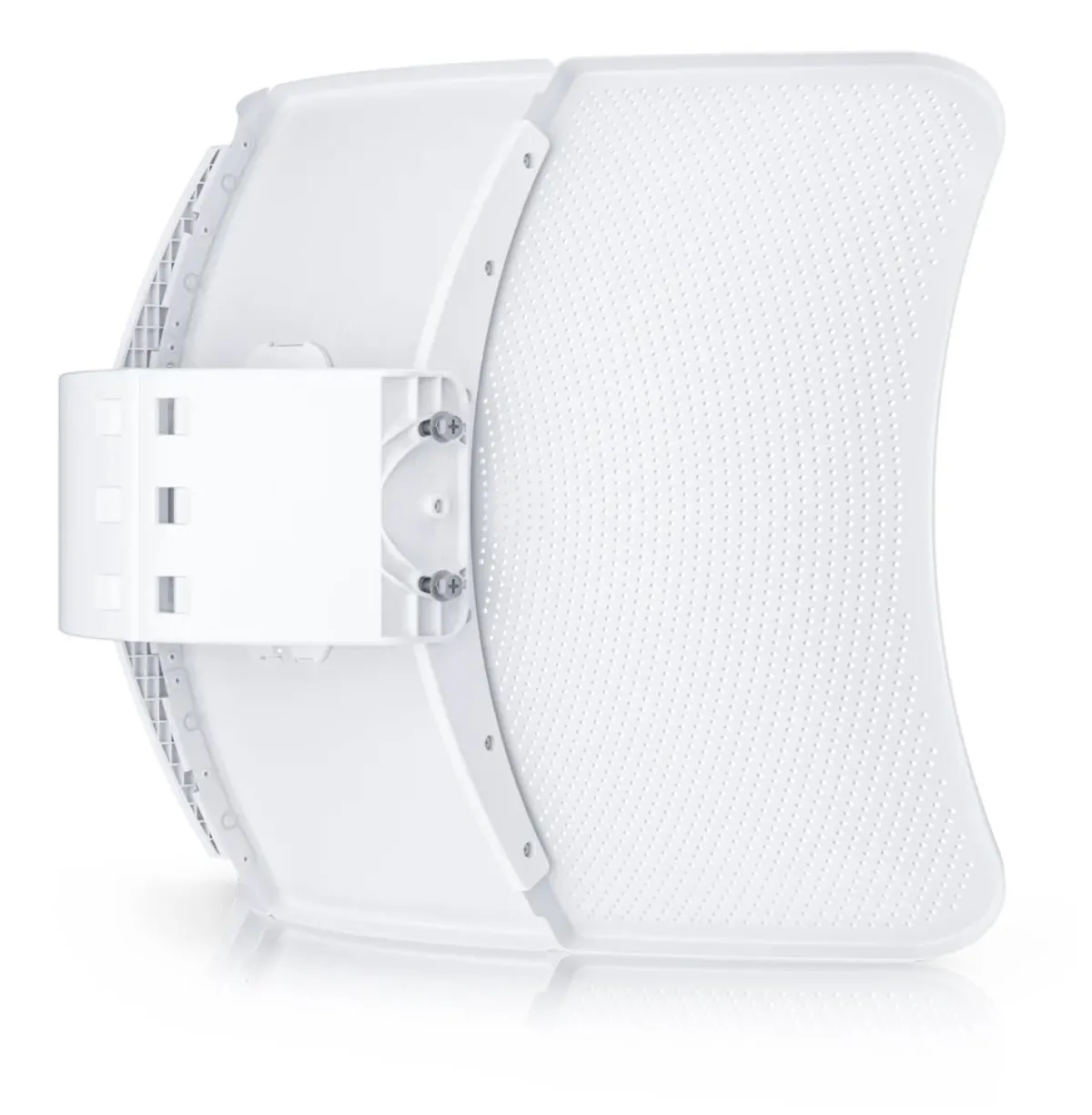

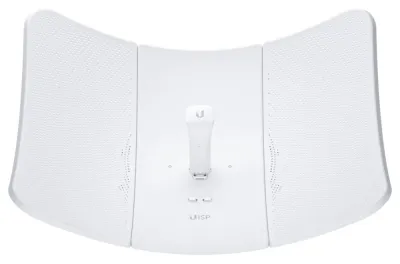

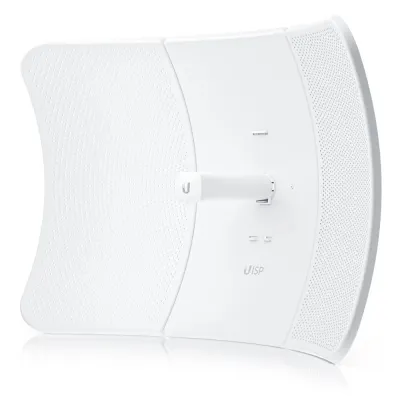

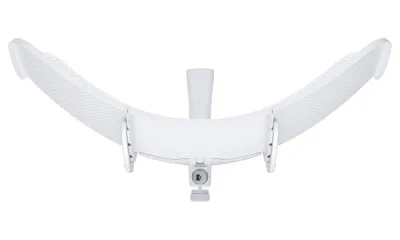

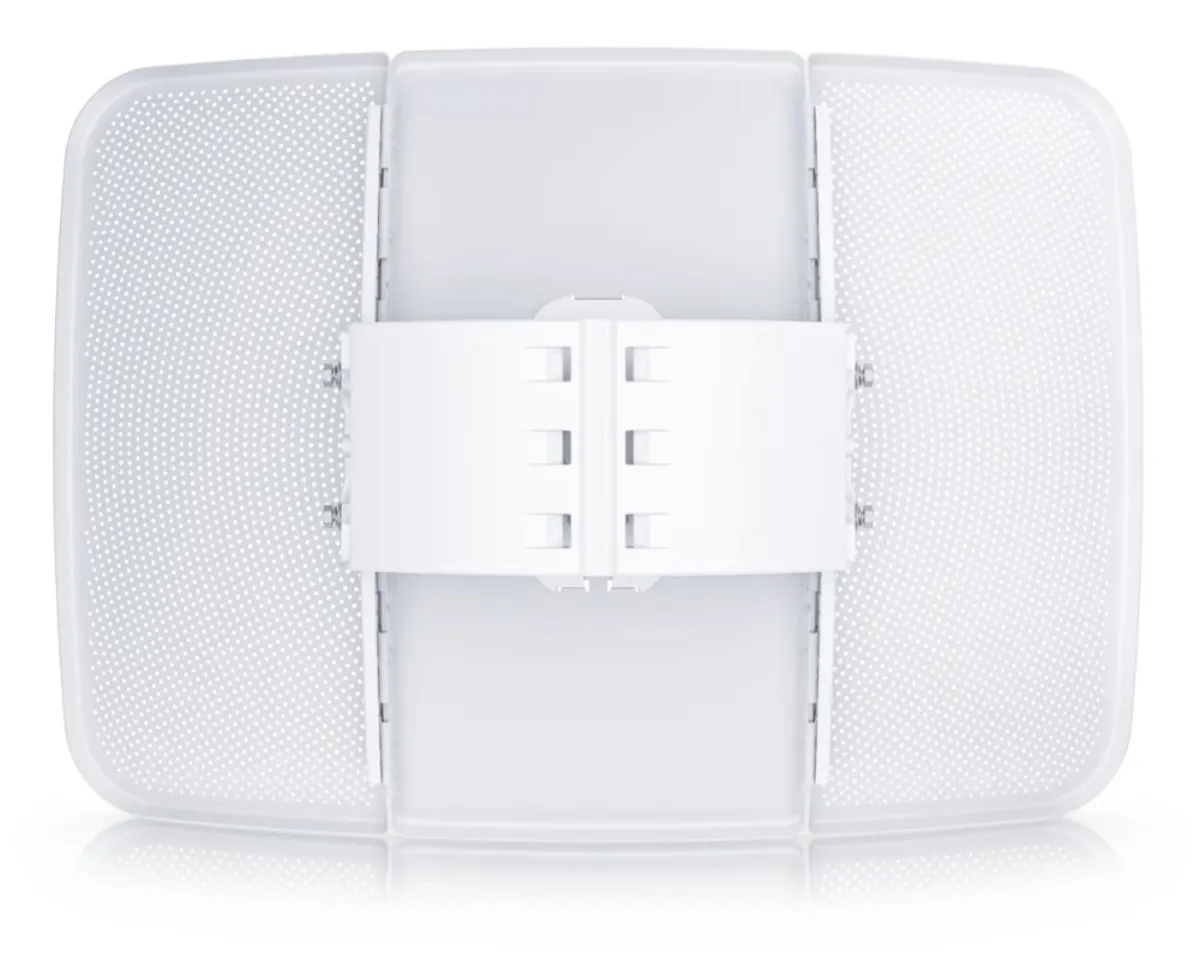

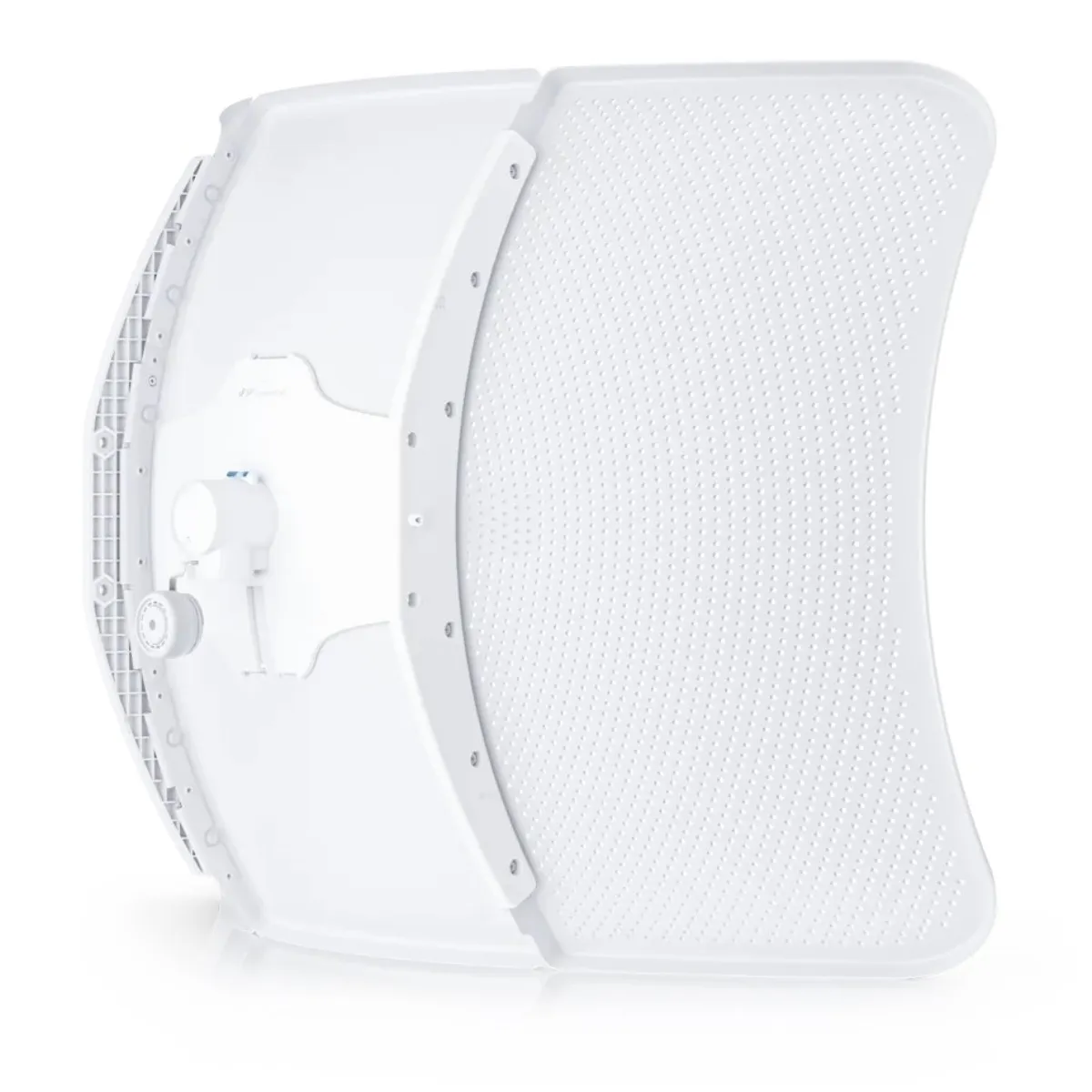

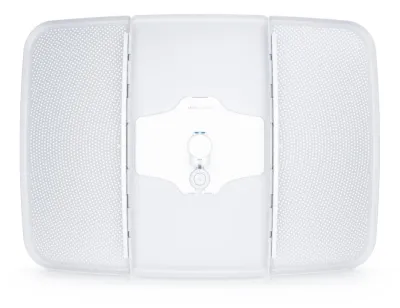

The airMAX LiteBeam AC 5 GHz XR CPE (LBE 5AC XR) is an outdoor wireless unit designed to provide high-speed connections over extremely long distances, and allows serving multiple subscribers with a single device. The unit is also equipped with its own high-gain antenna, which is capable of providing throughput of more than 450 Mbps in the 5 GHz frequency band.

Features

• Proprietary chipset airMAX ac
• Very light aluminum construction and UV resistant polycarbonate
• Antenna with high gain (29 dBi) and InnerFeed technology
• High-speed connections over extremely long distances
• Integrated GPS
• Connection planning support through ISP Design Center
• Dedicated radio management for quick device setup via the UISP Mobile app
• PtMP and PtP modes, airOS operating system
• UISP management: iOS 2.19.2, Android 2.20.2 and later

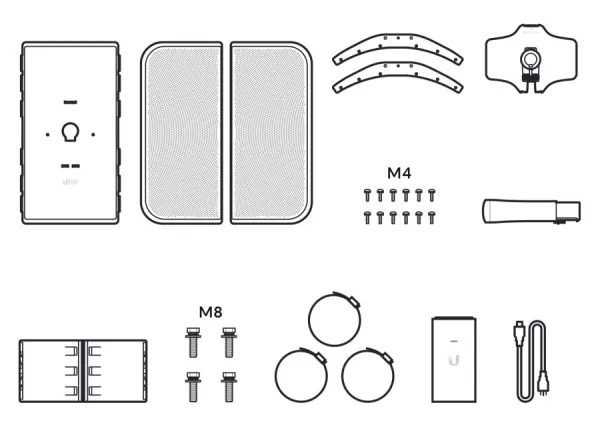

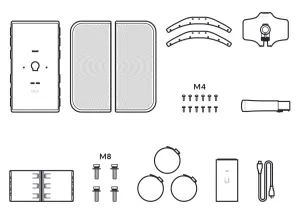

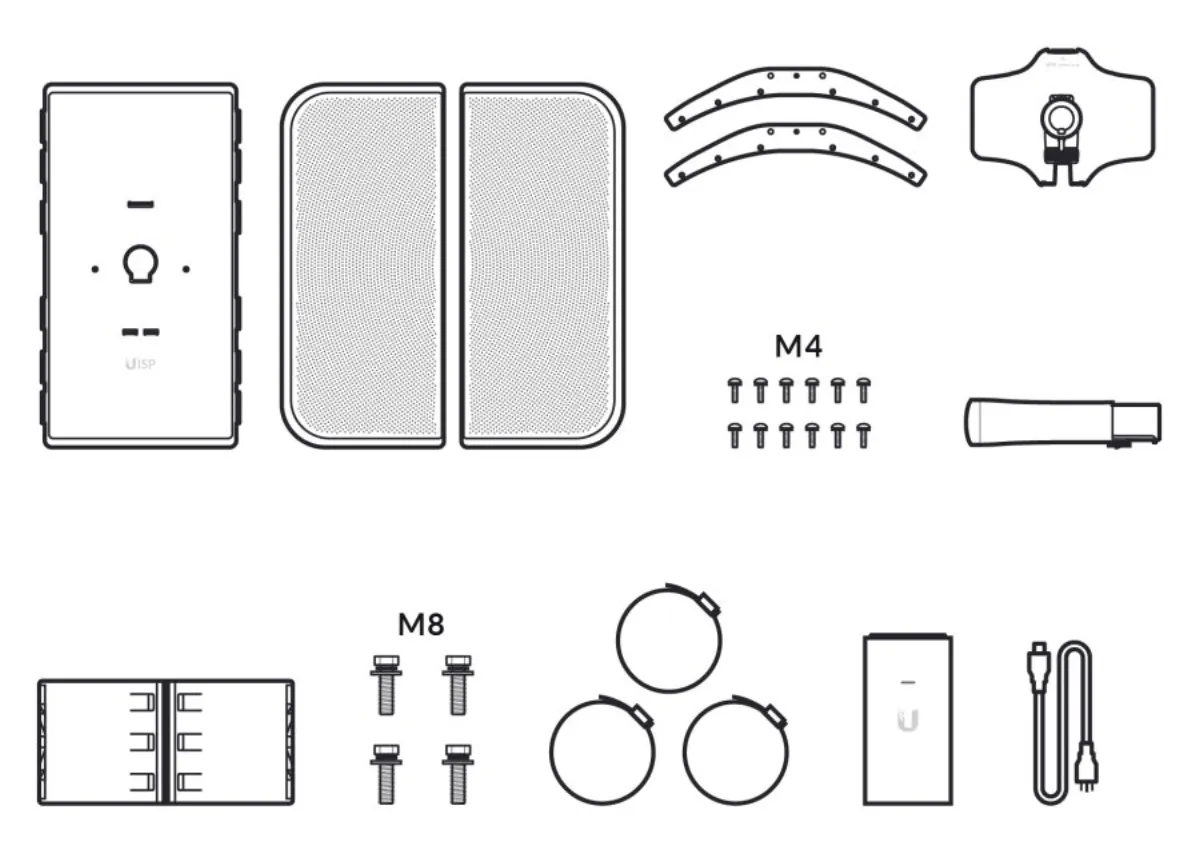

The package includes a Gigabit power PoE injector 24 V (0.5 A).

Frequency: 5 GHz (5.15 to 5.85 GHz

Throughput: 450+ Mbps

Interface

• 1x GbE RJ-45
• airMAX ac

Gain: 29 dBi

Radiation angle

• Horizontal polarization: 5.5° (3 dB) / 7.5° (6 dB)
• Vertical polarization: 5.5° (3 dB) / 7.5° (6 dB)
• Elevation: 5.5° (3 dB) / 7.5° (6 dB)

PoE

• yes
• passive (24 V)

Weather resistance: IPX6

Weight: 3.2 kg

Dimensions: 747 x 525 x 347 mm
