TP-Link TL-SG105MPE Easy Smart Switch 5x GLAN 4x PoE+ 120W
TP-Link | TL-SG105MPE | 4895252500264
Out of stock.
Price of goods is 71,09 €.
Price without tax is 58,75 €.

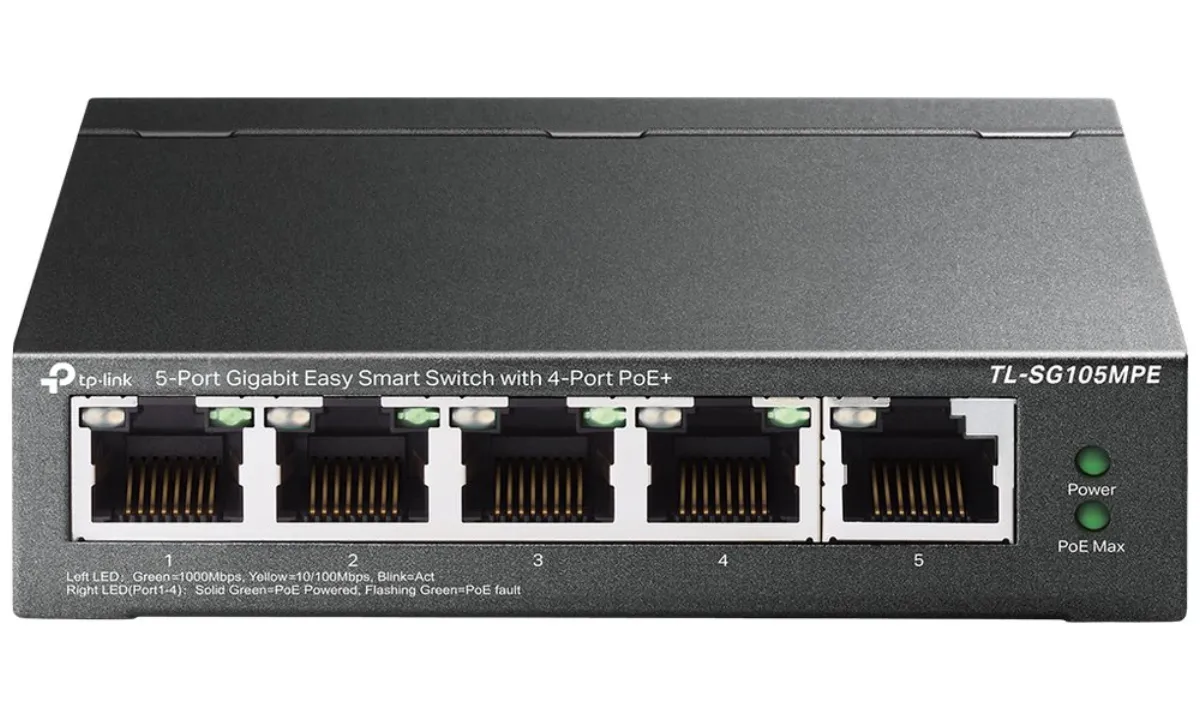

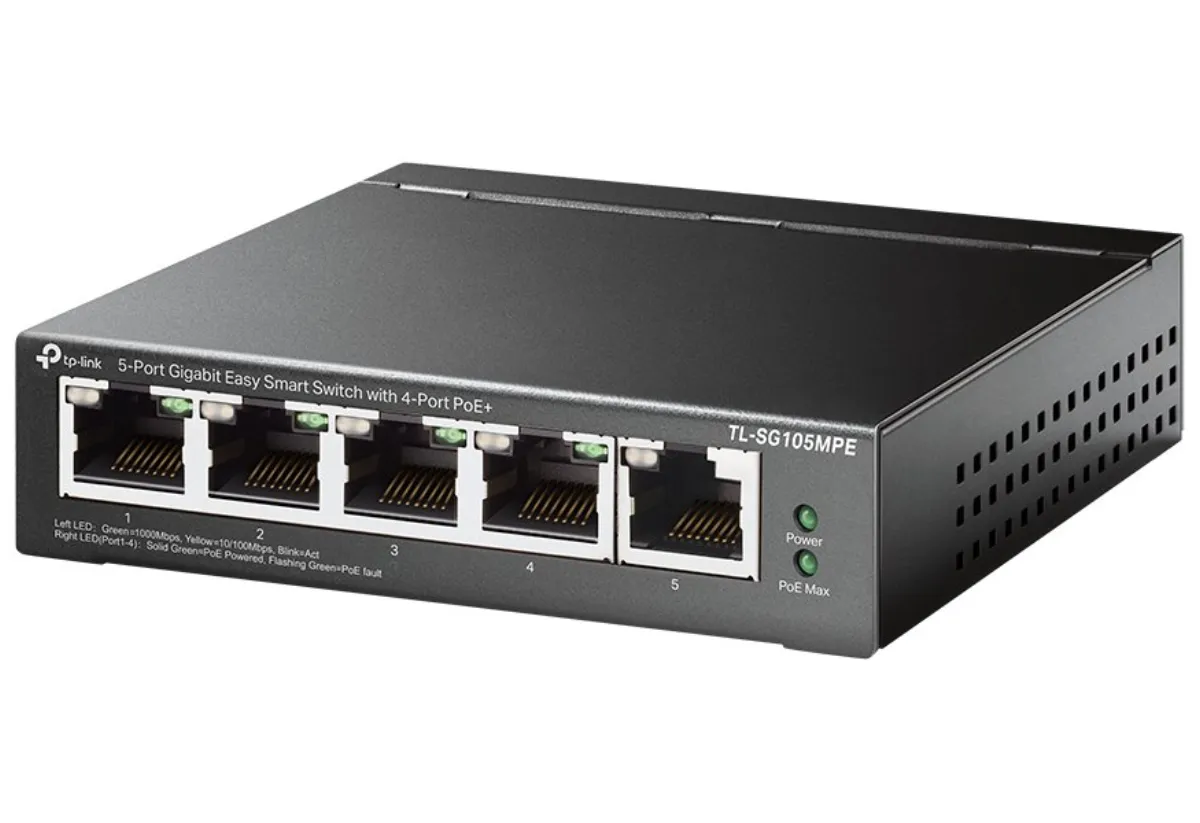

TP-Link TL-SG105MPE
5-port gigabit Easy Smart switch with 4 PoE+ ports
Switch offering 5 GbE RJ-45 ports, 4 of which support PoE+ (802.3 af/at) with a total power output of up to 120 W. Easy to use via web management or with Easy Smart Configuration Utility. Switching capacity reaches up to 10 Gbps and routing speed up to 7.44 Mpps.
- 5 Gigabit RJ-45 ports.
- 4 PoE+ ports transmit data and power via a single cable and have a total power of up to 120 W.
- The switch complies with the IEEE 802.3af/at PoE+ standard and supports PoE power supply with a power of up to 30W on each PoE port.
- Provides network monitoring, priority traffic control, VLAN functionality and automatic PoE recovery.
- Simple network setup and Plug-and-Play connection.
- Web-based user interface and Easy Smart configuration tool simplify setup.
- Fanless design reduces energy consumption and ensures quiet operation at the installation site.
Number of ports: 5x GbE RJ-4
PoE
- yes
- 4x 802.3at/af
- max. 30 W/port
- a total of 120 W
Switch capacity: 10 Gb/s
Routing Speed: 7.44Mp/s
Dimensions: 99.8 x 98 x 25 mm
Properties
| Name | Value |
|---|---|
| Color | black |
| Input voltage [V] | 53,5 (DC) |
| Dimension [mm] | 99,8 × 98 × 25 mm |
| Minimum operating temperature [°C] | 0 |
| Maximum operating temperature [°C] | 40 |
| Standards | 802.3i, 802.3u, 802.3ab, 802.3af, 802.3x, 802.1q, 802.1p, 802.1at |
| RS-232 port | No |
| MicroSD card support | No |
| Device power supply | external adapter |
| Conformity | FCC, CE, RoHS |
| OSI Layer | L2 |
| PoE output | 802.3af/at |
| Port speed | 1 Gb/s |
| PoE properties | PD alive |
| Bus capacity (GBps) [Gbps] | 10 |
| Fanless | Yes |
| PoE output count | 4 |
| Gigabit LAN | Yes |
| Design | freestanding |
| RJ-45/RJ-11 count | 5 |
| Routing speed [Mpps] | 7,44 |
