TP-Link EAP620 HD Ceiling Dual Band Wi-FI 6 AP 1x 10 100 1000 Mbps RJ45 802.11ac ax n a b g 1201+574 Mbps
TP-Link | EAP620 HD | 6935364030742
Out of stock.
Price of goods is 148,29 €.
Price without tax is 122,55 €.

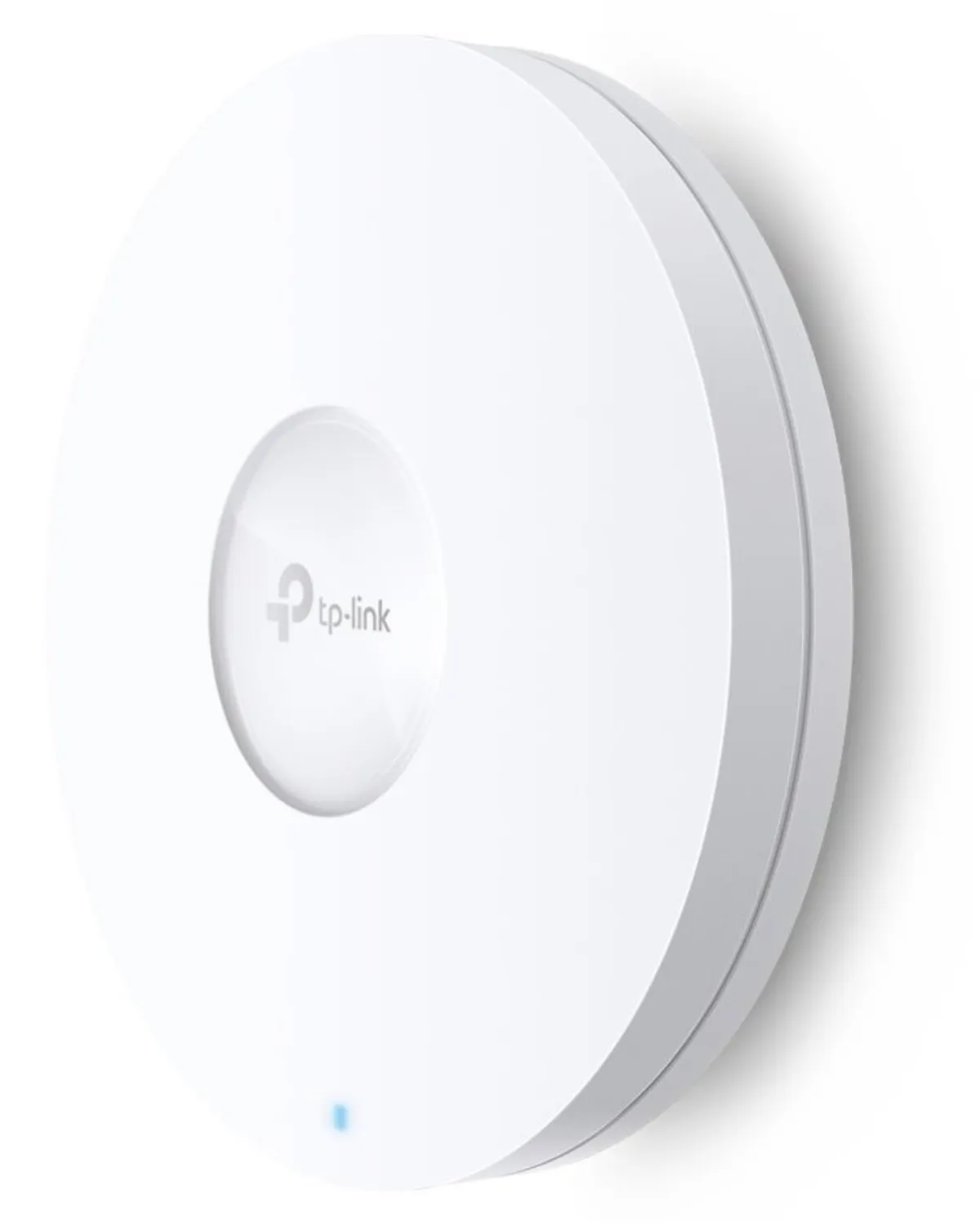

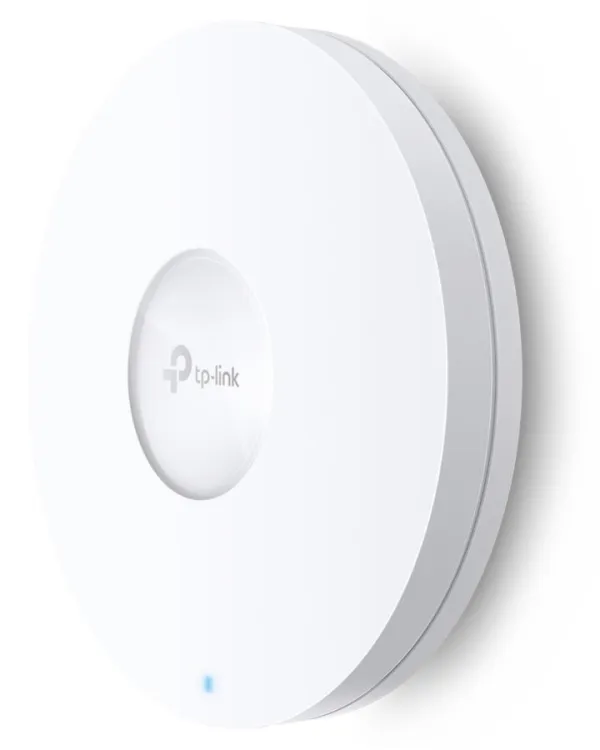

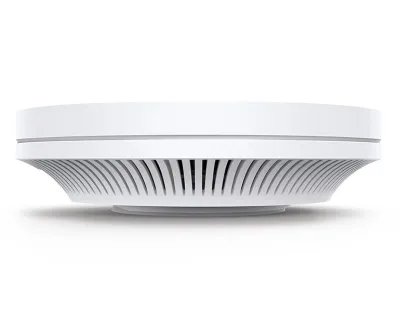

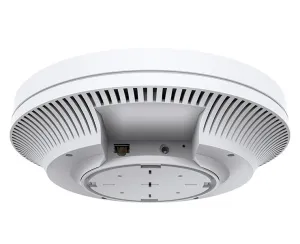

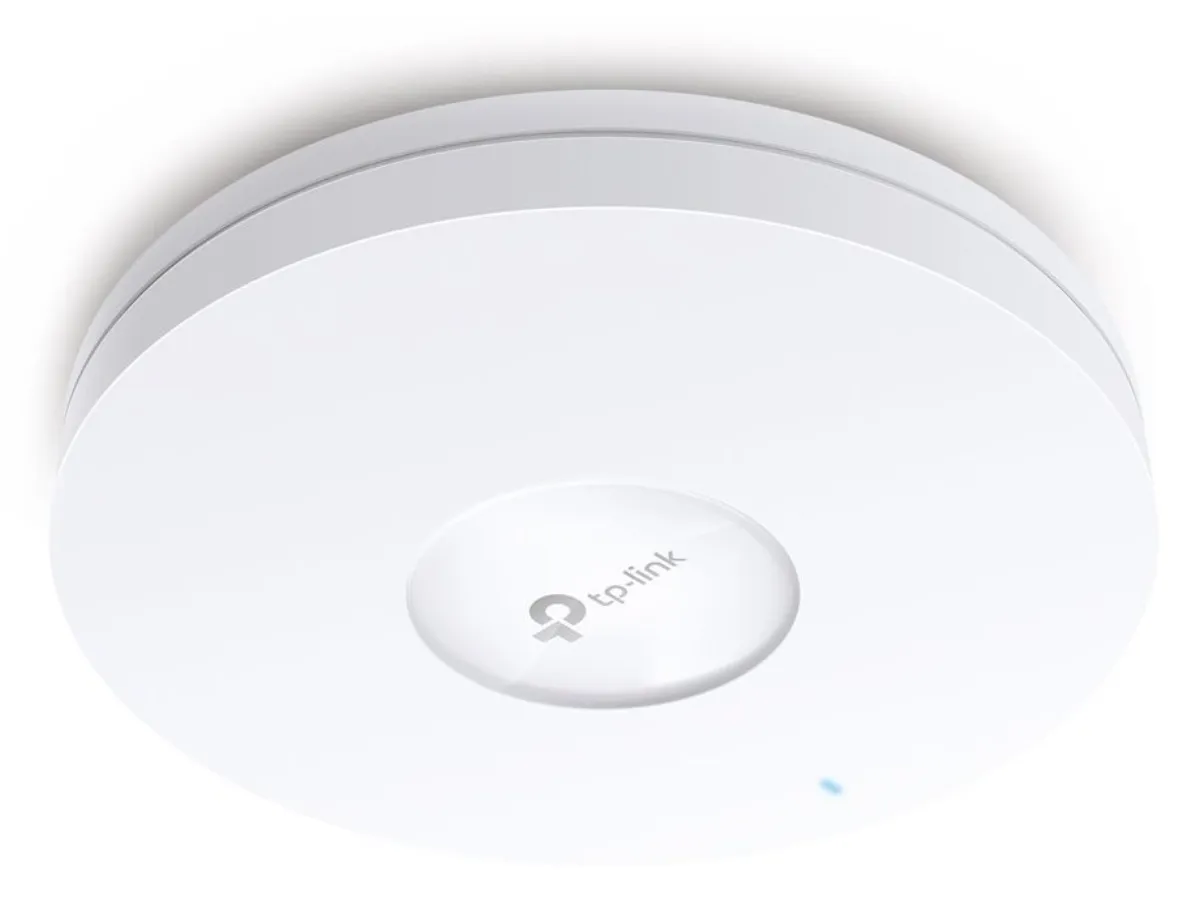

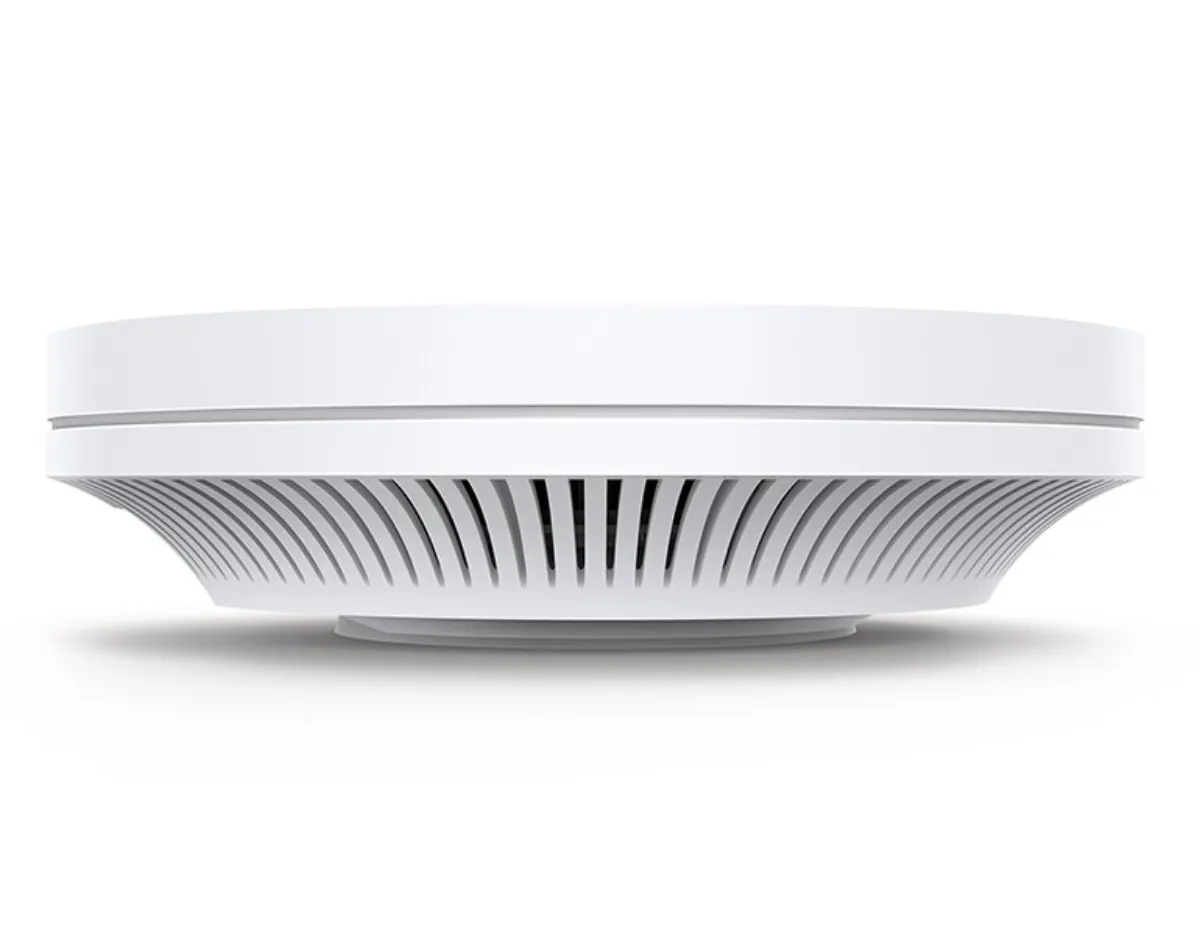

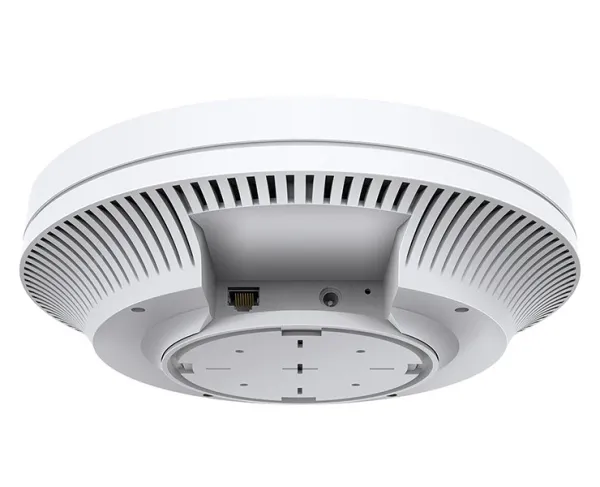

TP-Link EAP620 HD
The dual-band ceiling access point with Wi-Fi 6 (802.11ax) support together with MU-MIMO technology ensures a top dual-band connection with a total speed of 1775 Mb/s at a speed of 574 Mb/s in the band 2.4 GHz and 1201 Mb/s in the 5 GHz band. The access point supports both 802.3at PoE+ and power supply with the supplied DC 12 V adapter. The elegant appearance and simple mounting for easy wall or ceiling mounting makes deployment and flexibility easy.
- Ultra-fast Wi-Fi 6 (AX1800) - 1775 Mbps at 574 Mbps in the 2.4 GHz band and 1201 Mbps in the 5 GHz band
- Connectivity - 4x more capacity to connect multiple devices at the same time
- Integration into Omada SDN - Zero-Touch Provisioning (ZTP), centralized cloud management and intelligent monitoring
- Centralized management - cloud access and Omada application for easy management
- Seamless roaming - video streams and voice calls are not affected when the user moves between individual access points
- PoE support - supports power over Ethernet (PoE+ 802.3at) for convenient deployment and installation
- Secure guest network - several authentication options (SMS, Facebook, voucher, etc.)
Wi-Fi standard: IEEE 802.11a/b/g/n/ac/ax
Data transfer speed
- 2.4 GHz - 574 Mbit/s
- 5 GHz - 1201 Mbit/s
Antenna: 2 x 4 dBi + 2 x 5 dBi integrated antenna
Ports: 1 x GbE RJ-45 LAN
Frequency band
- 2.4 GHz
- 5 GHz
Security
- WEP
- WPA-Personal/Enterprise
- WPA2-Personal/Enterprise
- WPA3-Personal/Enterprise
PoE support
- yes
- 802.3at
Dimensions: 243 x 243 x 64 mm
Properties
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 243 × 243 × 64 mm | |
| Minimum operating temperature [°C] | 0 | |
| Maximum operating temperature [°C] | 40 | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Indoor use | Yes | |
| Max. output power [dBm] | 25 | |
| Standards | 802.11a/b/g/n/ac/ax, 802.1X | |
| Conformity | CE, FCC, RoHS | |
| Modulation | 1024 QAM, OFDMA, OFDM | |
| Wi-Fi standard | 802.11a/b/g/n/ac/ax | |
| Repeater mode | No | |
| Transmission speed [Mbps] | 1201 (5GHz), 574 (2,4GHz) | |
| Bridge mode | No | |
| Power supply [V] | 12 | |
| Encryption | WEP, WPA-Personal/Enterprise, WPA2-Personal/Enterprise, WPA3-Personal/Enterprise | |
| Antenna design | internal | |
| Gain [dBi] | 4 (2,4GHz), 5 (5GHz) | |
| Port speed | 1 Gb/s | |
| Design | on the wall | |
| RJ-45/RJ-11 count | 1 | |
