Teltonika TSW040 industrial unmanaged switch 8x PoE+ 10 100 without power source
TELTONIKA | TSW040000000 | 4779051841448
On stock 47 pcs.
Price of goods is 55,48 €.
Price without tax is 45,85 €.
Actual in cart 0 pcs.

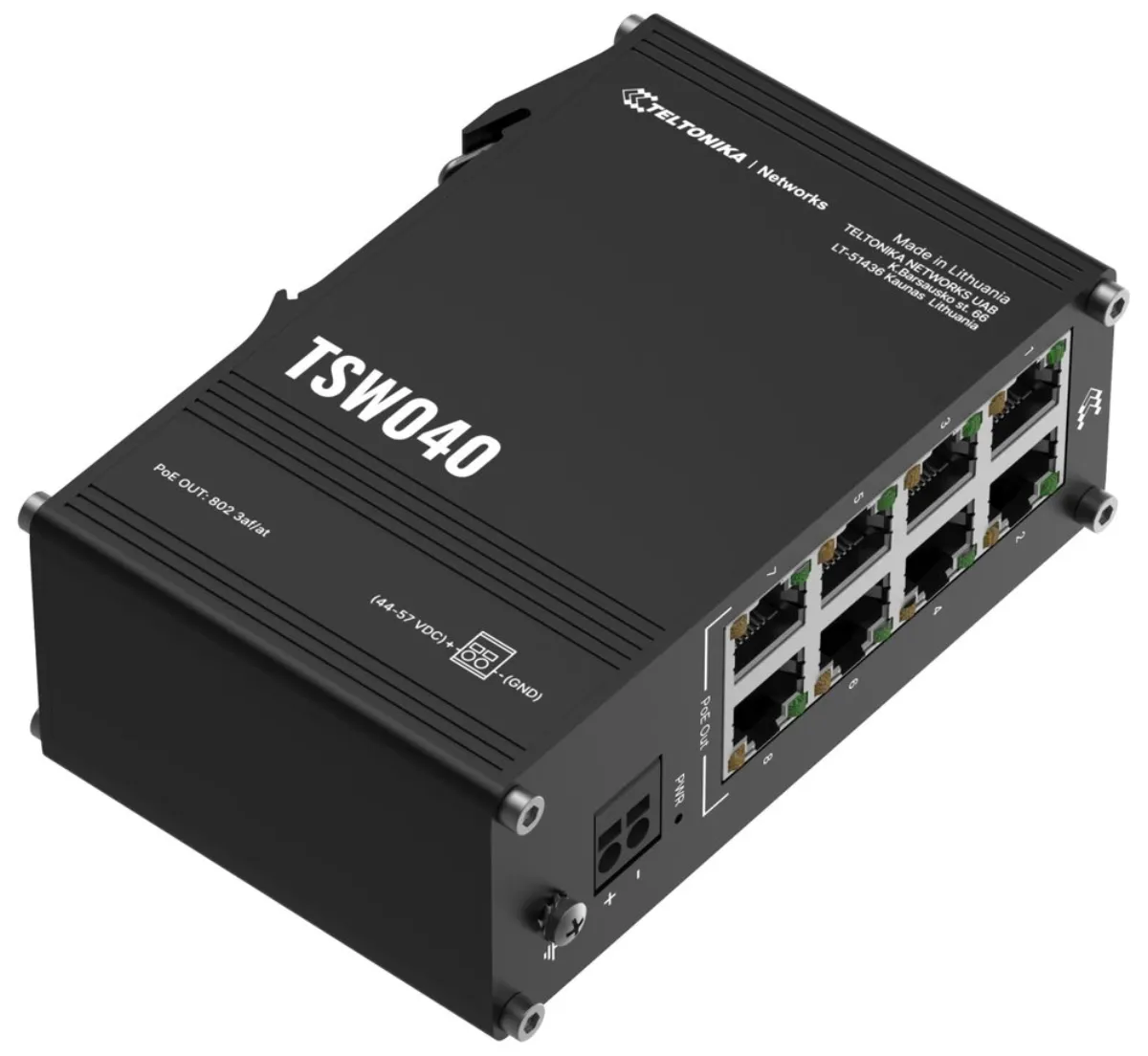

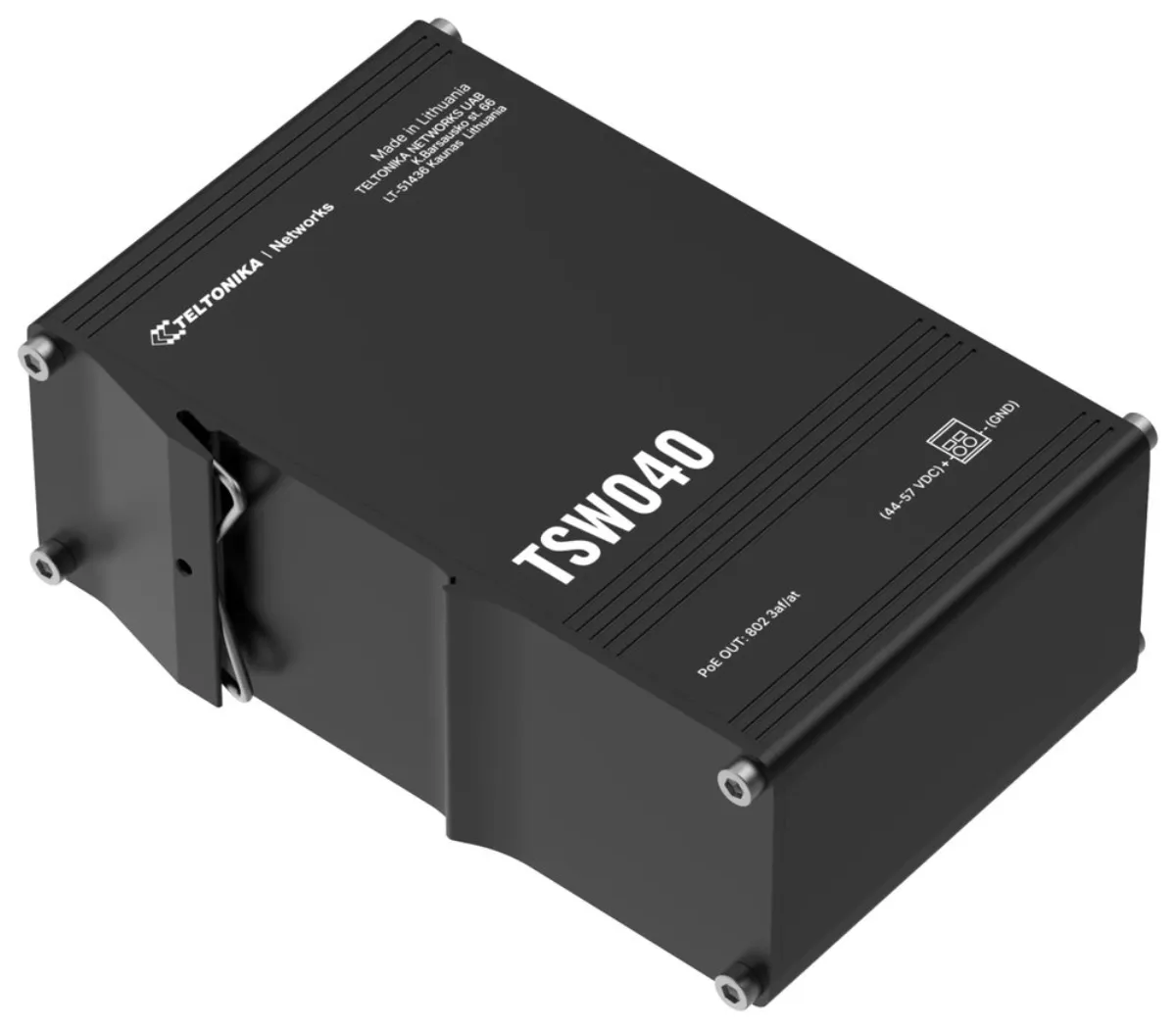

Teltonics TSW040
Industrial switch without management offering eight RJ-45 ports (10/100 Mbps) with support for PoE 802.3af/at power supply. The total PoE budget is 240 W (max. 30 W per port). Easy to use with no configuration or installation required.
Switching capacity reaches up to 20 Gbps. The buffer has a capacity of 128 KB, the table of MAC addresses is 2K, and Jumbo frames of 9 KB are supported.
- All LAN ports support automatic MDI/MDIX switching.
- Support for IEEE 802.3i, 802.3u, 802.3ab, 802.3x and 802.3az standards.

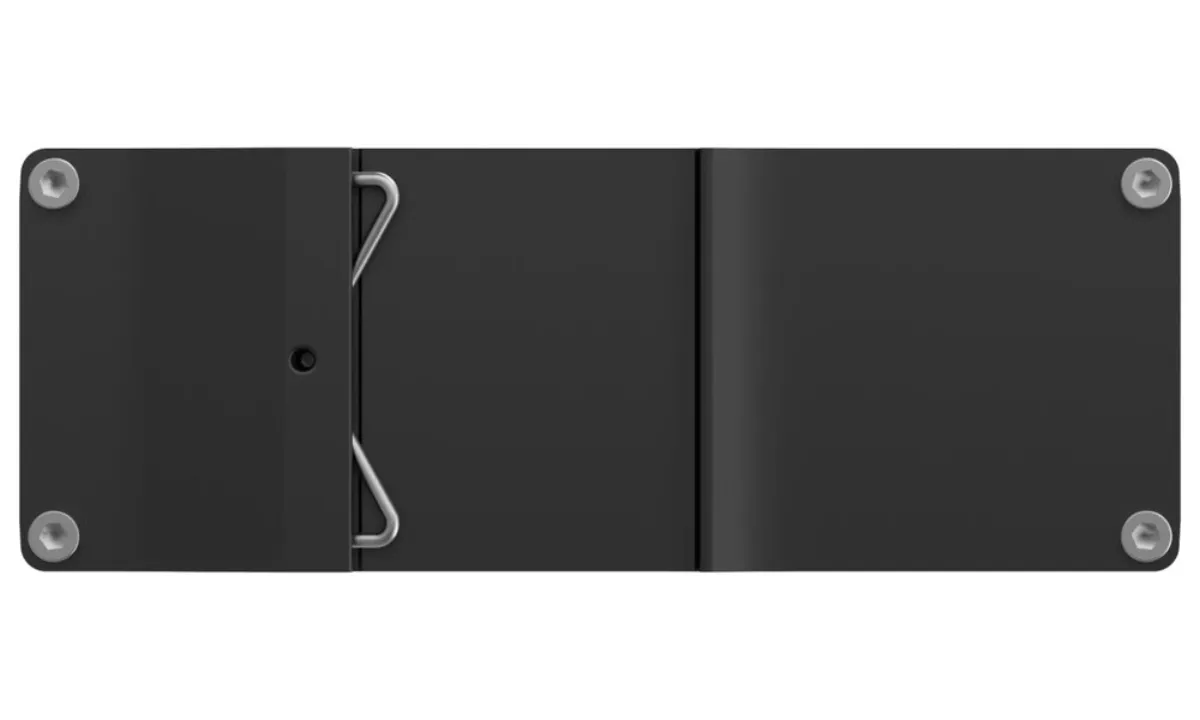

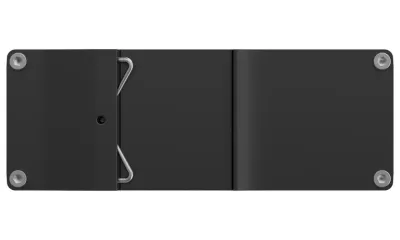

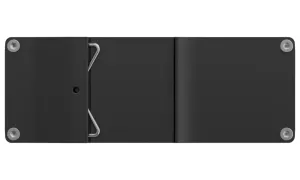

- Integrated DIN rail holder (no additional accessories required).
- Protection against overvoltage and reverse polarity.
- 2-pole industrial power input for flexible use.
- Eight PoE+ ports with a total budget of 240 W (max. 30 W per port).
- Compact aluminum body with a low weight of only 280 g.

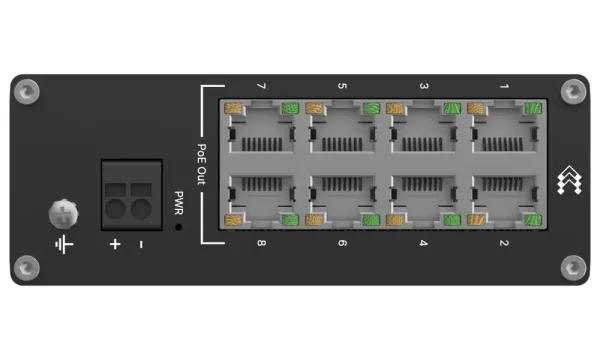

Number of ports: 8× RJ-45 10/100 Mb/
PoE
- yes
- budget 240 W (up to 30 W per port)
Switch capacity: 20 Gbps
Power supply: DC 7-57 V* (power adapter not included)
Dimensions: 113.1 x 74.6 x 41.2 mm
*If the TSW040 switch is powered by a voltage less than 44 V (ie from 7 to 43 V DC), it will work as a standard switch without PoE power supply.
Properties
| Name | Value |
|---|---|
| Input voltage [V] | 7 - 57 (DC) |
| Color | black |
| Dimension [mm] | 113,1 × 74,6 × 41,2 mm |
| Minimum operating temperature [°C] | -40 |
| Maximum operating temperature [°C] | 75 |
| Standard | 802.3at |
| MicroSD card support | No |
| Degree of coverage | IP30 |
| Conformity | CE, UKCA, RCM, FCC, IC, CB, EAC, UCRF |
| Management | No |
| Port speed | 100 Mb/s |
| Bus capacity (GBps) [Gbps] | 20 |
| PoE output | 802.3af/at |
| Fanless | Yes |
| PoE output count | 8 |
| Design | DIN rail |
| Device power supply | external adapter |
| OSI Layer | L2 |
| RJ-45/RJ-11 count | 8 |
| Weight, brutto [g] | 280 |
