Solarmi DC05R fitted distribution board for photovoltaics, arrester, disconnector, fuses up to 500V

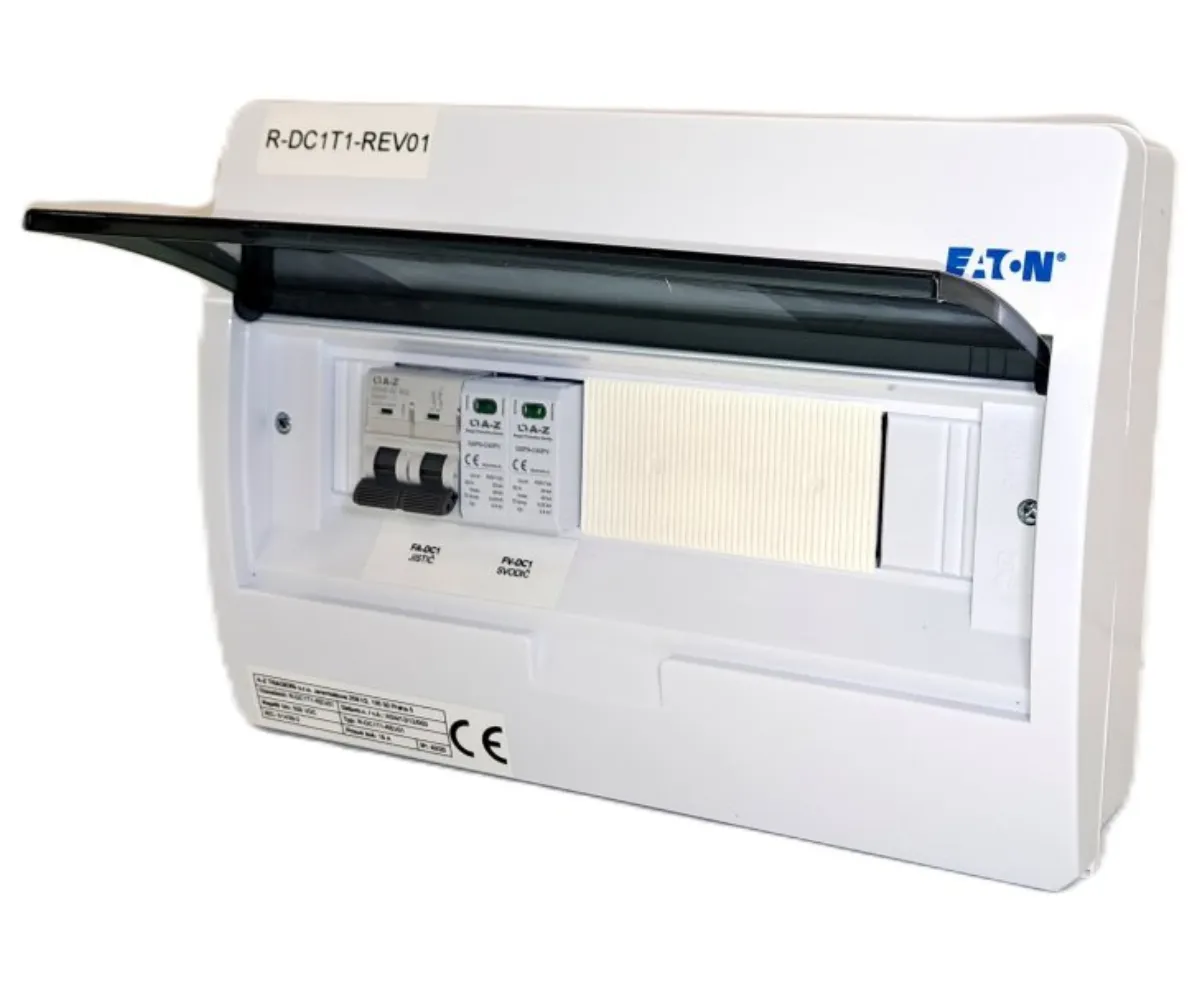

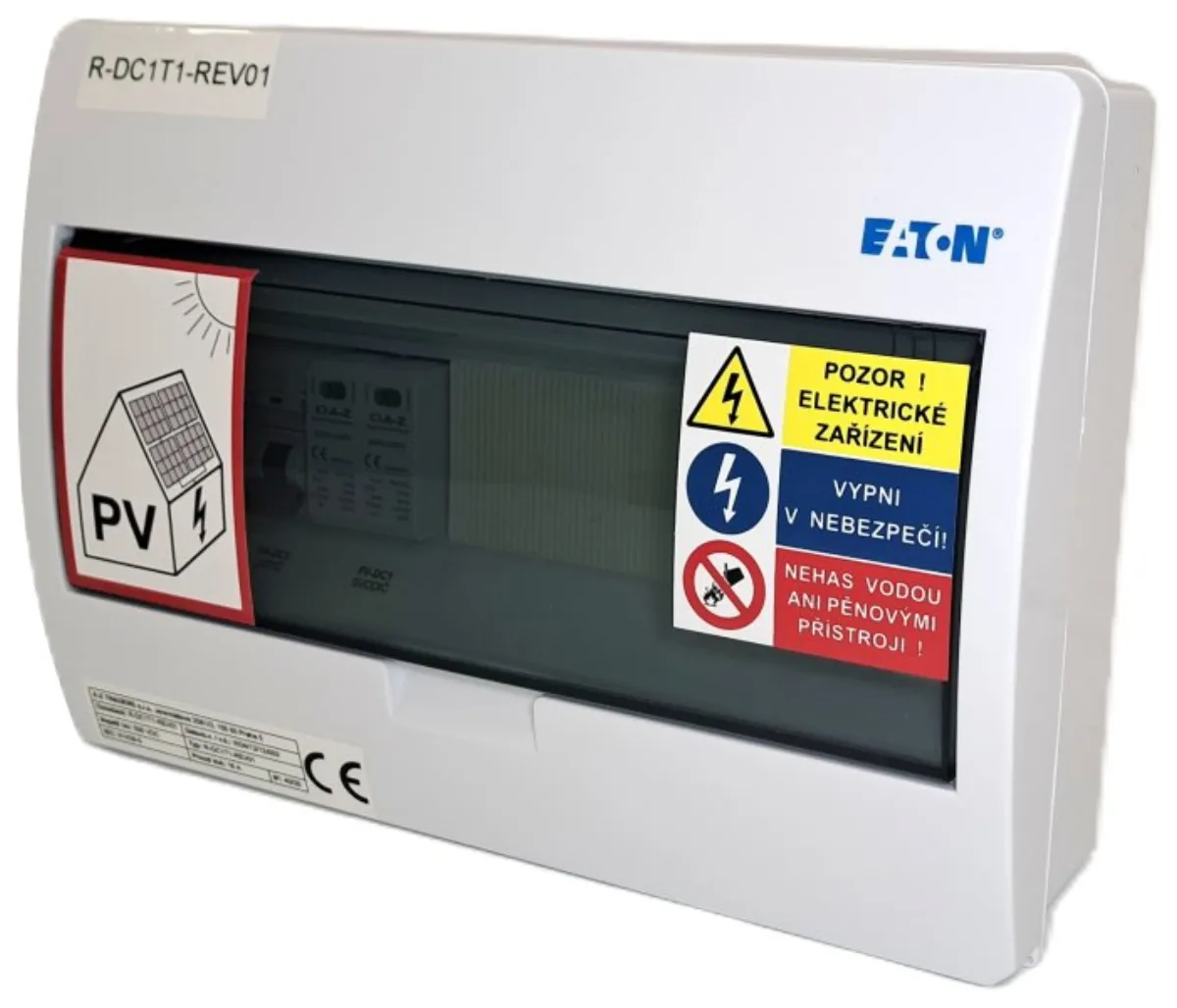

Xtend Solarmi DC05R mounted distribution board

DC05R distribution board (T1+T2), house distribution board for plastering

DC distribution board designed for wall mounting, IP40/20 serving as an input distribution board from photovoltaic panels (to the inverter) when using water heating technology, or PV strings up to 500 V.

• Meets the standard/requirements according to ČSN EN 61439-2 ed. 2:12
• White plastic distribution box, rear cover part of the distribution box + plastic door made of smoked organic glass
• Degree of protection IP40/20 & Mechanical resistance IK05
• Protection class II (fully insulated)
• Including N/PE terminal block
• 1 row, 12 modules, DIN rail
• Rated voltage 400 V AC & Rated insulation voltage 400 V AC

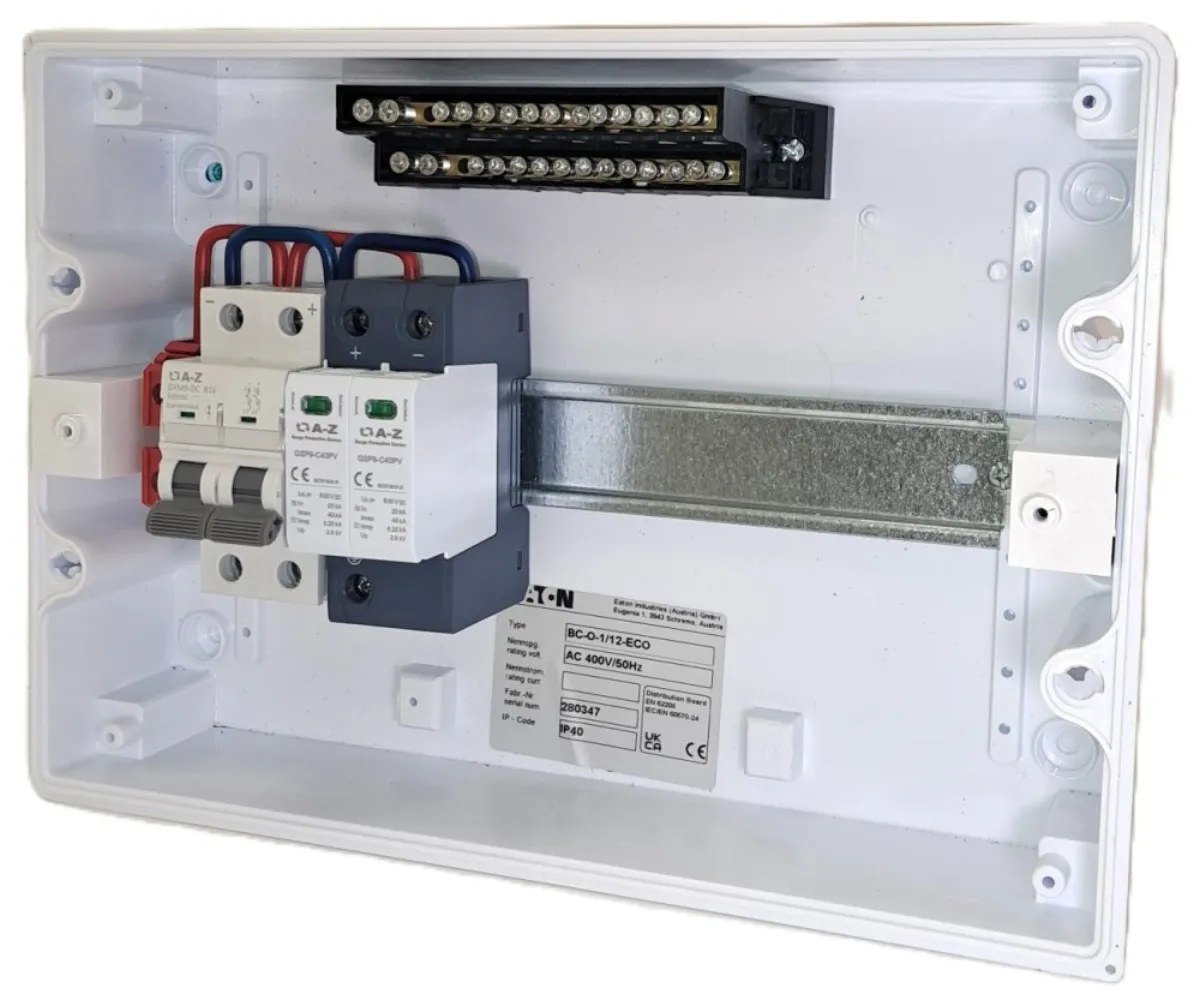

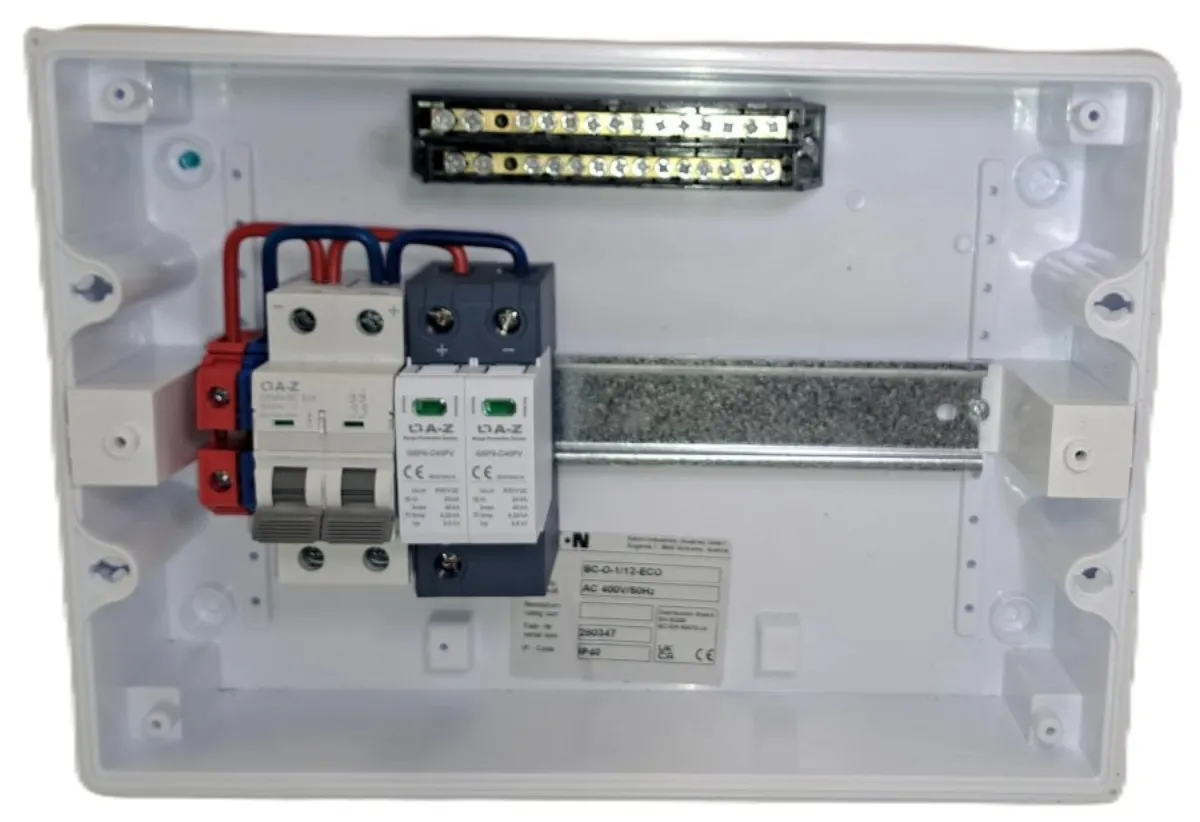

The distribution box is equipped with a DC surge arrester of class T1+T2 and a two-pole DC circuit breaker to protect the DC input of the inverter.

List of components

• 1× Surface-mounted distribution box, transparent plastic. door, 1 row, 12 modules
• 1× Surge arrester T1+T2 (I+II, B+C), photovoltaic applications 600 V DC, In 20 kA, Imax 40 kA
• 1× Circuit breaker, photovoltaic applications, 2-pole, 500 V DC /15 A, short-circuit resistance 6 kA

Intended use: for photovoltaics

Equipped with: yes

Material: plastic

Dimensions: 303 × 212 × 98 mm
