Planet WBS-512AC Outdoor AP 5GHz 802.11ac 900Mbps WISP 64 Clients 14dBi Antennas IP55

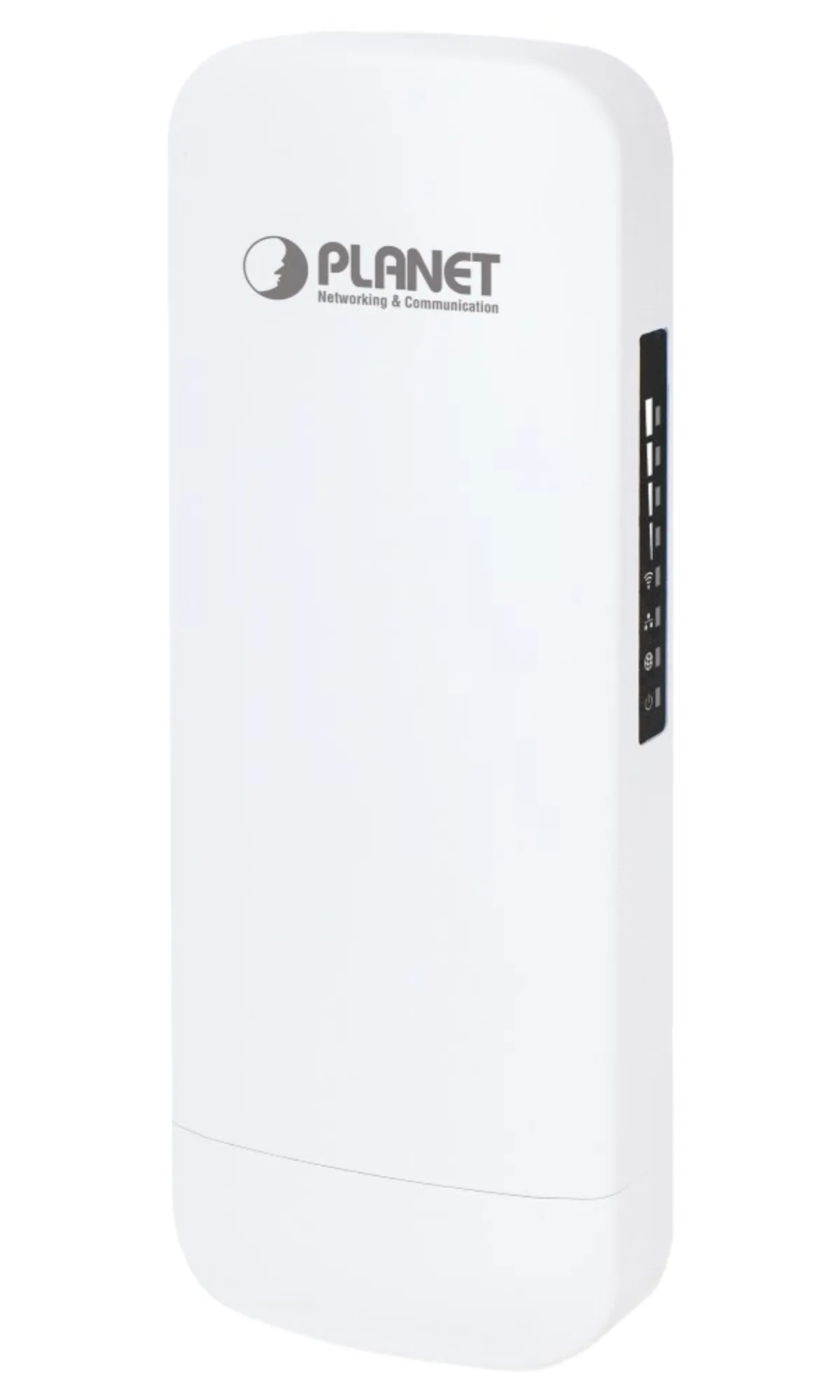

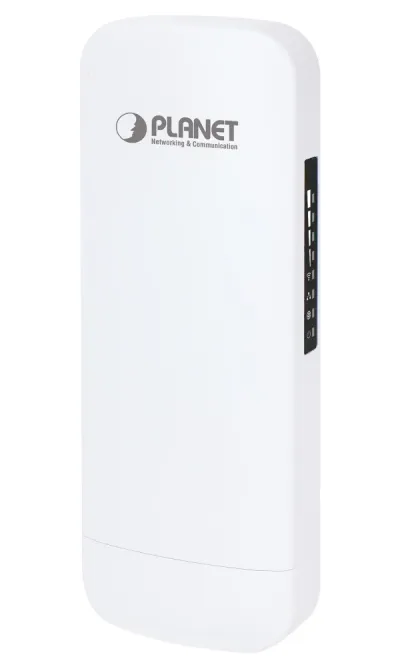

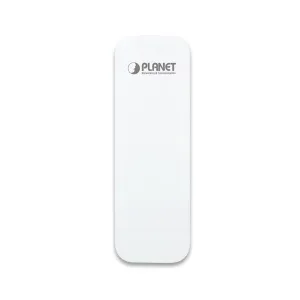

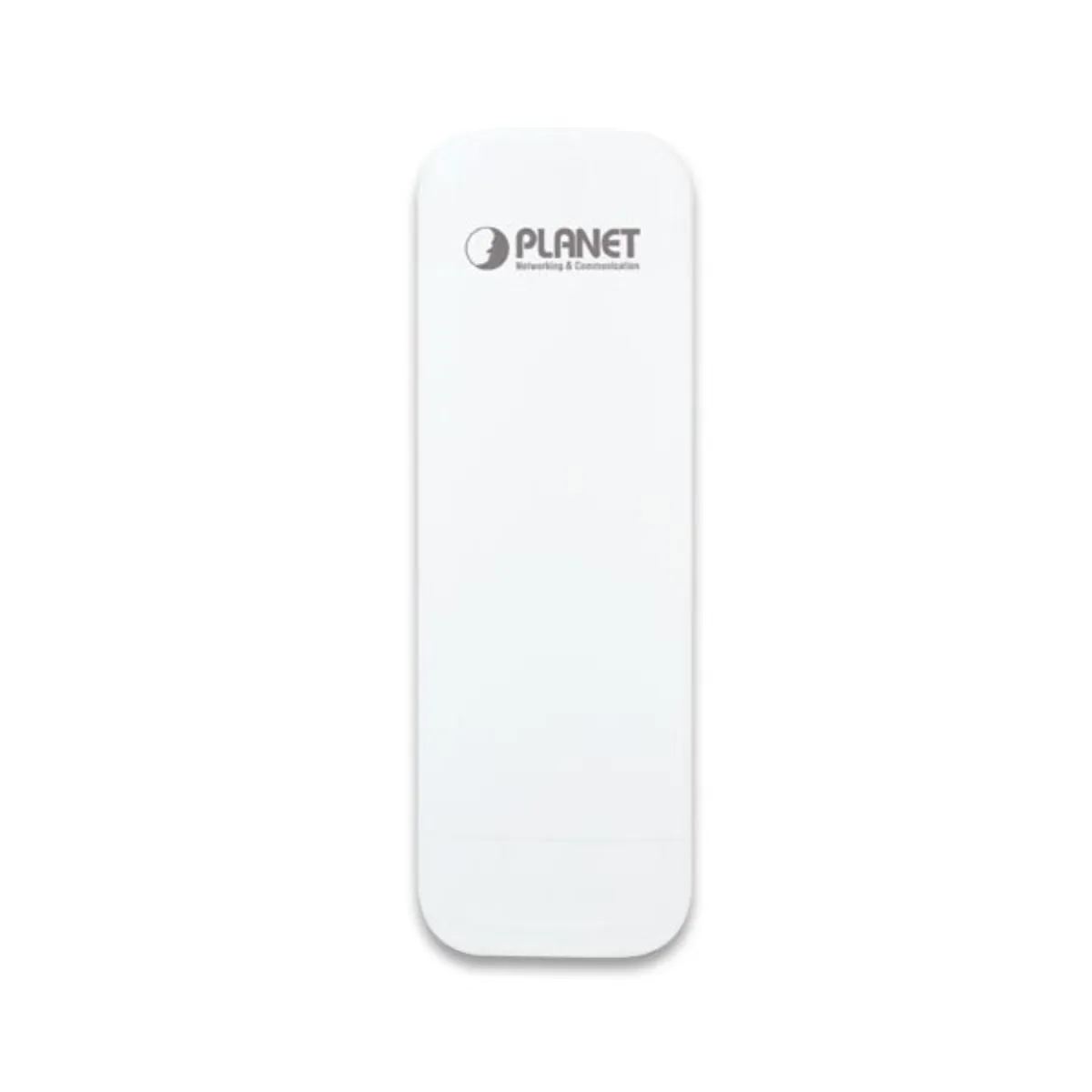

PLANET WBS-512AC

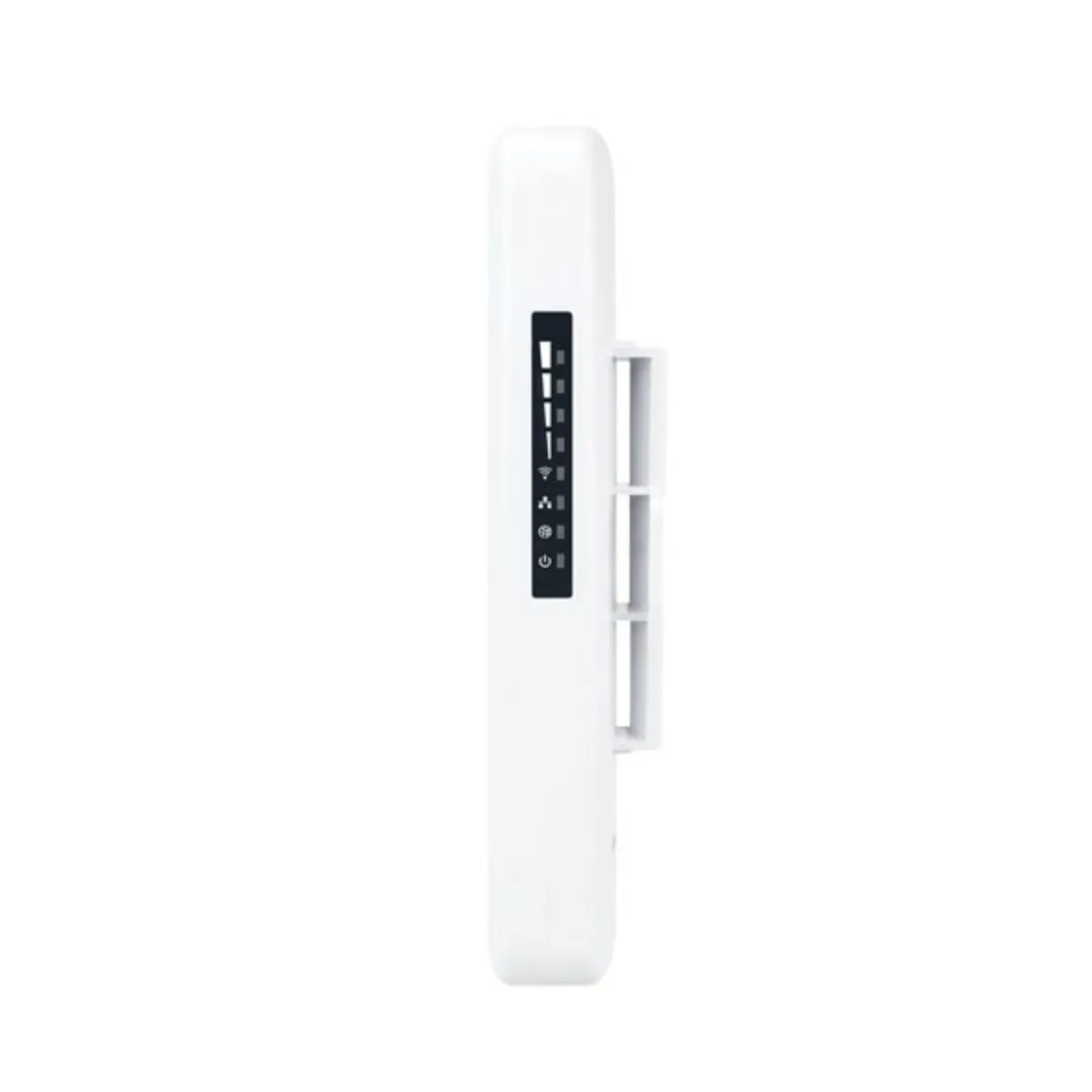

Outdoor wireless access point with integrated router. It has a 14 dBi integrated antenna with dual polarization for stable reception.

The access point is based on 5 GHz radio technology of the 802.11a/n/ac standard with MU-MIMO Wave 2 support and thus achieves transmission speeds of up to 900 Mbps. In addition, there is an option to switch the unit to PtP mode (master or slave), which significantly reduces the time required to set up the unit. There are also two RJ-45 ports with a speed of 10/100/1000 Mbps, one of which is equipped with PoE+ standard 802.3at technology, through which the unit is efficiently powered. Support for WAN connection DHCP, static IP and PPPoE, support for port routing, DMZ, DHCP server in Gateway/WISP mode. The unit is resistant to adverse environmental influences according to IP55 certification.

Wi-Fi and connection specifications

Wi-Fi standard and transmission support: IEEE 802.11a/n/ac/ac-Wave2 with transmission speed up to 900 Mb/

Frequency band

• FCC: 5180-5240 GHz, 5745-5825 GHz
• ETSI: 5180-5700 GHz

Number of antennas and their power: 14 dBi integrated double polarized

Transmit power: 25 dBm

Interface

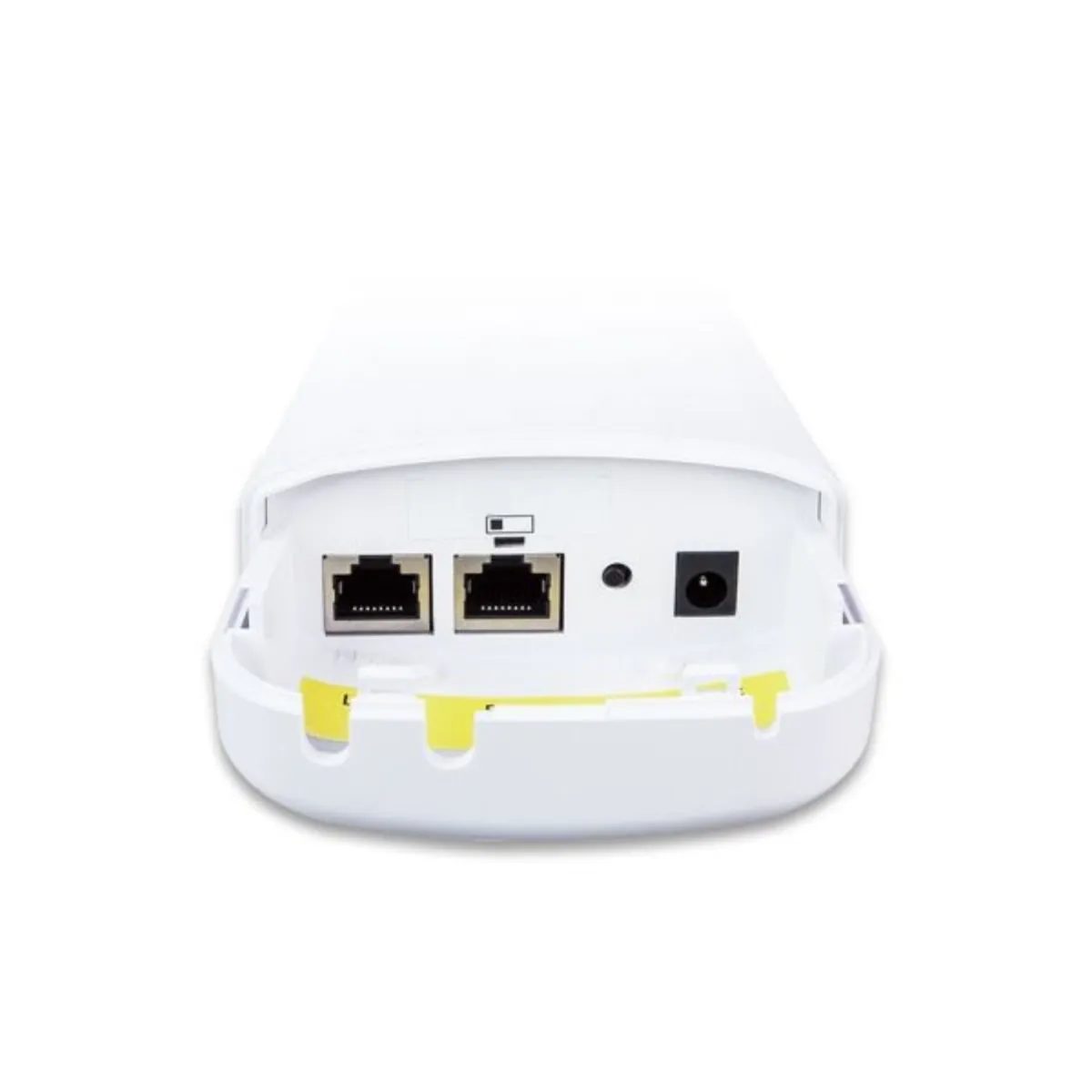

• 2 x 10/100/1000Base-T
• RJ-45 Ethernet (LAN + PoE)

Spanning Tree Protocol support: no

Encryption of wireless transmission

• 64/128bit WEP
• WPA
• WPA-PSK
• WPA2
• WPA2-PSK
• 802.1X

Wireless modes

• Access Point
• Gateway
• Repeater
• Super WDS
• WISP

Max. connected clients: up to 64 wirelessly (50 recommended)

Multiple SSID: up to 4 networks

IAPP: no

Integrated DHCP server: yes

Client isolation support: yes

MAC address filtering: yes

Management

• yes
• web device management
• management through PLANET DDNS/Easy DDNS
• UPnP support
• IGMP Proxy
• PPTP/L2TP/IPSec VPN Pass-through
• SNMP v1/v2c/v3
• MIB I/II
• Private MIB

Physical properties

Operating temperature: -20 to +70 °

Power supply

• 12 V/1 A DC jack
• or 48 V/0.5 A DC for IEEE 802.3at PoE+
• power consumption up to 10 W

Dimensions: 260 x 87 x 38 mm

Weight: 405 g
