Planet UPOE-400 PoE injector 4x 1 2.5 5G LAN PoE 802.3bt 90 160 W

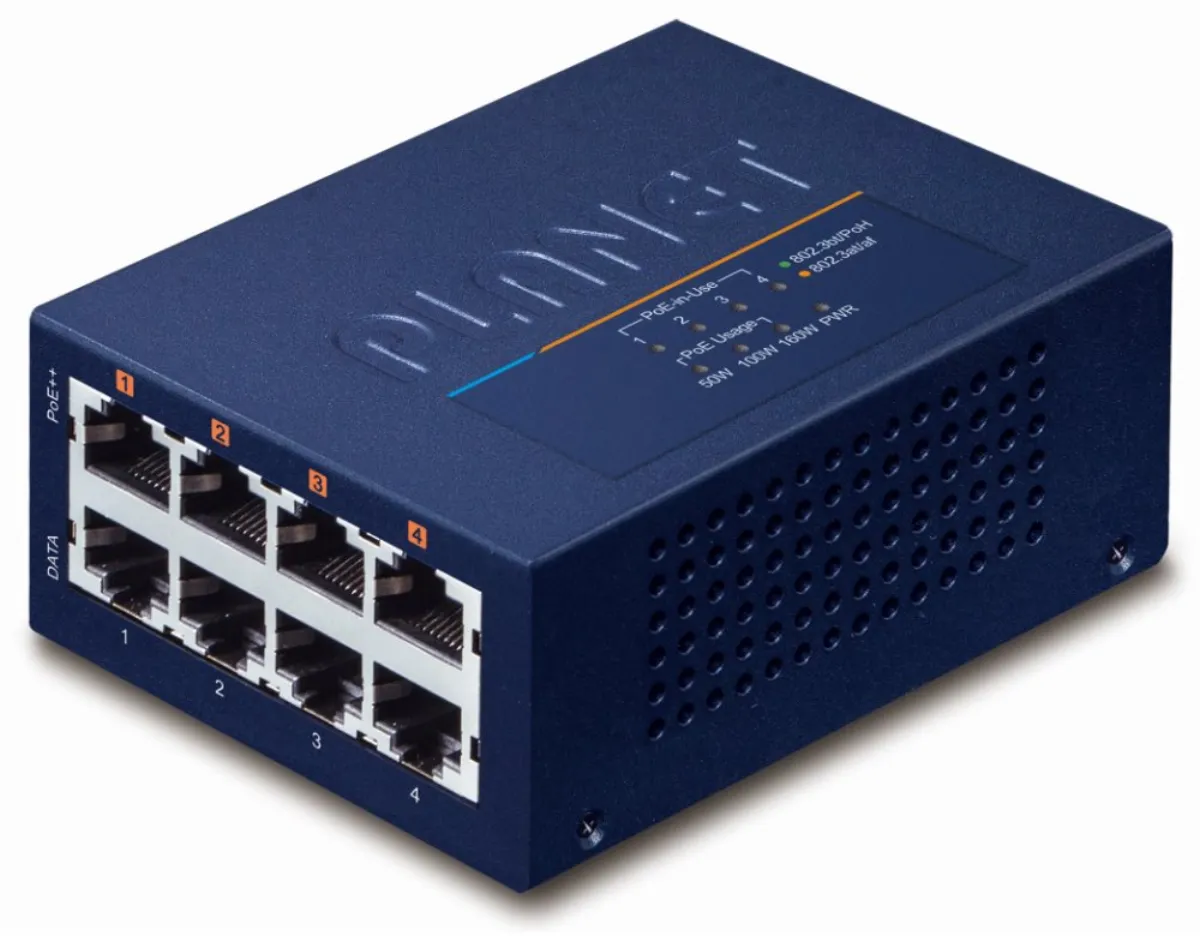

PLANET UPOE-400

PoE 4-port injector for power supply via Ethernet cable, IEEE 802.3bt PoE++ standard up to 160 W, also works on 1/2.5/5Gb connection. Metal case, working temperature 0 to +50 °C, mounting on a DIN rail or directly on the wall, power supply DC 52-54 V.

The injector has an increased load capacity compared to the IEEE 802.3at standard, making it ideal for applications of camera systems and VoIP telephone networks. PoE power supply can also be implemented on 5 gigabit Ethernet, supports 802.3/802.3u/802.3ab/802.3bz (2.5G/5GBase-T). The injector is backwards compatible with the previous generation IEEE 802.3at. An IEEE 802.3bt device detects itself if it is connected and capable of being powered from Ethernet. Devices powered in this way are also protected against damage caused by incorrect connections.

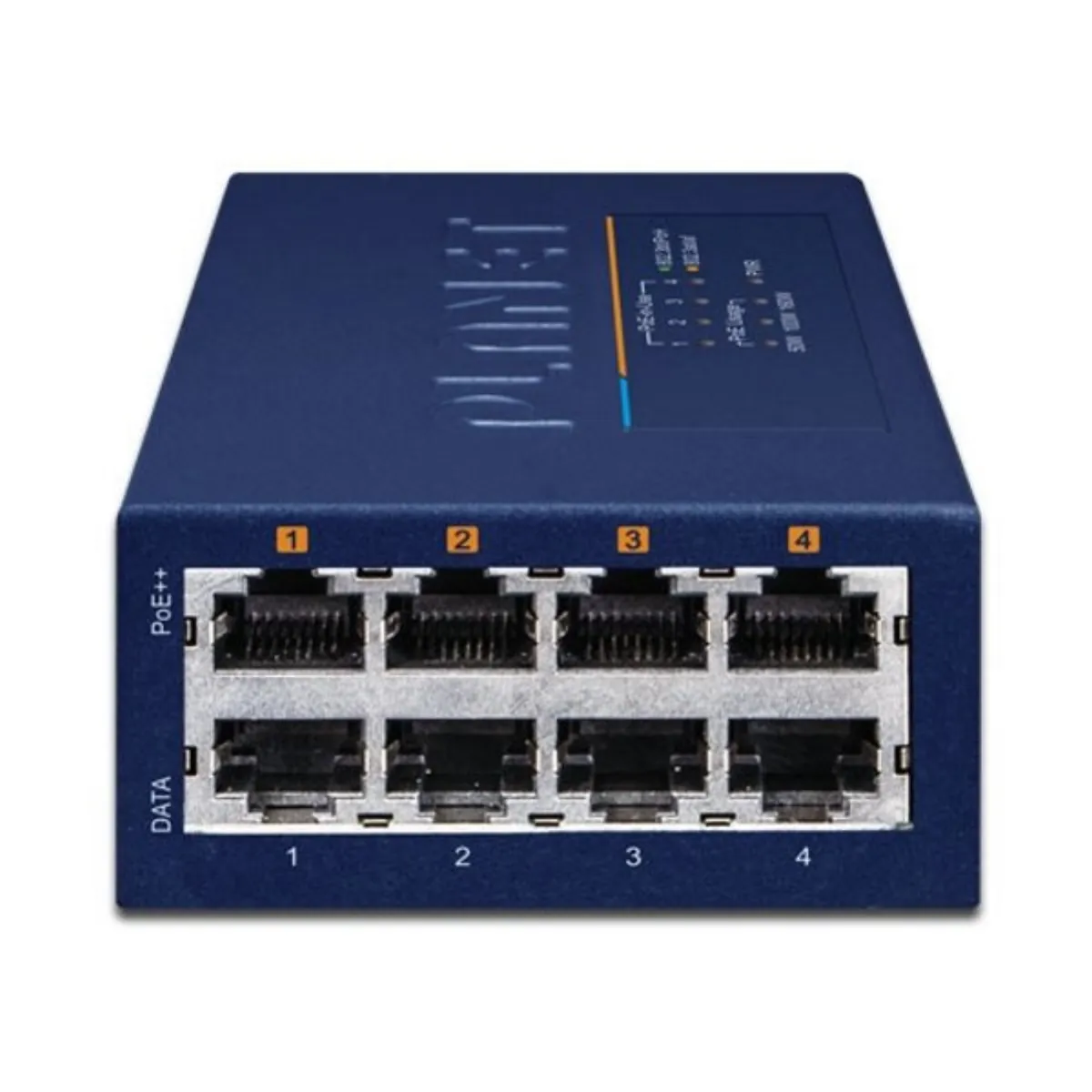

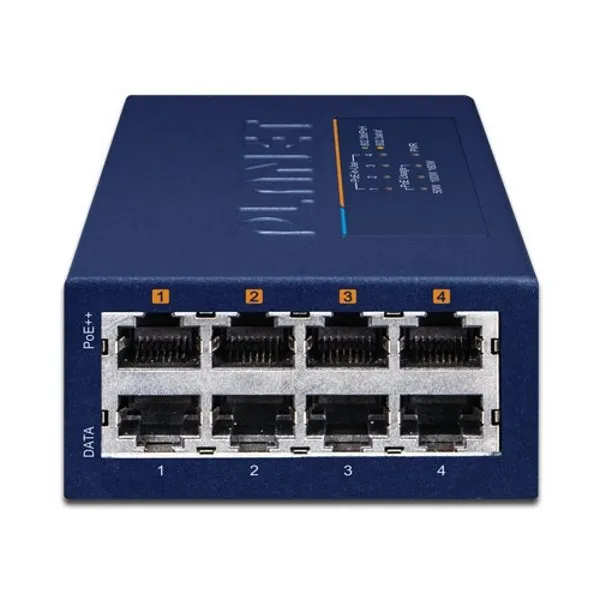

Interface

• 8 x RJ-45 10/100/1G/2.5G/5Gb/s : 4 x Data input
• 4 x Data + Power output

Total power output

• up to 180 W
• IEEE 802.3bt PoE++

Load capacity of the port

• up to 95 W (PoH + Legacy)
• up to 90 W (802.3bt)
• up to 60 W classic

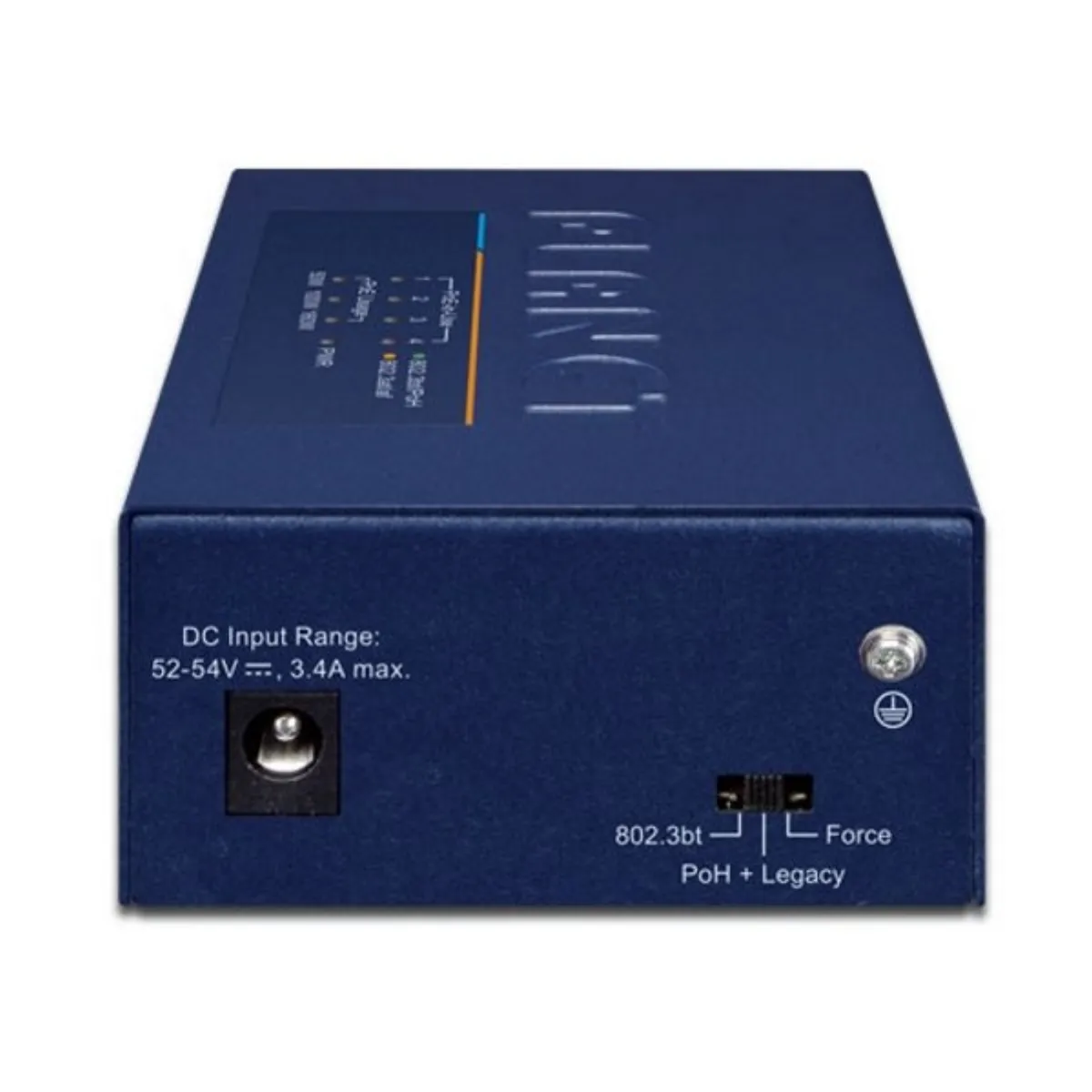

Power supply: DC 52-54 V (power source not included)

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70.3 x 39.2 mm

Weight: 275 g
