Planet GT-805A-PD Converter 10 100 1000Base-T miniGBIC SFP powered from PoE 802.3af at bt

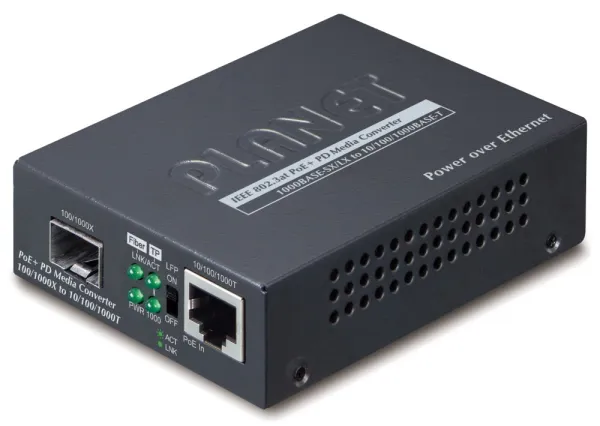

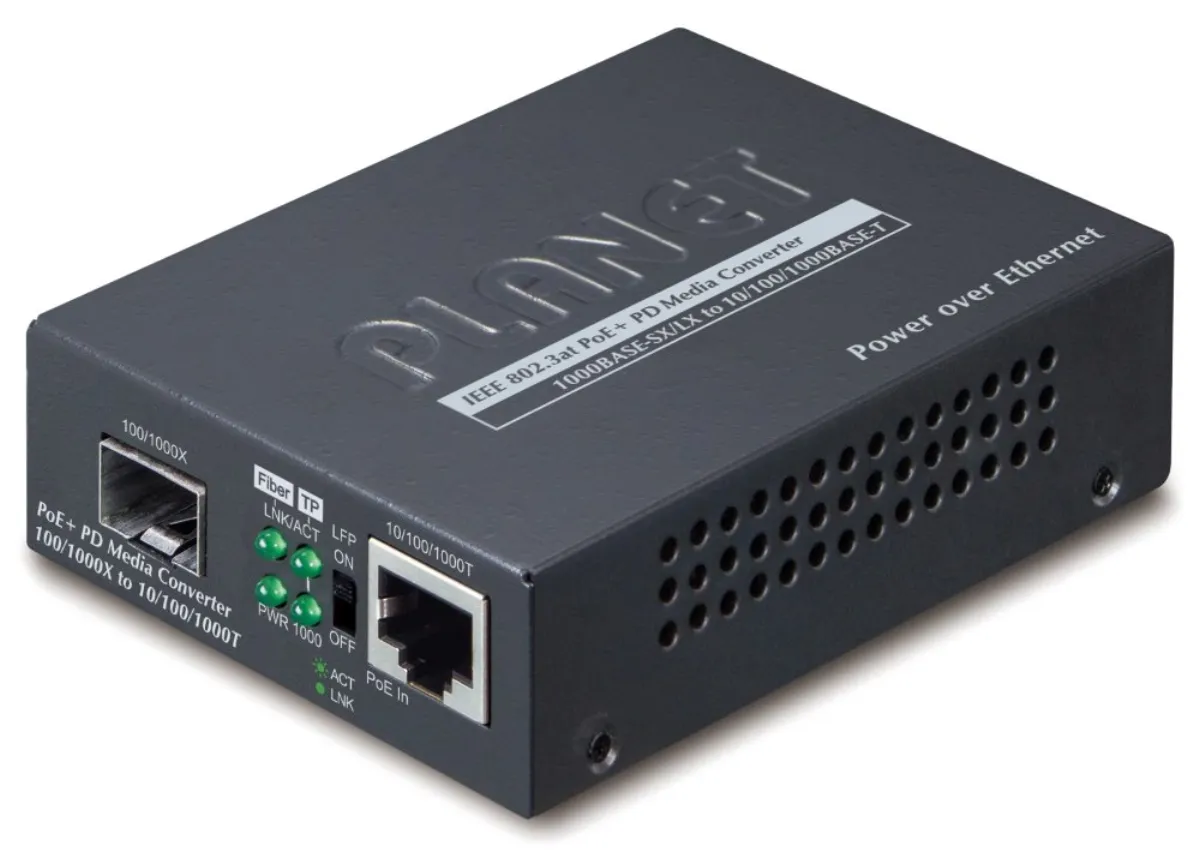

PLANET GT-805A-PD

PoE+/PoE++ converter Ethernet RJ-45 10/100/1000 Base-T to miniGBIC optics (SFP 100/1000 Base-X). Converts metallic Ethernet to optical Gigabit Ethernet via an embedded miniGBIC converter module (SFP). Converter for transition between optical and metallic connection for Gigabit Ethernet. Must purchase a compatible miniGBIC optical module.

• Powered by PoE 802.3af/at/bt
• IEEE 802.3af/at/bt 48 to 54 V DC in-line power supply and optional 5 V DC input
• Easy to install and use, compact design, simple troubleshooting
• DIP switch to set LFP (Link Fault Passthrough) function - includes Link Loss Carry Forward (LLCF) and Link Loss Return (LLR) functions
• Mounting on the wall, on a DIN rail (RKE-DIN) or in the MC-700/1500/1500R/1500R48 chassis

Ports

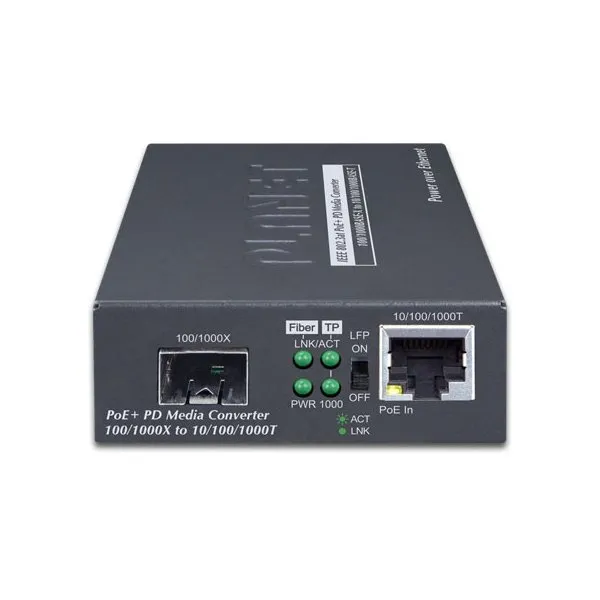

• 1x RJ-45 10/100/1000 Base-T
• 1x SFP 100/1000 Base-X (FX/SX/LX

Transfer Support: JumboFrame 9 KB

Design: internal

Power supply

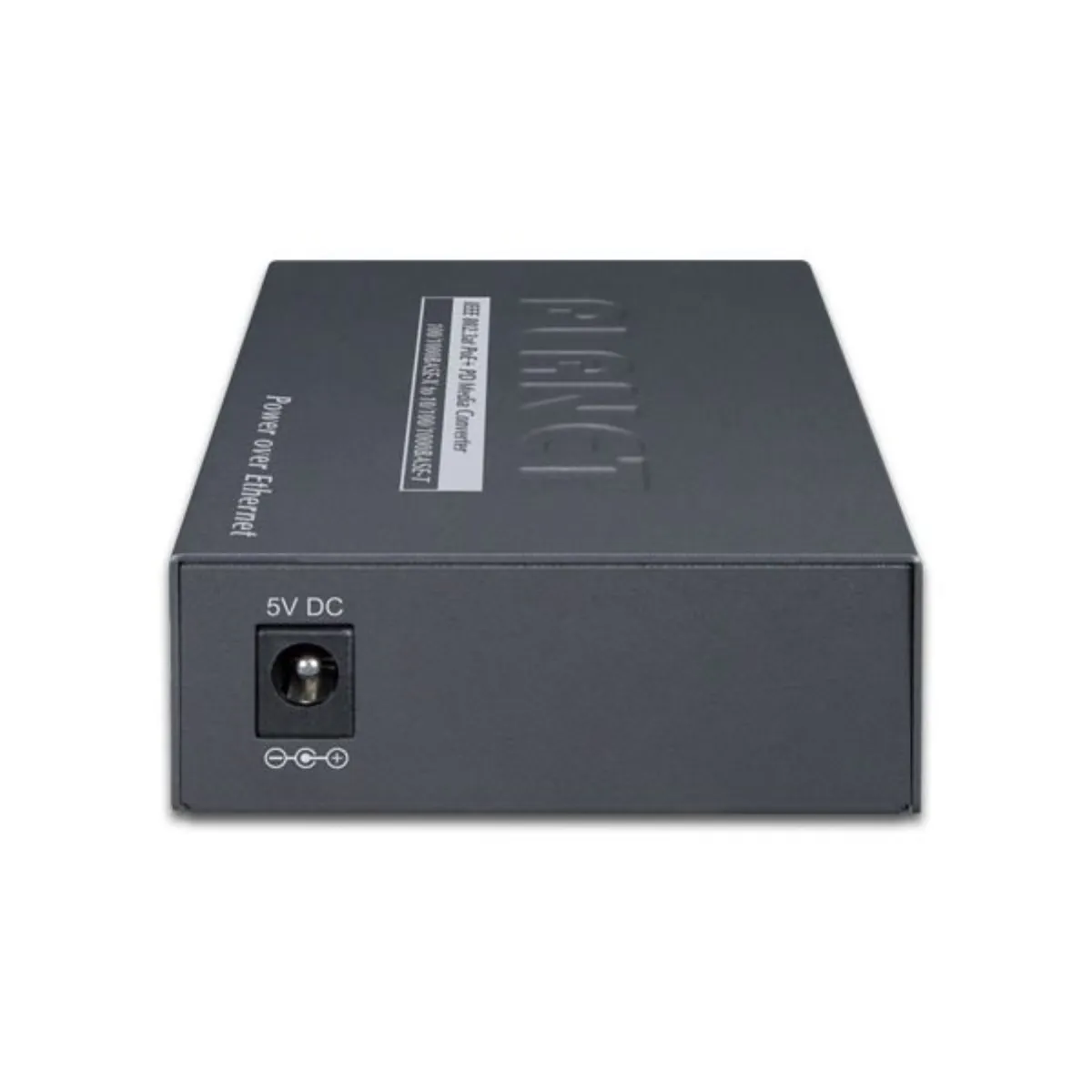

• optional source DC 5 V (2 A) or PoE (802.3af/at/bt)
• total power consumption up to 3.2 W

Protection: no

Operating temperature: 0 to +50 °C

Dimensions: 94 x 70 x 26 mm

Weight: 186 g

Can be installed in chassis

• MC-700
• MC-1500
• MC-1500R
• MC-1500R48
