Planet GSW-5240HP L2 switch 48x1Gb 4x1Gb SFP 48x1G 802.3at PoE+ 370W 0~50°C

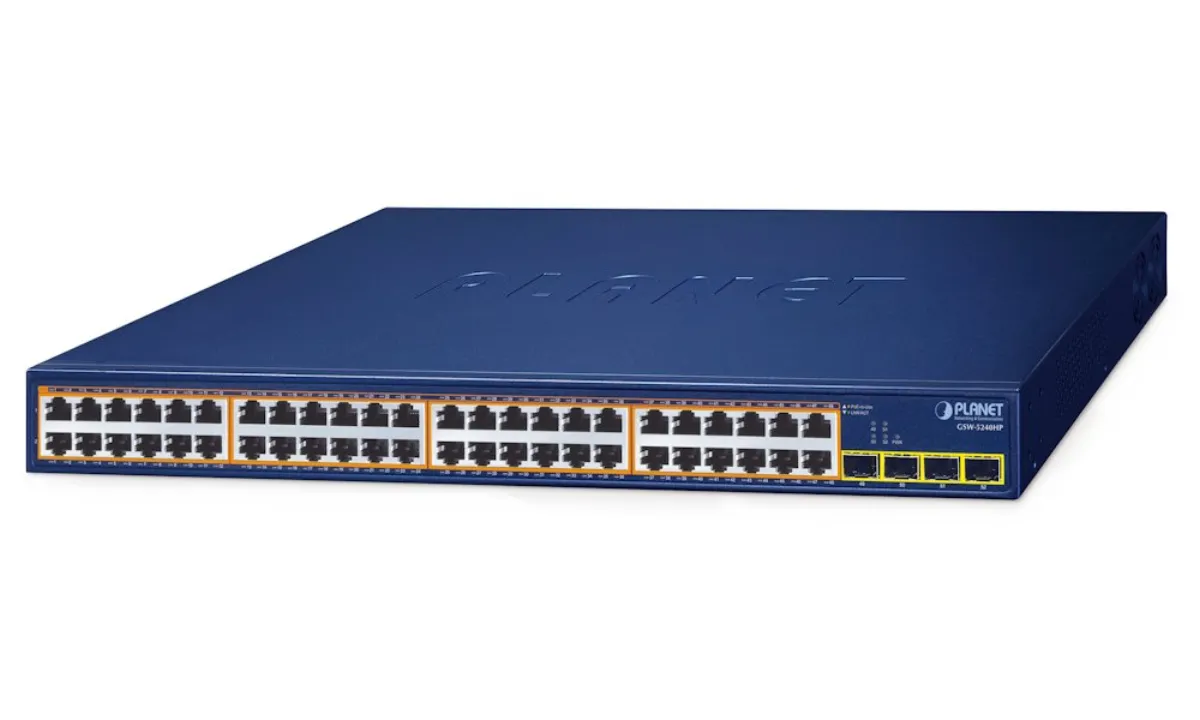

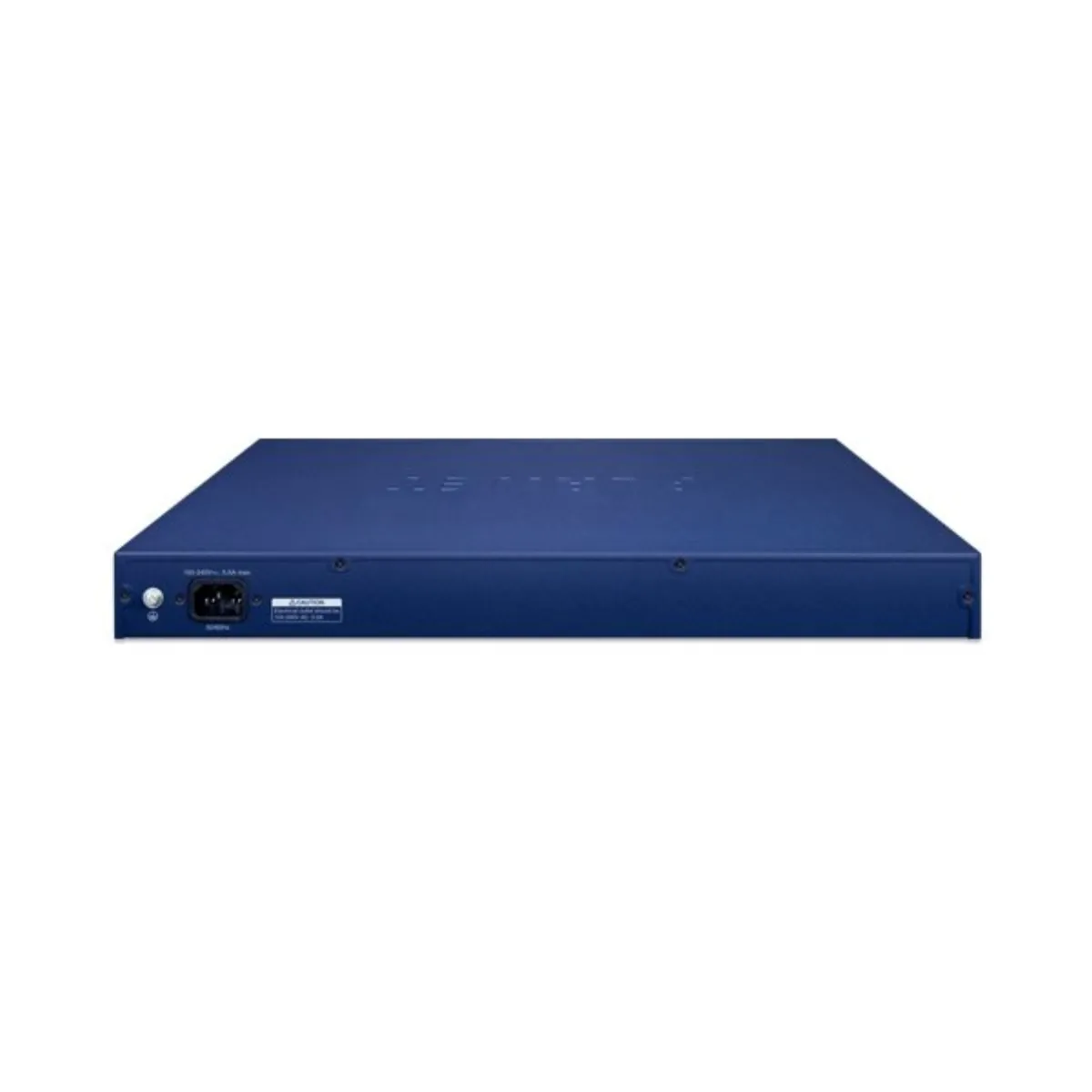

PLANET GSW-5240HP

Gigabit PoE+ switch, 48× 10/100/1000Base-T RJ-45 with 802.3af/at injectors and power supply up to 370 W, 4× SFP 1000 Base-X slots. LED indication of PoE port usage, power saving mechanisms according to IEEE 802.3az.

Gigabit switch with PoE+ (Power over Ethernet) ports for centralized power supply of devices via Ethernet such as IP cameras, Wi-Fi elements or VOIP phones and with the possibility of connecting to the infrastructure using four optical SFP ports. The device is suitable for installation in home or office spaces, as well as for applications in local distribution cabinets. The output power of the PoE ports is regulated depending on the power consumption of the powered devices by EEE (Energy-Efficient Ethernet) mechanisms according to IEEE 802.3az.

Physical Features

Ports

• 48× RJ-45 10/100/1000BASE-T
• 4× SFP 1000BASE-X

Memory: 16k MAC addresses

Throughput

• 104 Gbps bus
• operational 77.3 Mpps (64B)

Transmission support: JumboFrame 12 KB

Design: 1U rack

Power

• internal AC 100-240 V (50/60 Hz) power supply
• total power consumption up to 420 W

Protection

• ESD protection up to 6 kV contact
• up to 8 kV air

Operating temperature: 0 to +50 °C

Dimensions: 440 × 330 × 44.5 mm

Weight: 4.899 kg

PoE features

Total power supply power

• 370 W
• IEEE 802.3af
• IEEE 802.3at

Number of injectors: 48× up to 30 W

Power supply type: End-span

Advanced features

• PD alive support
• automatic detection of powered device
