Planet GS-4210-24T4S switch L2 L4 24x1Gb 4xSFP Web SNMPv3 SSL SSH VLAN QoS fanless 2x power-in

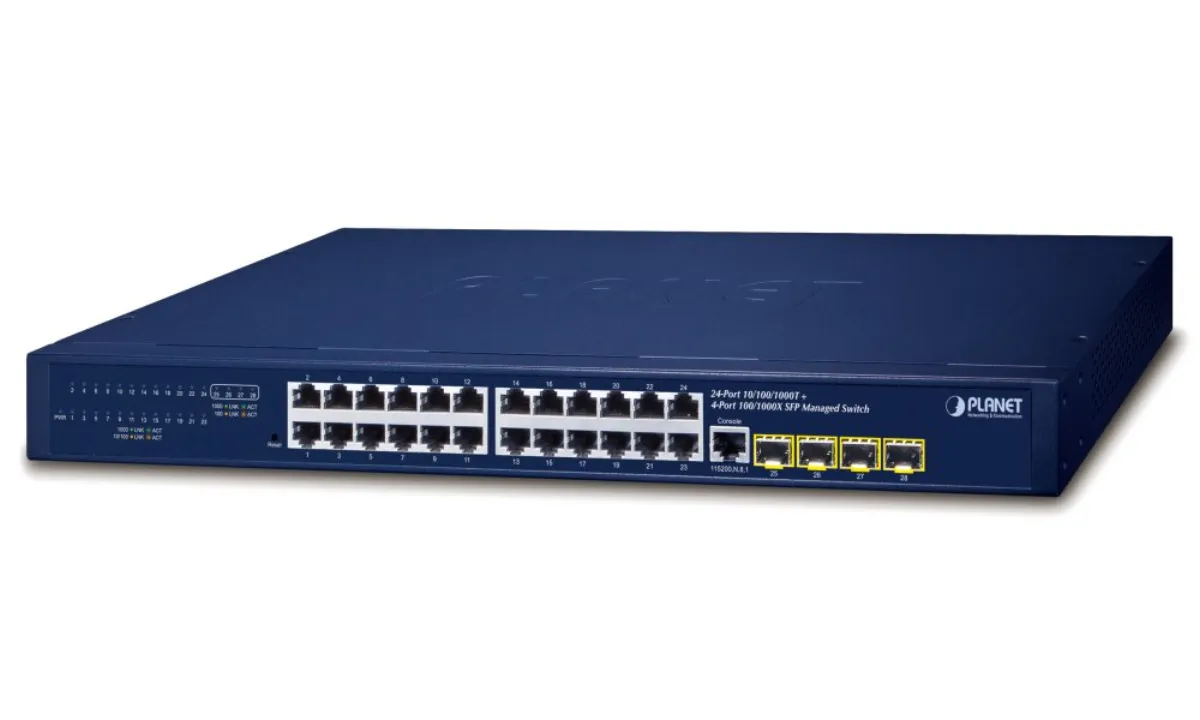

PLANET GS-4210-24T4SR

The manageable switch offers 24 ports 10/100/1000Base-T and 4 SFP slots 100/1000Base-X, dual power supply AC 100-240 V + DC 36-72 V. Web management, SNMP v1/v2c, telnet, support SSH v2, TLS v1.2, SNMP v3, VLAN 802.1Q, QoS, LACP, IGMP v1/v2/v3, Spannig tree, ACL+MAC filter, RADIUS/TACACS+, DHCP snooping, IPv4/IPv6 support.

Gigabit manageable switch for installation in more demanding local networks, has a wide range of functions to ensure the operation of a secure network by eliminating possible attacks on the lower layers of the OSI model and possible authentication of end devices. End-user connections can be secured with ACL/MAC rules or possible authorization to a RADIUS/TACACS server. Secure management is ensured by encrypted web management or SNMP v3 protocol via IPv4 or newly IPv6 protocol.

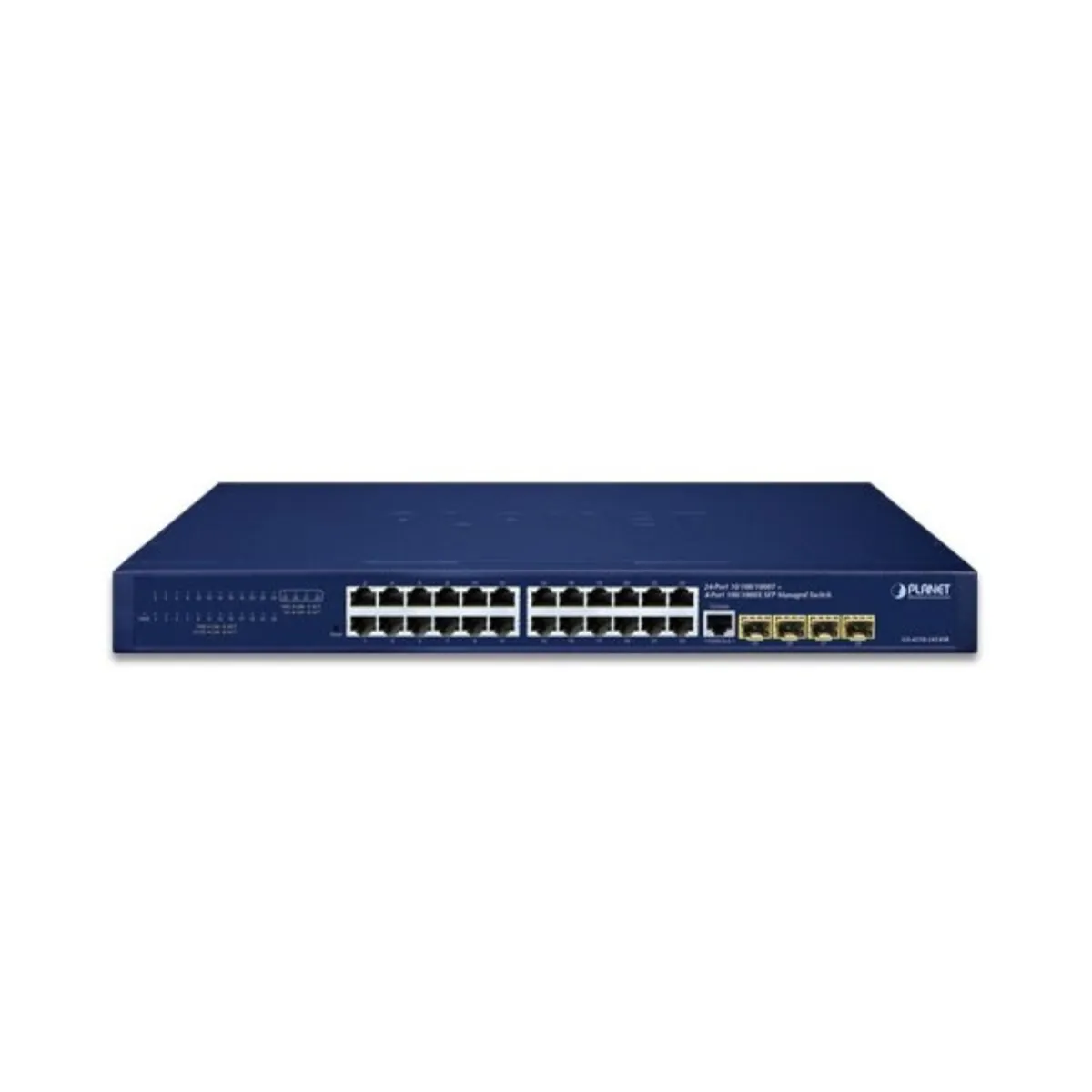

Ports

• 24 x 10/100/1000Base-T
• 4 x SFP 100/1000Base-X
• 1 x RJ-45 (RS-232) console

Memory

• 8k MAC addresses
• 4.1 Mb buffer

Throughput

• 56 Gbps bus
• operationally 41.67 Mpps

Transfer support: JumboFrame 10 KB

Design: rackmount 1U

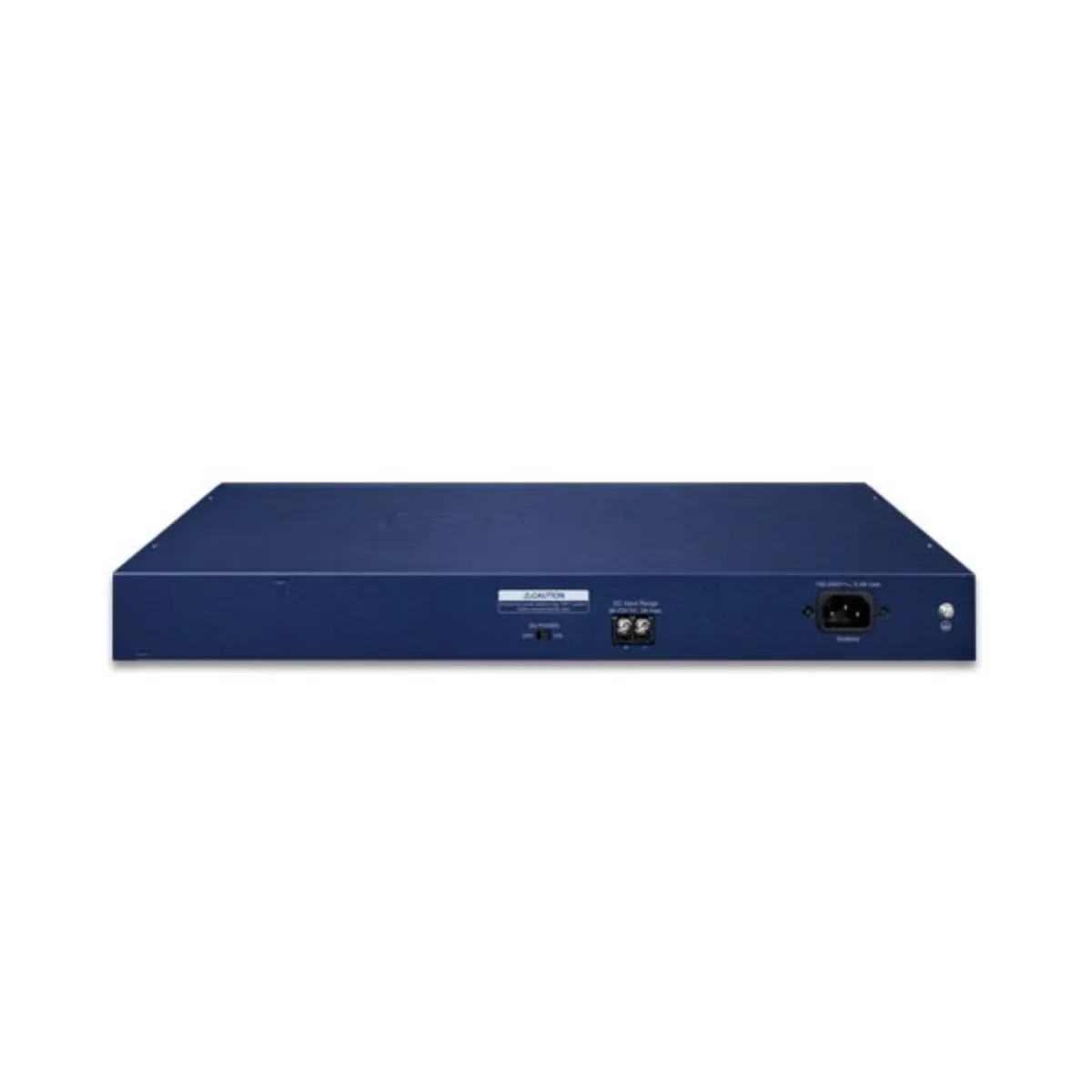

Power supply

• redundant
• AC 100-240 V (50/60 Hz) + DC 36-72 V
• total power consumption up to 19.3 W

Protection

• ESD contact up to 4 KV DC
• by air up to 8 KV DC

Operating temperature: 0 to +50 °C

Dimensions: 441 x 207 x 44 mm

Weight: 2.1 kg

Administration functions

Administration

• console via RJ-45
• Telnet
• Web
• SNMP SSHv2
• TLS v1.2
• SNMP v1
• v2c
• v3

Access Control: IP and MAC based ACL protocol

ACL filter and bonding

• IP ACL, traffic filtering according to IP address, protocol, port, TCP flags
• MAC ACL, traffic filtering according to MAC address, according to VLAN ID and combinations of priority flags

Prioritization of QoS traffic

• 8 levels
• traffic prioritization according to port number
• 802.1p
• 802.1Q and according to DSCP in the IP packet
• option to set the limit of sent packets per port

VLAN support

• IEEE 802.1Q
• up to 256 VLAN groups, up to 4094 VLAN IDs
• Q-in-Q tunneling
• Voice VLAN
• Protocol VLAN
• Private VLAN
• GVRP

Spanning Tree Protocol

• STP protocol, IEEE 802.1d Spanning Tree protocol
• RSTP protocol, IEEE 802.1w Rapid Spanning Tree protocol
• MSTP protocol, IEEE 802.1s Multiple Spanning Tree protocol

Port mirroring

• RX
• TX
• both
• many-to-1 monitor

Line aggregation

• IEEE 802.3ad LACP
• 4 ports in 2 groups

Multicast IGMP

• IGMP v2/v3
• up to 256 groups
• IGMP querier mode support

Authentication of connected devices

• IEEE 802.1x (RADIUS)
• IP+MAC binding
• TACACS+

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: yes (automatic detection of the type of connected devices)

Cabling diagnostics: no
