Planet GS-2210-16T2S WEBsmart L2 switch 16x1Gb 2x1Gb SFP QoS

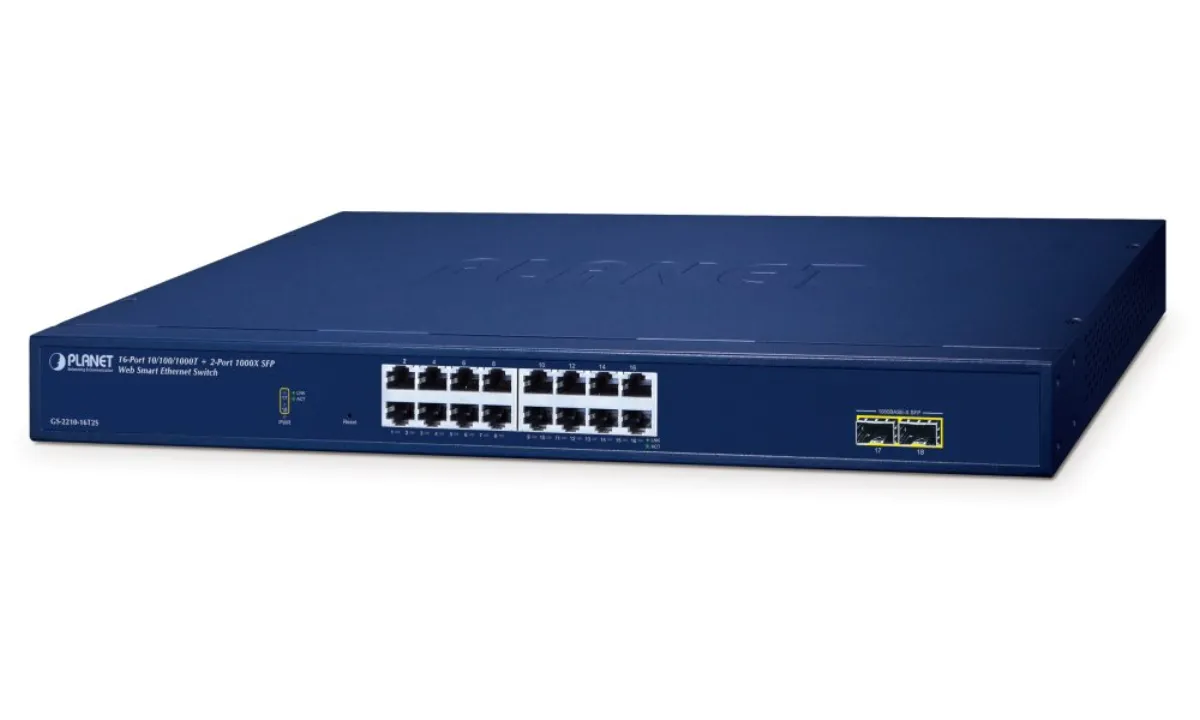

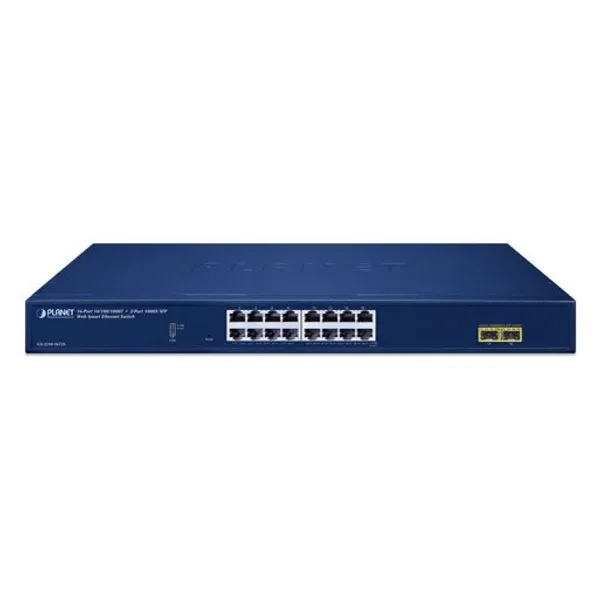

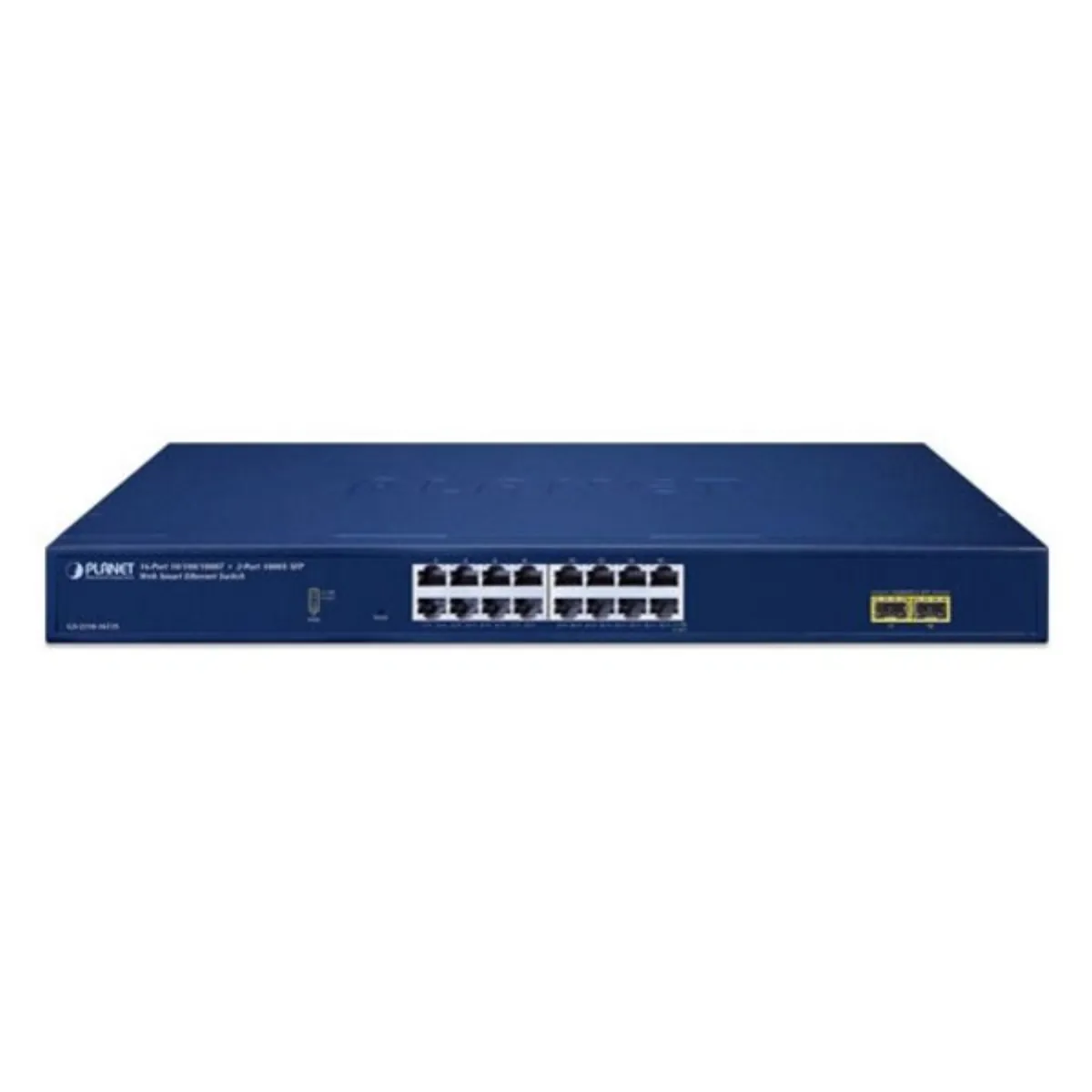

PLANET GS-2210-16T2S

A manageable switch offering 16 ports 10/100/1000 Base-T and 2 SFP slots 100/1000 Base-X. Web/Telnet management, IPv4 support, VLAN 802.1Q, QoS, static trunk, IGMP v1/v2, DHCP snooping. ESD protection, rackmount 19"/1U, without fans (fanless), power supply AC 100-240 V (power consumption up to 16.4 W).

Gigabit manageable switch for installation in more demanding local networks, has a wide range of functions to ensure the operation of a secure network by eliminating possible attacks on the lower layers of the OSI model and possible authentication of end devices.

Physical properties

Ports

• 16x RJ-45 10/100/1000 Base-T
• 2× SFP 100/1000 Base-

Memory

• 8k MAC addresses
• buffer 4.1 MB

Throughput

• 36 Gbps bus
• operationally 26.78 Mpps

Transfer support: JumboFrame 10KB

Design: rackmount 1U

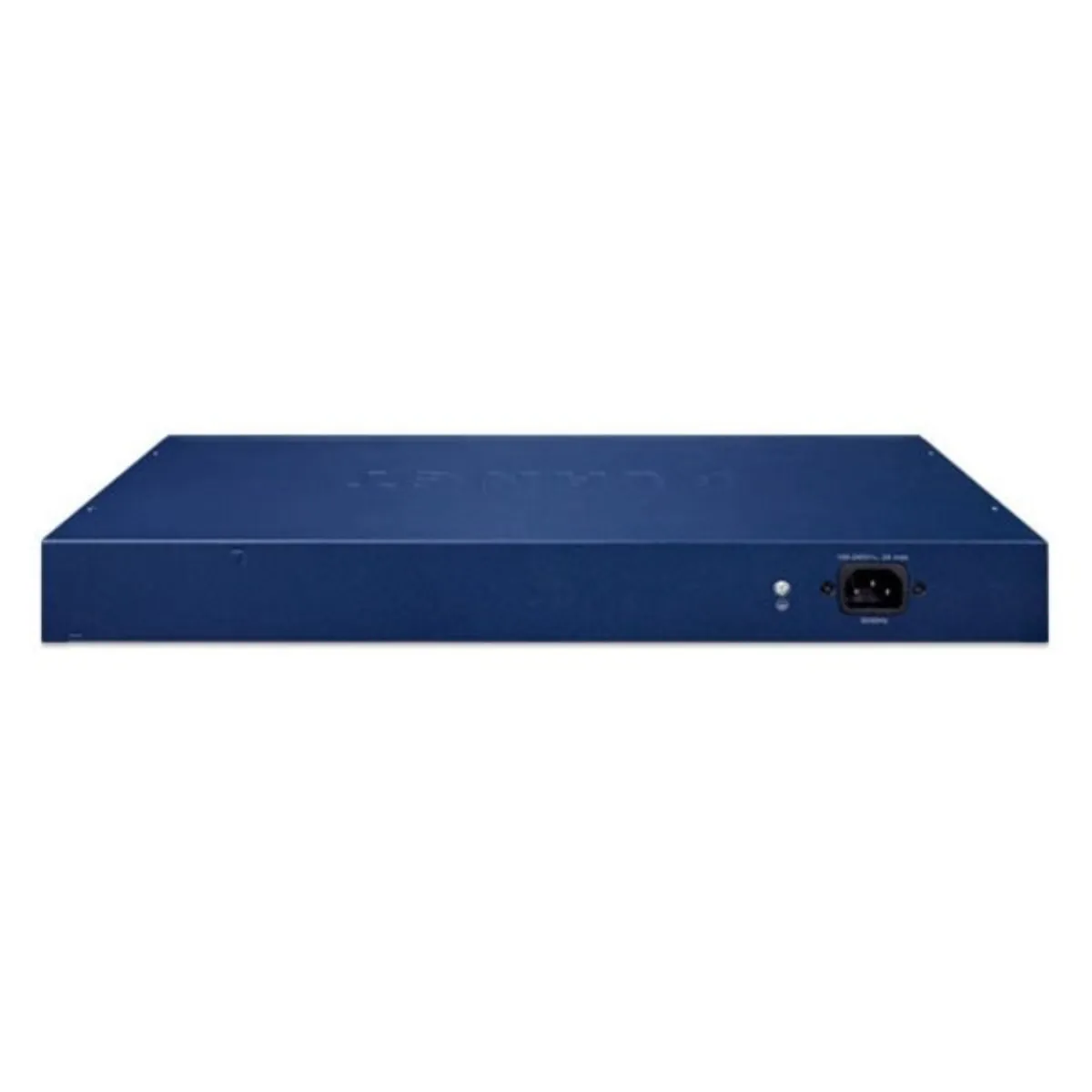

Power supply

• internal AC 100-240 V power source
• 50/60 Hz
• power consumption up to 12.7 W

Protection

• ESD contact up to 6 KV
• by air up to 8 KV

Operating temperature

• 0 to +50 °C
• humidity up to 90%

Dimensions: 440 x 207 x 44 mm

Weight: 2368 g

Administration functions

Administration

• Telnet
• Web
• PLANET Smart Discovery Utility
• PLANET NMS
• PLANET NMSViewerPr

Prioritization of QoS traffic

• 8 levels
• traffic prioritization according to 802.1p CoS/ToS
• IPv4 DSCPs
• WRR based on port

VLAN support

• IEEE 802.1Q
• up to 16 VLAN groups

Port mirroring

• TX
• RX
• both
• many-to-1 monitor

Line aggregation

• static trunk
• supports 8 groups with 8 ports per group

Multicast IGMP

• IGMP v1/v2
• up to 256 groups

DHCP Snooping: yes (blocking foreign DHCP servers)

LLDP: no (automatic detection of the type of connected devices)

Cabling Diagnostics: yes
