NEDIS active indoor DVB-T T2 antenna FM UHF VHF reception range 0-25 km LTE700 gain 36 dB gain control
NEDIS | ANIR2503BK700 | 5412810309351
Only 2 left!
Price of goods is 28,48 €.
Price without tax is 23,54 €.
Actual in cart 0 pcs.
Nedis ANIR2503BK700

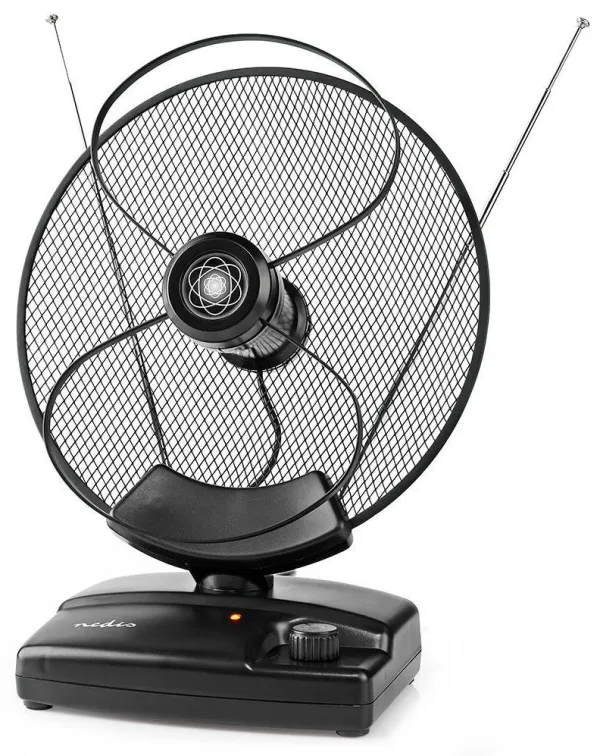

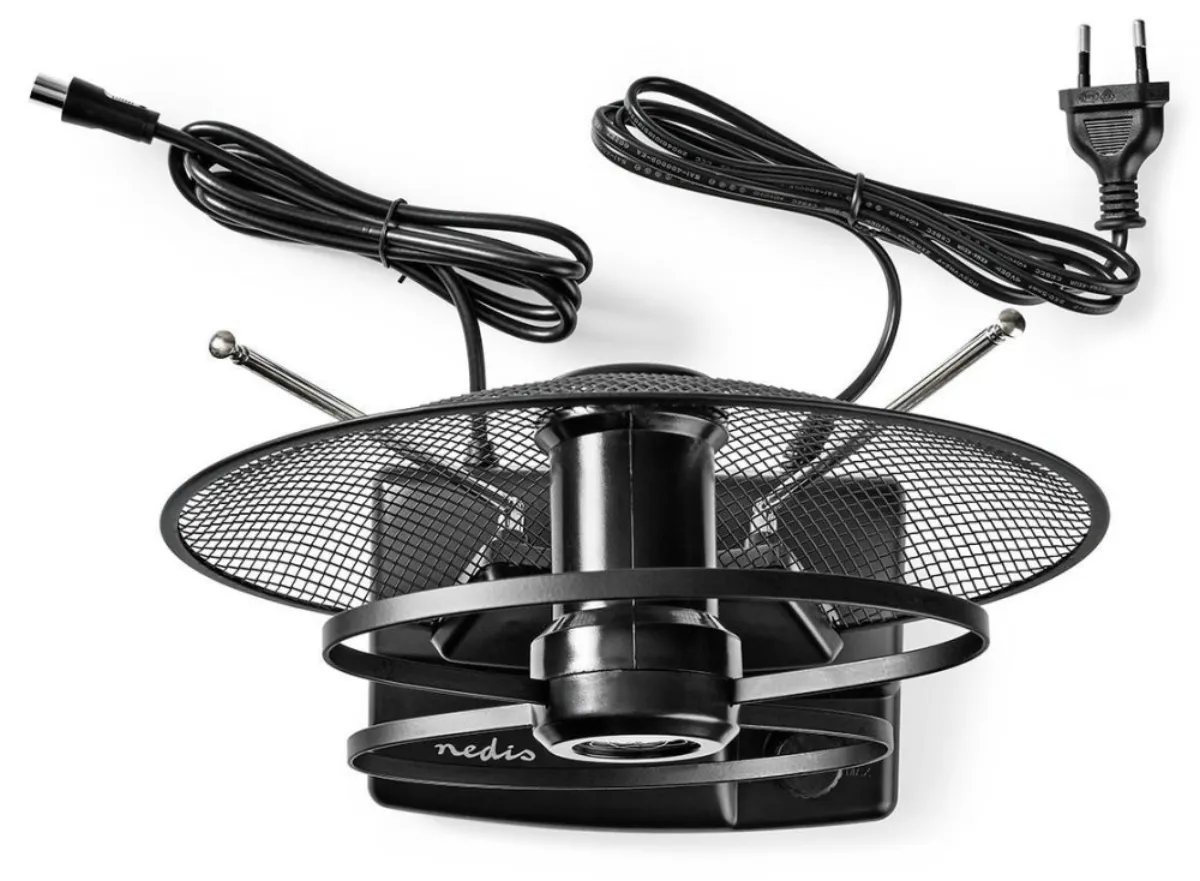

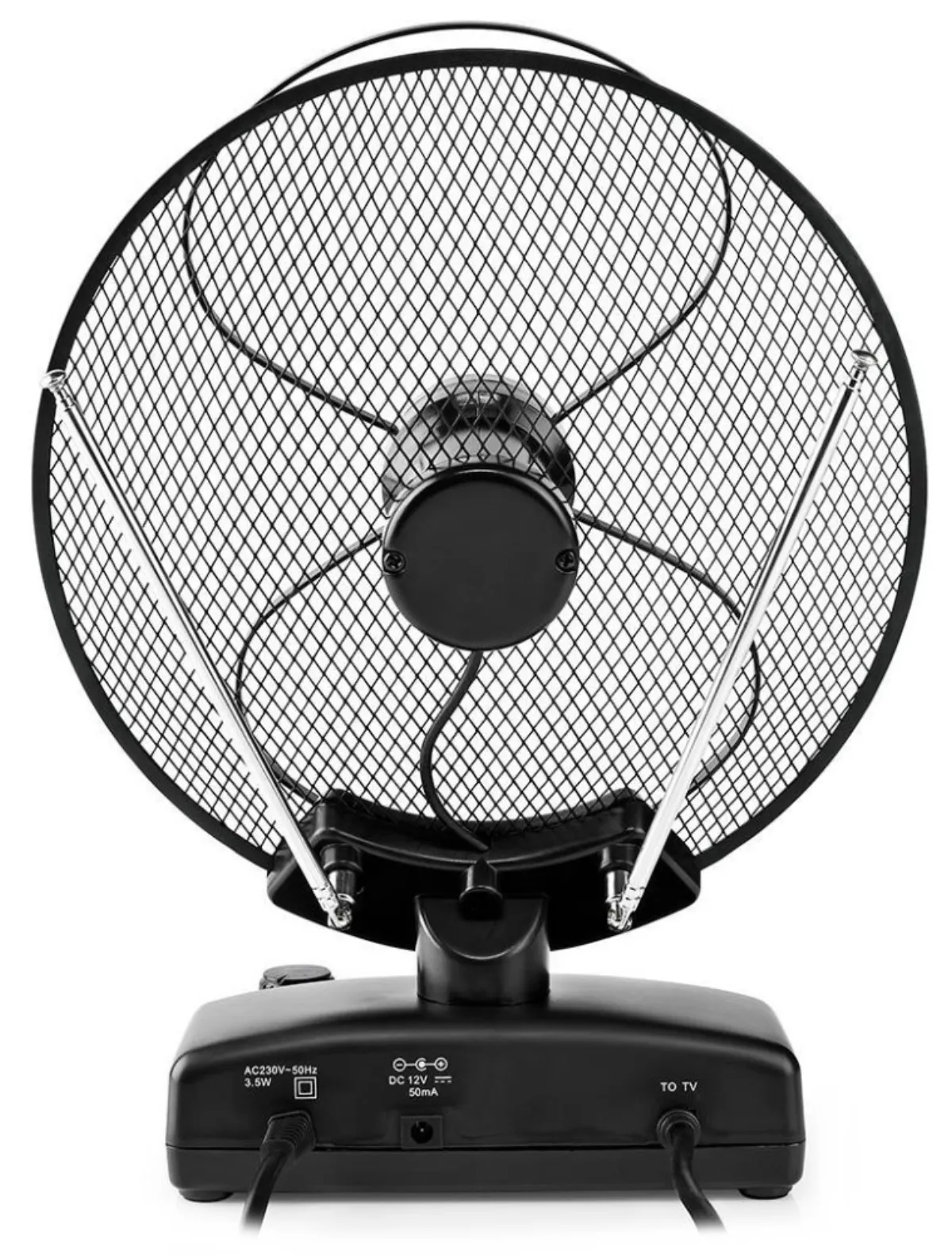

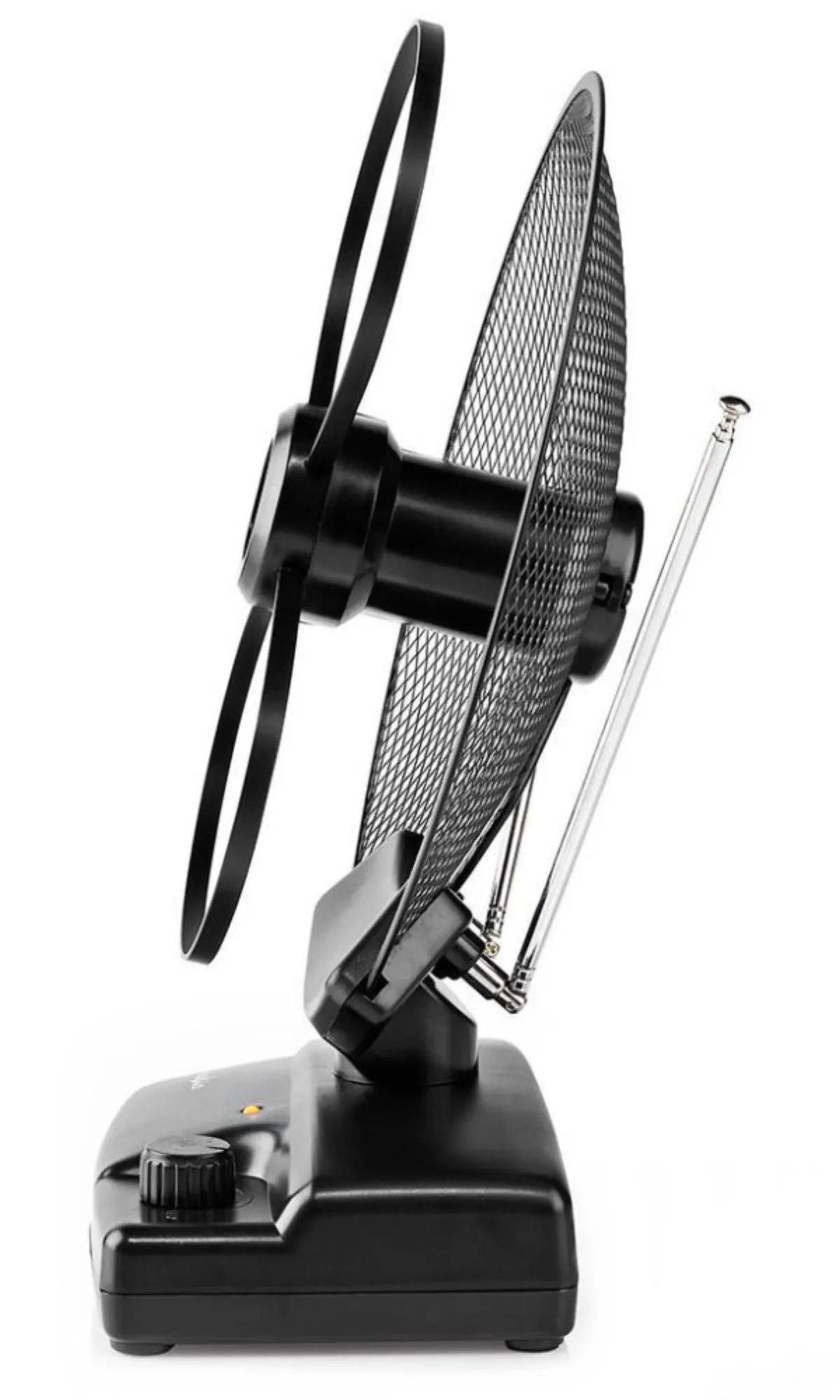

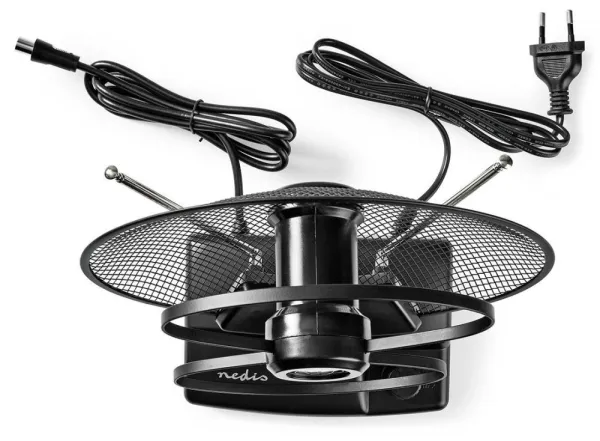

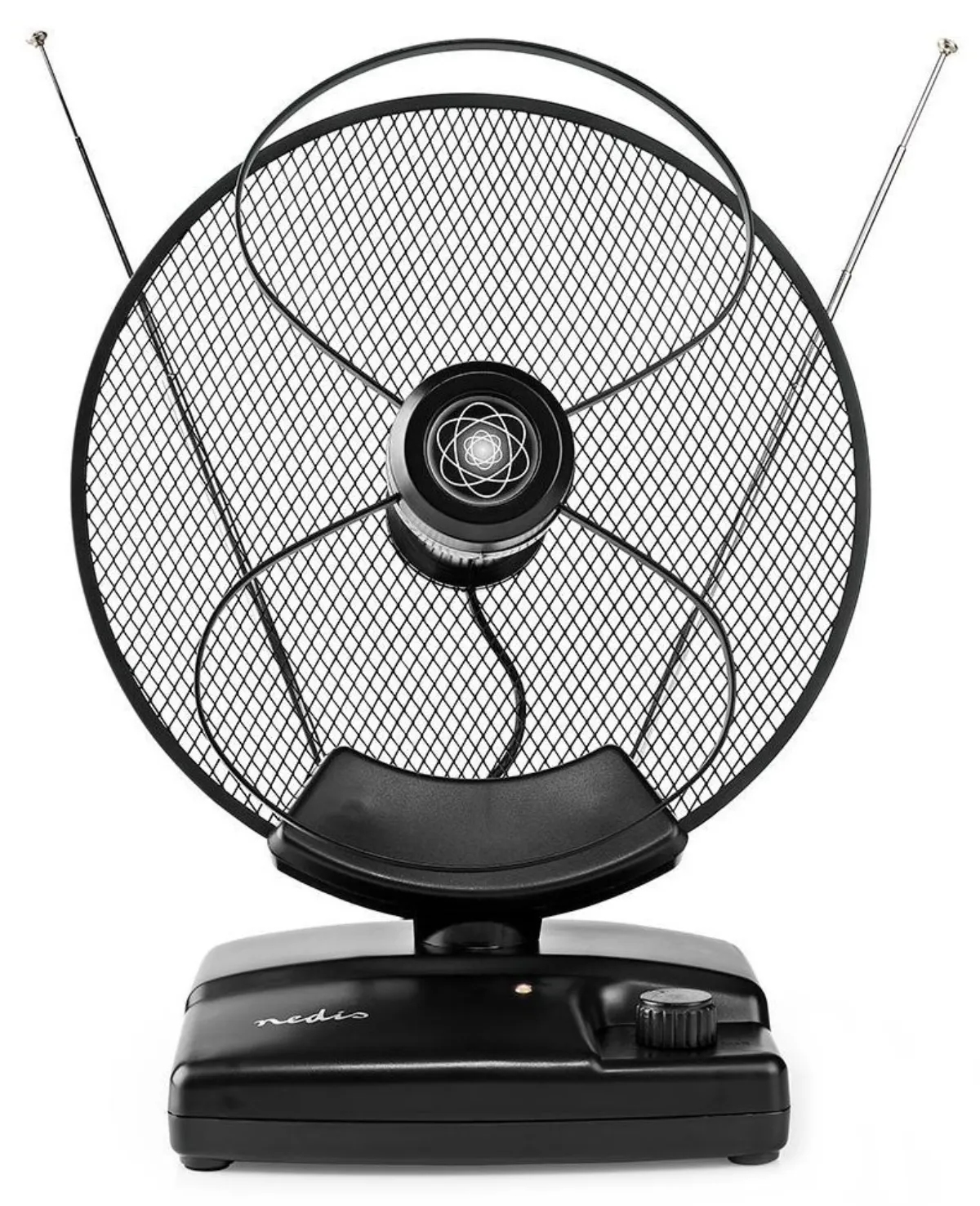

The indoor antenna for receiving DVB-T/T2 and FM/DAB+ signals is equipped with an integrated amplifier with a gain of up to 36 dB. It also has an LTE700 filter and adjustable amplification in the range of 0 to 18 dB. It is connected using a 1.6 m long cable terminated with an IEC (coax) antenna plug. Power can be easily supplied from the mains using a 1.5 m cable.
Frequency
- FM: 87.5-108.5 MHz
- VHF: 170-230 MHz
- UHF: 470-694 MHz
Gain
- 36 dB (VHF/UHF)
- 28 dB (FM)
Beamwidth
- 72° (V)
- 68° (H)
Impedance: 75 ohms
Reception range: 0-25 km
Interface: antenna connector (M)
Power supply: AC 220-240 V
Dimensions: 280 × 225 × 110 mm
Weight: 566 g
Properties
| Name | Value |
|---|---|
| Outdoor use | No |
| Standing still | Yes |
| On the wall | No |
| Color | black |
| Tuner | DVB-T2 |
| Weight, brutto [kg] | 0,566 |
| Dimension [mm] | 280 × 225 × 110 MM |
