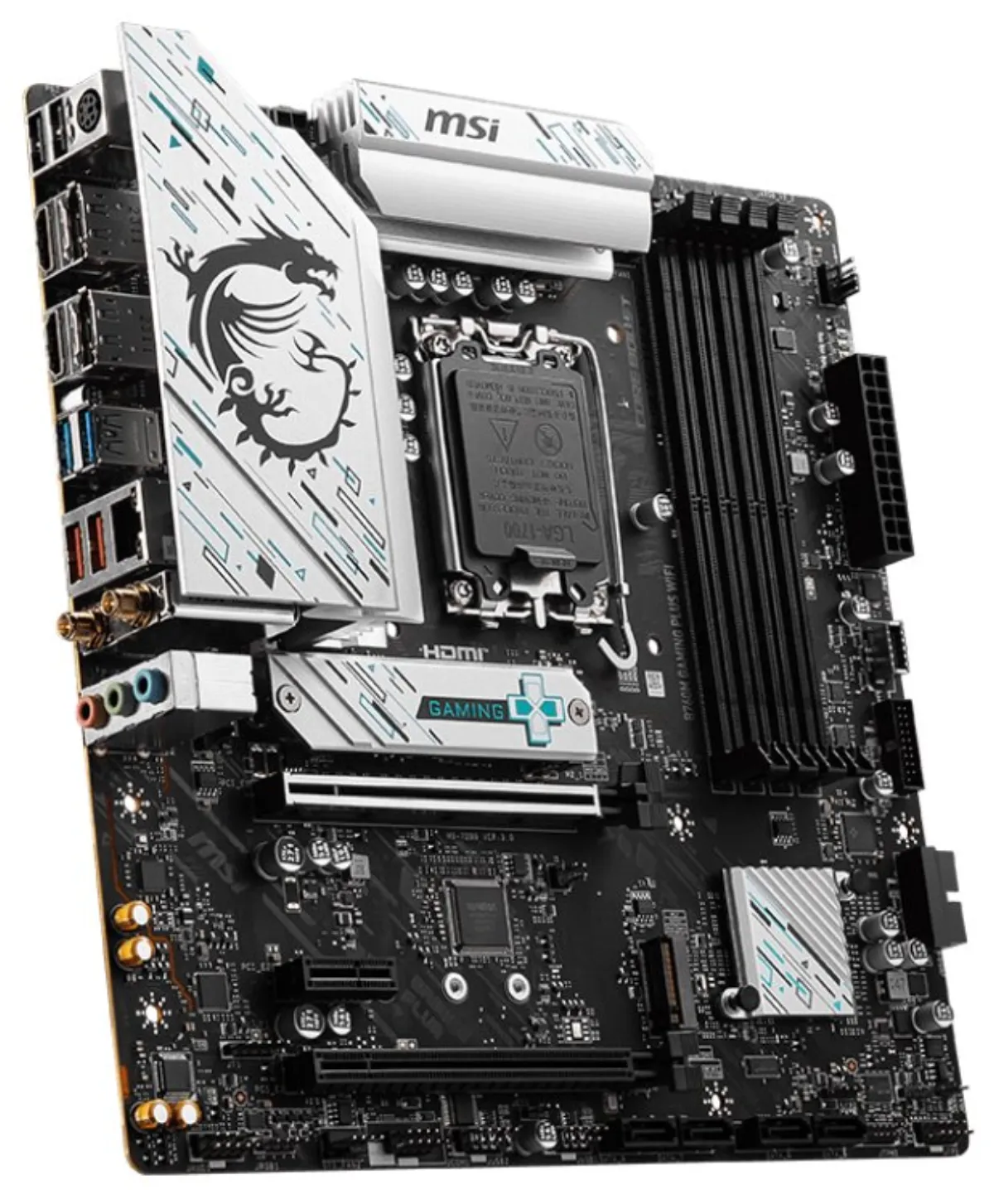

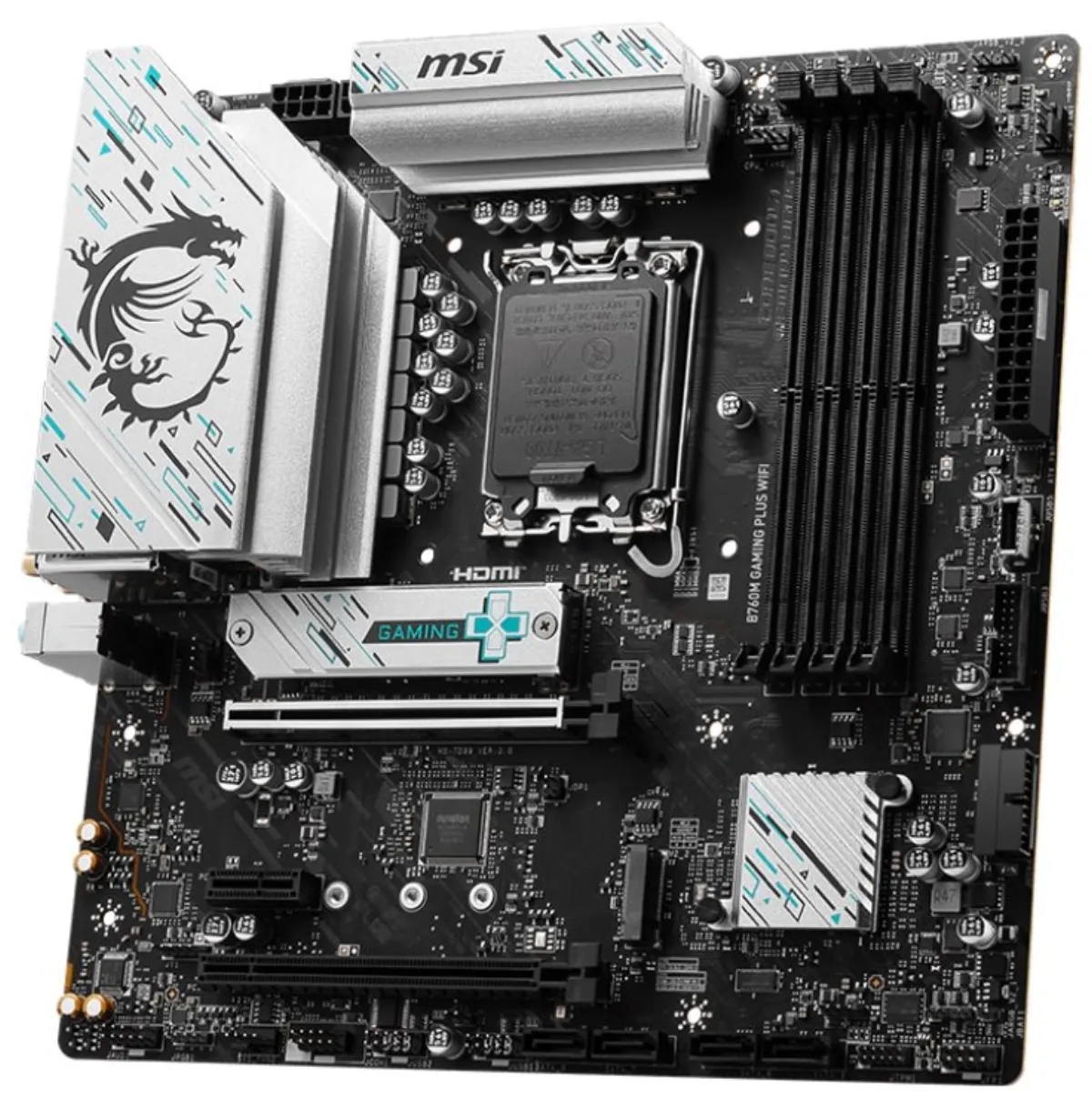

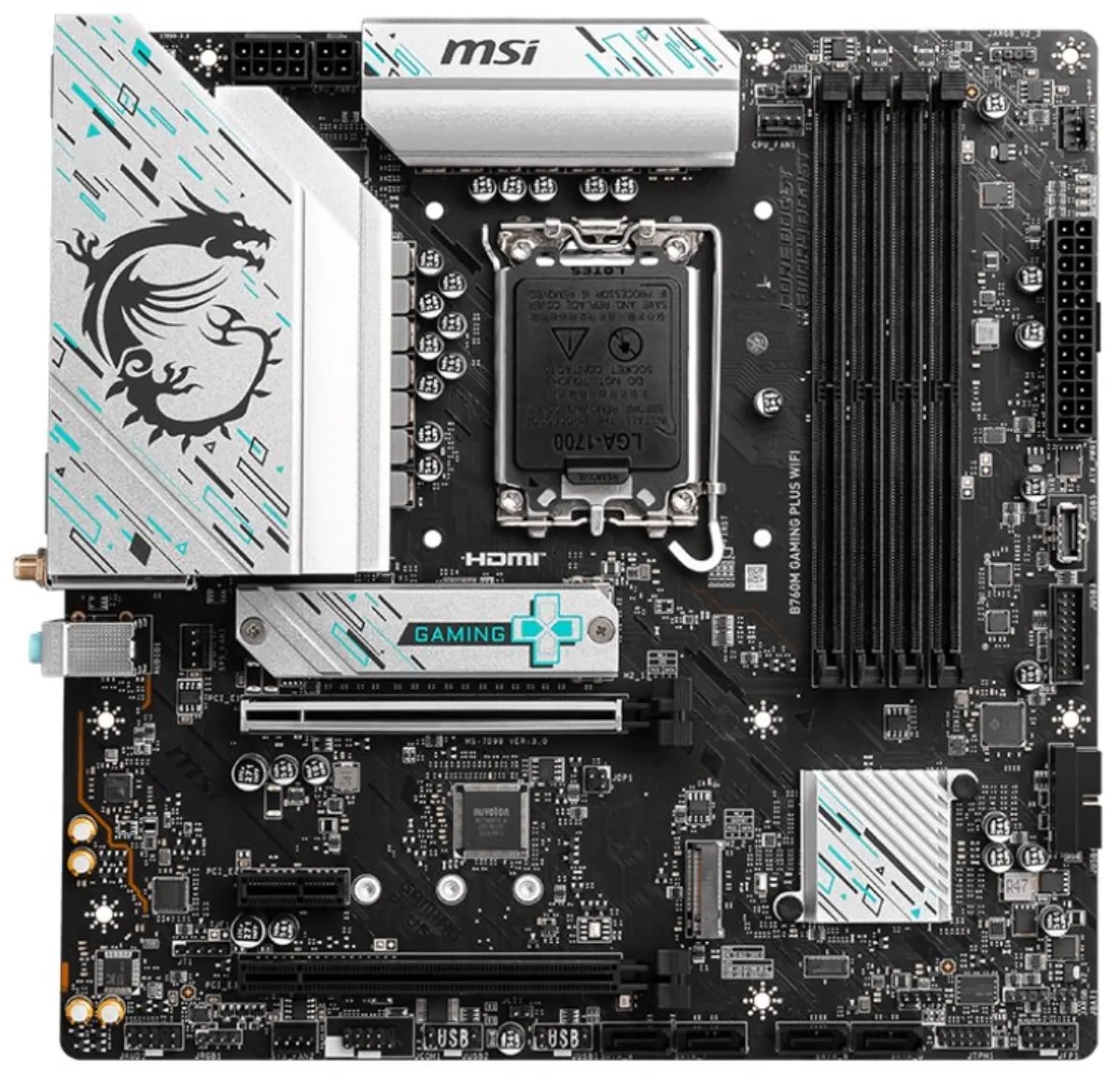

MSI B760M GAMING PLUS WIFI Intel B760 LGA1700 4x DDR5 2x M.2 HDMI DP WiFi mATX

MSI B760M GAMING PLUS WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 12., 13. and 14 generation Intel Core/ Pentium Gold/ Celeron
• Socket LGA1700

Chipset

• Intel B760

Memory

• 4x DDR5 memory slot, support up to 192 GB
• Support DDR5 6800+ (OC)/ 6600 (OC)/ 6400 (OC)/ 6200 (OC)/ 6000 (OC)/ 5800 (OC)/ 5600 (JEDEC)/ 5400 (JEDEC)/ 5200 (JEDEC)/ 5000 (JEDEC)/ 4800 (JEDEC) MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 OC support

Slots

• 1x PCIe 4.0 x16 slot
• 1× PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 3.0 x1 slot

Graphic Design

• 2x HDMI 2.1 port, supporting max. 4K resolution at 60 Hz
• 2× DisplayPort 1.4 port, supporting max. 4K resolution at 60 Hz

Storage

• 1× M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 4.0 x4 mode)
• 4x SATA 6 Gb/s port
• 1× M.2 slot, M key, for 2242/2260/2280 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for SATA drives

USB

• 1× USB-C 3.2 Gen1 port available via an internal USB connector
• 2x USB 3.2 Gen2 (USB 3.1) port on the back panel
• 6× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 4 ports available via internal USB connectors)
• 6× USB 2.0 port (2 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek RTL8125BG 2.5Gigabit LAN controller

WLAN/Bluetooth

• Intel Wi-Fi 6E
• Wi-Fi 802.11a/b/g/n/ac/ax
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 2.4 Gbps
• Bluetooth 5.3

Internal connectors

• 1× 24pin ATX main power connector
• 2× 8pin 12V power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling fan connector
• 2× 4pin system fan connector
• 2x front panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1x serial port connector
• 2× 3pin connector ARGB _V2 LED
• 1× 4pin RGB LED connector
• 1× connector for TPM module (TPM 2.0 support)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 2x USB 3.2 Gen1 (USB 3.0) connector (supports 4x USB 3.2 Gen1 port)
• 1× USB-C 3.2 Gen1 connector
• 4× EZ Debug LEDs

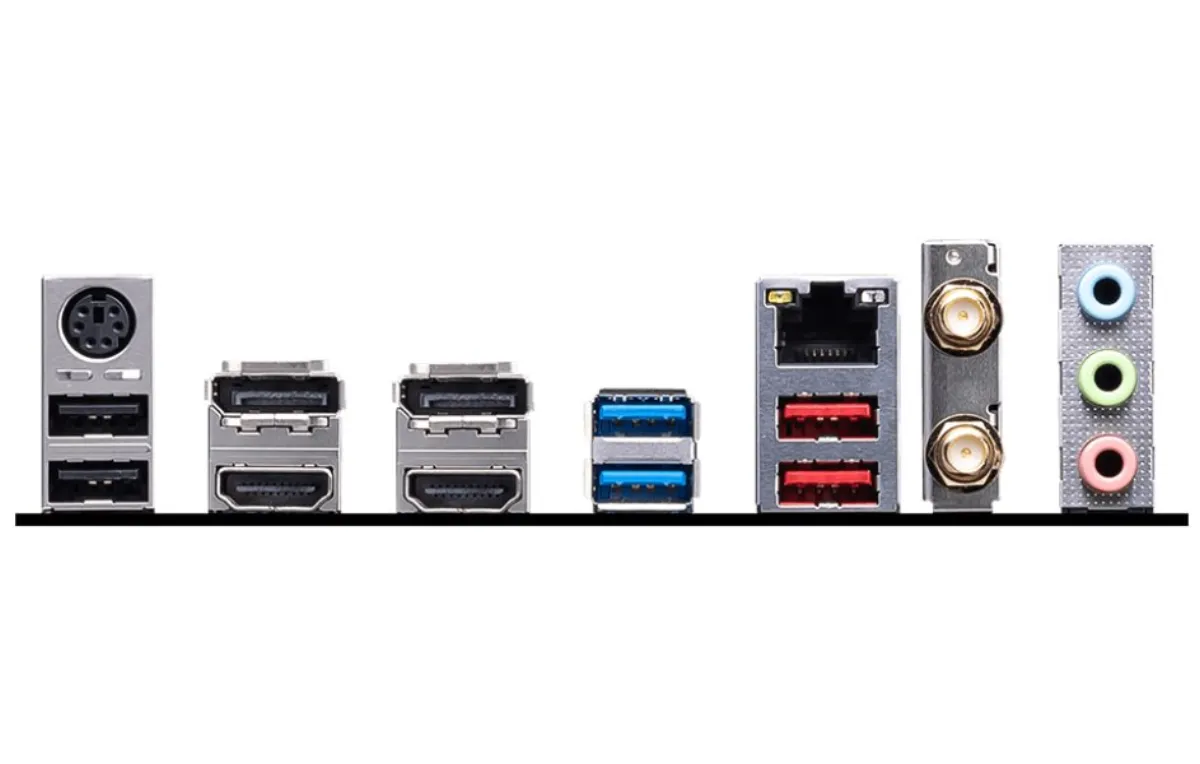

Rear panel ports

• 1× PS/2 keyboard and mouse port
• 2x DisplayPort
• 2x HDMI
• 2x USB 2.0
• 2x USB 3.2 Gen1 (USB 3.0)
• 2x USB 3.2 Gen2 (USB 3.1)
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 3x audio jack

Dimensions

• 24.384 × 24.384 cm
• Micro ATX format
