MikroTik RouterBOARD cAP XL ac RBcAPGi-5acD2nD-XL 2.4 5GHz 802.11b g n ac AP HotSpot cAP ac

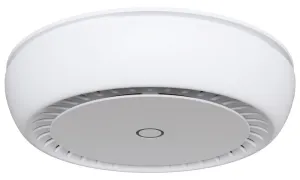

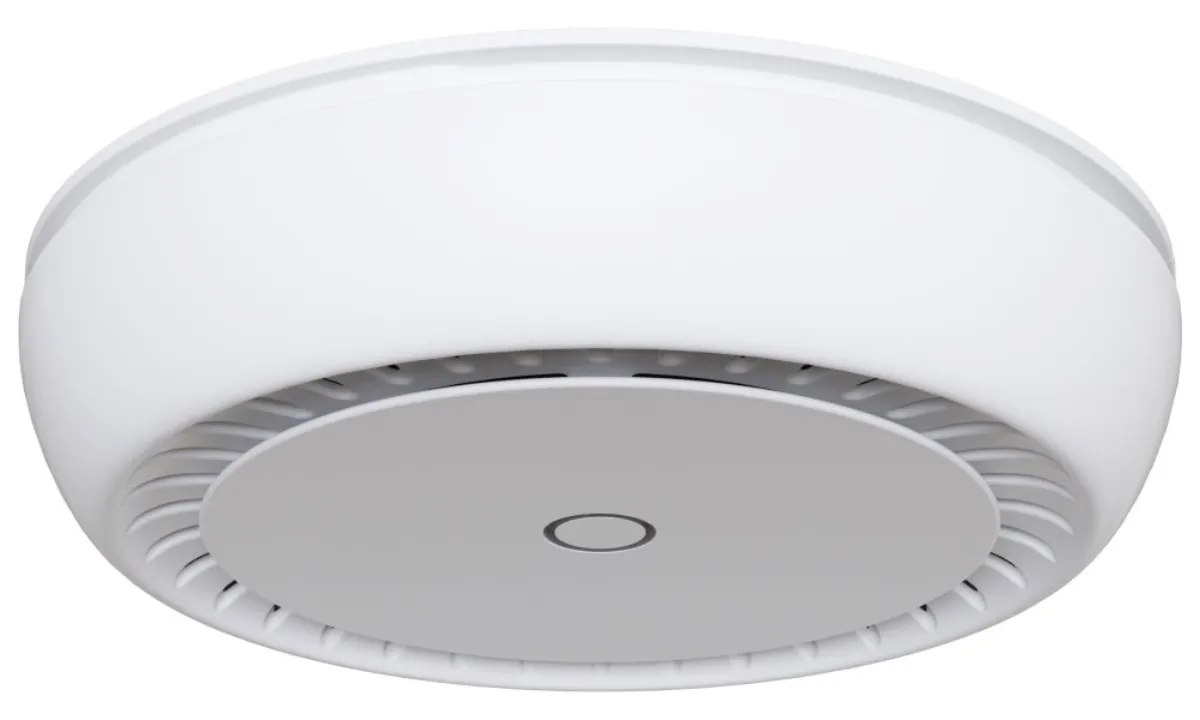

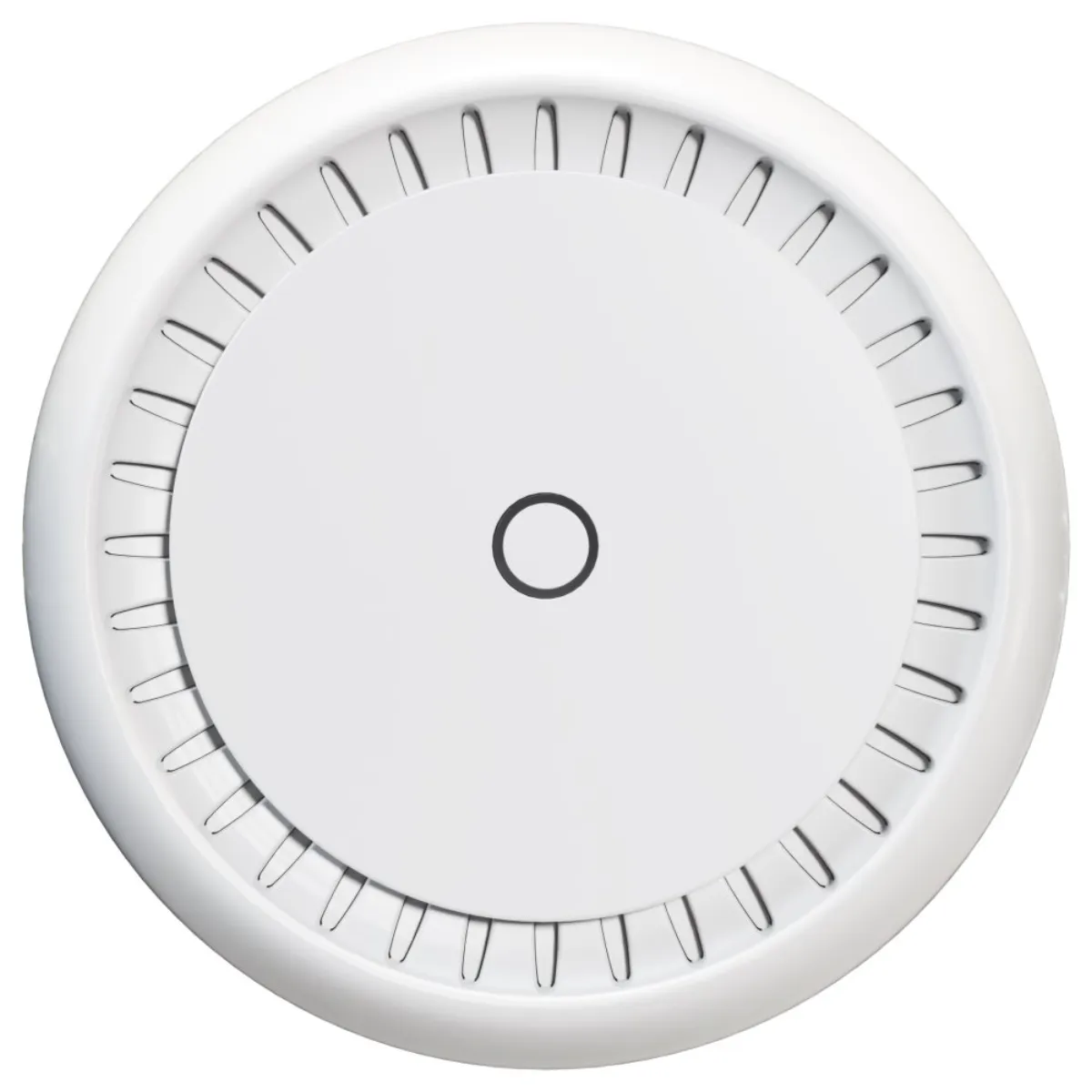

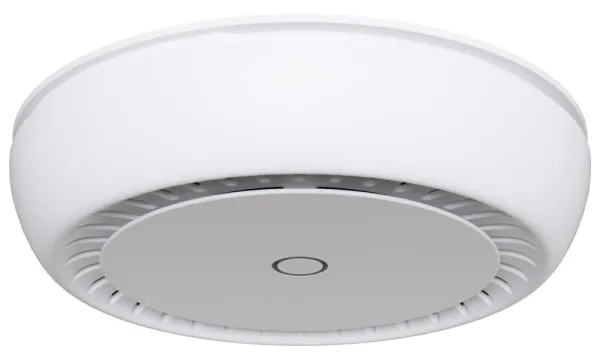

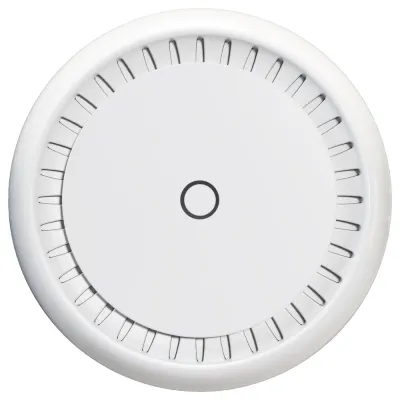

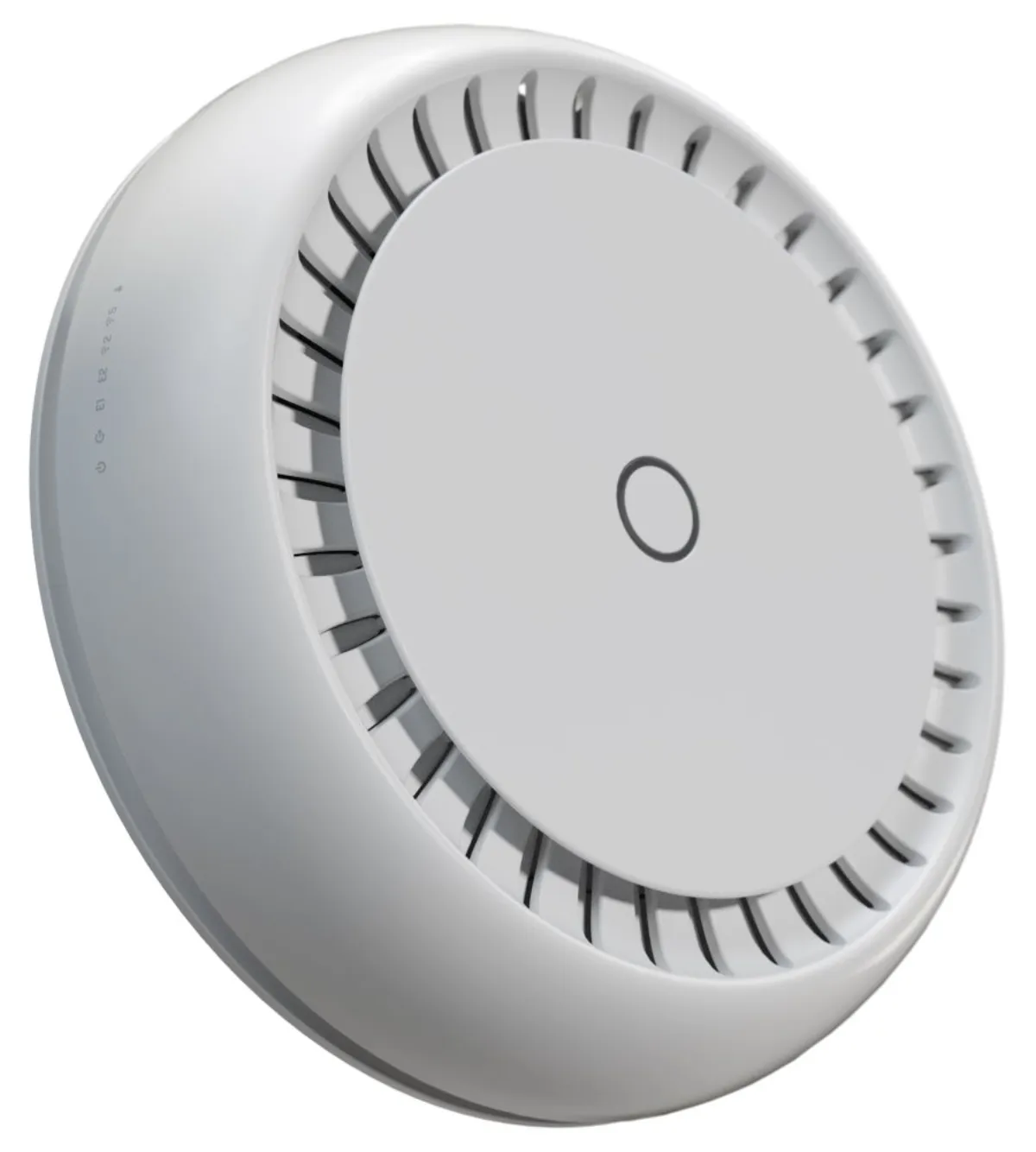

MikroTik cAP XL ac

The new version of the excellent AP/HotSpot for indoor coverage is equipped with high-gain antennas that provide up to 100% more area coverage than previous cAP models. This dual-band access point works on both frequencies at the same time, and is thus intended for all types of phones, tablets and computers. A big advantage is the support of 802.11n and 802.11ac standards.

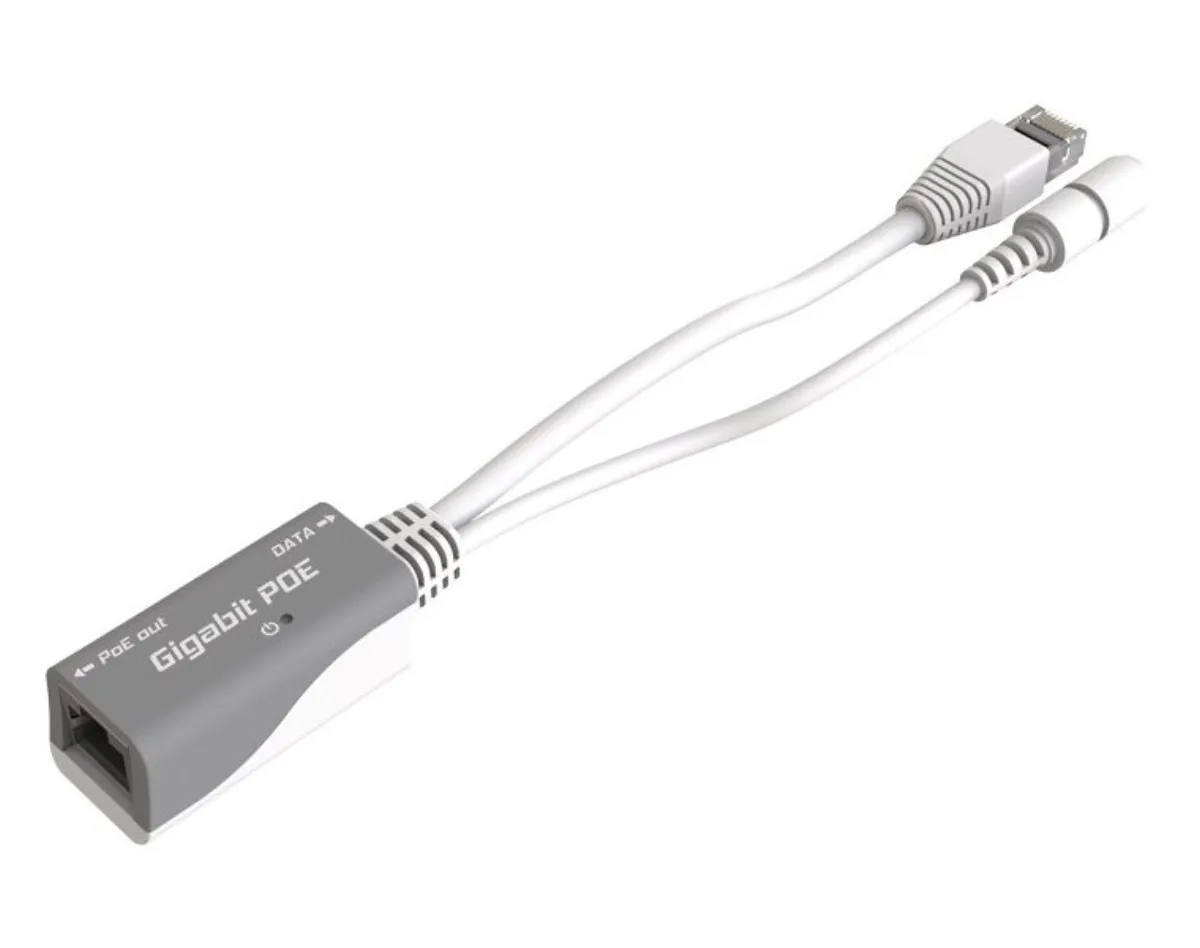

The unit supports both 2.4 GHz and 5 GHz frequencies in a 360° range and is suitable for covering halls or vestibules. The internal antenna has a gain of 6 and 5.5 dBi. The unit includes RouterOS MikroTik software with L4 license. MikroTik cAP XL ac has an integrated PoE+ splitter, so it can be powered directly via an FTP/UTP cable ( PoE+ 802.3af/at). The second port can be used as a passive PoE output (up to 57 V).

Information about RouterOS MikroTik

• All RouterBoards have the same RouterOS MikroTik system.
• All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
• MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
• MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.

Frequency

• 2.4 and 5 GHz
• 802.11a/b/g/n/a

Processor

• Qualcomm IPQ-4018 (710 MHz
• 4 core)

Antenna

• internal
• 6 dBi (2.4 GHz)
• 5.5 dBi (5 GHz)

Connectivity: 2x GbE RJ-45

PoE support

• yes
• PoE/PoE+ 802.3af/at input
• passive PoE output (up to 57 V)

Operating system: RouterOS Level 4

Power supply: DC 24 V adapter or PoE/PoE+ 802.3af/at
