Grandstream GWN7660 access point Dual Band 2x RJ45 Gbps 802.11 a b g n ac ax

Grandstream GWN7660

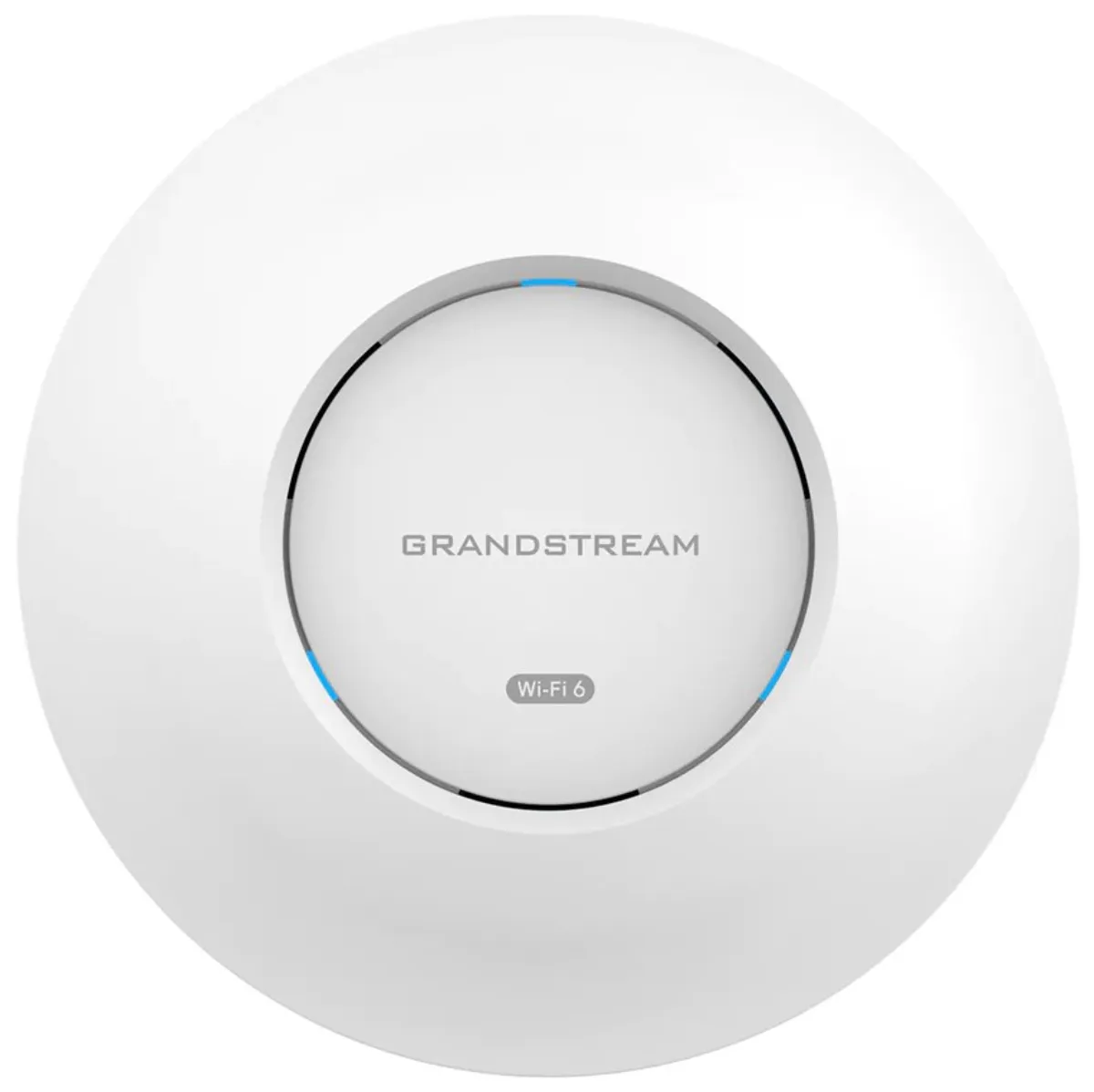

Ceiling/wall Wi-Fi 6 access point designed for corporate wireless networks with higher traffic density. Two dual-band internal antennas with high gain and support for OFDMA technology ensure a strong and reliable Wi-Fi signal for up to 256 connected wireless devices. GWN.Cloud - Grandstream's free cloud platform - is supported to ensure easy installation and management. The GWN7660 is the ideal Wi-Fi access point for deploying Voice-over-Wi-Fi solutions, offering seamless connectivity to Grandstream voice and video IP phones. With support for QoS, low-latency applications, mesh networks and captive portals, it represents a scalable Wi-Fi solution for mid-sized enterprise deployments.

• Dual-band 2x2:2 MU-MIMO technology with DL/UL OFDMA support
• Aggregated speed of 1.77 Gb/s (wireless throughput), 2x Gigabit port
• Coverage up to a distance of 175 meters
• Power adaptation and automatic detection of PoE/PoE+
• Secure boot (Anti-hacking secure boot), critical data/control + lock via digital signature, security via certificate, random default password for each device
• Support up to 256 Wi-Fi client devices
• The built-in control unit (controller) can manage up to 50 local APs (GWN series). GWN.Cloud - unlimited AP management, GWN Manager - software controller

Standard: IEEE 802.11a/b/g/n/ac/a

Data transfer speed

• 5 GHz - 1201 Mbit/s
• 2.4 GHz - 573.5 Mbit/s

Antenna

• 2x 2-band internal antenna (3 dBi for 2.4 GHz
• 4 dBi for 5 GHz)

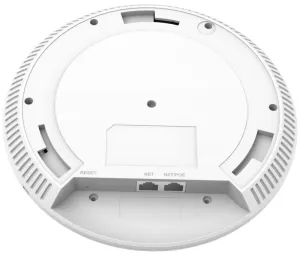

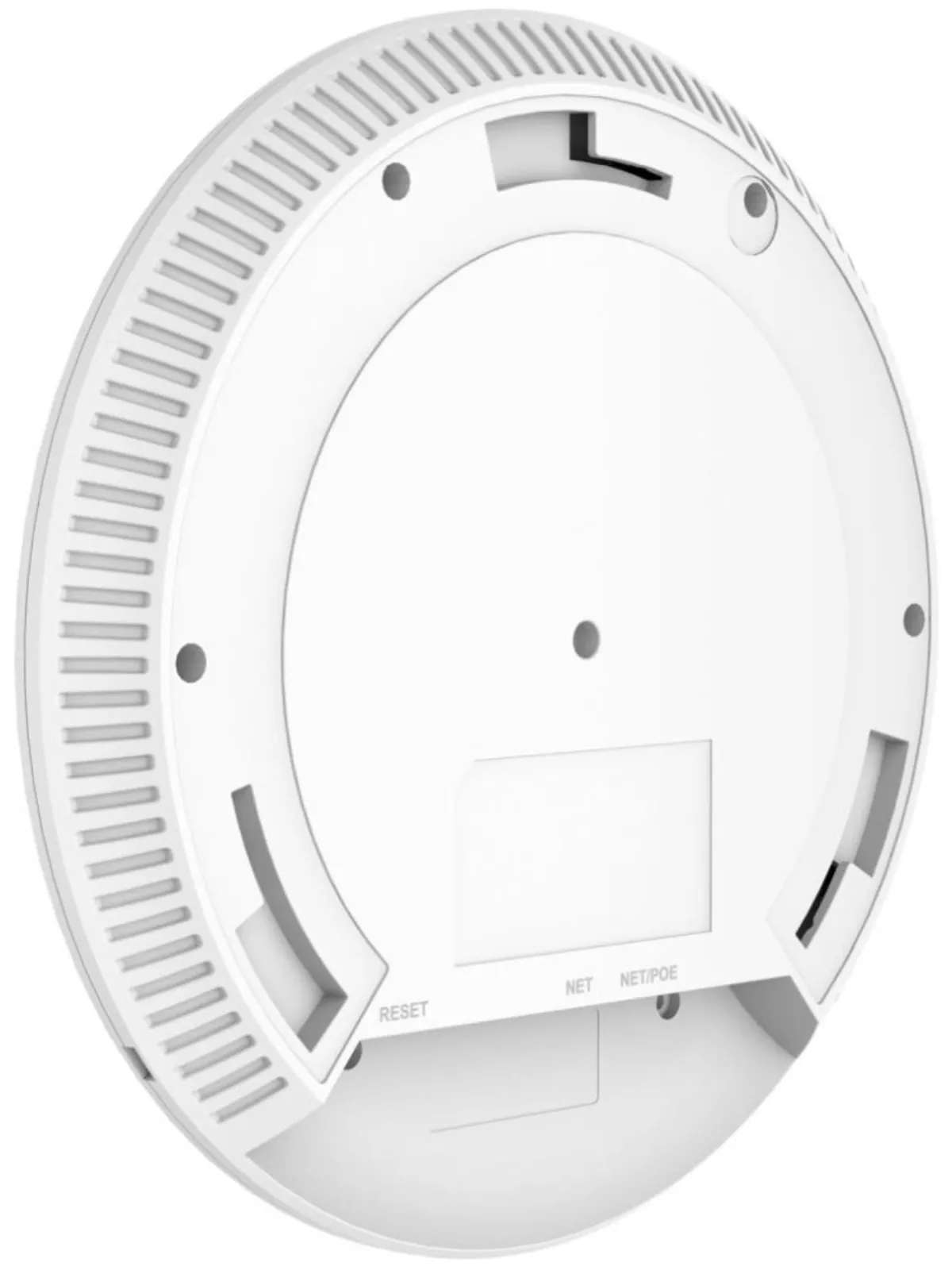

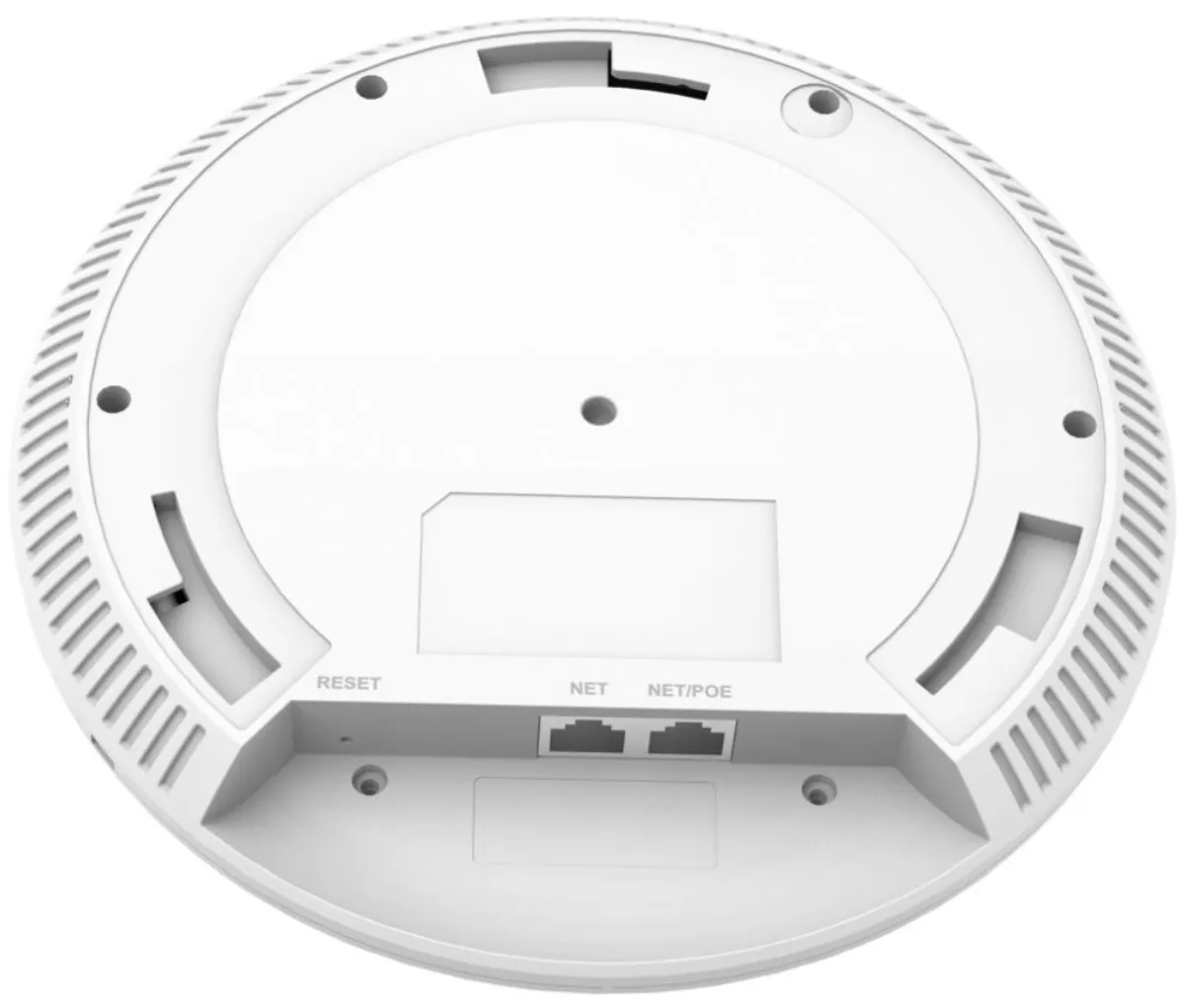

Ports: 2x GbE RJ-45

Frequency

• 2.4 GHz
• 5 GHz

Security

• WEP
• WPA/WPA2-PSK
• WPA/WPA2 Enterprise (TKIP/AES)
• WPA3
• anti-hacking boot
• management using digital signatures/certificates
• random default password

PoE support

• yes
• PoE/PoE+ (802.3af/at)

Dimensions: 180.4 x 180.4 x 40.8 mm
