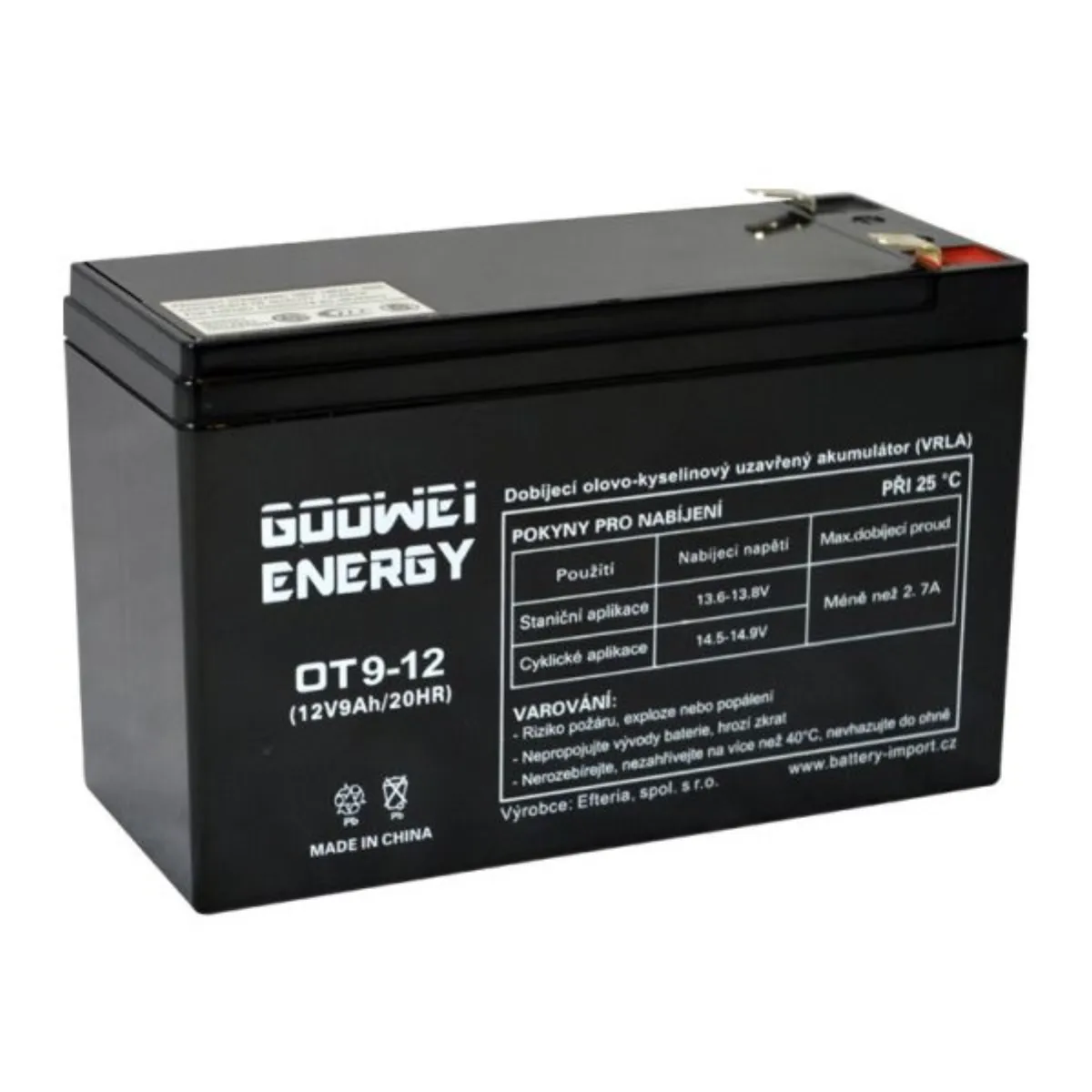

GOOWEI ENERGY Pb backup battery VRLA AGM 12V 9Ah (OT9-12)

GOOWEI ENERGY OT9-12

Backup 12 V (9 Ah) lead battery in VRLA (AGM) design suitable for applications without frequent cycling with a reliable backup source.

It is a construction in which the internal pressure is regulated by means of valves (VRLA - valve regulated lead acid). The advantages of this design, together with AGM (Absorbed Glass Mat) technology - although the battery contains an electrolyte in a liquid state, it is, however, absorbed into the glass laminate microfibers, or into the so-called glass wool, which is why it is firmly bound in the bowels of the battery cells , and its escape is practically ruled out) are mainly the following:

• Higher maximum discharge currents
• Absolutely maintenance-free (in terms of water refilling)
• Longer lifetime
• Shockproof
• Leakproof - sealed - non-spillable

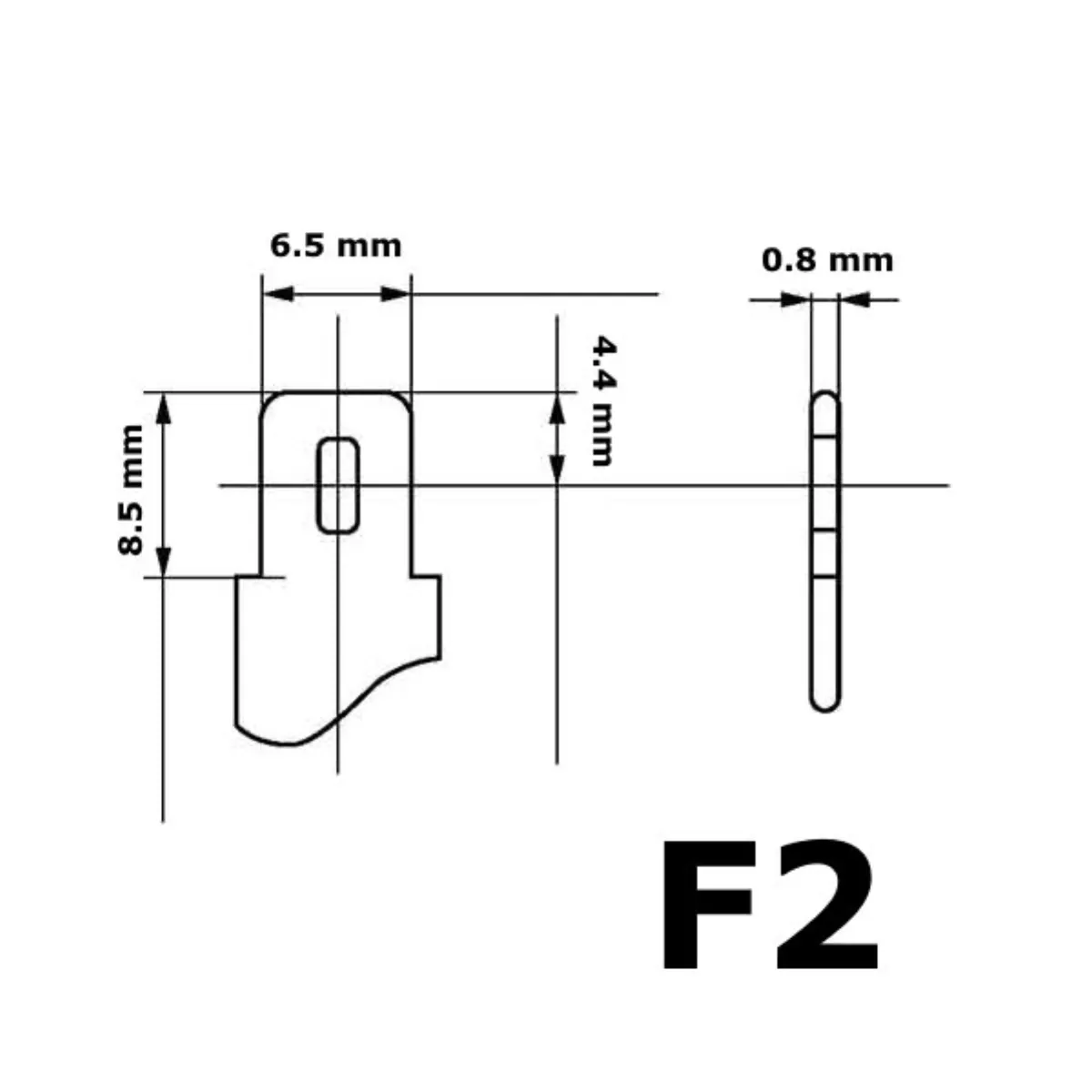

• Connector type: Faston 6.3 mm (F2)

Goowei batteries of the OT series with an optimal service life of 4-6 years are mainly intended for the following applications

• Uninterruptible Power Supplies (UPS)
• Electronic fire protection systems (EPS)
• Electronic security systems (EZS)
• Telecommunication equipment
• Emergency lighting
• Backup of circulation pumps and boilers

Maintenance of batteries

To achieve optimal battery life with frequent cyclic operation, it is necessary to respect the maximum allowed discharge depth of 80% d.o.d. specified by the ČSN EN 61044 standard. When storing batteries for a longer period, it is necessary to ensure their continuous charging. At a storage temperature of 25 °C, charge every 6 months, if the temperature is higher, charge more often. Operating temperature range: charging -15 to +40 °C, discharging -15 to +50 °C, storage -10 to +40 °C. Long-term exposure of batteries to temperature extremes shortens their lifespan.

Capacity: 9 Ah

Voltage: 12V

Battery technology: VRLA - AGM

Type of contact: Faston 6.3 mm (F2)

Status: charged

Dimensions: 151 x 94 x 66 mm

Weight: 2.56 kg
