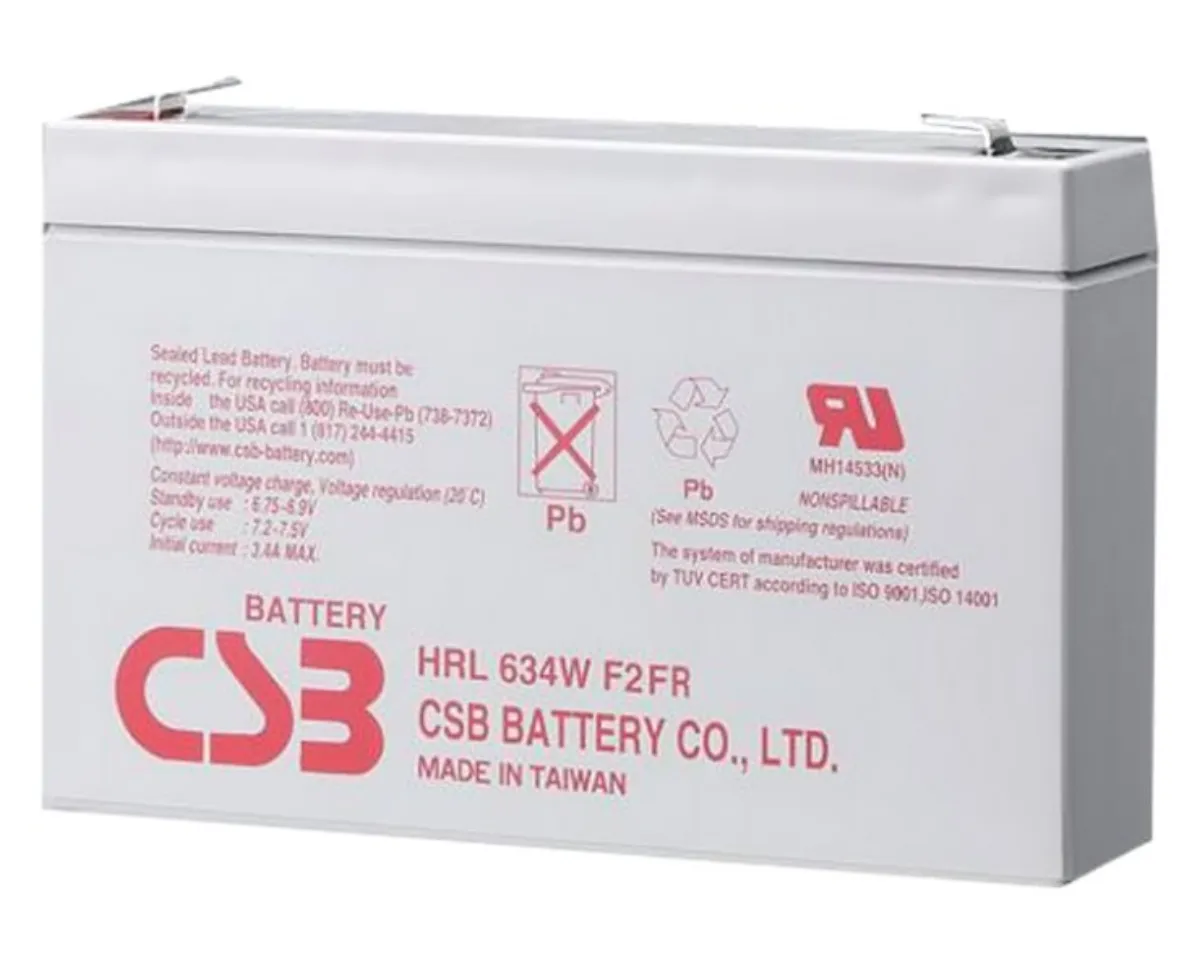

CSB Pb backup battery VRLA AGM 6V 9Ah (HRL634W F2)

CSB HRL634W F2

Backup lead battery (6 V, capacity 9 Ah) in VRLA (AGM) design.

It is a construction in which internal pressure is regulated using valves (VRLA - Valve Regulated Lead Acid = valve-controlled lead-acid accumulator). The advantages of this VRLA/AGM design are mainly the following:

• Higher maximum discharge currents
• Absolutely maintenance-free (in terms of water refilling)
• Longer lifetime
• Shockproof
• Leakproof - closed/unbreakable
• Connector type: Faston 6.3 mm (F2)

AGM (Absorbed Glass Mat) technology

Although the battery contains an electrolyte in a liquid state, it is "stuck" in the glass laminate microfibers, or in the so-called glass wool, and is thus firmly bound in the bowels of the battery cells (its leakage is practically precluded) .

HRL model series - optimal service life of 8 to 10 years

Use: Primarily backup sources and high-load devices. Very high quality battery. It is designed for applications in the most demanding environments and is suitable for use mainly in uninterruptible power supplies (UPS), electronic fire protection systems (EPS), electronic security systems and telecommunications.

CSB brand products are used by world-renowned computer and office technology producers such as: POWERWARE, APC, LIBERT, MGE, RIELLO, SICON SOCOMEC, IBM, ASCOM, etc. The quality of accumulators, used for example in backup sources, is ensured by several properties. One of the main ones is the requirement for the same physical properties of individual battery cells connected in series or series-parallel. If this condition is met, a long service life is guaranteed. CSB accumulators fulfill this condition, and this can be appreciated by millions of users of backup sources all over the world.

Capacity: 9 Ah

Voltage: 6V

Battery technology: VRLA / AGM

Type of contact: Faston 6.3 mm (F2)

Max. charging current: 3.4 A

Max. discharge current: 130 A (5 seconds)

Status: charged

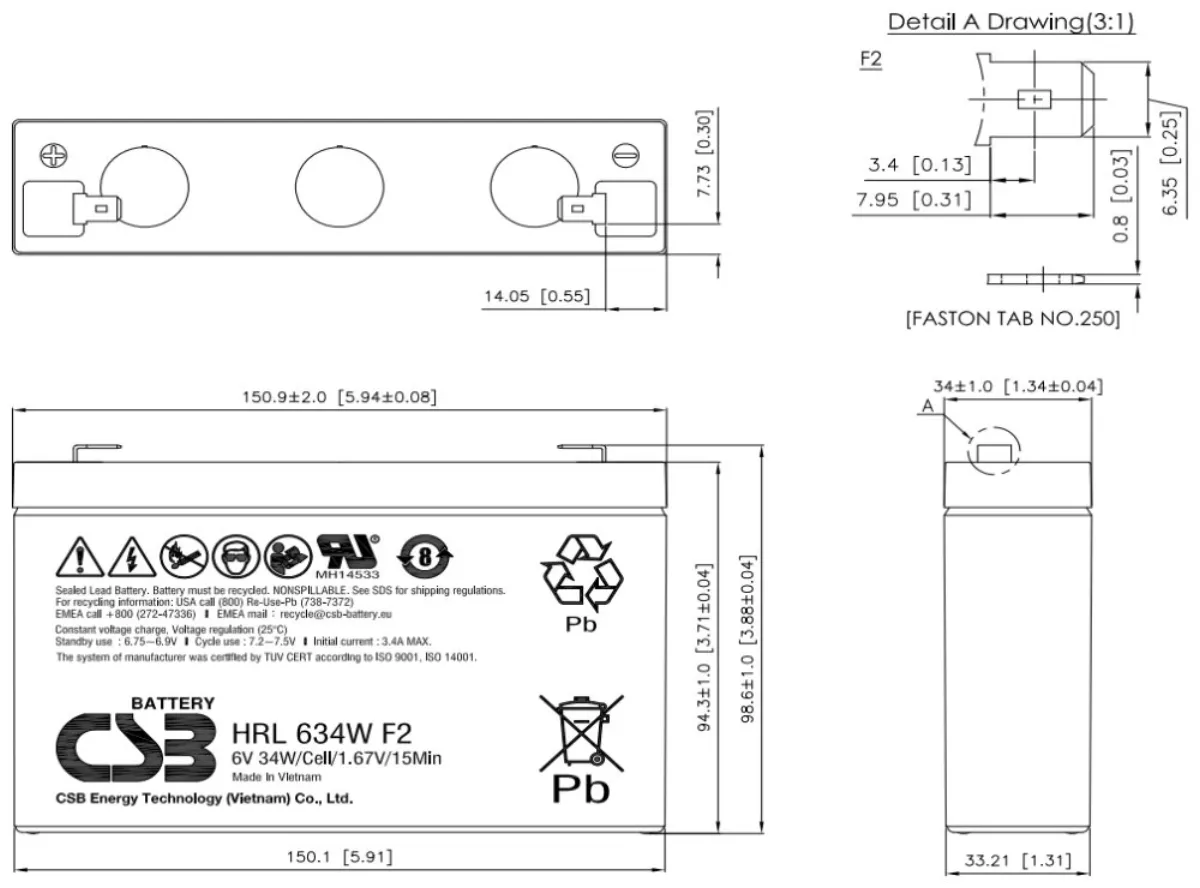

Dimensions: 151 x 99 x 34 mm

Weight: 1.32 kg
