ASRock H610M-H2 M.2 D5 LGA1700 Intel H610 2x DDR5 2x HDMI M.2 mATX

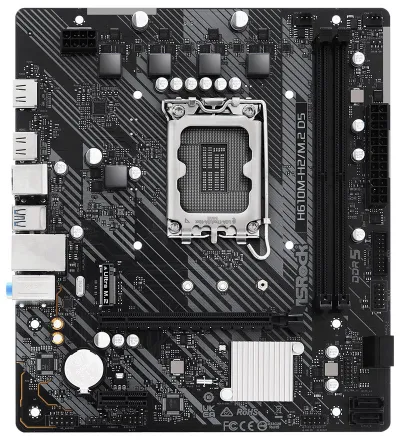

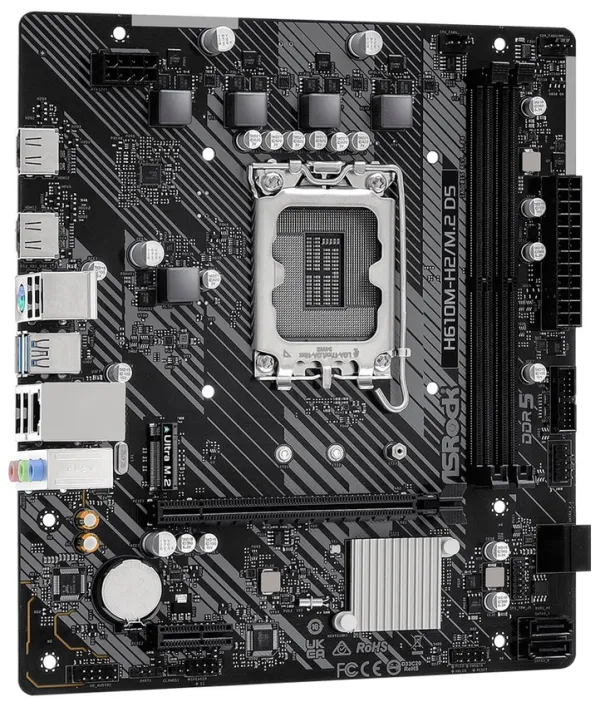

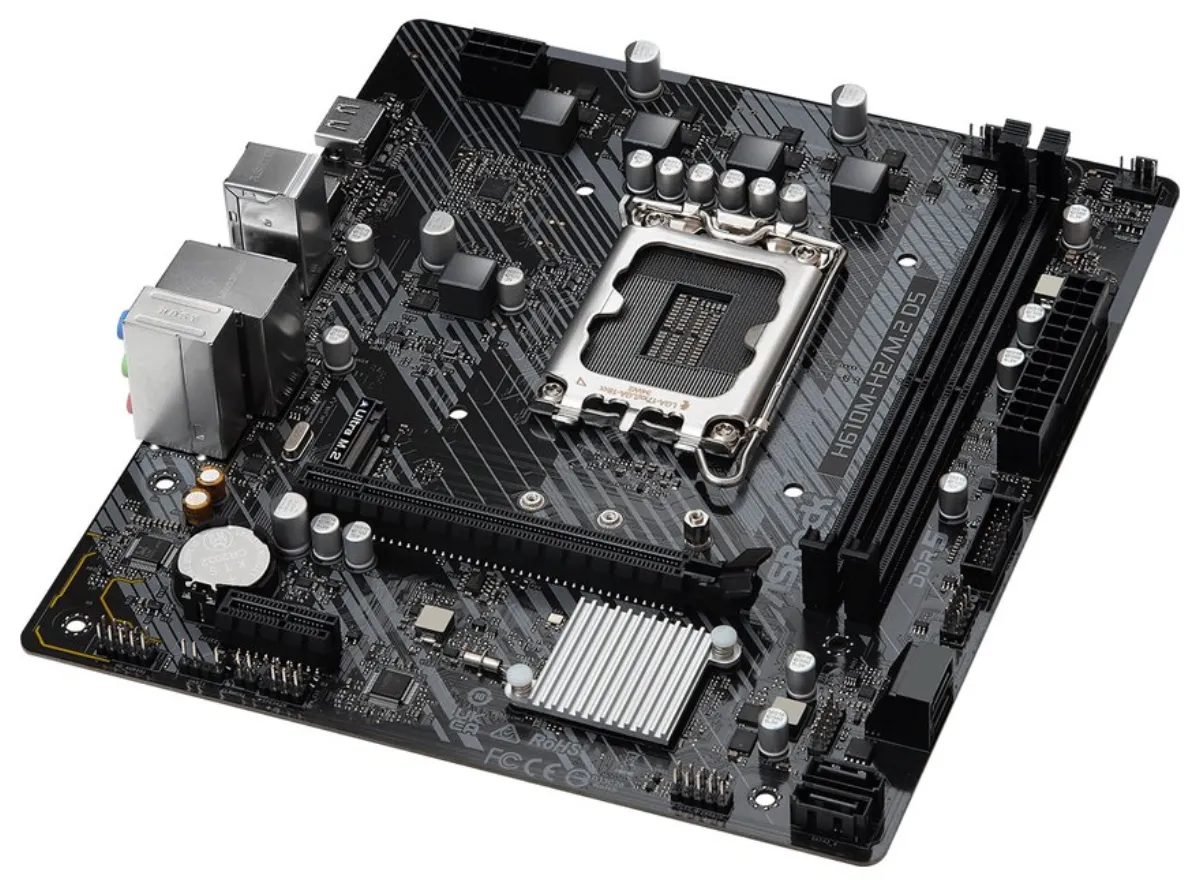

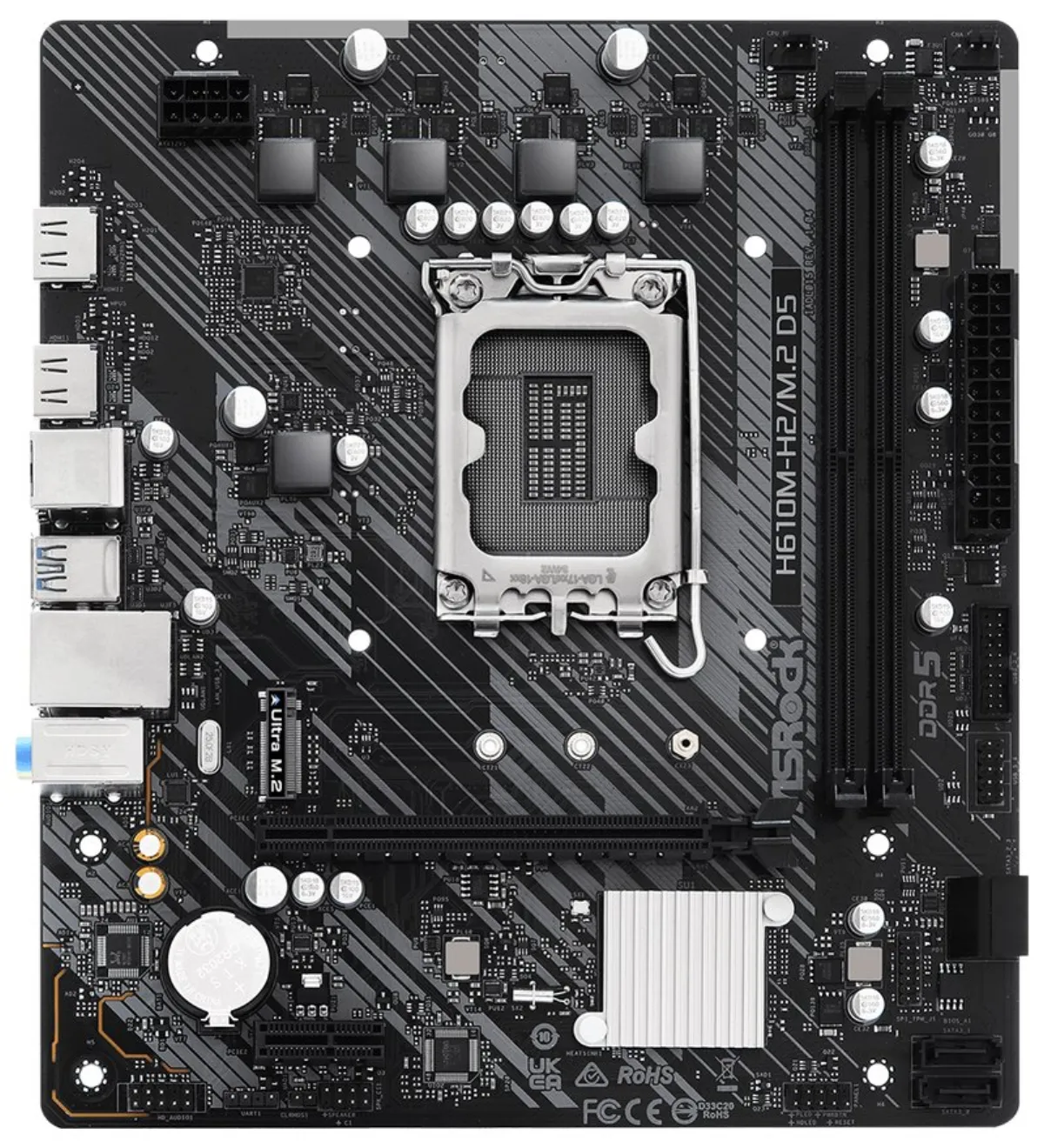

ASRock H610M-H2/M.2 D5

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for processors 14., 13 . and 12 . generation Intel Core/ Pentium/ Celeron (socket LGA1700)

Chipset

• Intel H610

Memory

• 2x DDR5 memory slot, support up to 96 GB
• Support DDR5 up to 5600 MHz
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support

Slots

• 1x PCIe 4.0 x16 slot
• 1x PCIe 3.0 x1 slot

Graphic Design

• 2x HDMI 2.1 port, supporting max. 4K resolution at 60 Hz

Storage

• 4x SATA 6Gb/s port
• 1× Ultra M.2 slot, M Key, for 2242/2260/2280 type units (PCIe 3.0 x4 mode)

USB

• 4× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 2 ports available via the internal USB connector)
• 6× USB 2.0 port (4 ports on the back panel, 2 ports available via the internal USB connector)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

• 1× SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 1× 4pin CPU fan connector
• 1× 4pin case fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1x front panel audio connector
• 1× USB 2.0 connector (supports 2× USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)

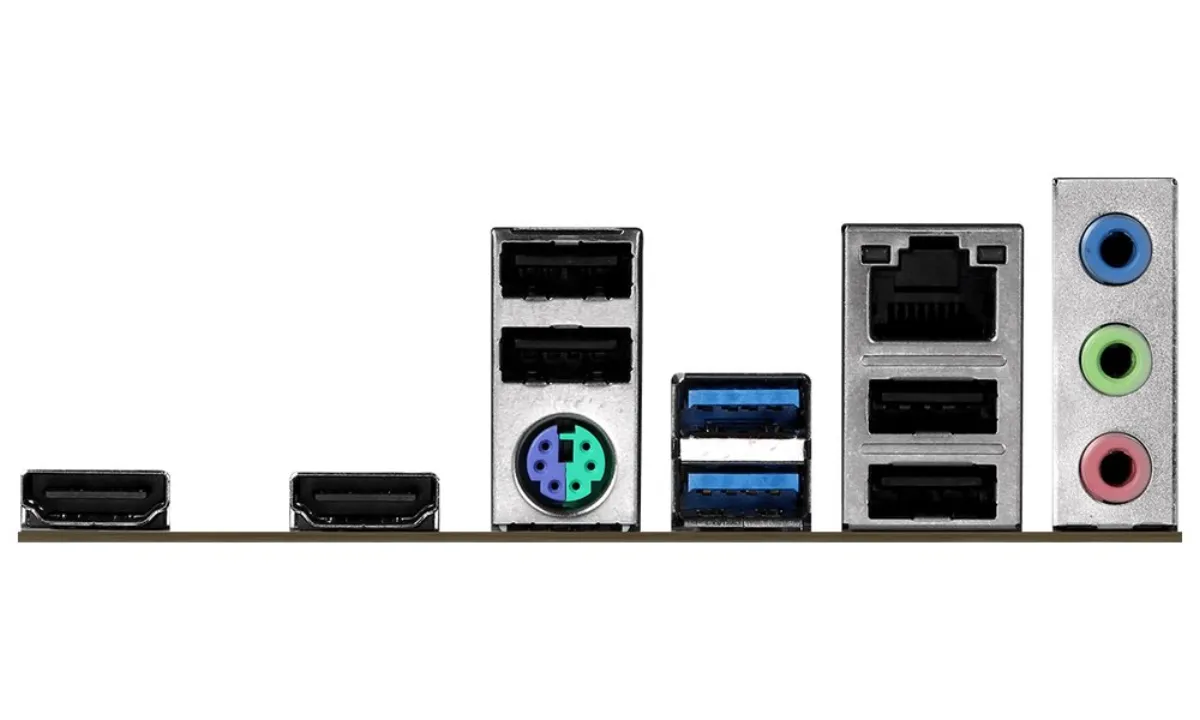

Rear panel ports

• 1× PS/2 keyboard and mouse combo port
• 2x HDMI
• 4x USB 2.0
• 2x USB 3.2 Gen1 (USB 3.0)
• 1x RJ-45
• 3x audio jack

Dimensions

• 22 x 19.3 cm
• Micro ATX format
