ASRock A620AM Pro RS WiFi AMD A620A AM5 4x DDR5 DIMM 3x M.2 HDMI DP USB-C WiFi mATX

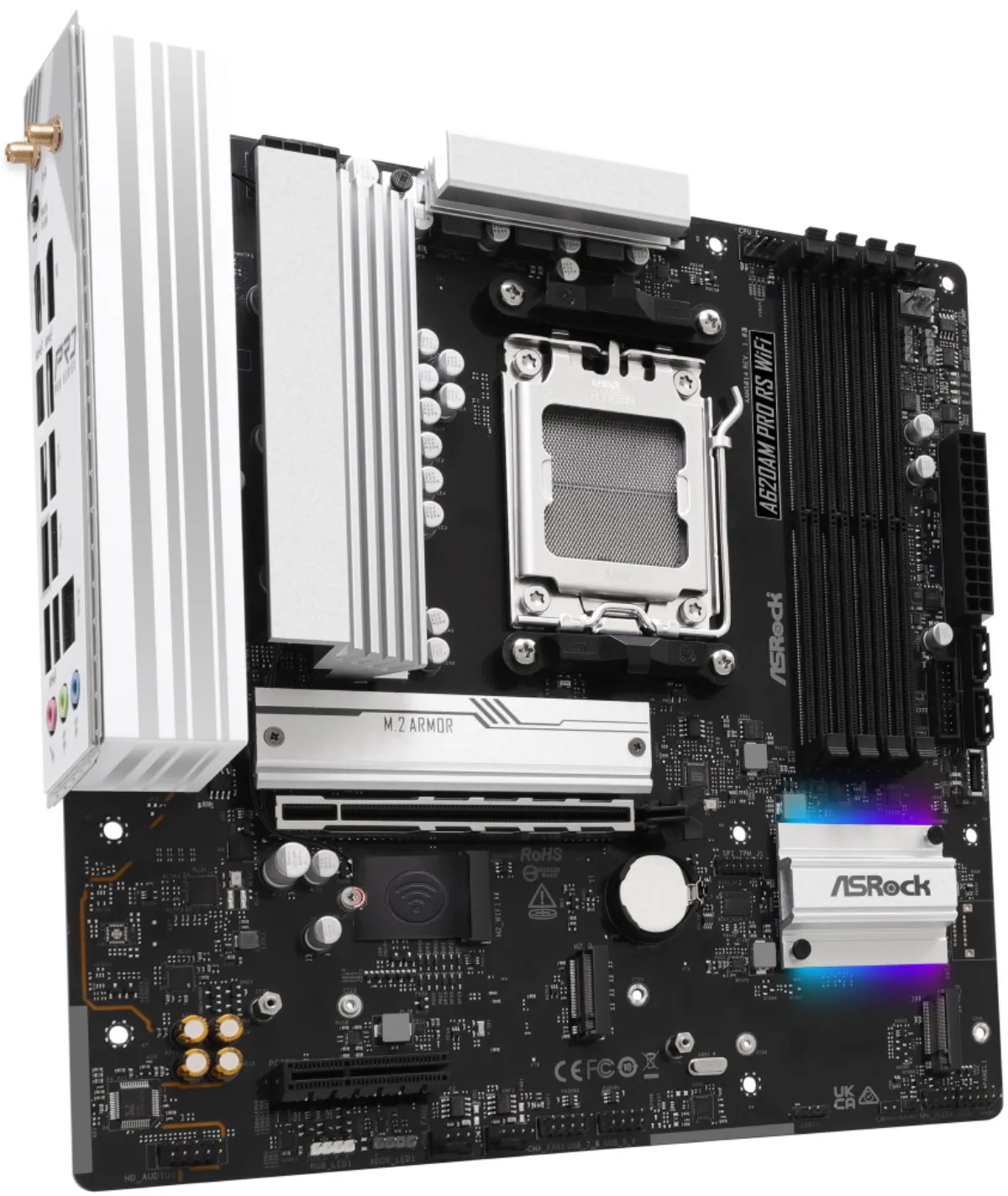

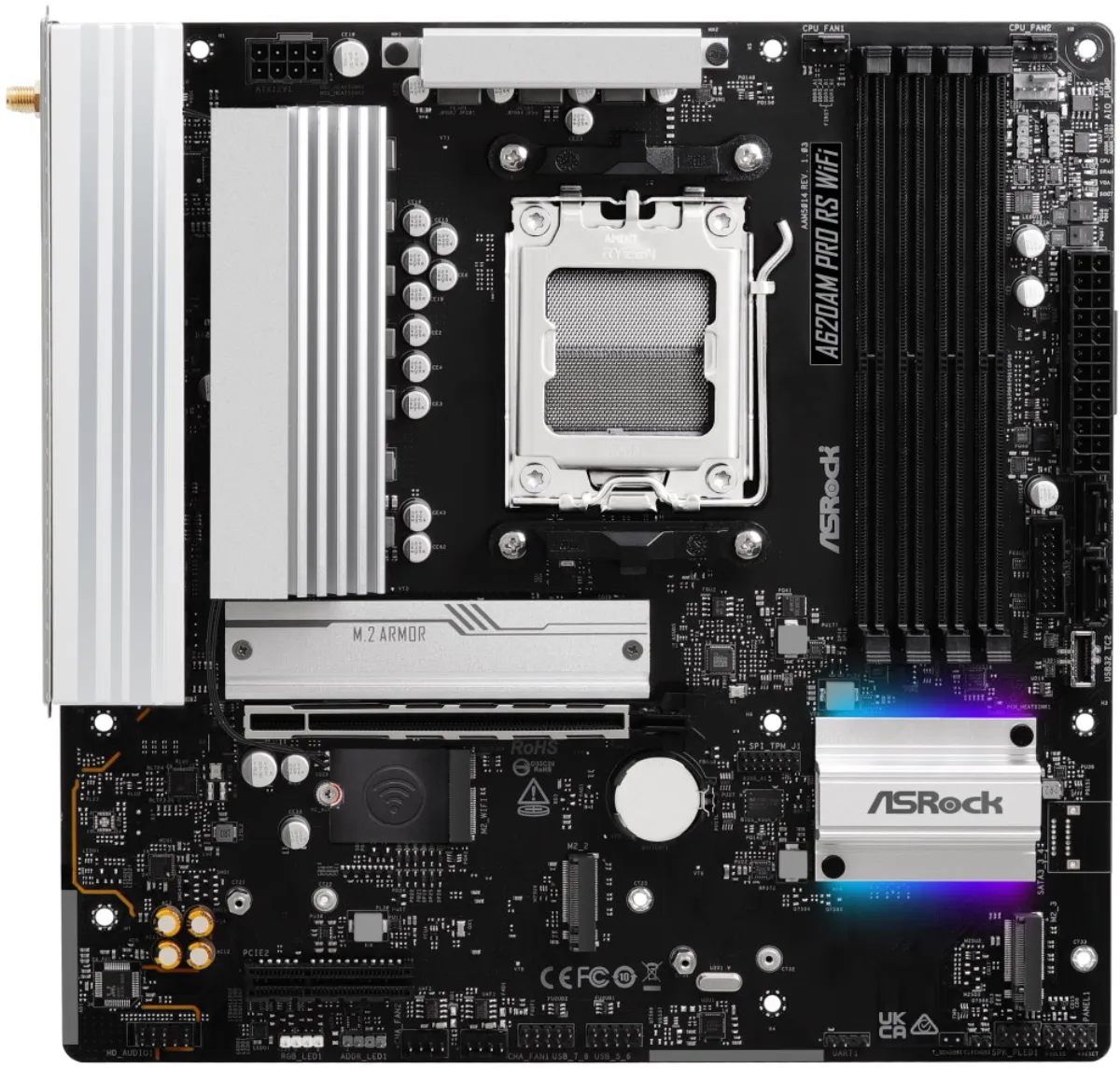

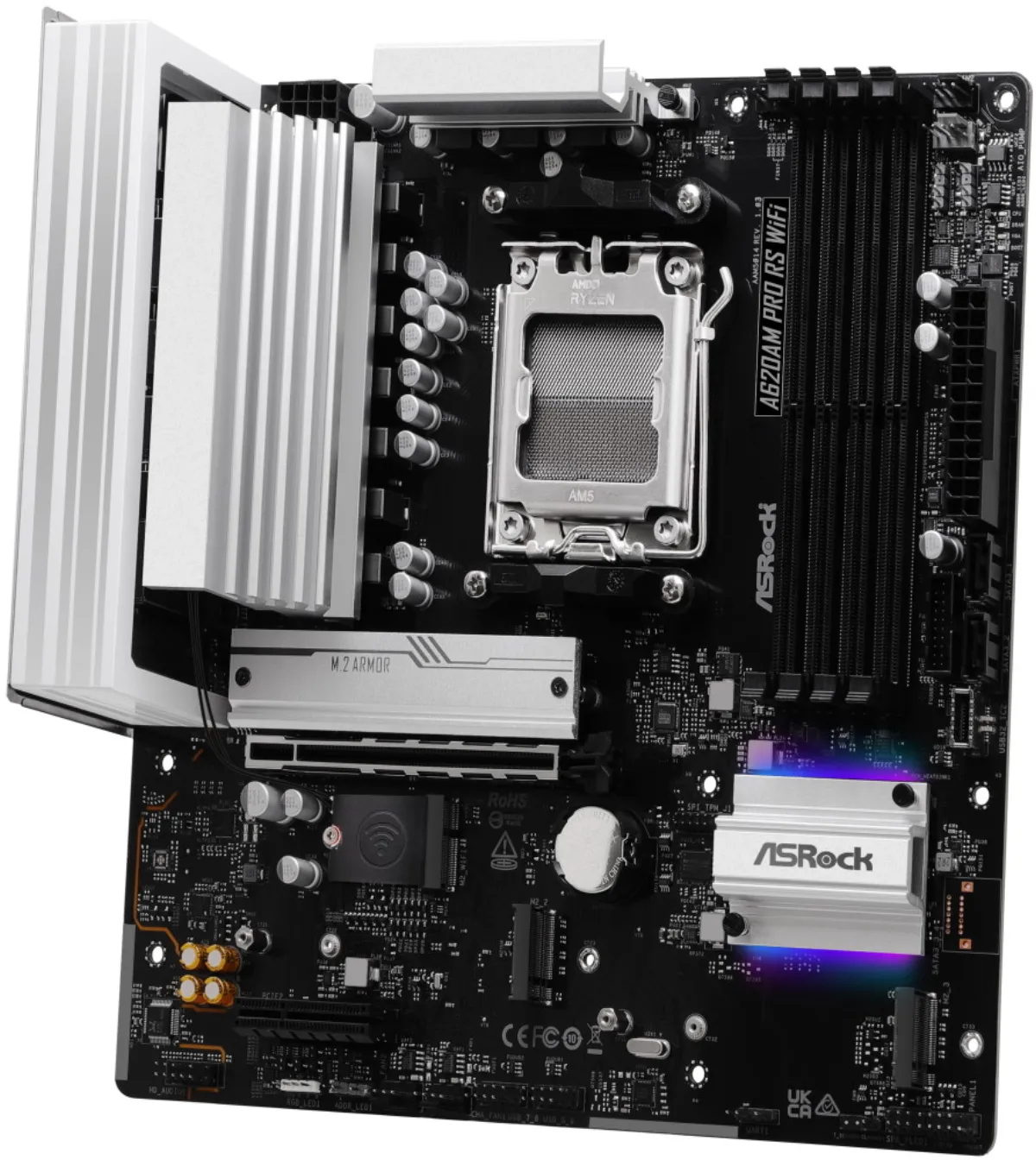

ASRock A620AM Pro RS WiFi - a reliable motherboard for a modern PC

The ASRock A620AM Pro RS WiFi motherboard is designed for AMD Ryzen 7000, 8000 and 9000 series processors, allowing them to unleash their full potential. It offers the ideal balance between performance and technology, rich connectivity and user-friendliness to create a computer system exactly according to your wishes.

The motherboard features 6+2+1 phase power supply with Dr.MOS for reliable power supply to the processor and subsequent stable operation of even very demanding applications. There are also free slots for DDR5 RAM, which can accommodate up to 256 GB. The ASRock A620AM Pro RS WiFi model can also handle the installation of modern graphics cards or ultra-fast SSD drives, which you can cram into M.2 slots.

In terms of connectivity, the ASRock A620AM Pro RS WiFi motherboard supports Wi-Fi 6E standard, thanks to which you can look forward to a fast wireless connection in the 6 GHz band. Of course, there is also support for lightning-fast wired network connection via the Dragon 2.5 Gb/s LAN platform. The ASRock A620AM Pro RS WiFi motherboard is therefore an ideal basic component for a gaming and creative PC, or a regular home computer.

ASRock A620AM Pro RS WiFi

The motherboard is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without using the corresponding processor, these outputs will be inoperative.

CPU

Supports AMD Ryzen 7000, 8000 and 9000 series processors (Socket AM5)

Chipset

• AMD A620A

Memory

• 4× DDR5 memory slots, support up to 256 GB
• Supports DDR5 up to 7200+ (OC) MHz
• Dual-channel memory architecture
• Supports non-ECC, unbuffered
• Supports AMD EXtended Profiles for Overclocking (EXPO)
• Supports Extreme Memory Profile (XMP)

Slots

AMD CPU

• 1× PCIe 4.0 x16 slot
• 1× PCIe 3.0 x4 slot (supports x2 mode)

Graphics

• 1× HDMI 2.1 port, supporting max. resolution 4K @ 120 Hz
• 1× DisplayPort 1.4 port, supporting max. resolution 4K @ 120 Hz

Storage

• 2× Hyper M.2 slot, M Key, for type 2260/2280 drives (PCIe 4.0 x4 mode)
• 1× Ultra M.2 slot, M Key, for type 2260/2280 drives (PCIe 3.0 x4 mode)
• 2× SATA 6 Gb/s port
• RAID 0, RAID 1 and RAID 10 support for SATA and M.2 NVMe drives

USB

• 2× USB-C 3.2 Gen1 (USB 3.0) port (1 port on the back panel, 1 port accessible via internal USB connector)
• 5× USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports accessible via internal USB connector)
• 8× USB 2.0 port (4 ports on the back panel, 4 ports accessible via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1-channel High Definition Audio
• Nahimic Audio

LAN

• 1× Dragon RTL8125BG 2.5G LAN controller

WLAN/ Bluetooth

• Wi-Fi 6E module
• Wi-Fi 802.11a/b/g/n/ac/ax/axe
• Dual Band 2x2 (2.4 GHz, 5 GHz) + 6 GHz
• MU-MIMO support
• Bluetooth 5.2

Internal connectors

• 1× SPI TPM connector
• 1× speaker and Power LED connector
• 1× RGB LED strip connector
• 3× addressable LED strip connector
• 1× 4pin CPU fan connector
• 1× 4pin CPU fan/water cooling fan connector
• 3× 4pin chassis fan/water cooling fan connector
• 1× 24pin ATX main power connector
• 1× 8pin 12V power connector
• 1× front panel audio connector
• 2× USB 2.0 connector (supports 4× USB 2.0 ports)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 ports)
• 1× USB-C 3.2 Gen1 (USB 3.0) front panel connector

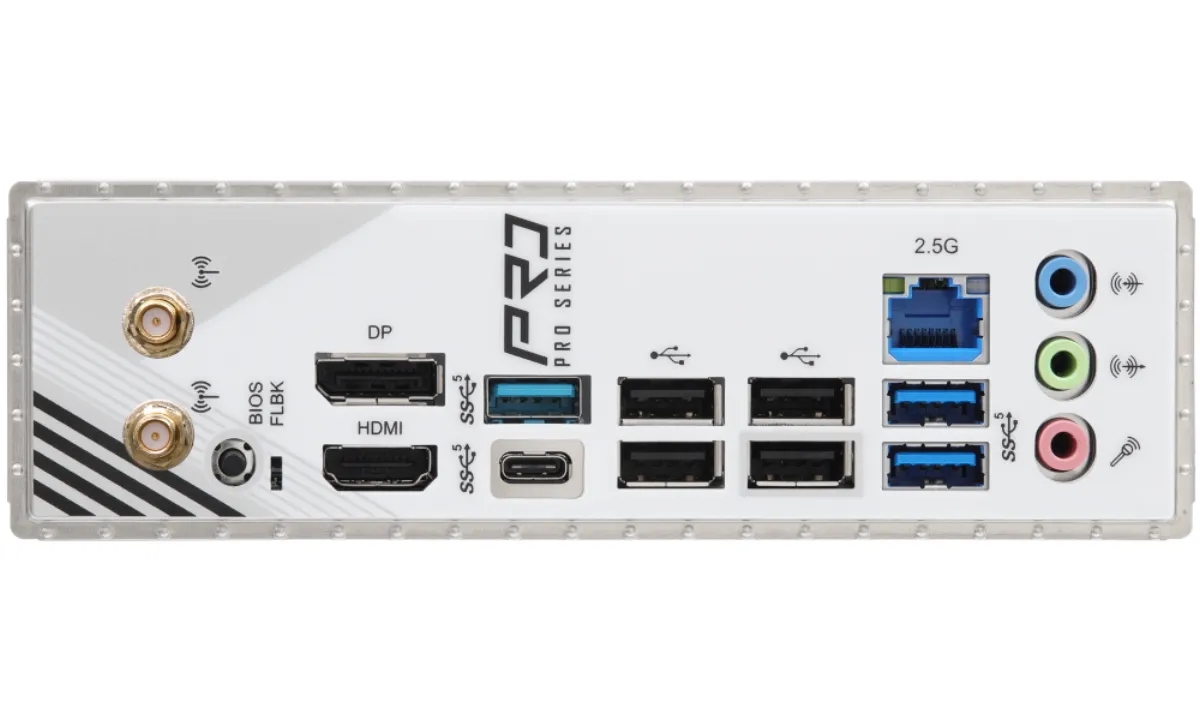

Back panel ports

• 2× Wi-Fi antenna connector
• 1× HDMI
• 1× DisplayPort
• 1× USB-C 3.2 Gen1 (USB 3.0)
• 3× USB 3.2 Gen1 (USB 3.0)
• 4× USB 2.0
• 1× RJ-45
• 1× BIOS Flashback button
• 3× audio jack

Dimensions

• 24.4 x 24.4 cm
• Micro ATX format
