XtendLan FO patch LC-SC 3m 9 125 duplex G.652d LS0H armored cable round 3mm
XTENDLAN Consumer | FOP-LCSC-D-3-9-R | 8592457172116
Only 2 left!
Price of goods is 9,00 €.
Price without tax is 7,44 €.
Actual in cart 0 pcs.

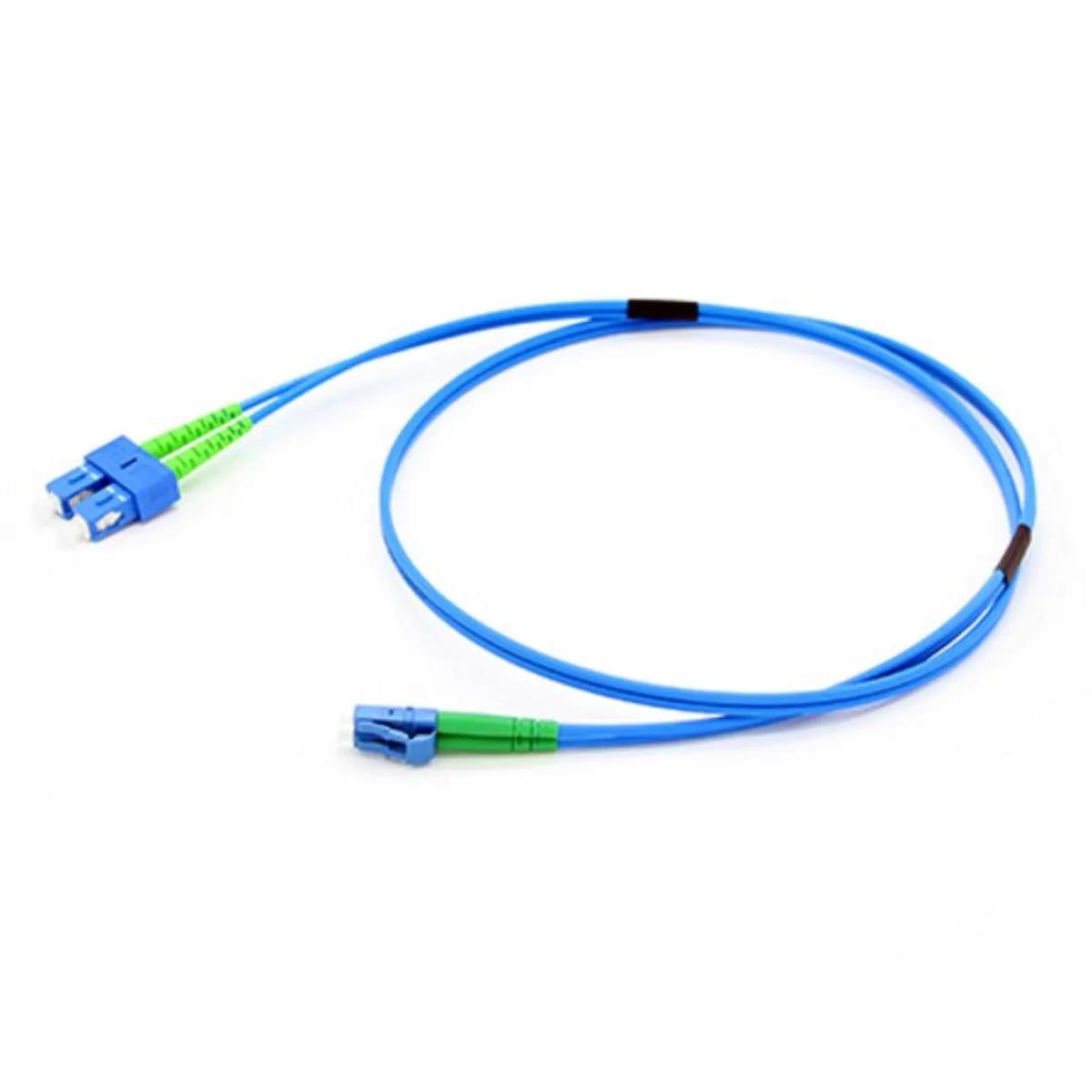

XtendLan FOP-LCSC-D-3-9-R
Armored optical patchcord used to connect a passive optical element with an active optical element. It is completely resistant to breakage by normal handling. It has the same bending radius as a regular cable.
Thread type
- 9/125 µm
- singlemode (OS1
- G.652d)
Cable type
- armored
- diameter 3 mm
- fibers protected by stainless steel reinforcement
- surface insulation type LS0H
- resistance to breaking the cable up to a pressure of 3000N/100mm (short-term 5000N/100mm)
Connectors: LC / SC
Insertion Loss (I/L)
- typically 0.15 dB
- max. 0.3 dB
Reflection attenuation (R/L): 50 dB
Grinding of connectors: UPC / UPC
Length: 3 m
Properties
| Name | Value |
|---|---|
| Type of optical fiber | singlemode |
| Connectors | LC/SC |
| Armored cable | Yes |
| Grinding | UPC/UPC |
| Design | duplex |
| Optical fiber specification | 9/125um G652D |
| The cable length [m] | 3 |
| Cable length [cm] | 3 |
