Ubiquiti UniFi nanoHD - AP 2.4GHz (300Mbps) + 5GHz (1733Mbps) 1x Gbit RJ45 internal PoE 802.3af

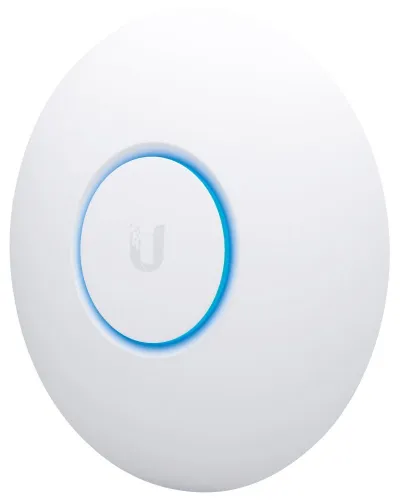

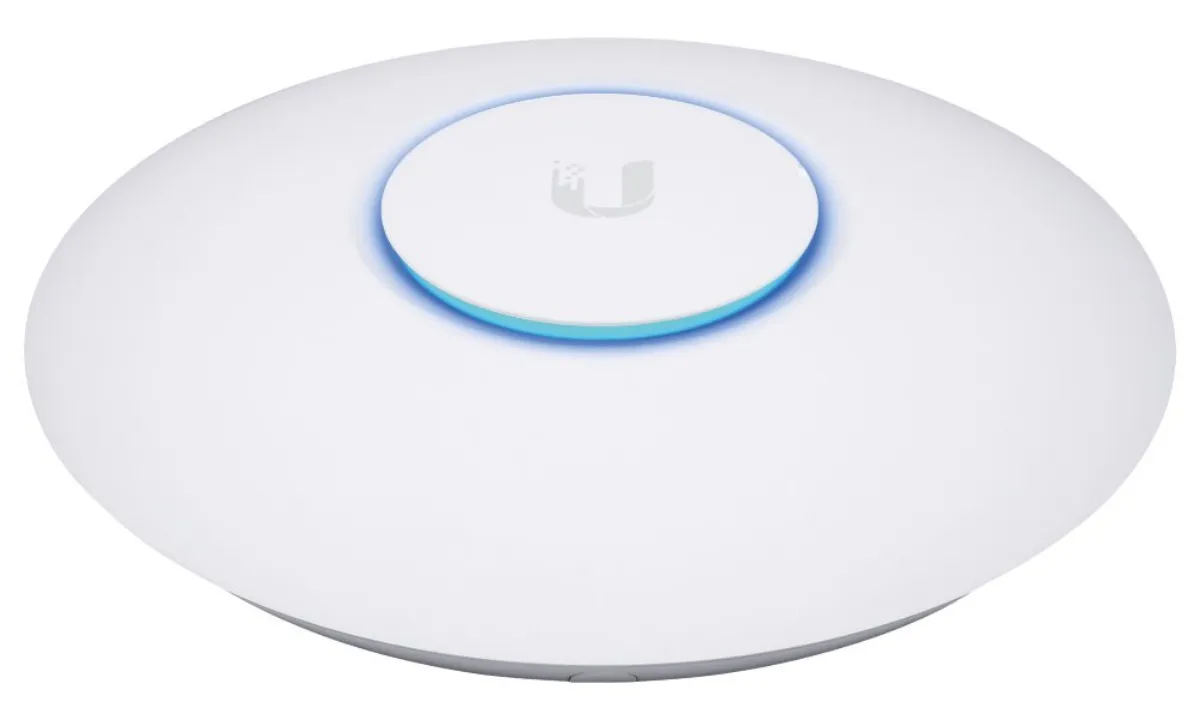

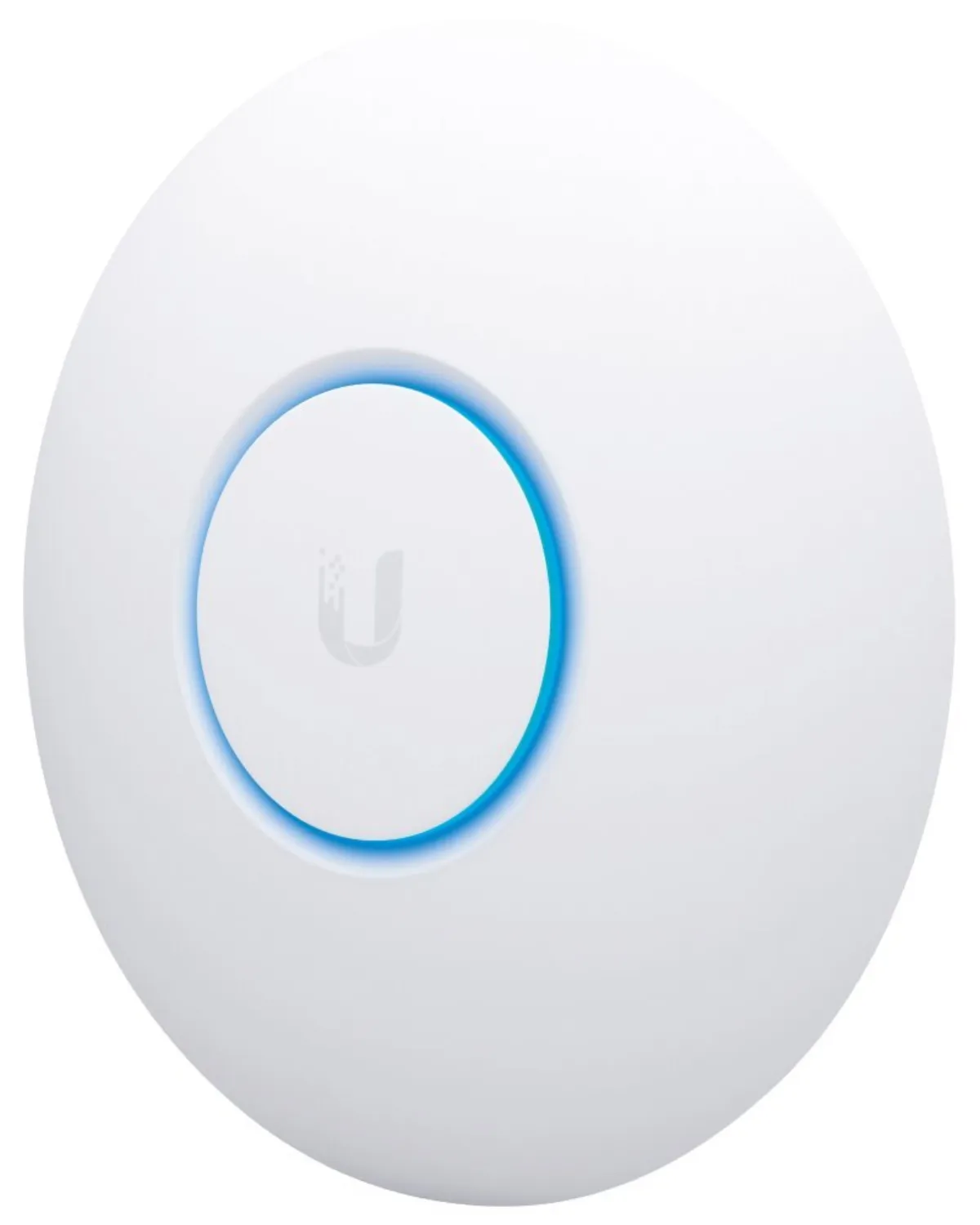

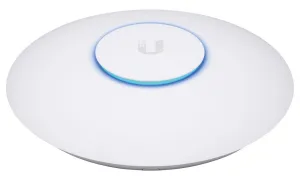

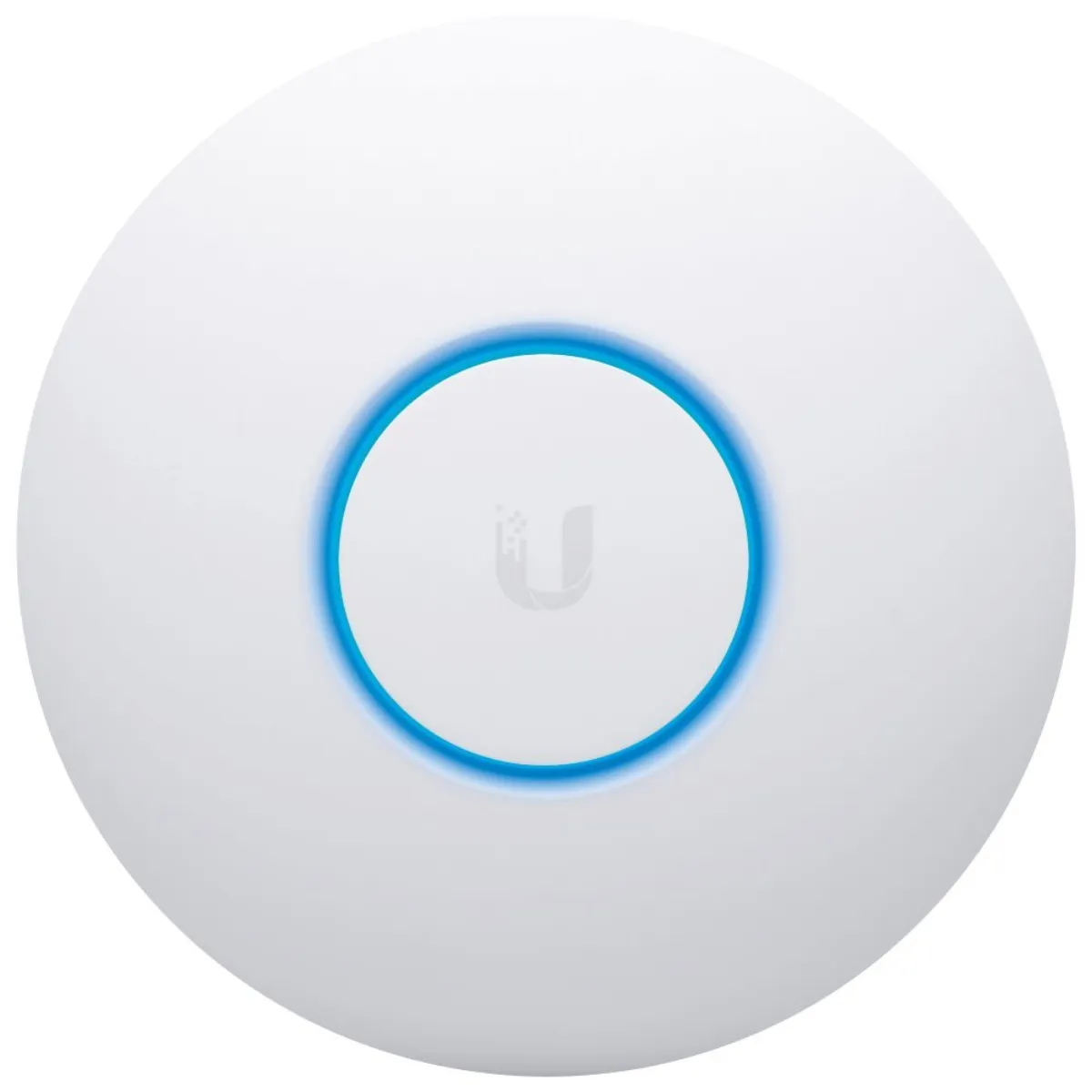

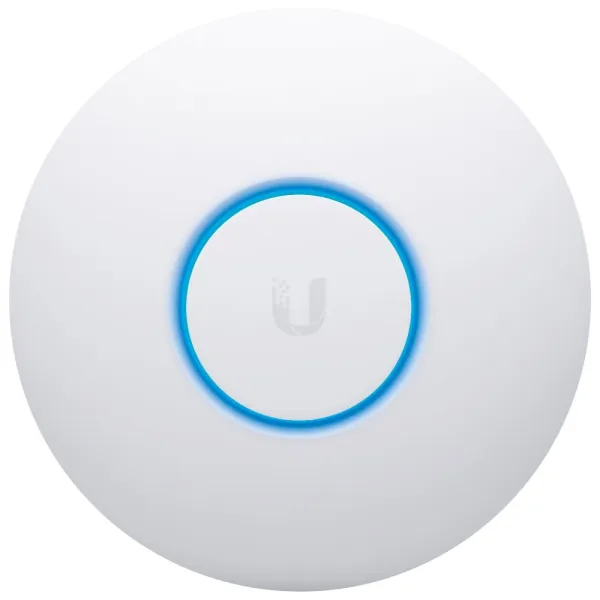

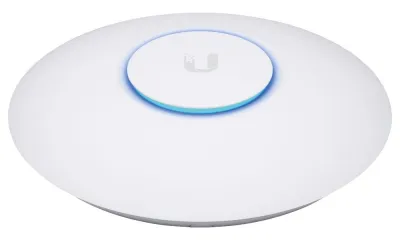

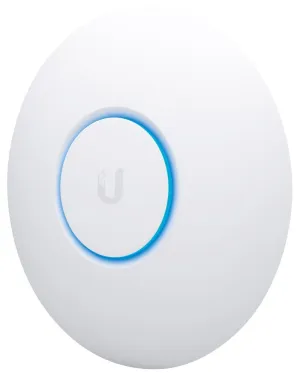

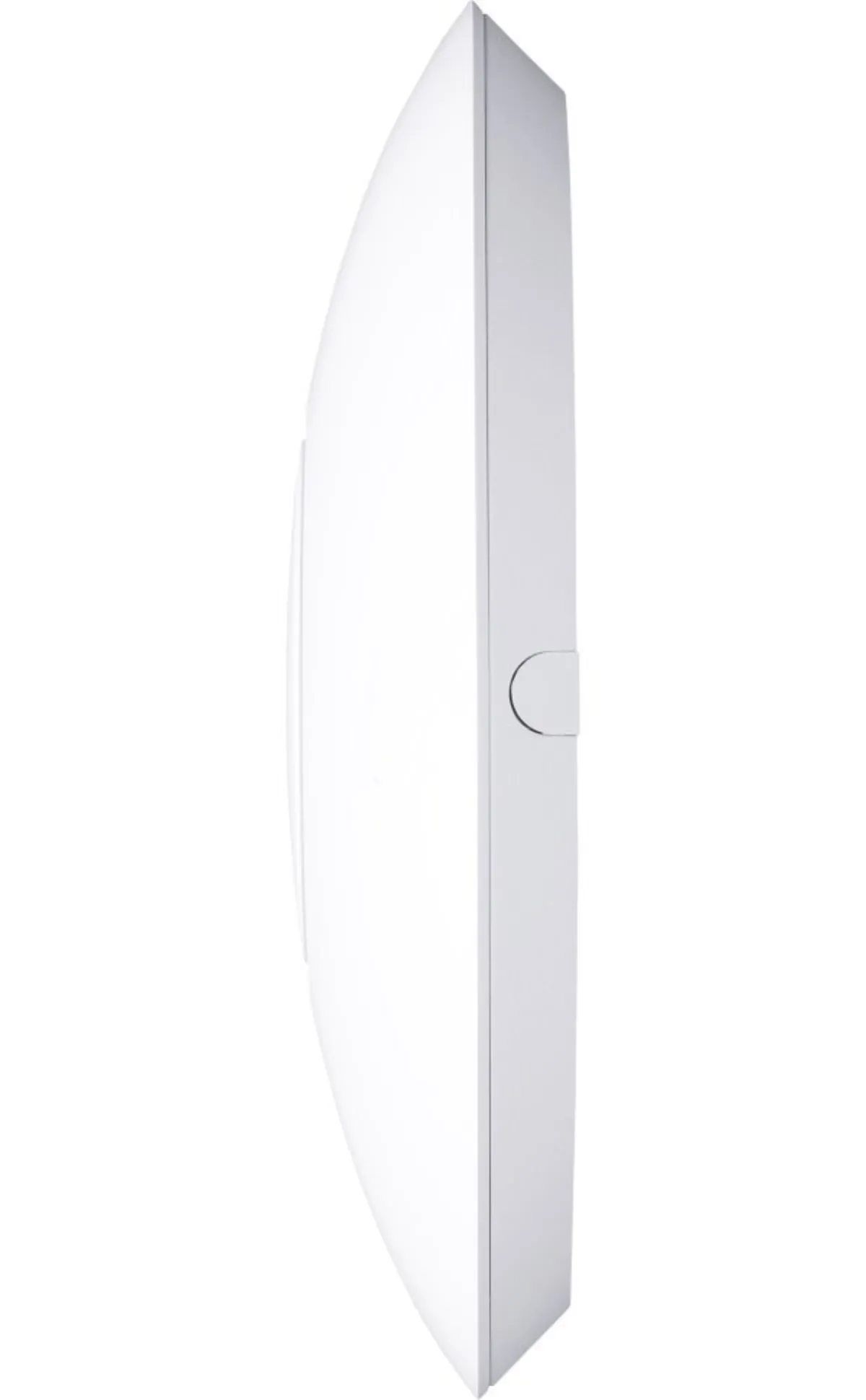

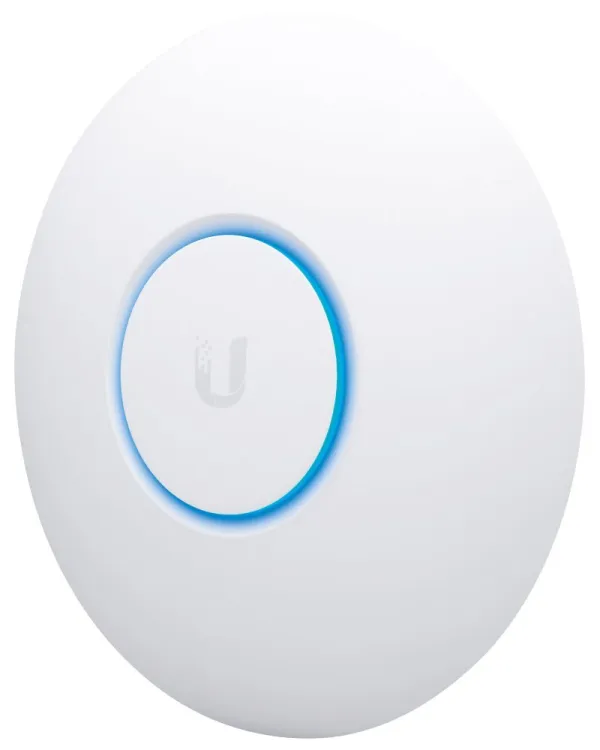

Ubiquiti UniFi AP nanoHD

The UniFi AP nanoHD is an indoor 2.4/5 GHz Wi-Fi AP that supports 802.11ac Wave2 MU-MIMO 4x4. Thanks to this, it offers a revolutionary transmission speed of up to 1733 Mbps in the 5 GHz band and 300 Mbps in the 2.4 GHz band. UniFi AP nanoHD is built on a Broadcom chipset and supports 802.11a/b/g/n/ac/ac-wave2\ standards. It has integrated MU-MIMO 4x4 3 dBi antennas (5 GHz) and MIMO 2x2 2.8 dBi antennas (2.4 GHz). MU-MIMO 4x4 technology enables communication with multiple clients at the same time, this increases the total throughput of the access point several times and the transfer speed on the side of client devices.

Serves four simultaneous streams in a single time slot

• four 1x1 SISO client devices
• two 2x2 MIMO client devices
• one client device 2x2 MIMO and two 1x1 SISO
• one client device 3x3 MIMO and one 1x1 SISO

UniFi APs are part of the UniFi SDN (Software-Defined Networking) platform, which enables monitoring and control of end devices in the network, all clearly in the UniFi Network Application graphical interface. The UniFi Network Application provides network monitoring, UniFi device management, maps, statistics display and account settings.

Advantages of the UniFi system

• Multiple SSIDs with different type of security
• Unlimited possibility to expand the system with other UniFi devices
• No license fees
• Speed limiting according to SSID
• Advanced AirTime Fairness and Band Steering functions
• RF scan of the surrounding environment
• Guest account
• Billing system - use of an external server, definition of vouchers, direct payments via PayPal
• Load Balance - switching clients to less busy UniFi
• Support for the 802.3af power supply standard
• VLAN support

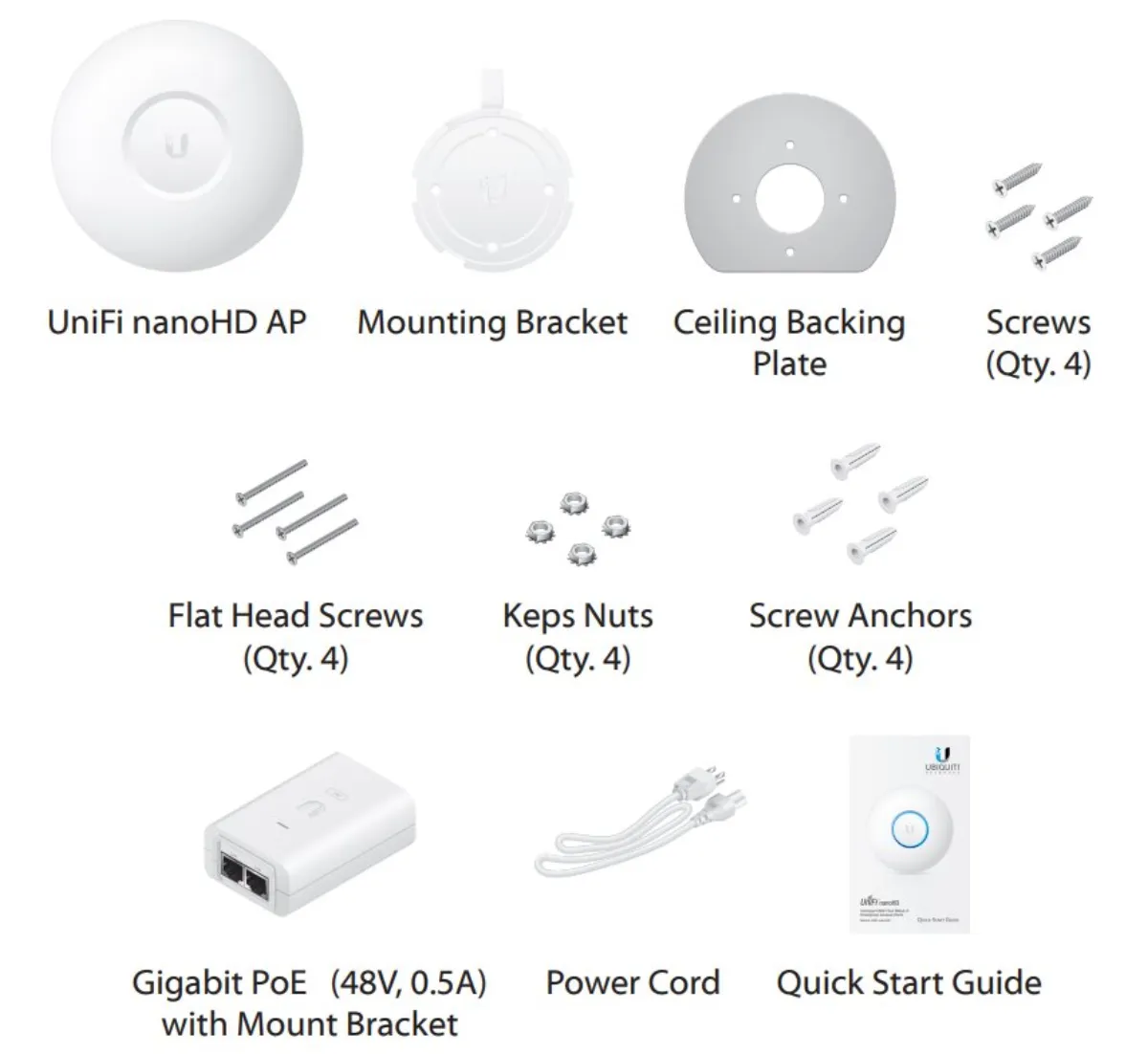

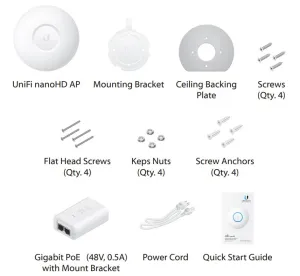

Thanks to its unobtrusive design and simple assembly, it is suitable for any environment. The package contains all the necessary material for mounting the unit on the wall or ceiling. UniFi nanoHD is compatible with the holder for UniFi AC Lite.

UniFi AP nanoHD supports active PoE power supply according to the 802.3af standard. The package includes Gbit PoE injector 48 V/0.5 A.

Wi-Fi standard: 802.11 a/b/g/n/ac/ac-wave2

Data transfer speed

• 2.4 GHz - 300 Mbit/s
• 5 GHz - 1733 Mbit/s

Frequency: 2.4 GHz / 5 GHz

Antenna: integrated antennas 2 x 2.8 dBi + 2 x 3 dBi

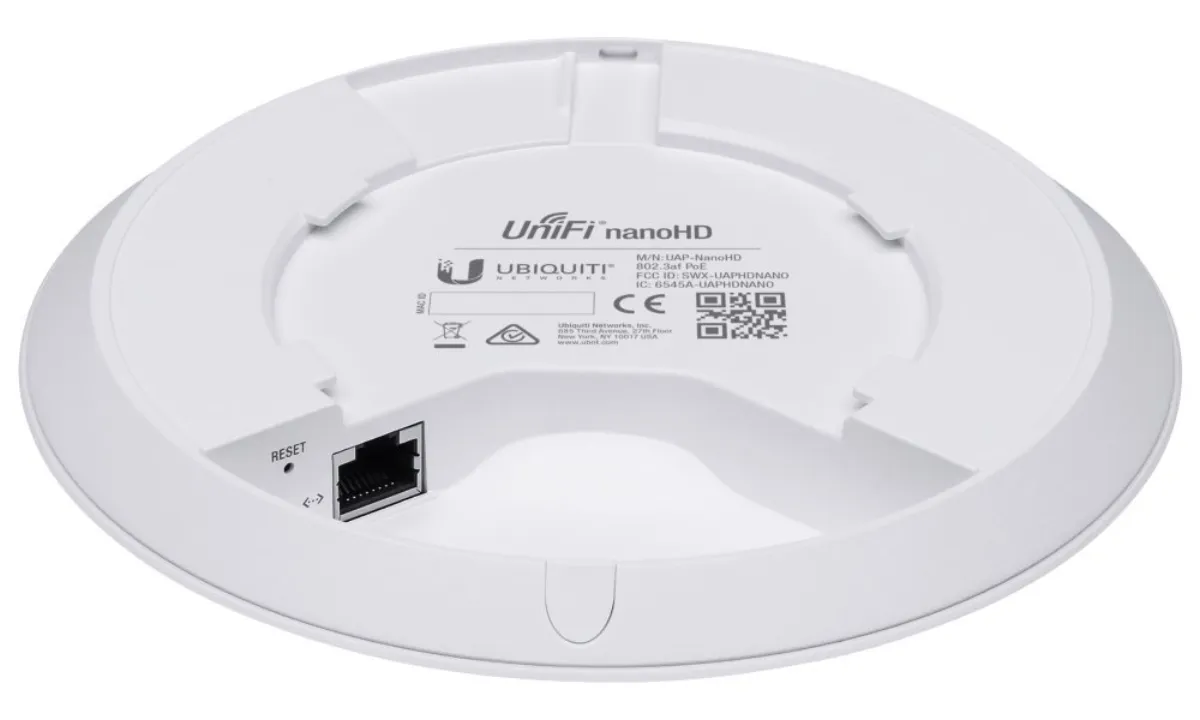

Ports: 1 x RJ-45 10/100/1000

Security

• WEP
• WPA-PSK
• WPA-Enterprise (WPA/WPA2
• TKIP/AES)
• 802.11w/PMF

PoE support

• yes
• 802.3af

Dimensions: 160 x 160 x 32.65 mm
