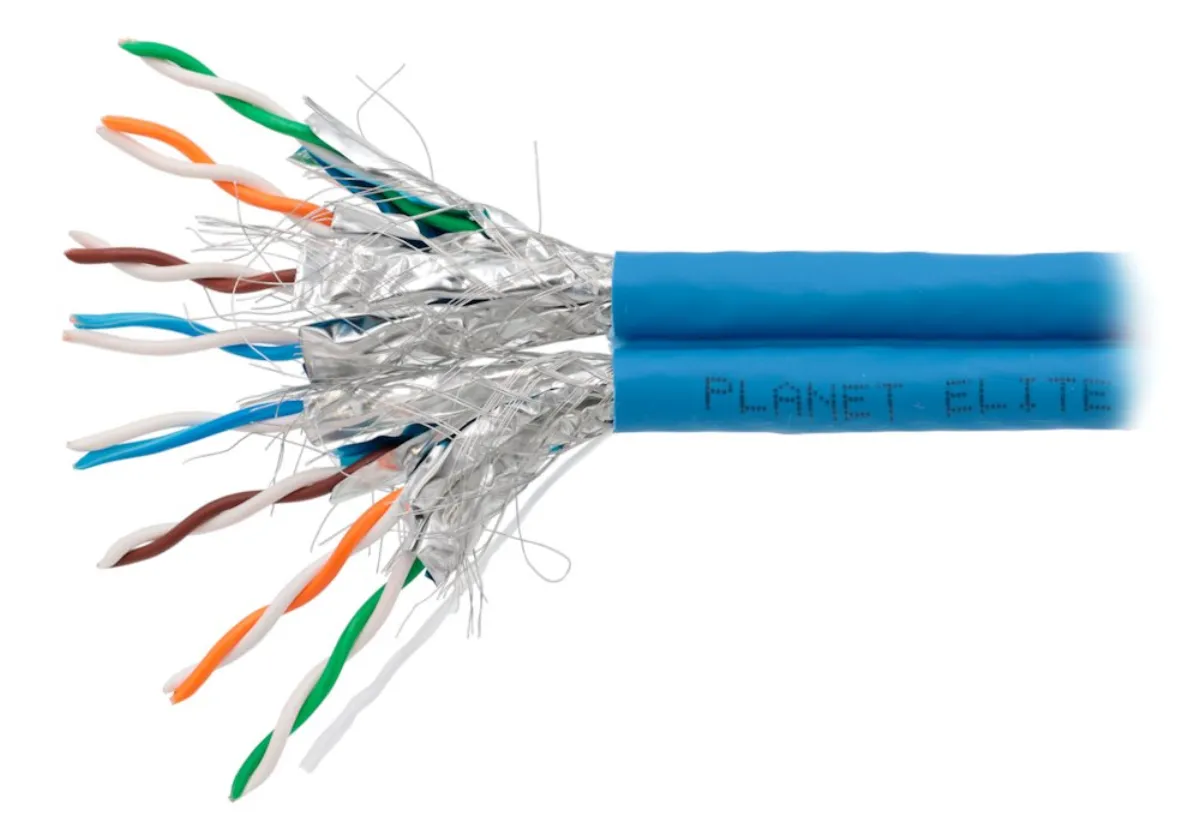

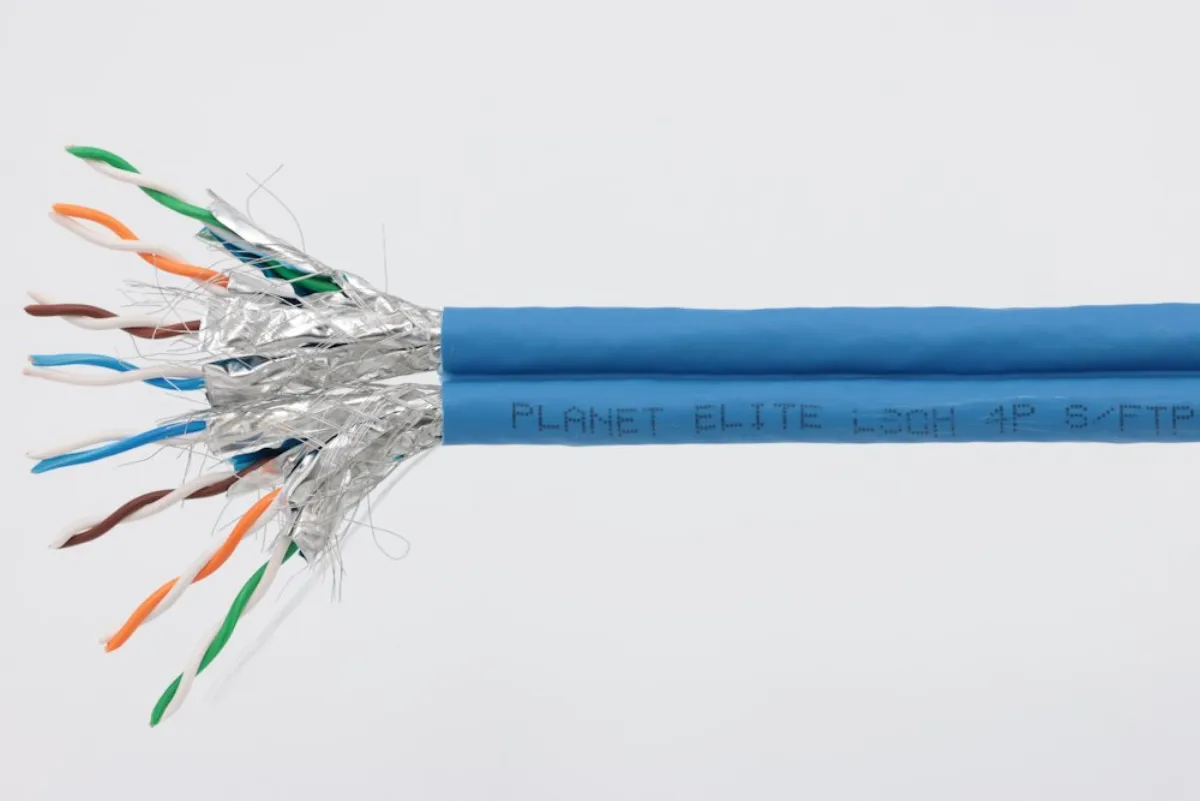

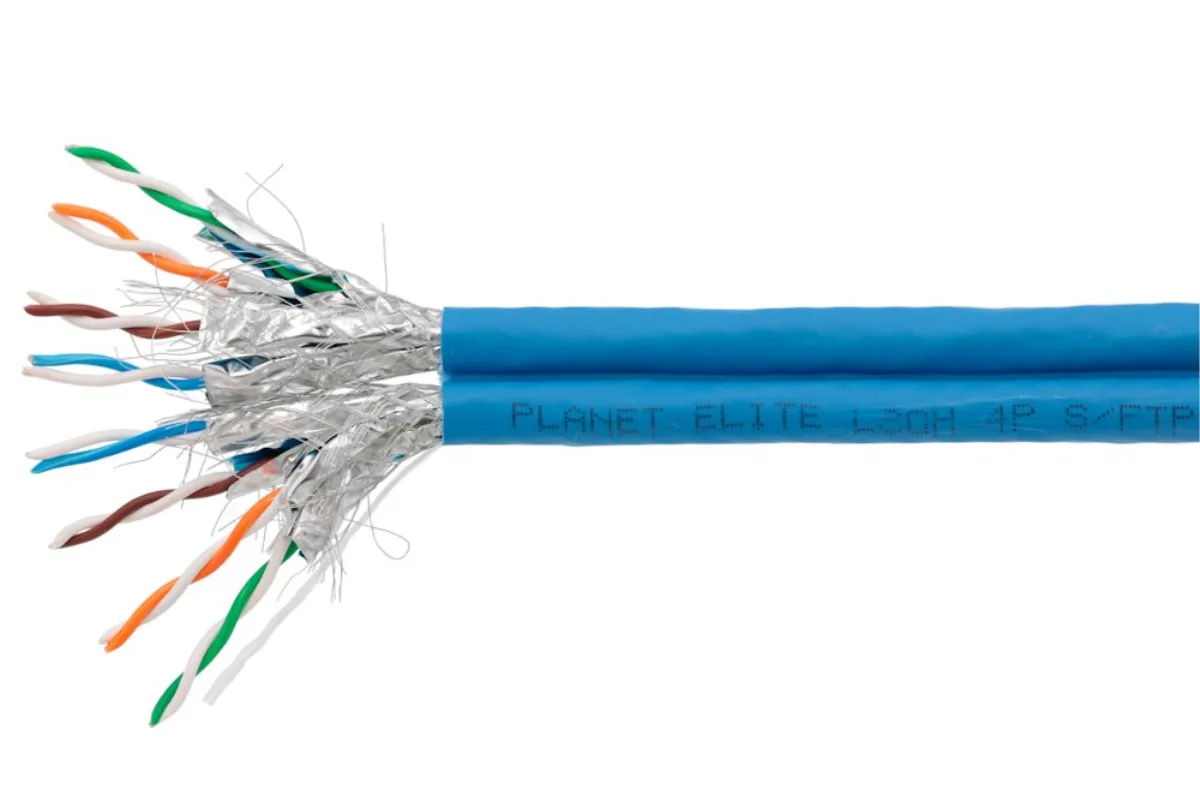

PLANET cable SFTP wire Cat 6A 4p 500MHz LS0H TWIN shielded each pair Planet Elite blue Dca package 2*100m
PLANET | KAB-SFTP6A--LSOH-BLUE-2*100
On stock 8 pcs.
Price of goods is 105.17 €.
Price without tax is 86.92 €.
Weight of goods is 1 Kg.
Actual in cart 0 pcs.
- PLANET SFTP LS0H Cat6a 2 *100 m TWIN-twin
Cable category Cat6A, 500 MHz, 4 pairs, wire, SFTP LS0H, each pair is shielded separately with foil+braided throughout, package 100m coil 2*100m, blue color, price per package. Cable for implementing 1 Gigabit 1000Base-T and 10Gbit Ethernet 10GBase-T networks.
Mechanical parameters
Number of pairs: 4
Conductor
- AWG 23
- Cu
- 0.57 mm
Conductor insulation: HDPE
Shielding: Each pair in separate shielding (Al foil)
Outer sheath insulation: LS0H
Cable diameter: 7.2 mm
Weight
- 44 g/m
- packaging - 6 kg
Packaging: 100 m TWIN
Printing
- per meter
- industry standards
Color marking
- on all conductors
- outer insulation blue
Electrical parameters
Impedance: 100 ±15 Ohms
Capacitance max.: 4.6 nF/100m
DC resistance max.: 15 Ohm/100m
DC difference in pair resistances max: 3%
Unsymmetrical capacitance (pairs to ground) max: 330 pF/100m
Delay between pairs max: 30 ns/100m
Signal propagation speed: 0.72 c
Standards met
- Acidity of gases produced during combustion according to ČSN EN 50267-2-2, ČSN EN 50267-2-3
- Smoke density according to ČSN EN 61034-2
- Non-flammability/flame propagation of the cable according to ČSN EN 60332-1-2
| Name | Value | |
|---|---|---|
| Shell material | LS0H | |
| Shielding | Yes | |
| Conductor construction | wire | |
| The cable length [m] | 100 | |
| Outdoor use | No | |
| Color | blue | |
