PLANET cable SFTP wire Cat 6A 4p 500MHz LS0H shielded each pair Planet Elite blue Dca package 500m
PLANET | KAB-SFTP6A--LSOH-BLUE
On stock 72 pcs.
Price of goods is 270.89 €.
Price without tax is 223.88 €.
Weight of goods is 1 Kg.
Actual in cart 0 pcs.
PLANET SFTP LS0H Cat6a 500 m

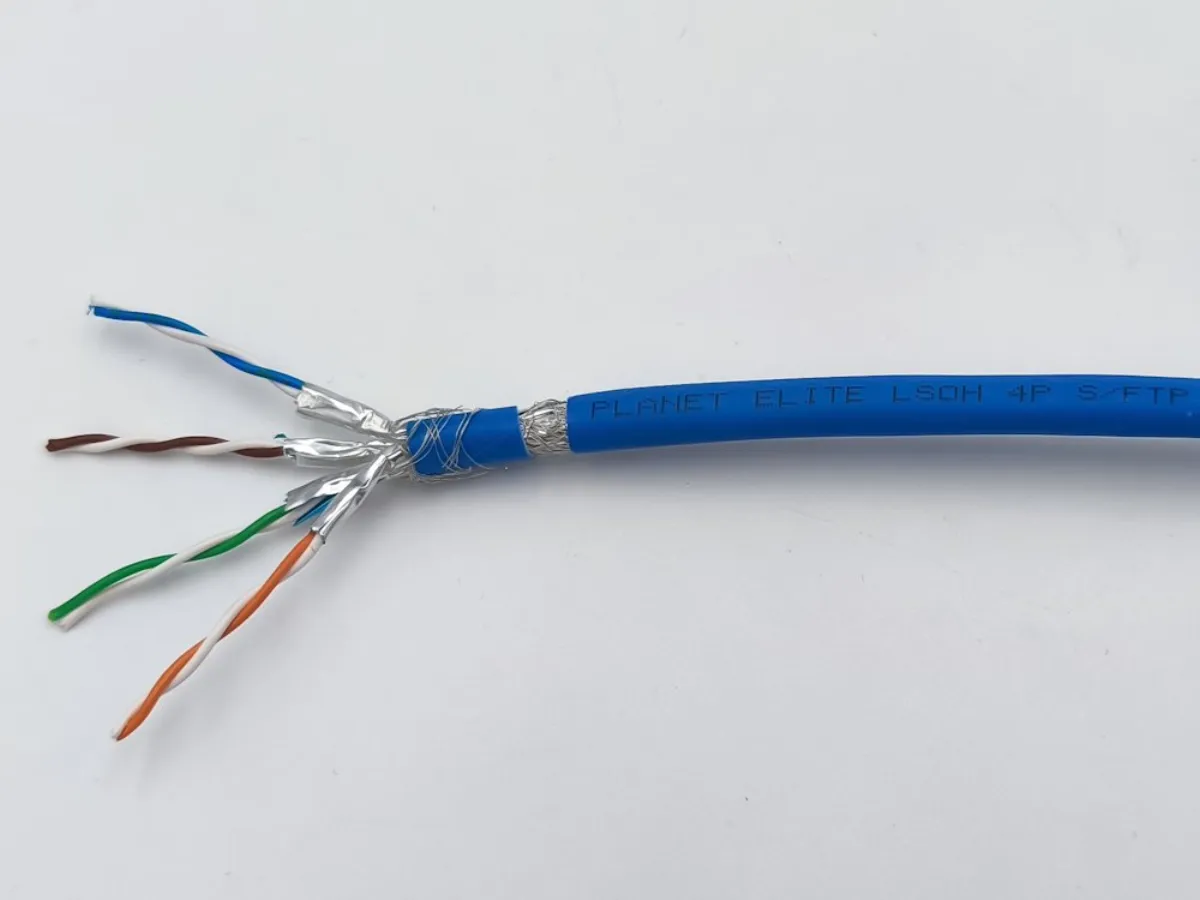

Cable category Cat6A, 500 MHz, 4 pairs, wire, SFTP, LS0H, each pair is shielded separately with foil + overall braid, 500m packaging on a wooden drum, blue color, price per package. Cable for implementing Gigabit 1000 Base-T, 2.5G or 5G Base-T and 10Gbit Ethernet 10G Base-T networks.
Mechanical parameters
Number of pairs: 4
Conductor
- AWG 23
- Cu
- 0.57 mm
Conductor insulation: HDPE
Shielding: each pair in separate shielding (Al foil)
Outer sheath insulation: LS0H
Cable diameter: 7.2 mm
Weight
- 44 g/m
- packaging including drum 15 kg
Packaging: wooden drum of 500 m
Printing
- meter
- industry standards
Color marking
- on all conductors
- outer insulation blue
Electrical parameters
Impedance: 100 ±15 Ω
Capacitance max.: 4.6 nF per 100 m
DC resistance max.: 15 Ω per 100 m
DC difference in pair resistances max.: 3 %
Unsymmetrical capacitance (pairs to ground) max.: 330 pF per 100 m
Delay between pairs max.: 30 ns per 100 m
Signal propagation speed: 0.72 c
Standards met
- Acidity of gases produced during combustion according to ČSN EN 50267-2-2, ČSN EN 50267-2-3
- Smoke density according to ČSN EN 61034-2
- Non-flammability/flame propagation of the cable according to ČSN EN 60332-1-2
| Name | Value | |
|---|---|---|
| Shell material | LS0H | |
| Shielding | Yes | |
| Conductor construction | wire | |
| The cable length [m] | 500 | |
| Outdoor use | No | |
| Color | blue | |
