NZXT case H1 mini ITX 140mm AIO cooler 650W SFX-L 80Plus Gold modular power supply riser card USB-C black

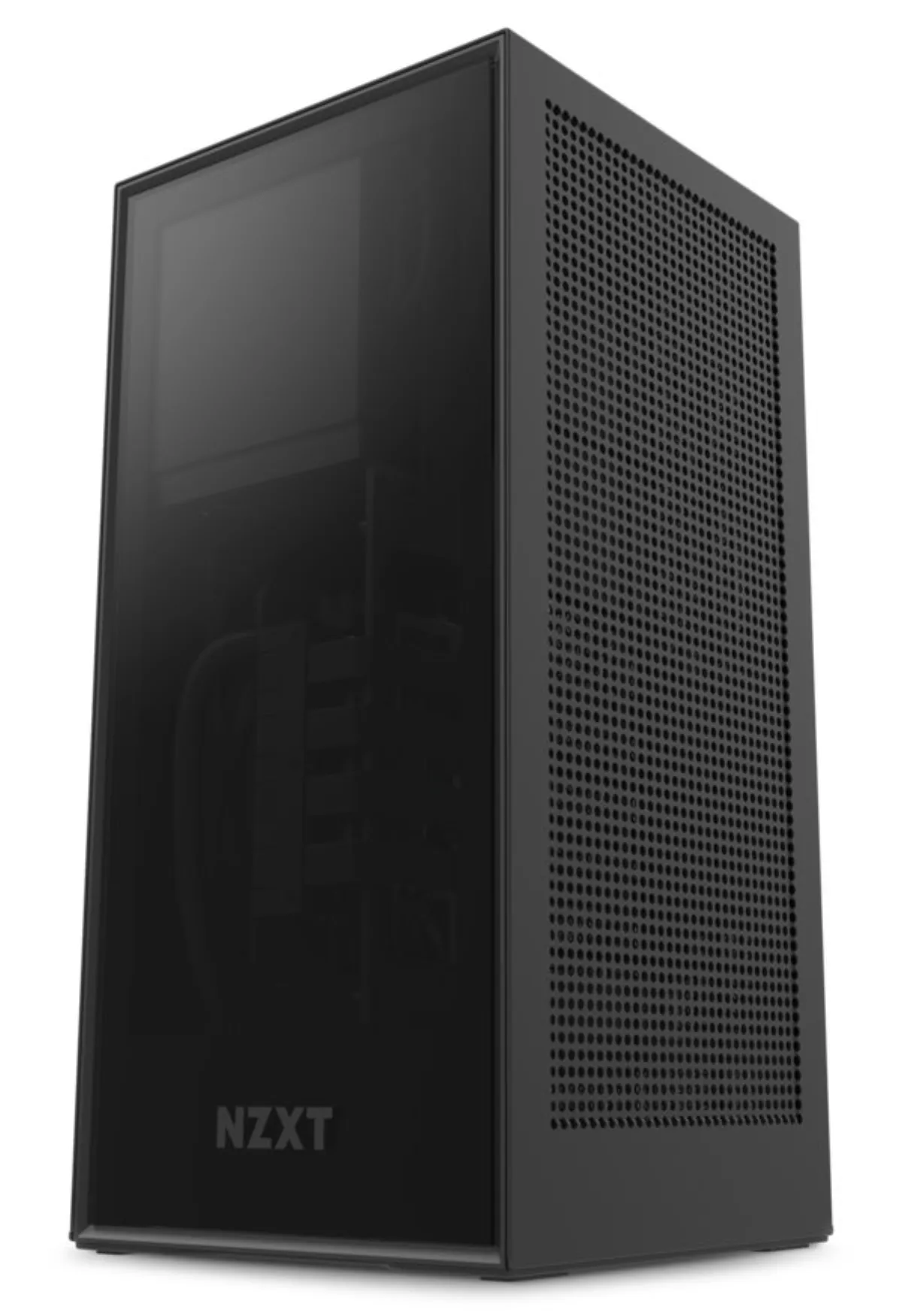

NZXT H1

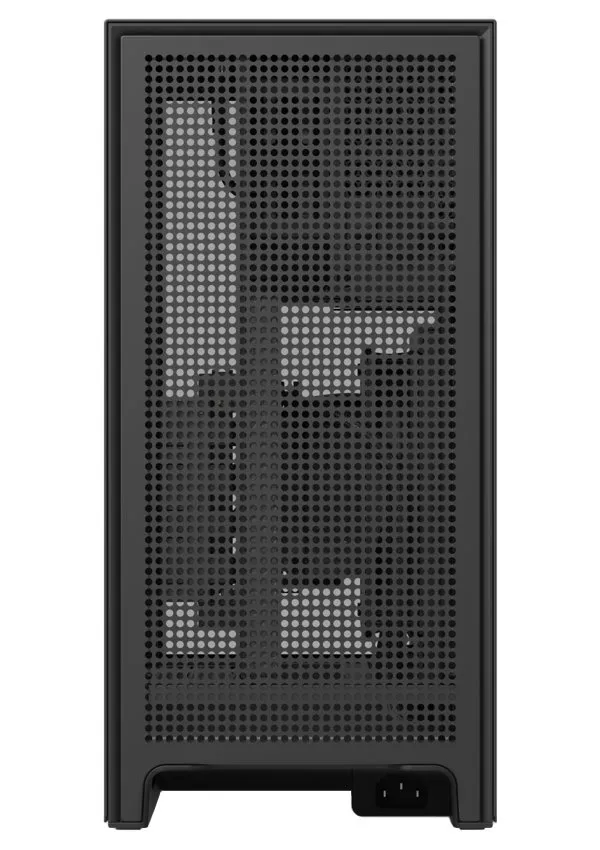

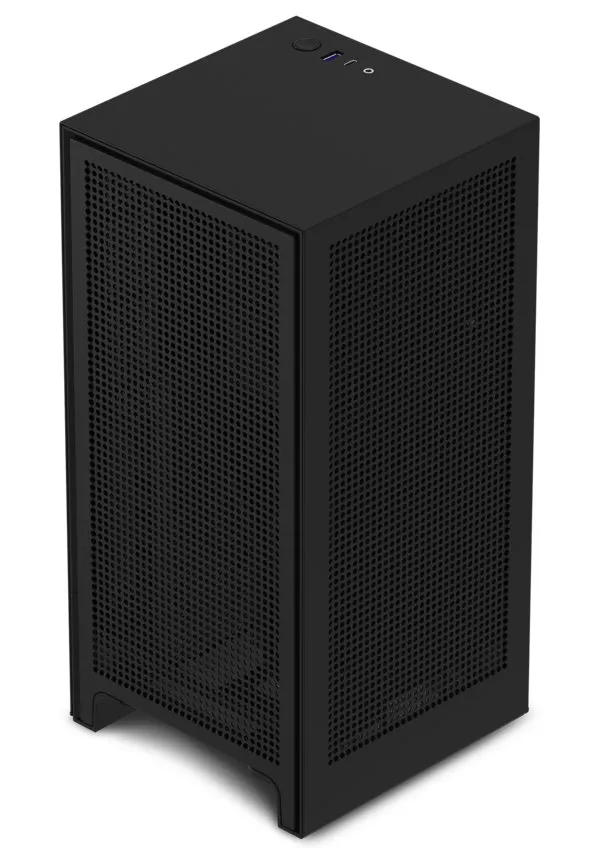

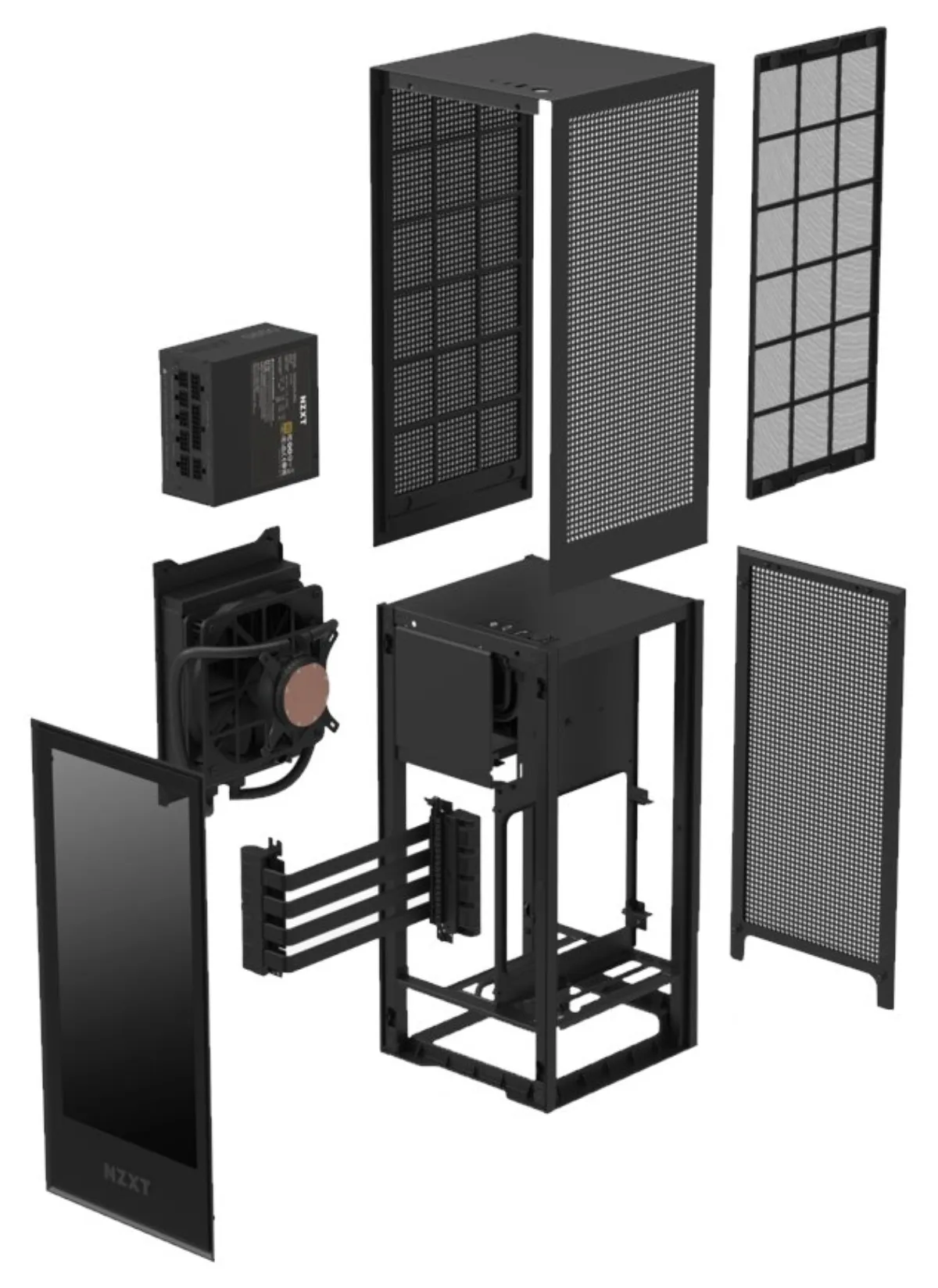

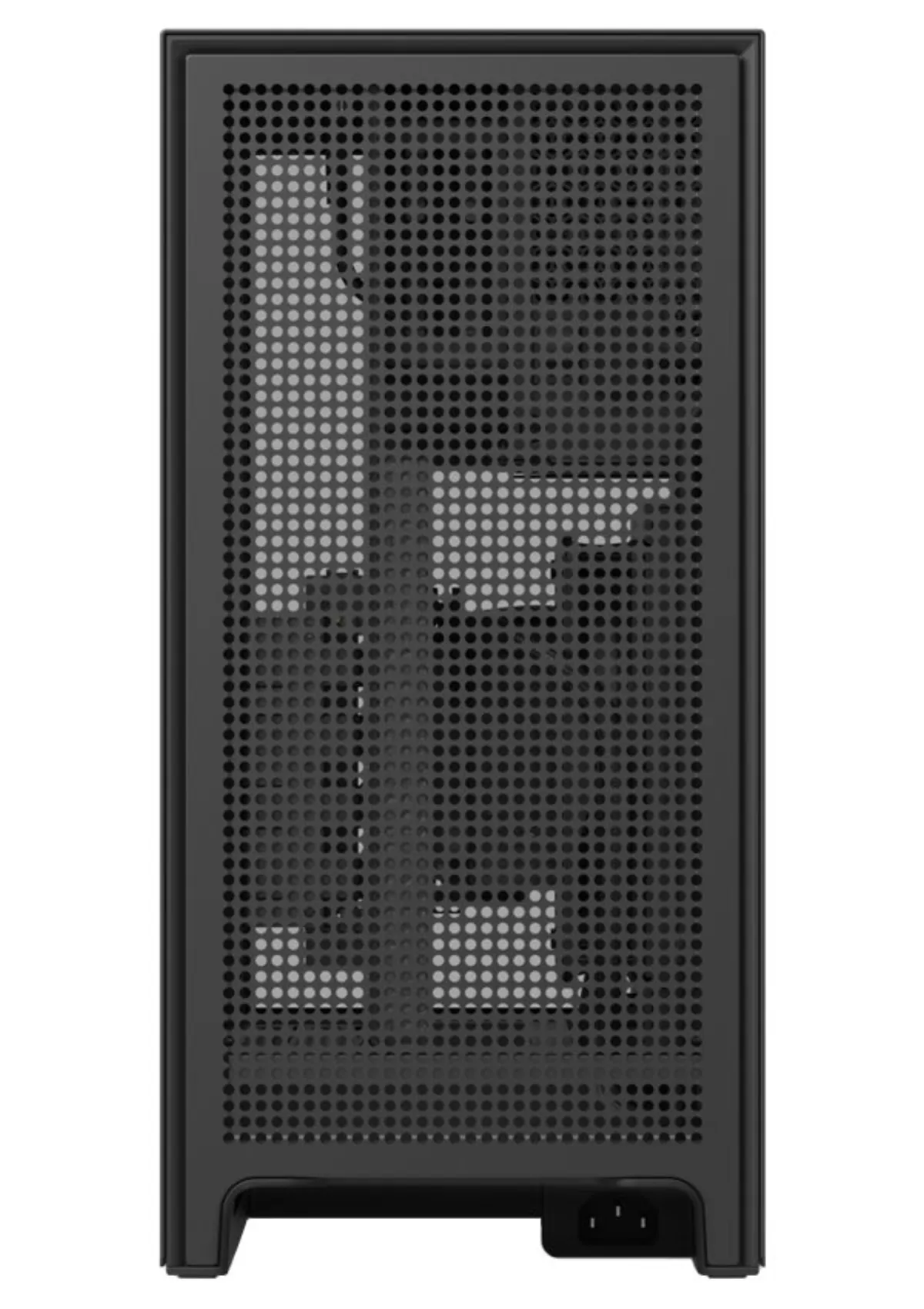

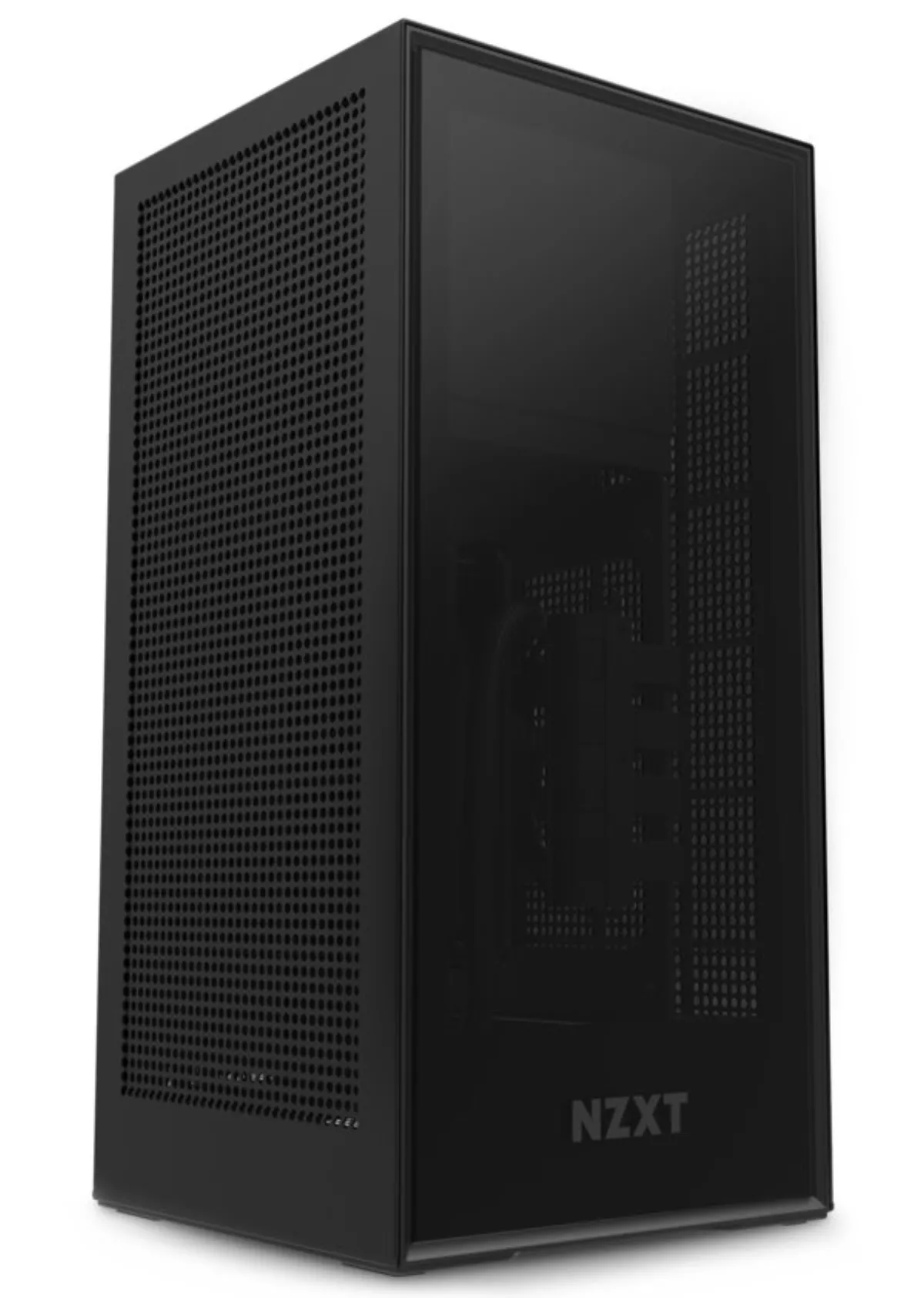

The stylish Mini Tower format case with a transparent front panel offers two 2.5" slots for SSD drives. On the top side there is one USB 3.0 port, one USB Type C port and a combo port for headphones and a microphone. There is enough space in the case for a graphics card up to 305 mm long. Perforated sides and back of the case ensure sufficient air flow and thus effective cooling. The case comes with a power supply of SFX-L format with 650 W. The power supply is fully modular and meets 80PLUS Gold certification. It is equipped with a quiet yet powerful 120 mm large fan. The package also includes a CPU water cooler with 140mm large fan and 315mm long PCIe 3.0 x16 extension cable for vertical graphics card mounting.

Cabinet

Case design: Mini Tower

Internal Position: 2 x 2.5"

Motherboard Compatibility: Mini ITX

Top Panel Connectors

• 1 x USB 3.0
• 1 x USB Type-C
• 1 x Headphone/Microphone Combo

Dimensions: 387.7 x 187.6 x 187 mm

Weight: 6.53 kg

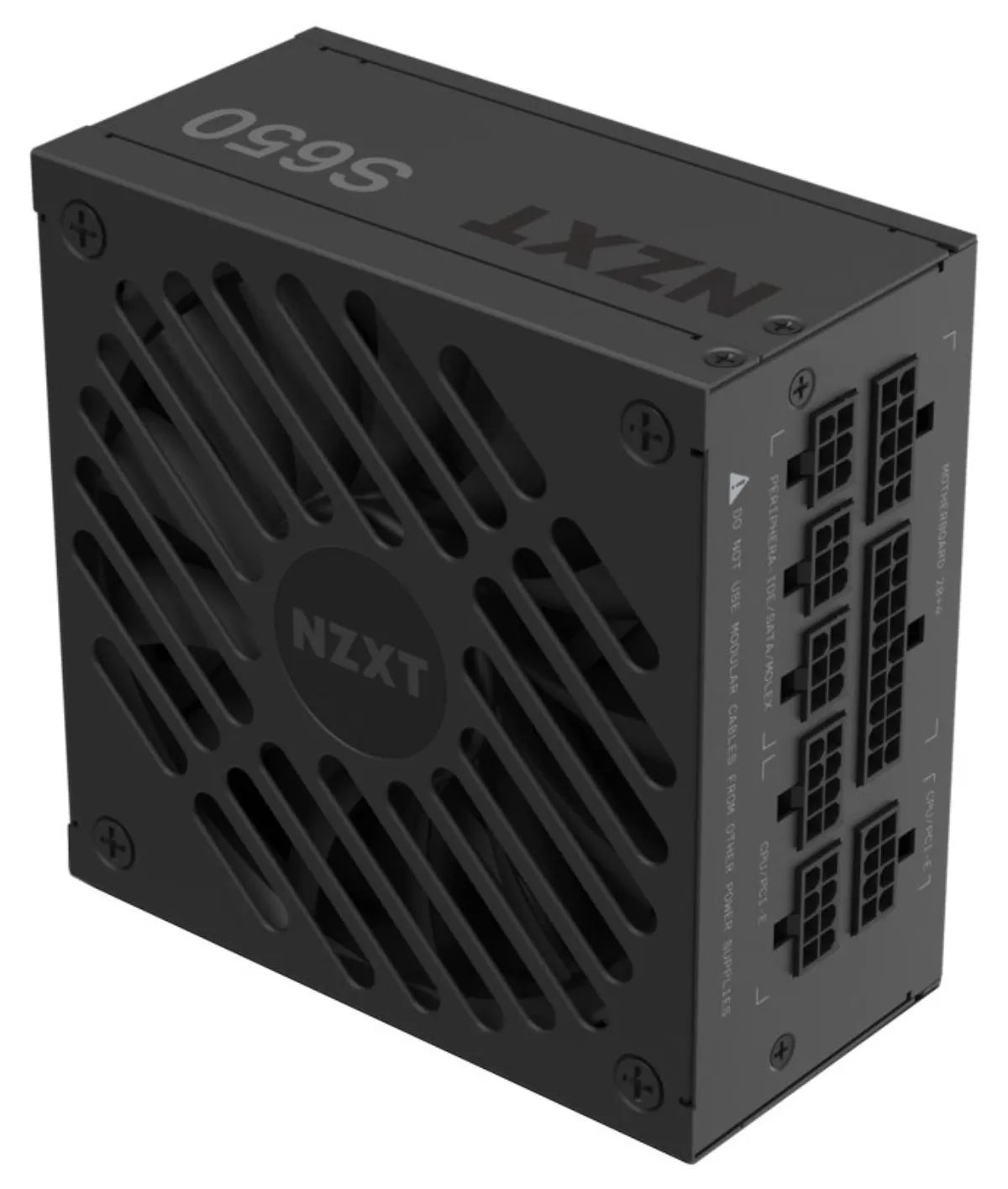

Source

Power: 650 W

Fan Size: 120mm

Certification: 80PLUS Gold

Power connectors

• 1 x ATX 20+4pin
• 1 x EPS 4+4pin
• 4 x PCIe 6+2pin
• 2 x SATA

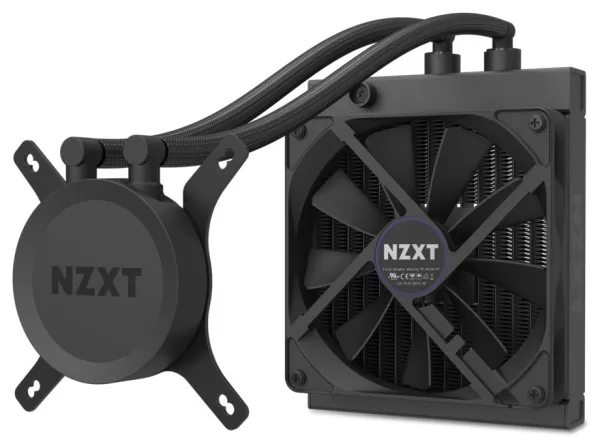

Cooler

Type of cooler: water

Determining the heatsink: for CPU

Supported sockets

• Intel LGA 1150, 1151, 1155, 1156
• AMD AM4, AM3(+), AM2, FM2(+), FM1 Fan Size: 140mm

Fan speed: 500 - 1800 rpm

Noise: 21 - 38 dBA

Dimensions: 173 x 138.5 x 22 mm

Dimensions of the cooling block: 65 x 65 x 27 mm
