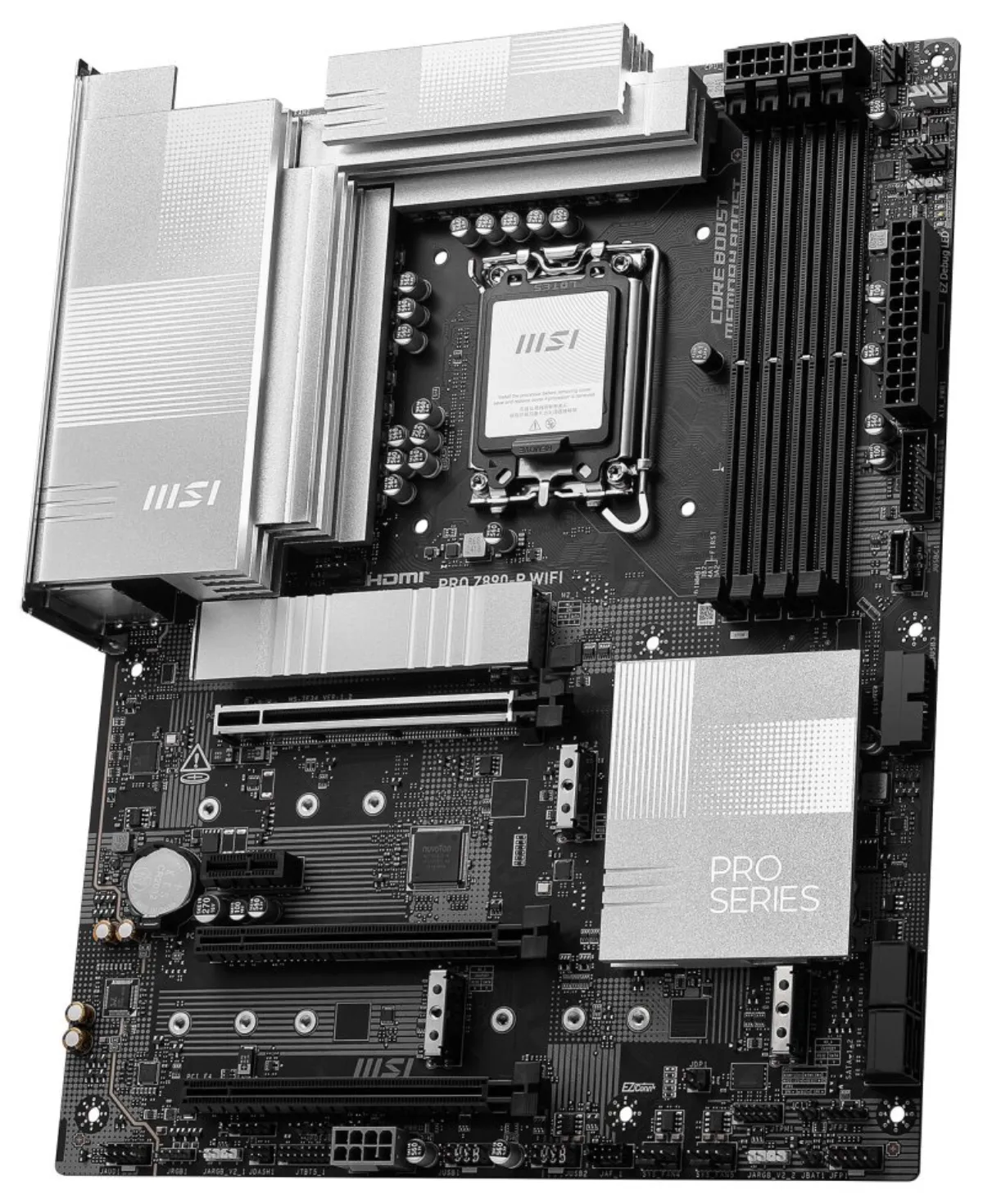

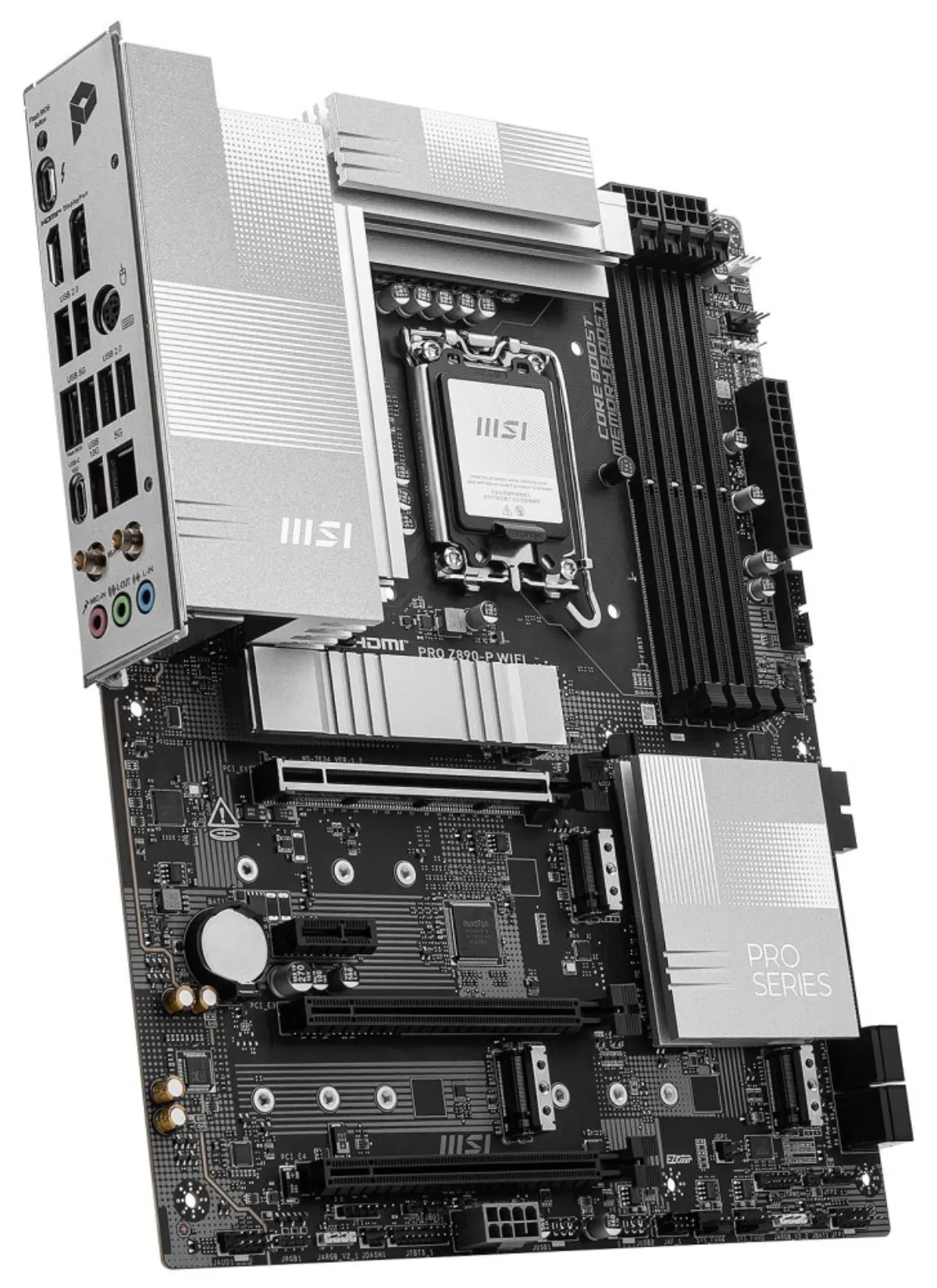

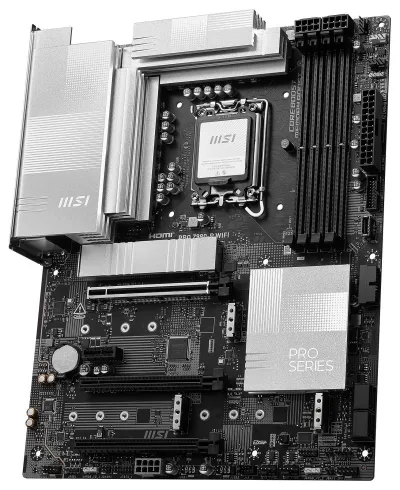

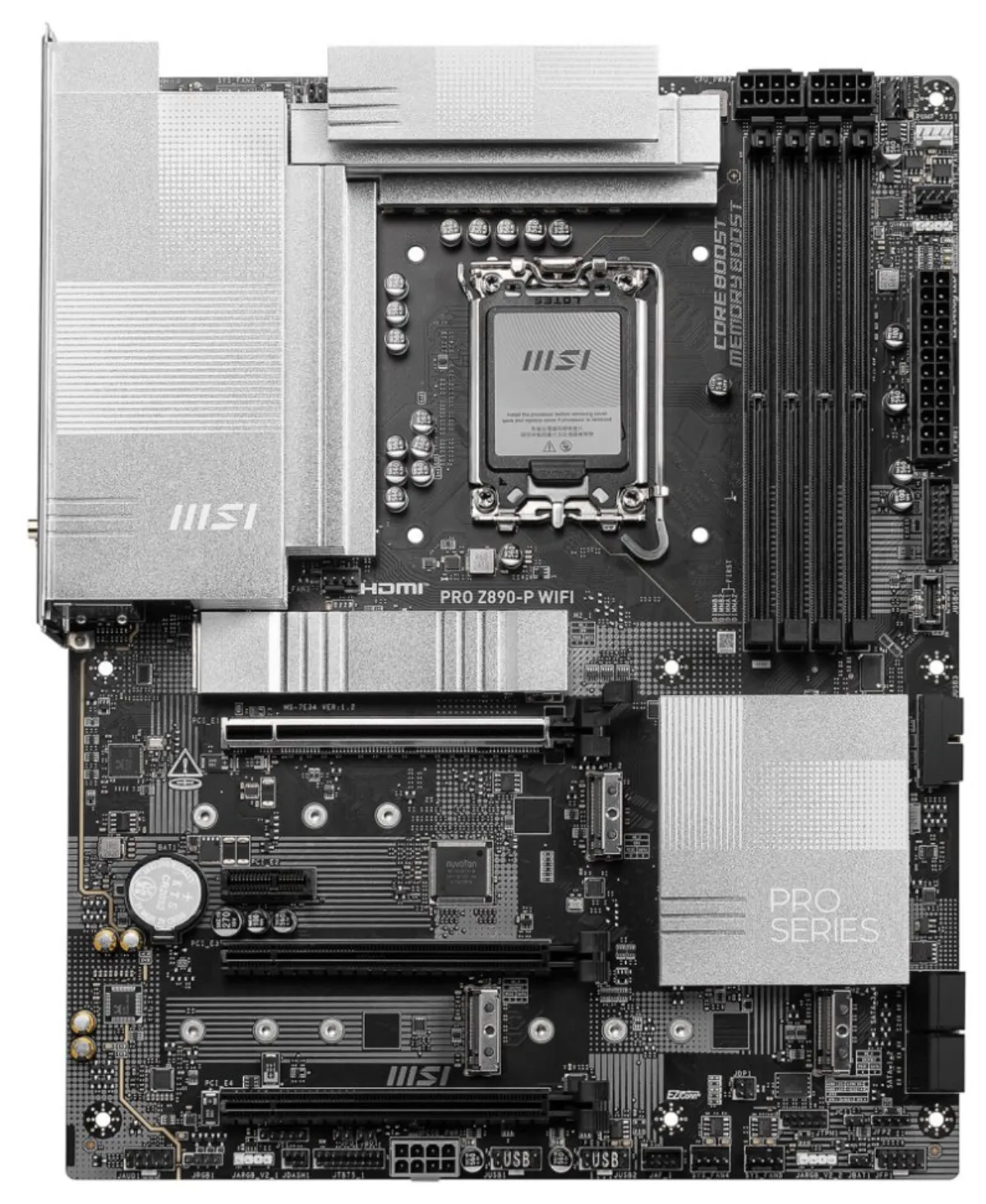

MSI PRO Z890-P WIFI

The board is equipped with graphics outputs for use with processors with an integrated graphics core. The motherboard does not contain a graphics card and without the use of a corresponding processor, these outputs will be non-functional.

CPU

• Support for Intel Core Ultra Series 2 processors
• Socket LGA1851

Chipset

• Intel Z890

Memory

• 4x DDR5 memory slot, support up to 256 GB
• Support DDR5 9200-6400 (OC) MT/s / 6400-4800 (JEDEC) MT/s
• Dual channel memory architecture
• Non-ECC support, no buffering
• Intel Extreme Memory Profile (XMP) 3.0 support
• CUDIMM support

Slots

• 1x PCIe 5.0 x16 slot
• 2x PCIe 4.0 x16 slot (supports x4 mode)
• 1x PCIe 4.0 x1 slot

Graphics

• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× DisplayPort, supporting a maximum resolution of 4K at 60 Hz
• 1× Thunderbolt 4 port, supporting a maximum resolution of 4K at 120 Hz or 8K at 60 Hz

Storage

• 1× M.2 slot, M Key, for 2280/2260 type units (PCIe 5.0 x4 mode)
• 1× M.2 slot, M Key, for units of type 22110/2280/2260 (PCIe 4.0 x4 mode)
• 4x SATA 6Gb/s port
• 1× M.2 slot, M Key, for units of type 2280/2260/2242 (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for 2280/2260/2242 type units (SATA and PCIe 4.0 x4 mode)
• RAID 0, RAID 1, RAID 5 and RAID 10 support for both SATA and M.2 NVMe drives

USB

• 1× Thunderbolt 4 on the back panel
• 8× USB 2.0 port (4 ports on the back panel, 4 ports available via internal USB connectors)
• 6× USB 3.2 Gen1 (USB 3.0) port (2 ports on the back panel, 4 ports available via internal USB connectors)
• 1× USB 3.2 Gen2 (USB 3.1) port on the back panel
• 1× USB-C 3.2 Gen2 (USB-C 3.1) port on the back panel
• 1× USB-C 3.2 Gen2×2 available via the internal USB connector

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek 8126 5Gbps LAN controller

WLAN/Bluetooth

• Intel Wi-Fi 7
• Wi-Fi 802.11a/b/g/n/ac/ax/be
• Triple Band (2.4 GHz, 5 GHz, 6 GHz)
• Support MU-MIMO TX/RX
• Data transfer speed up to 5.8 Gbps
• Bluetooth 5.4

Internal connectors

• 1× 24pin ATX main power connector
• 2× 8pin +12V power connector
• 1× 8pin PCIe power connector
• 1× 4pin CPU fan connector
• 1× 4pin water cooling pump/system fan connector
• 5× 4pin system fan connector
• 2x front panel connector
• 1x cabinet opening detection connector
• 1x front panel audio connector
• 1× TBT connector (supports RTD3)
• 1x Tuning controller connector
• 3x addressable V2 RGB LED strip connector
• 1× RGB LED connector
• 1× TPM module connector (supports TPM 2.0)
• 2x USB 2.0 port (supports 4x USB 2.0)
• 2x USB 3.2 Gen1 (USB 3.0) port (supports 4x USB 3.2 Gen1)
• 1× USB-C Gen2×2
• 4× EZ Debug LEDs

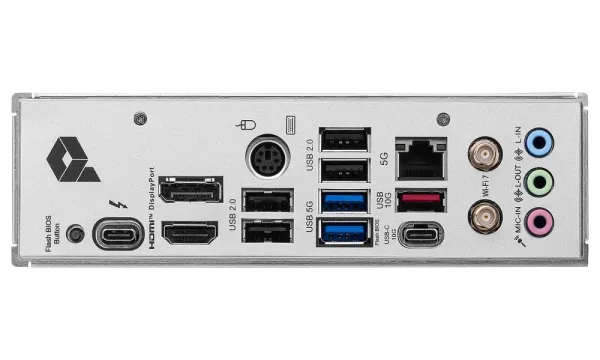

Rear panel ports

• 1× PS/2 keyboard and mouse combo port
• 1x HDMI
• 1x DisplayPort
• 1× Thunderbolt 4
• 1× Flash BIOS button
• 4x USB 2.0
• 2x USB 3.2 Gen1 (USB 3.0)
• 1× USB 3.2 Gen2 (USB 3.1)
• 1× USB-C 3.2 Gen2 (USB-C 3.1)
• 1x RJ-45
• 2x Wi-Fi antenna connector
• 3x audio jack

Dimensions

• 304.8 x 243.84 mm
• ATX format
