MikroTik RouterBOARD wAP ac r2 4x 716 MHz CPU 128MB RAM 2x Gbit LAN 2.4+5GHz Wi-Fi 2x2 MIMO 25dBi antenna L4
MIKROTIK | RBwAPG-5HacD2HnD | 4752224001757
This product has been discontinued.

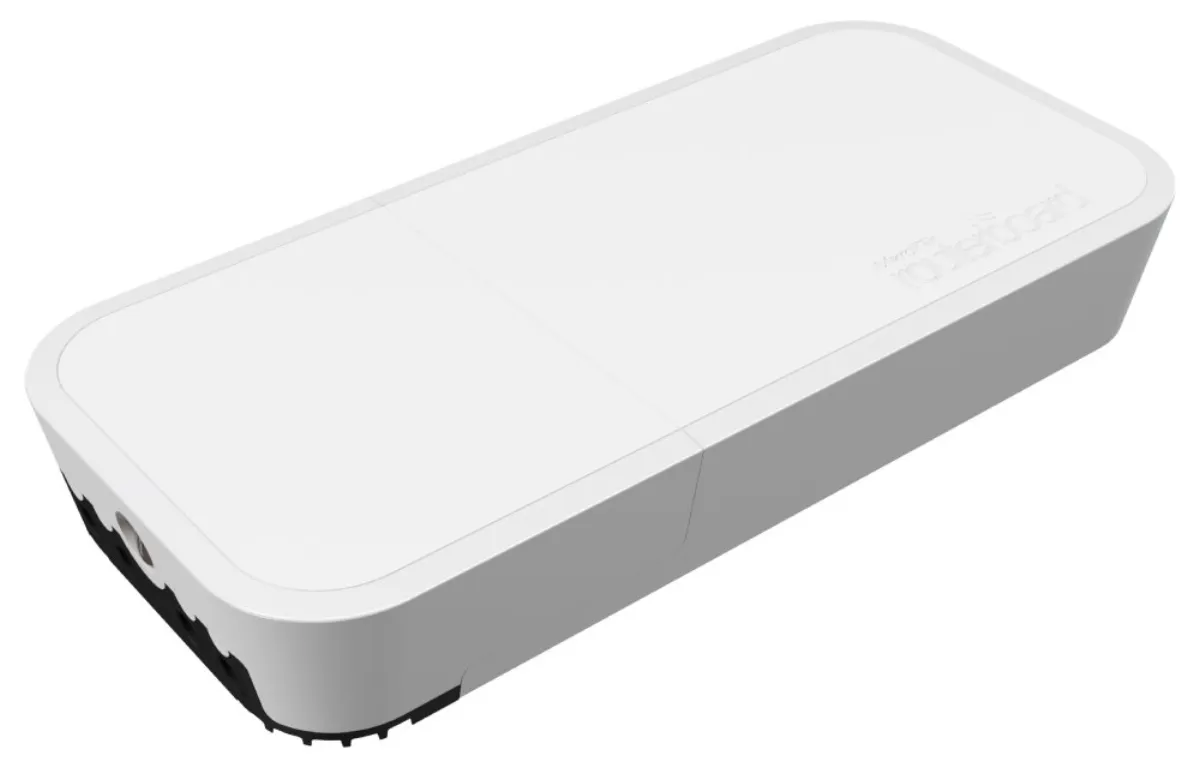

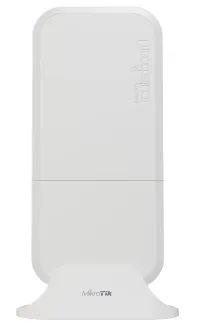

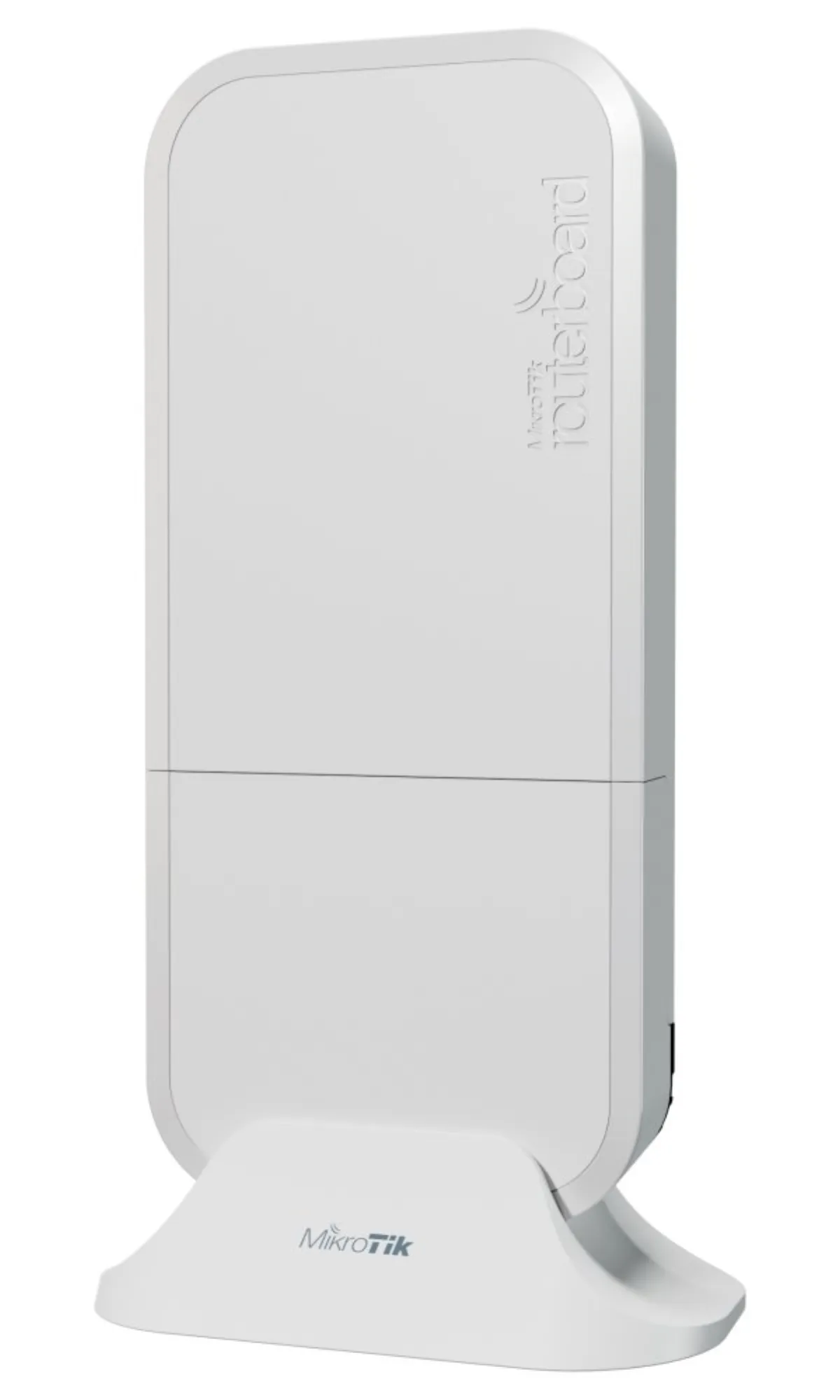

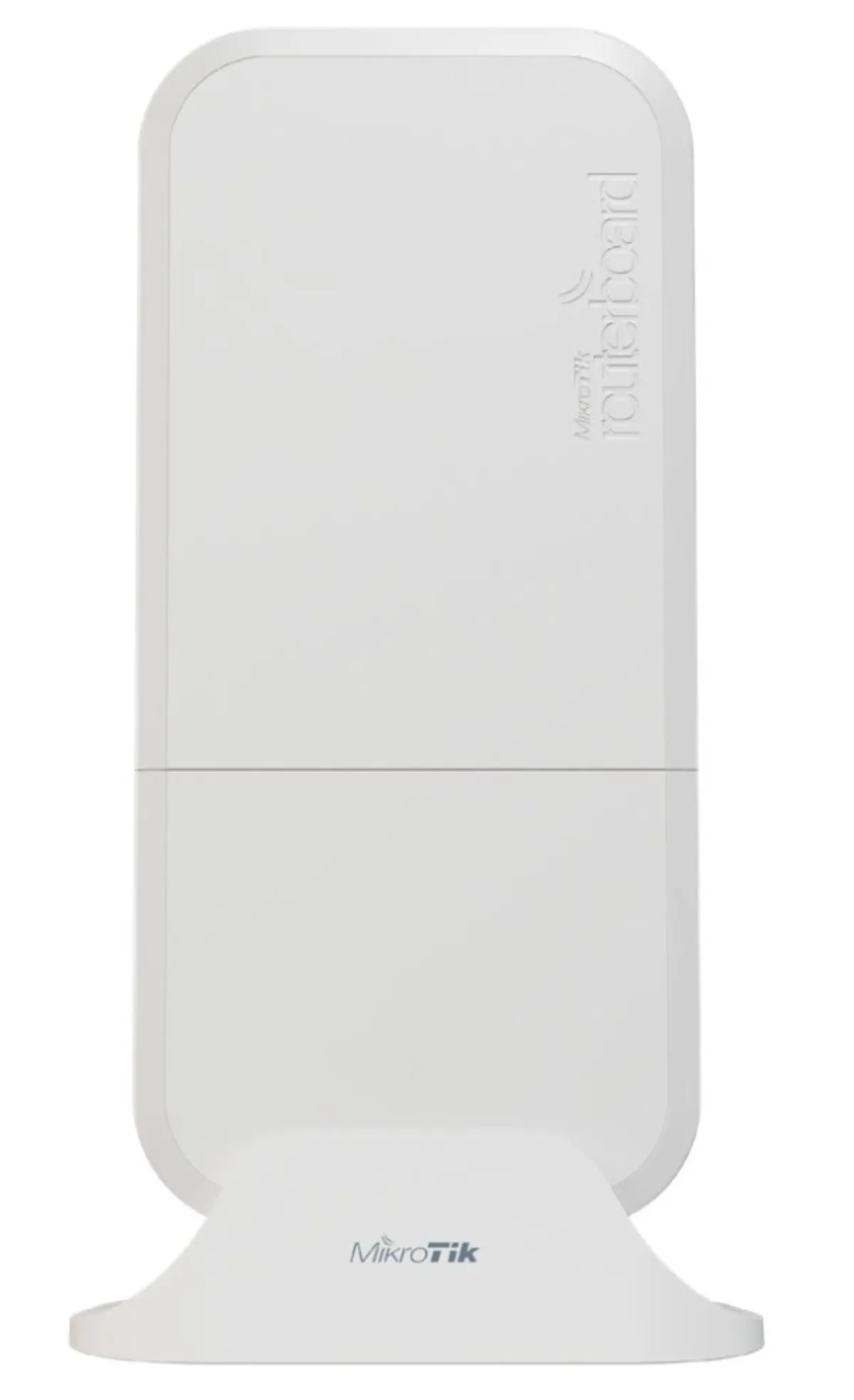

MikroTik wAP ac
New revision of an excellent AP for exterior coverage. This dual-band access point works on both frequencies at the same time, and is thus intended for all types of phones, tablets and computers. A big advantage is the support of the fastest standards 802.11n and 802.11ac.
The unit supports both 2.4 GHz and 5 GHz frequencies and is suitable not only for outdoor areas, but also for covering halls or vestibules. The internal antenna has a gain of 2.5 dBi and supports 2x2 MIMO. The unit includes RouterOS MikroTik software with L4 license. wAP has an integrated PoE splitter, so they can be powered directly via a UTP cable ( PoE+ 802.3af/at).

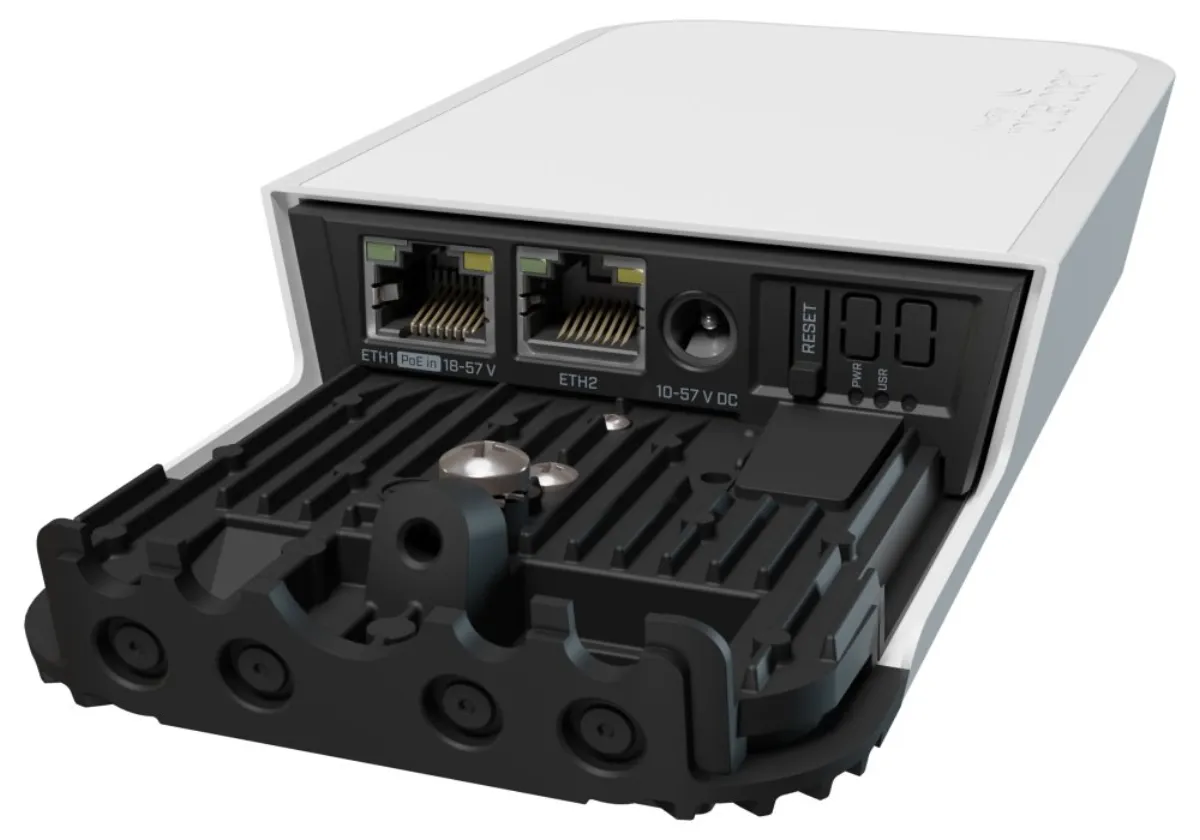

- Two gigabit RJ-45 ports
- Improved cooling
- Wall, ceiling or pole mounting
- 2x2 MIMO support
- 4-core processor and 128 MB RAM
- Support PoE+ power supply
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
Standard: IEEE 802.11a/b/g/n/a
Antenna
- 2.5 dBi
- 360°
- integrated
Ports: 2 x Gigabit RJ-45
Frequency band
- 2.4 GHz
- 5 GHz
PoE support
- yes
- PoE+ 802.3af/at
Dimensions: 185 x 85 x 30 mm
Properties
| Name | Value | |
|---|---|---|
| Color | white | |
| Dimension [mm] | 185 × 85 × 30 mm | |
| NAND [MB] | 16 | |
| Default password | it isn't | |
| Horizontal beam angle [°] | 360 | |
| SIM slot | No | |
| Conformity | CE, FCC, IC | |
| License | L4 | |
| Height [mm] | 85 | |
| Power supply min. [V] | 10 | |
| Antenna design | internal | |
| Gain [dBi] | 2,5 (2,4GHz), 2,5 (5GHz) | |
| Max. output power [dBm] | 25 | |
| Wi-Fi frequency | 2400 MHz/5000 MHz | |
| Power supply max. [V] | 57 | |
| DHCP | Yes | |
| The number of processor cores | 4 | |
| Processor | Qualcomm IPQ-4018, 716 MHz | |
| Default IP | 192.168.88.1 | |
| Standards | 802.11a/b/g/n/ac | |
| Depth [mm] | 30 | |
| Sensitivity [dBm] | -100 (2,4 GHz, 1 Mb/s), -96 (5 GHz, 6 Mb/s) | |
| Wi-Fi standard | 802.11a/b/g/n/ac | |
| Client mode | Yes | |
| Output to ext. the antenna | No | |
| The default name | admin | |
| Width [mm] | 185 | |
| Port speed | 1 Gb/s | |
| Memory size [MB] | 128 | |
| PoE input | 802.3af/at | |
| Design | on the wall | |
| IPv6 support | yes, full | |
| RJ-45/RJ-11 count | 2 | |
