MikroTik RouterBOARD LtAP mini LTE kit Wi-Fi 24 GHz b g n 2 3 4G (LTE) modem 35 dBi 2x SIM slot GPS LAN L4
MIKROTIK | RB912R-2nD-LTm&R11e-LTE | 8592457163213
This product has been discontinued.

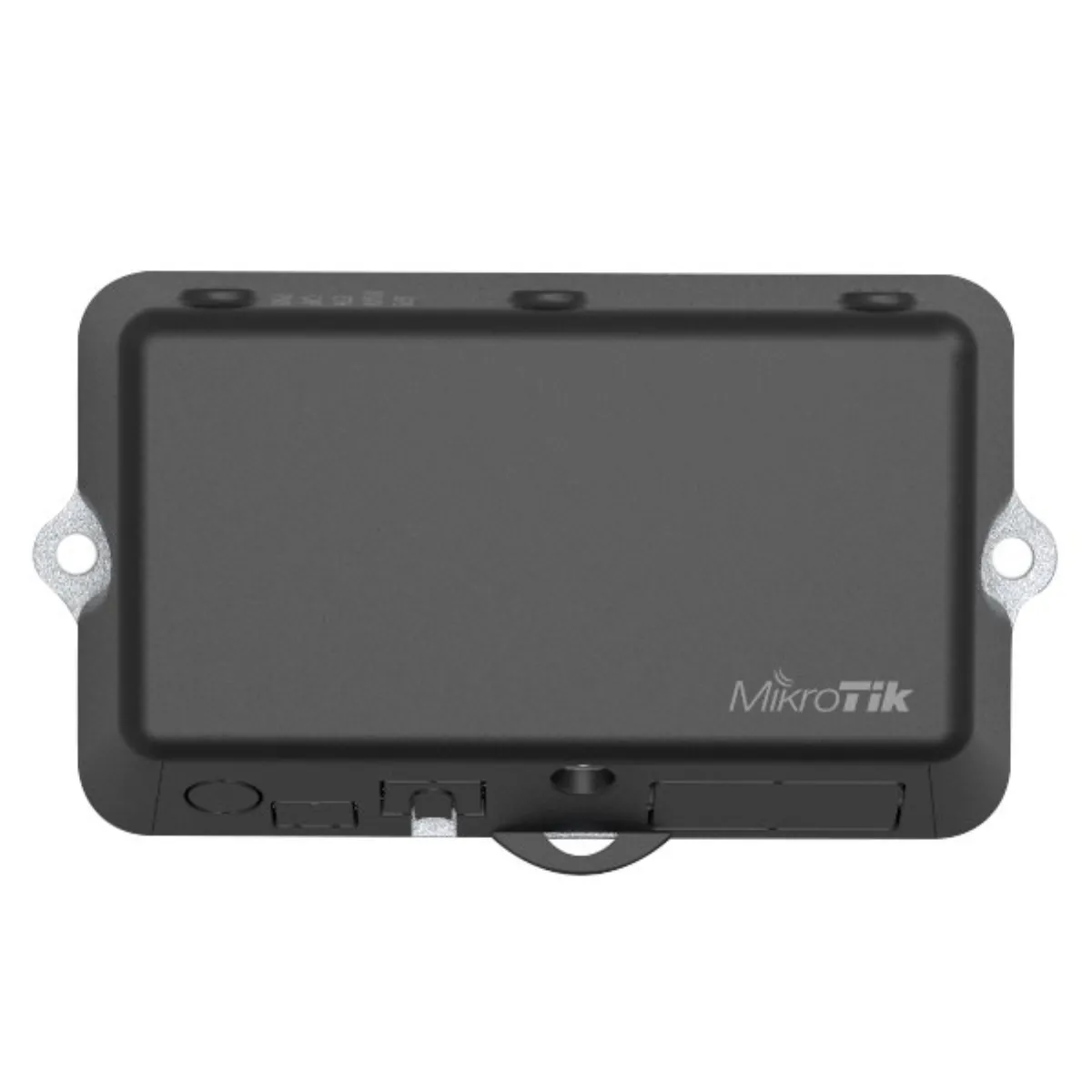

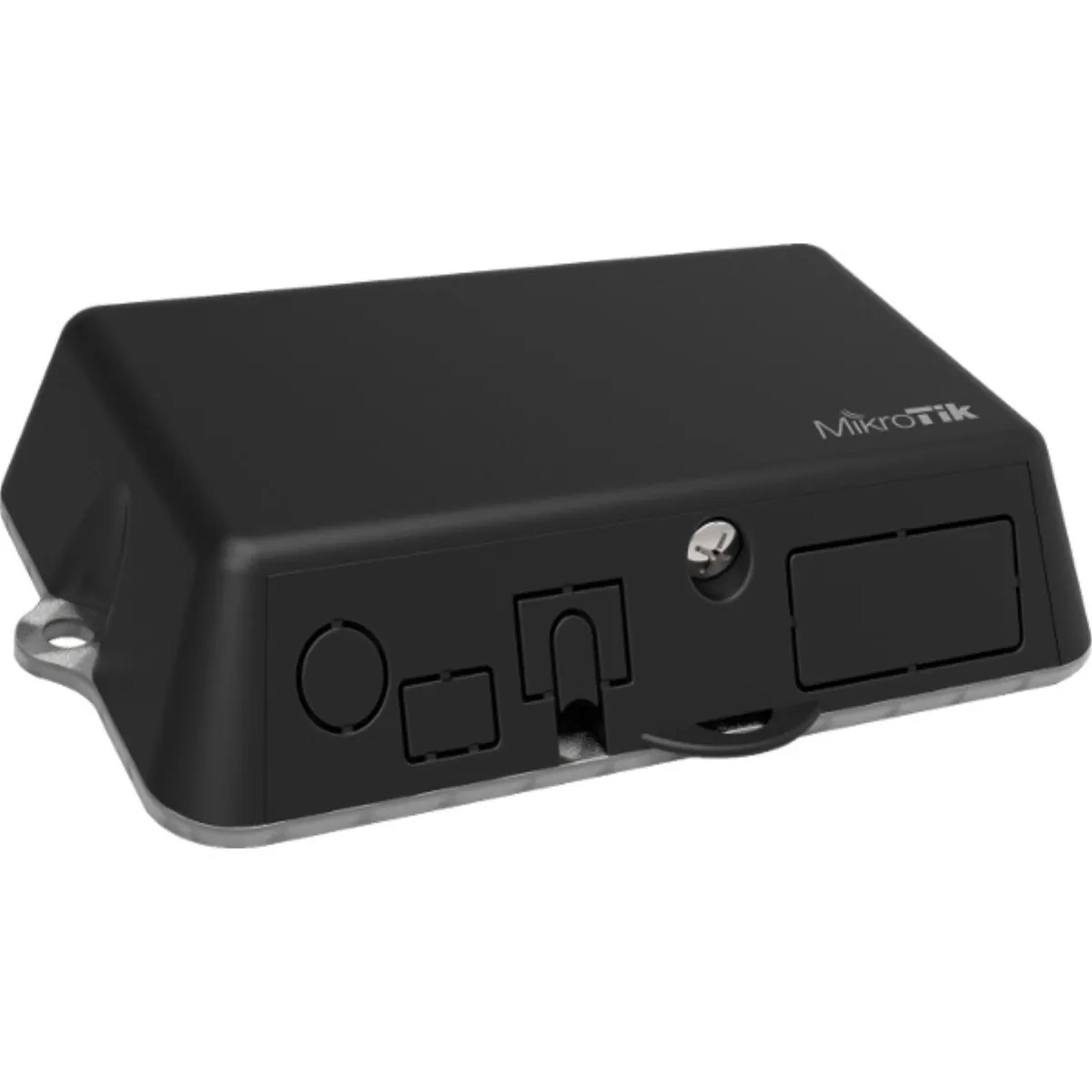

MikroTik LtAP mini LTE kit
The LtAP mini LTE kit is a miniature AP at the frequency of 2.4 GHz with an integrated LTE modem, GPS and two SIM card slots. It supports PoE power supply via 802.3af/at or can be powered via a microUSB port. Ideal for covering buses, trains and cars. For the RB912R-2nD-LTm&R11e-LTE, the performance is taken care of by the QCA9531 processor at a frequency of 650 MHz. The integrated Wi-Fi card works with 802.11b/g/n standards and supports 2x2 MIMO. The unit has a built-in GPS, but for its operation you still need to connect an external antenna. The device has an integrated modem that supports 2G, 3G and 4G (LTE) networks. The device has IP protection and can therefore also be operated outdoors. The RouterBoard includes the RouterOS MikroTik operating system with an L4 license.
Supported Bands:
- LTE (FDD): 1(2100), 2(1900), 3(1800), 7(2600), 8(900), 20(800)
- LTE (TDD): 38(2600), 40(2300)
- 3G: 1(2100), 2(1900), 5(850), 8(900)
- 2G: 2(1900), 3(1800), 5(850), 8(900)
Main advantages
- integrated Wi-Fi 2.4 GHz
- integrated LTE modem incl. 3.5 dBi antennas
- miniPCIe for LTE
- two SIM card slots
- integrated GPS (an external MikroTik ACGPSA antenna must be connected for operation)
- serial port
- ideal for cars and for mobile applications
Information about RouterOS MikroTik
- All RouterBoards have the same RouterOS MikroTik system.
- All devices with RouterOS MikroTik fully support IPv6, have firewall, Queues, NAT and with L4 license support CAPsMAN server.
- MikroTik can be set up via the web interface, via the mobile application, or the winbox program, which can be downloaded from mikrotik.com.
- MikroTik has "Quick Set" ie quick setting option. There are several preset profiles to choose from.
The products have been tested in accordance with railway standards EN 50121, EN 50155, EN 45545, class OT3 (internal). Rail certification is required to deploy products on trains in Europe.
Wi-Fi standard: 802.11b/g/n
Antenna
- Wi-Fi: 1.5 dBi
- LTE: 3.5 dBi

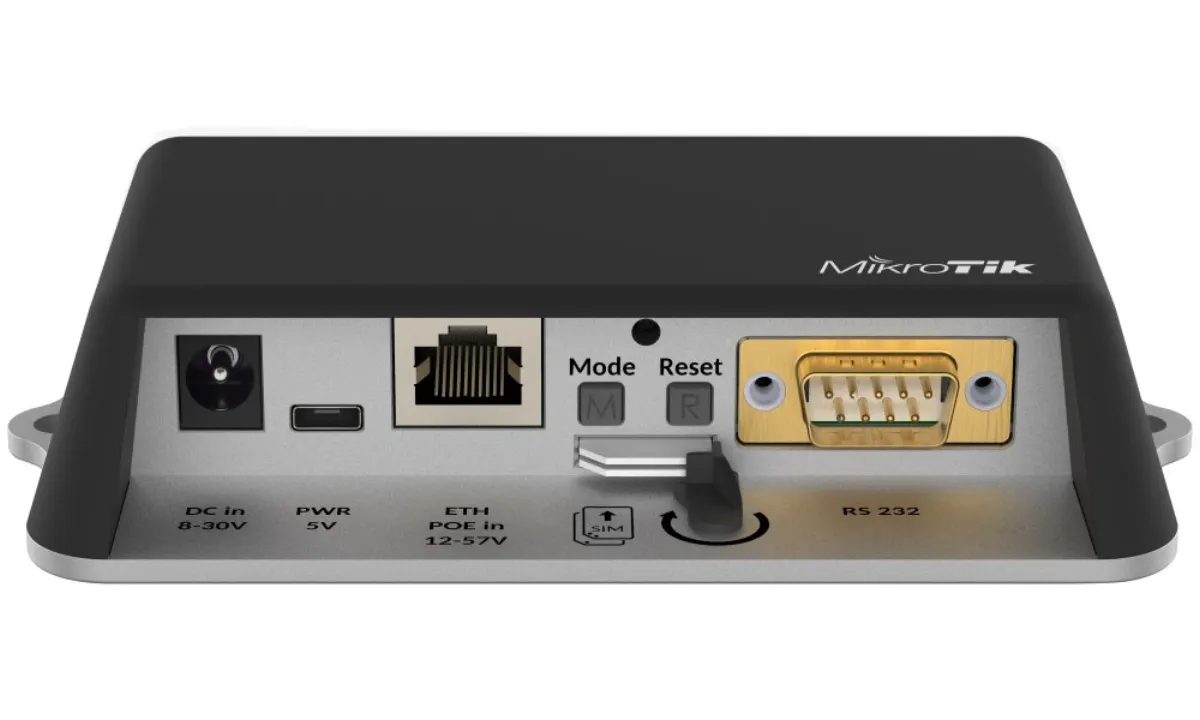

Ports
- 1 x 10/100 Ethernet port
- 1 x RS-232
- 1 x power microUSB
Frequency band: 2.4 GHz
PoE support: yes
Dimensions: 139 x 77 x 28.5 mm
Properties
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 139 × 77 × 28,5 mm | |
| Minimum operating temperature [°C] | -40 | |
| Maximum operating temperature [°C] | 70 | |
| NAND [MB] | 16 | |
| Encryption | WEP, WPA, WPA2, 802.1X, MAC Address Filtering | |
| Conformity | CE, FCC, IC, RoHS | |
| License | L4 | |
| Micro USB count | 1 | |
| Height [mm] | 77 | |
| Power supply min. [V] | 8 | |
| 5G support | No | |
| Antenna design | internal | |
| Wi-Fi frequency | 2400 MHz | |
| Power supply max. [V] | 30 | |
| Consumption [W] | 9 | |
| Processor | Atheros QCA9531, 650 MHz | |
| Wi-Fi 2,4 GHz [Mbps] | 300 | |
| Ethernet [Mbps] | 100 | |
| Slots | 1x miniPCI-e, 2x mini SIM | |
| Depth [mm] | 28,5 | |
| LTE/4G/5G [Mbps] | 150 | |
| Wi-Fi standard | 802.11b/g/n | |
| The default name | admin | |
| Indoor use | Yes | |
| Chipset | Atheros QCA9531 | |
| Width [mm] | 139 | |
| Operating mode | AP, Client, WDS, Bridge, WISP, Repeater | |
| Interface | LAN | |
| Port speed | 100 Mb/s | |
| Memory size [MB] | 64 | |
| Firewall | Yes | |
| PoE input | 802.3af/at | |
| Gigabit LAN | No | |
| IPv6 support | yes, full | |
