DELL PowerEdge R260 6x 2.5" Xeon E-2414 16GB 2x 480GB SSD R1 + 2x 2.4TB SAS 10k R1 H355 iDRAC 9 Ent.
Dell | 964FM-CTO-02 | 8592457277569
This product has been discontinued.

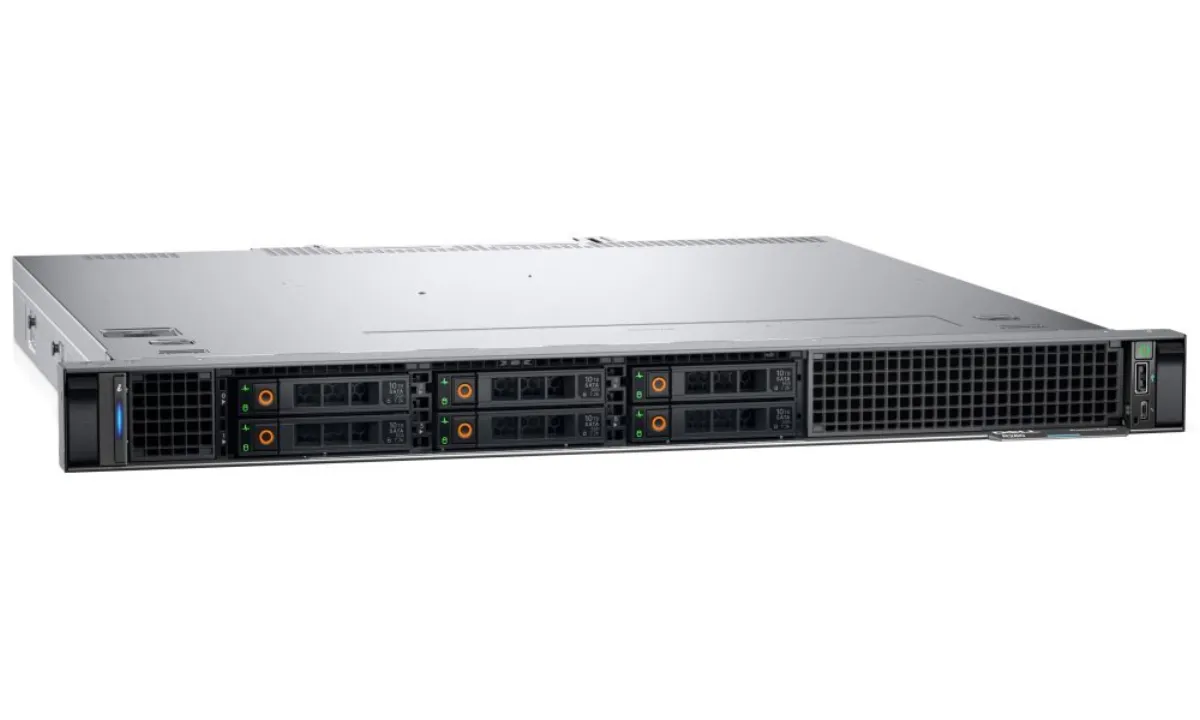

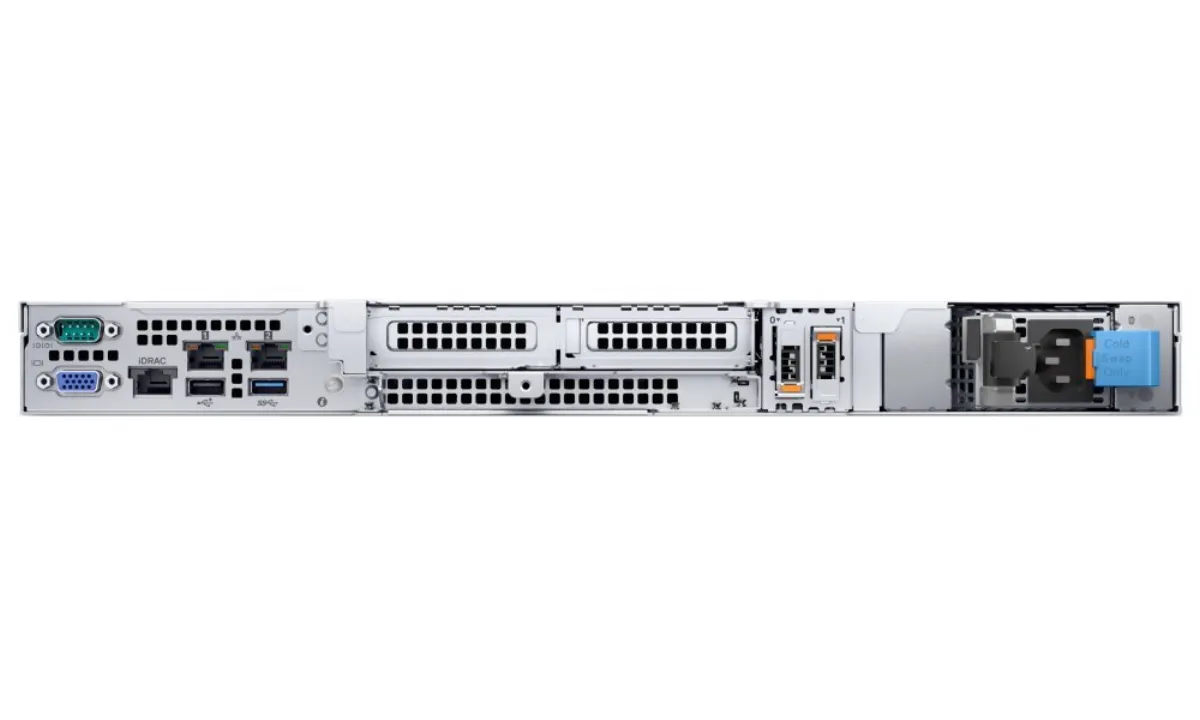

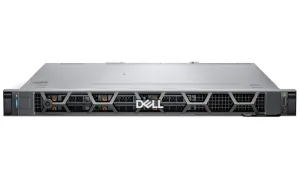

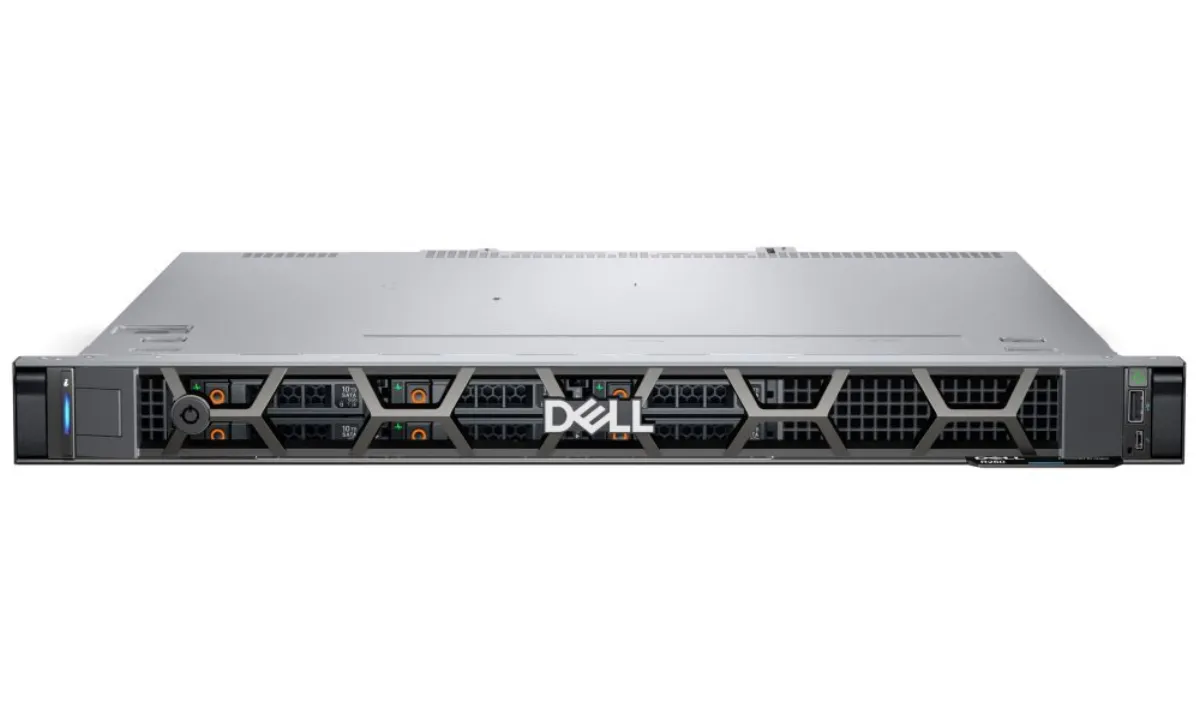

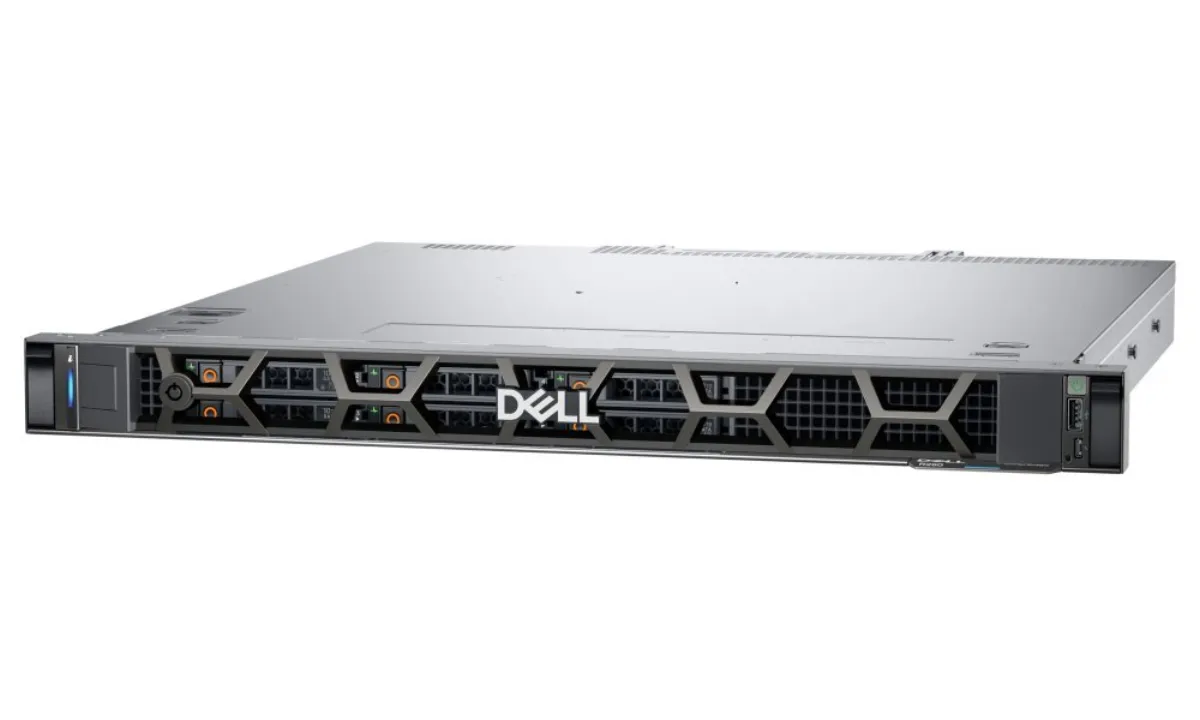

Dell PowerEdge R260
The server is based on a quad-core Intel Xeon E-2414 processor, supplemented by 16 GB of RAM. The server comes with two 480GB SATA SSD drives and two 2.4TB SAS (10,000 rpm) drives.
Processor: Intel Xeon E-2414
Memory size: 16 GB (1× 16 GB) DDR5
HDD capacity
- 2× 480 GB SATA SSD
- 2× 2.4 TB SAS (10,000 rpm)
Optical drive: no
Operating system: without OS
Casing design: rack
Disk bays
Up to six 2.5" hot-plug drives
Communication: 2× RJ-45 (integrated on-board 1 GbE LOM)
RAID controller: PERC H355
Remote management: iDRAC9 Enterprise 16G
Detailed configuration description
- Chassis for 6× 2.5" Hot-Plug drives
- Intel Xeon E-2414 processor (2.6 GHz, Turbo 4.5 GHz, 12 MB Cache, 4C/4T, 55 W)
- RAM 16 GB (1× 16 GB) 5600 MT/s UDIMM ECC
- Hard drive 2× 2.4 TB SAS 2.5" (10,000 rpm), 512e, Hot-Plug
- SSD drive 2× 480 GB SATA, Read Intensive, ISE, 6Gbps, 512e, 2.5", Hot-Plug
- 1U/2U 2/4-Post Static Rails (static rails)
- Bezel (front panel - 1U Standard Bezel)
- Riser Config 1, 1× PCIe x8 Gen4 (LP) slot + 1× PCIe x16 (x8) Gen4 (LP) slot
- Network 2× 1GbE LAN Broadcom 5720, integrated on board
- PERC controller H355
- Remote management of iDRAC9 Enterprise 16G
- Source 1× 700 W (Hot-Plug)
Properties
| Name | Value | |
|---|---|---|
| Color | black - silver | |
| Max power source | 700 | |
| Weight, brutto [kg] | 9,44 | |
| Dimension [mm] | 496,74 × 482 × 42,8 MM | |
| Installed operating system | No operating system | |
| Number of memory slots | 4 | |
| Processor model | E-2414 | |
| Number of free memory slots | 3 | |
| Processor type | Intel® Xeon® | |
| Capacity of installed disks [GB] | 5760 | |
| HDD format | 2,5" | |
| Number of disk bays | 6 | |
| Design of the PC case | rack 19" | |
| Material | metal, plastic | |
| Max. processor frequency [GHz] | 4,5 | |
| Number of processor sockets | 1 | |
| Processor frequency [GHz] | 2,6 | |
| Memory set | 1× 16 GB | |
| Processor socket | 1700 | |
| Rack format | 1U | |
| TDP [W] | 55 | |
| Memory frequency [MHz] | 5600 | |
| Type of RAM | DDR5 | |
| LAN specification | Gigabit | |
| HDD 4 capacity [GB] | 480 | |
| HDD speed [rpm] | 10000 | |
| Operating memory capacity [GB] | 16 | |
| RJ-45/RJ-11 count | 2 | |
