ASUS TUF GAMING B760-PLUS WIFI D4 Intel B760 LGA1700 4x DDR4 3x M.2 DP HDMI 1x USB-C WIFI ATX

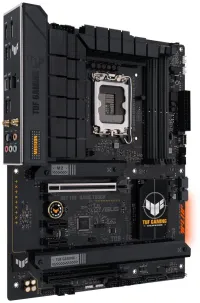

ASUS TUF GAMING B760-PLUS WIFI D4

The board is equipped with graphics outputs for use with processors with integrated graphics core. The motherboard does not include a graphics card and without using the corresponding processor, these outputs will be inoperative.

CPU

• Support for 12 and 13 processors. 2nd generation Intel Core/ Pentium/ Celeron (LGA1700 socket)

Chipset

• Intel B760

Memory

• 4× DDR4 memory slots, support up to 128 GB
• Support DDR4 5333 (OC)/ 5066 (OC)/ 5000 (OC)/ 4800 (OC)/ 4600 (OC)/ 4400 (OC)/ 4266 (OC)/ 4000 (OC)/ 3733 (OC)/ 3600 (OC)/ 3466 (OC)/ 3400 (OC)/ 3333 (OC)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz
• Dual-channel memory architecture
• Support non-ECC, unbuffered memory
• Intel Extreme Memory Profile (XMP) support
• OptiMem II support

Slots

• 1× PCIe 5.0 x16 slot
• 1× PCIe 3.0 x16 slot (supports x4 mode)
• 2× PCIe 3.0 x1 slot

Graphics

• 1× HDMI port, supporting max. resolution 4K @ 60 Hz
• 1× DisplayPort port, supporting max. 4K resolution at 60 Hz

Storage

Intel CPU

• 1× M.2 slot, M Key, for type 2242/2260/2280 drives (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for type 2242/2260/2280/22110 drives (PCIe 4.0 x4 mode)
• 1× M.2 slot, M Key, for type 2242/2260/2280 drives (PCIe 4.0 x4 mode)
• 4× SATA 6Gb/s port
• Support RAID 0, RAID 1, RAID 5 and RAID 10 for SATA drives
• Support Intel Rapid Storage Technology

USB

• 1× USB-C 3.2 Gen2x2 port on the back panel
• 1× USB 3.2 Gen2 port on the back panel
• 1× USB-C 3.2 Gen2 port accessible via internal USB connector
• 5× USB 3.2 Gen1 (USB 3.0) port (3 ports on the back panel, 2 ports accessible via internal USB connector)
• 5× USB 2.0 port (1 port on the back panel, 4 ports accessible via internal USB connectors)

Audio

• Realtek Audio Codec
• 7.1-channel High Definition Audio
• S/PDIF out support

LAN

• 1x Realtek 2.5Gigabit LAN controller
• TUF LANGuard

WLAN/ Bluetooth

• Intel Wi-Fi 6
• Wi-Fi 802.11a/b/g/n/ac/ax
• Dual Band (2.4 GHz, 5 GHz)
• Bluetooth 5.2

Internal connectors

• 1× 24pin main power connector
• 1× 8pin 12V power connector
• 1× 4pin 12V power connector
• 4× SATA 6Gb/s connector
• 3× M.2 slot, M Key
• 1× USB-C 3.2 Gen2 connector
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)
• 2× USB 2.0 connector (supports 4× USB 2.0 port)
• 1× 4pin CPU fan connector
• 1× 4pin optional CPU fan connector
• 1× 4pin water cooling pump connector
• 4× 4pin chassis fan connector
• 3× addressable RGB LED strip connector
• 1× Aura RGB LED strip connector
• 1× Clear CMOS connector
• 1× serial port connector
• 1× front panel audio connector
• 1× system panel connector (with intrusion detection) case)
• 1× Thunderbolt connector

Rear panel ports

• 1× HDMI
• 1× DisplayPort
• 1× USB 3.2 Gen2x2 Type C
• 1× USB 3.2 Gen2 Type A
• 3× USB 3.2 Gen1 (USB 3.0) Type A
• 1× USB 2.0
• 1× RJ-45
• 2× Wi-Fi antenna connector
• 5× audio jack
• 1× optical S/PDIF output

Dimensions

• 30.5 × 24.4 cm
• ATX format
