ASRock N100DC-ITX Alder Lake N100 1x DDR4 DIMM VGA HDMI Mini-ITX

ASRock N100DC-ITX

CPU

• Intel N100 (up to 3.4 GHz)

Memory

• 1× DDR4 memory slot, support up to 32 GB
• Support DDR4 3200 MHz non-ECC, unbuffered
• ECC UDIMM memory support, non-ECC mode

Slots

• 1× PCIe 3.0 x4 slot (supports x2 mode)

Graphic Design

• Integrated Intel UHD graphics card
• 1× HDMI port, supporting a maximum resolution of 4K at 60 Hz
• 1× VGA port, supporting a max. resolution of 1920 x 1080 at 60 Hz

Storage

• 2x SATA 6Gb/s port
• 1× M.2 slot, M Key, for 2280 type units (PCIe 3.0 ×2 mode)

USB

• 4× USB 3.2 Gen1 (USB 3.0) (2 ports on the back panel, 2 ports available via the internal USB connector)
• 8× USB 2.0 (4 ports on the back panel, 4 ports available via internal USB connectors)

Audio

• Realtek ALC897 Codec
• 7.1 channel High Definition Audio

LAN

• 1× Realtek RTL8111H Gigabit LAN controller

Internal connectors

• 1x connector for printing port
• 1× SPI TPM connector
• 1x speaker connector and cabinet opening detection
• 2× 4pin case fan connector
• 1x front panel audio connector
• 1× M.2 slot, E key for Wi-Fi module (not included)
• 2x USB 2.0 connector (supports 4x USB 2.0 port)
• 1× USB 3.2 Gen1 (USB 3.0) connector (supports 2× USB 3.2 Gen1 port)

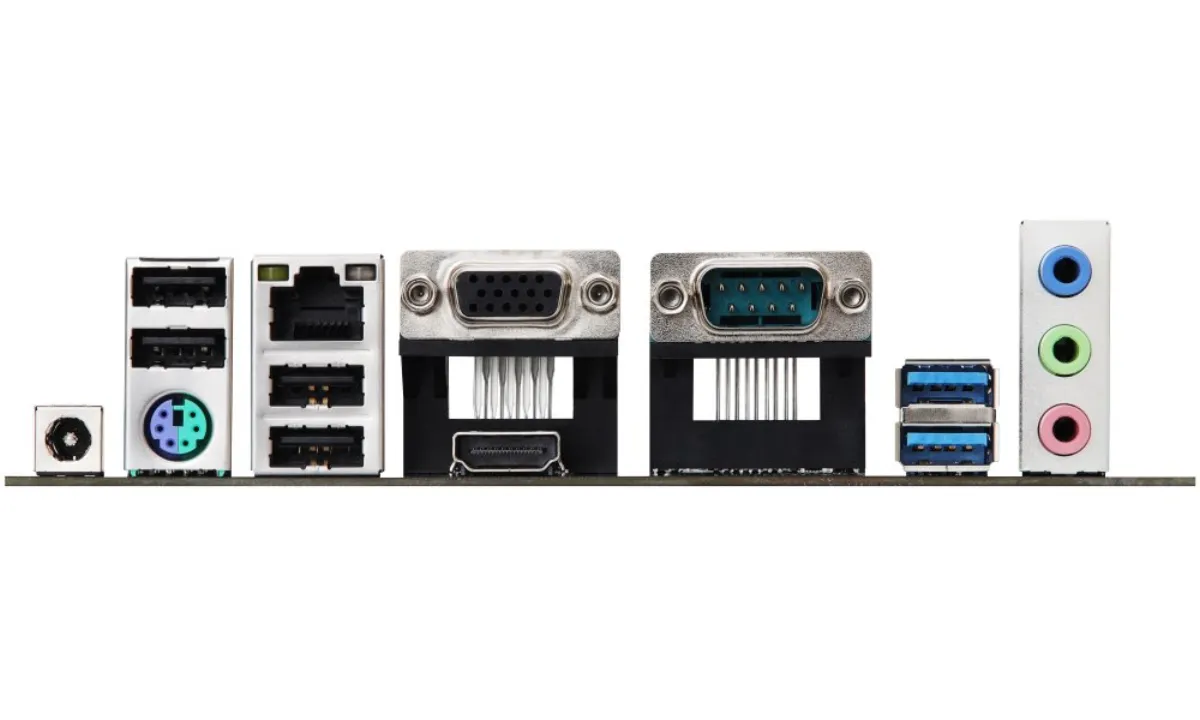

Rear panel connectors

• 1× DC connector (5.5 x 2.5 mm, compatible with 19V power adapter)
• 1× PS/2 mouse/keyboard port
• 1x serial port
• 1x VGA
• 1x HDMI
• 4x USB 2.0
• 2 x USB 3.2 Gen1 (USB 3.0)
• 1x RJ-45
• 3x audio jack

Dimensions

• 170 × 170 mm
• Mini-ITX format
