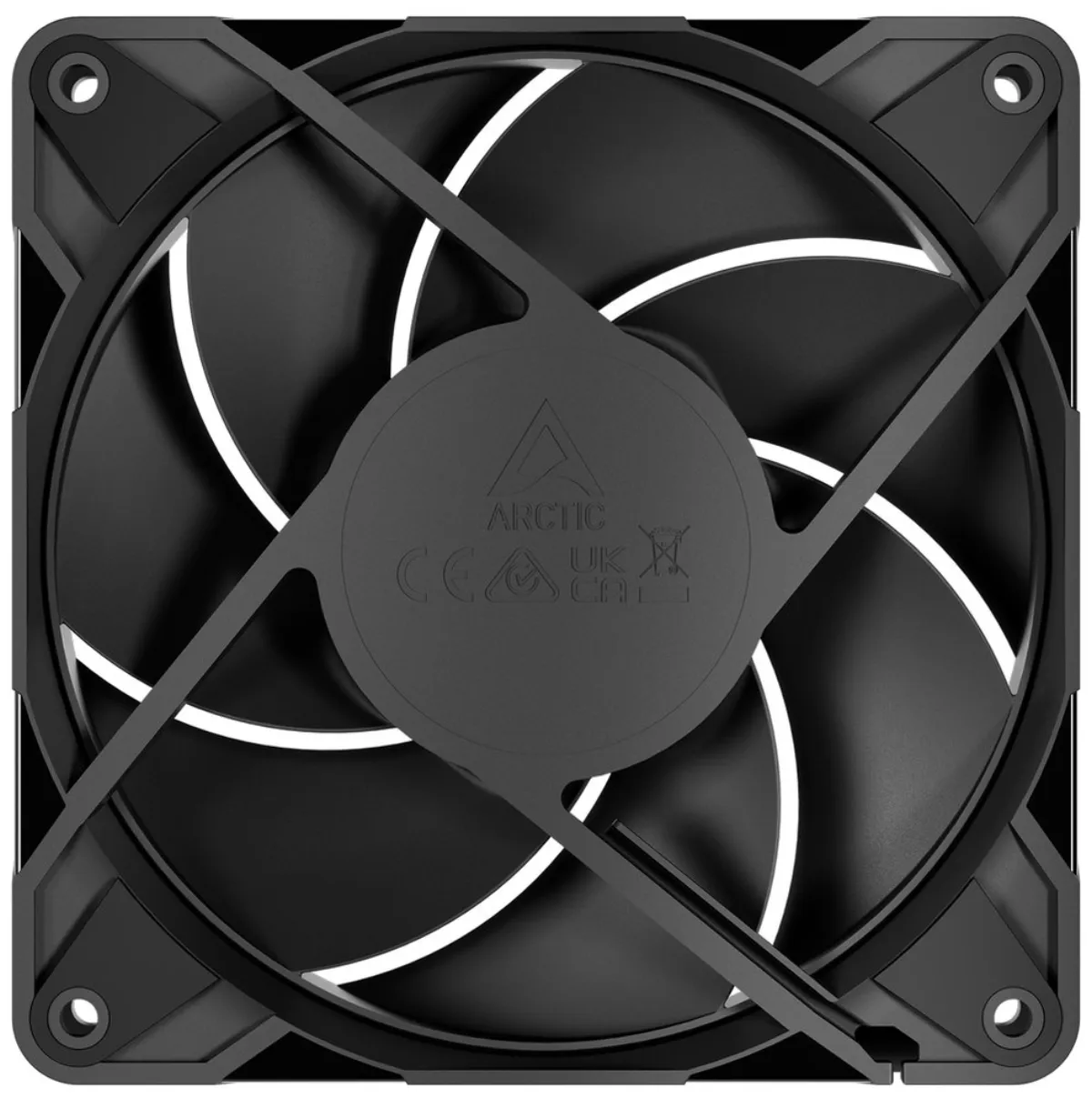

ARCTIC P12 Pro PST fan 120mm 5-pack

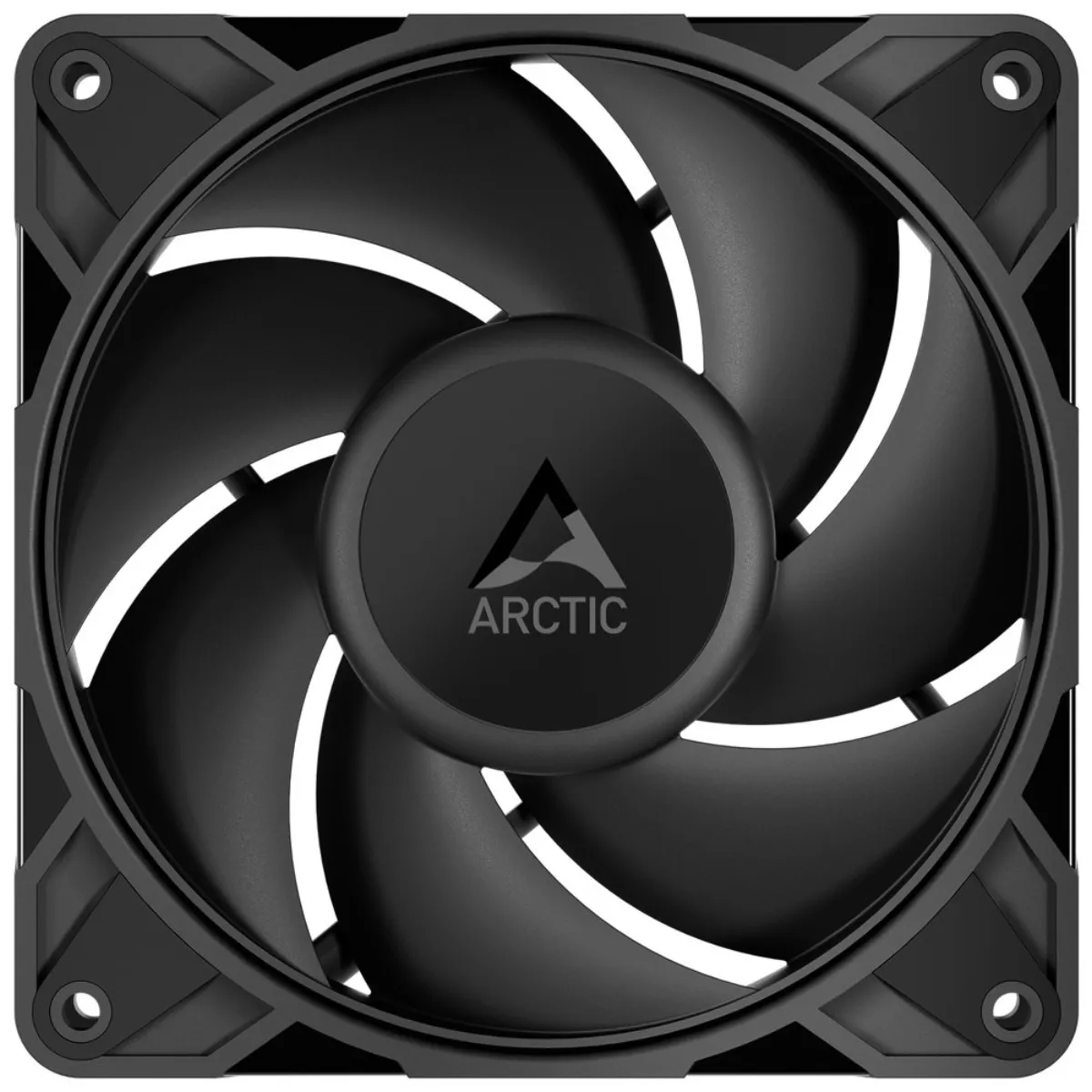

ARCTIC P12 Pro PST - cooling with minimal noise

ARCTIC P12 Pro fan that will not tire in a work, multimedia or gaming PC setup. It is designed for long-term and efficient operation that will keep your computer components at optimal operating temperatures. ARCTIC P12 Pro fan with continuous speed control achieves high static pressure, which makes it a perfect complement to the functions of perforated panels and other types of cases.

Improved fan blade design supports smooth and stable air flow. It also includes a modern fluid dynamic bearing, which contributes to quiet operation and ensures long service life.

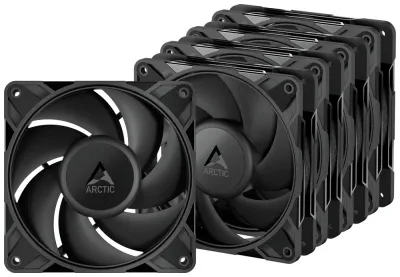

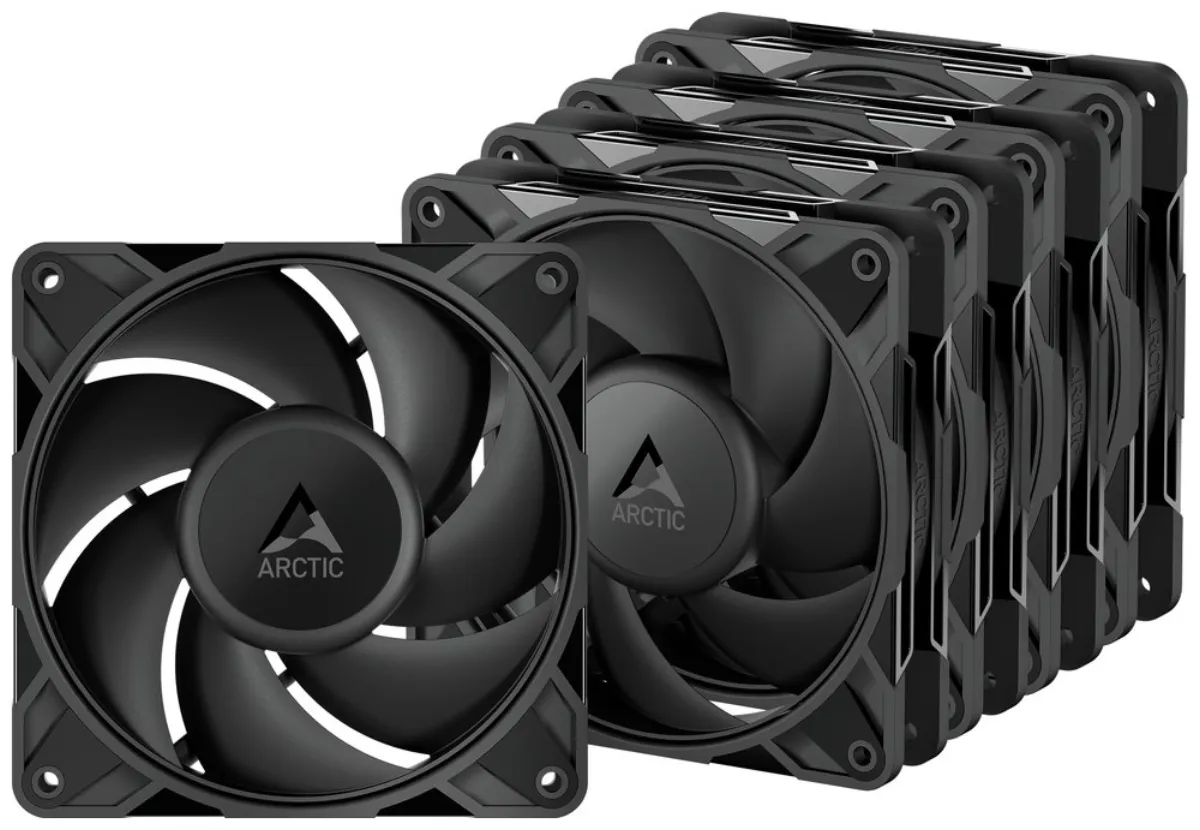

ARCTIC P12 Pro PST 5 pcs

Powerful 120mm PWM fans with series connection technology for effective cooling of computer components

ARCTIC P12 Pro PST fans represent a professional cooling solution with high performance and quiet operation. Thanks to the PST (PWM Sharing Technology) function, they allow for easy connection of multiple fans in series using the integrated cable splitter. The set includes 5 pieces of 120mm fans with the possibility of speed regulation in the range 600-3000 RPM.

The fans are equipped with a high-quality fluid dynamic bearing, which ensures long service life and quiet operation. Thanks to the high static pressure 6.9 mmH2O, they are ideal for use on radiators, CPU coolers and computer cases with limited airflow.

• PWM speed control in the range of 600-3000 RPM with the possibility of complete stop at PWM signal below 5%
• High airflow up to 131 m3/h (77 CFM) for effective cooling
• PST (PWM Sharing Technology) technology allows connecting multiple fans using an integrated hub
• Fluid dynamic bearing ensures quiet operation and long life
• 400 mm cable + 80 mm daisy-chain cable for easy installation
• Compact dimensions of 120 × 120 × 25 mm suitable for standard mounting positions
• Low starting voltage of 3.3 V DC for compatibility with a wide range of motherboards
• The package includes mounting screws for easy installation

Daisy-Chain Technology

The fans are equipped with an integrated 4-pin connector and socket, which allow easy connection of multiple fans in series without the need for additional hubs. This significantly simplifies cabling and improves airflow inside the computer case.

Optimized blade design

Specially designed fan blades ensure an optimal balance between static pressure and airflow, allowing for effective cooling even in areas with limited airflow, such as water cooling radiators or densely packed computer cases.

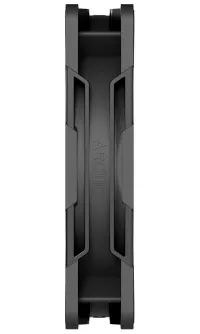

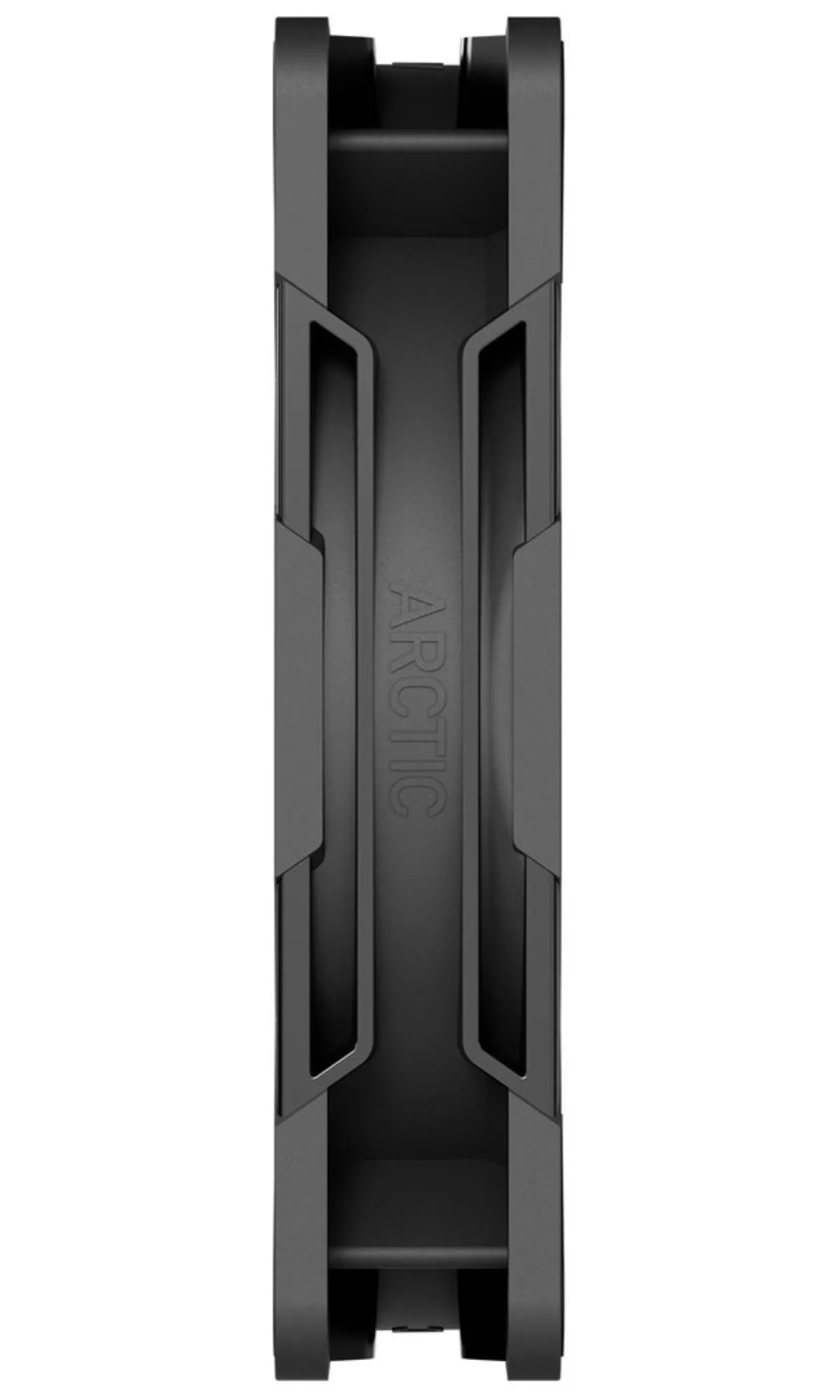

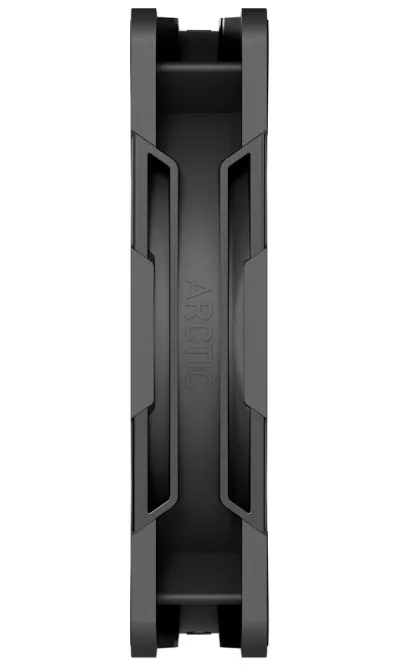

Dimensions: 120 x 120 x 25 mm

Weight: 185 g

Speed

• 600-3000 RPM
• 0 RPM below 5% PWM

Airflow: 77 CFM | 131 m3/h

Static pressure: 6.9 mmH2O

Bearing type: fluid dynamic bearing

Operating voltage: 12 V DC

Starting voltage: 3.3 V DC

Consumption: 0.33 A

Cable length: 400 mm + 80 mm daisy-chain cable

Connector: 4pin PWM + 4pin socket

Operating temperature: 0-40 °C

Package contents

• 5× P12 Pro PST fan
• 20× mounting screws
