SOLAX DATAHUB 1000 (FW2024)
SOLAX POWER | SOPSLX3001 | 8592457260059
On stock 1 pcs.
Price of goods is 580.01 €.
Price without tax is 479.35 €.
Weight of goods is 0.88 Kg.
Actual in cart 0 pcs.

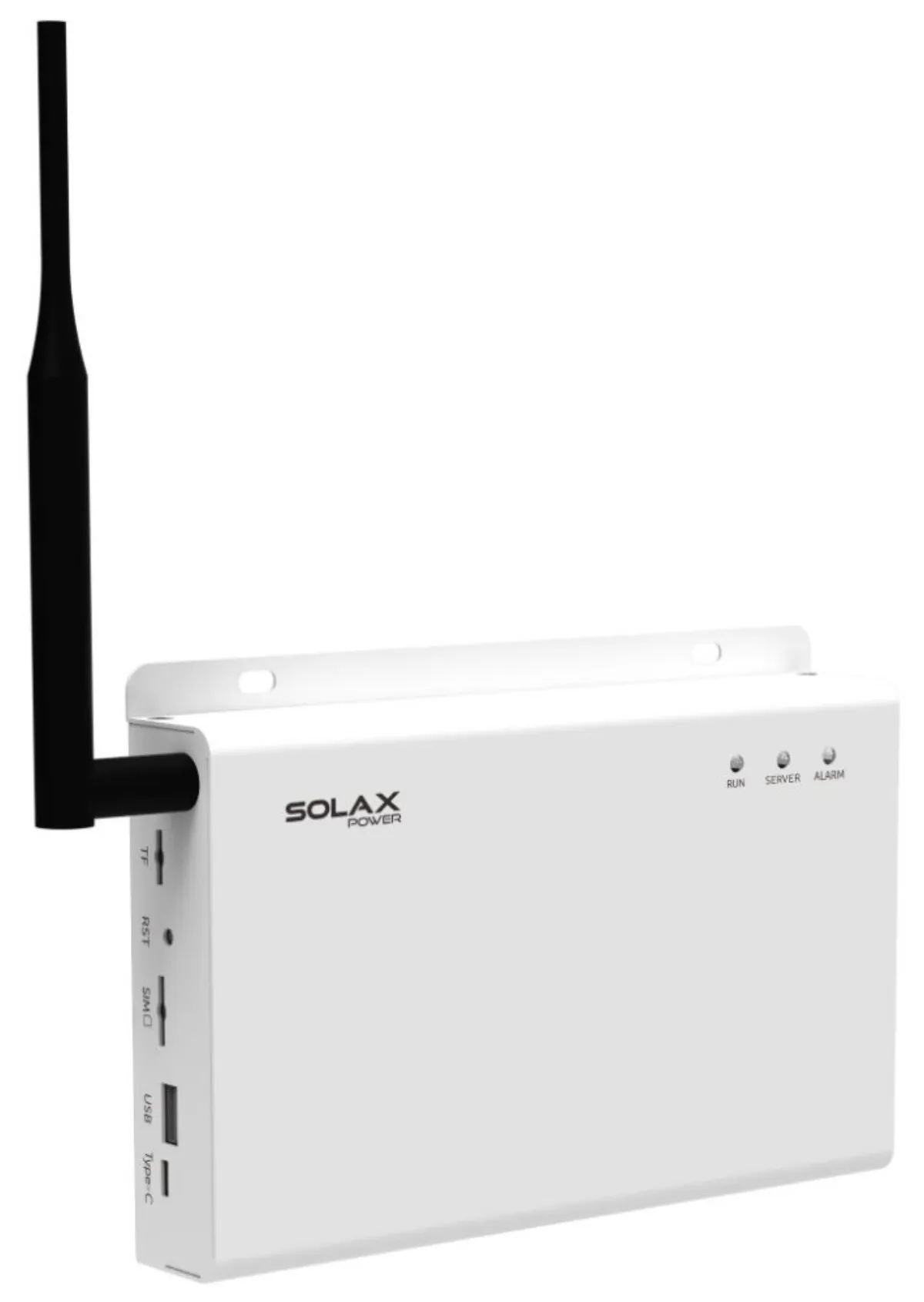

SOLAX DATAHUB 1000 (FW2024)
Datahub designed for management and monitoring of the new G2 series of grid-connected inverters: X3 MIC G2, X3 PRO G2, X3 MEGA G2 and X3 FORTH. Allows connection of up to 60 inverters of the same series.
- Local and remote monitoring
- Inverter group management and upgrade
- Intelligent export control, DRM control of inverter groups
- Support for large-capacity data storage
- Support for IEC104 protocol
Wireless module: Wi-Fi 2.4 GHz
Ethernet: 10/100 Mbps
Max. number of managed devices: 60
Interfaces
- 4× RS485
- 1× CAN
- 1× NET
Relay contact
- 2× AI
- 4× DI
- 4× DO
Data transfer interval: 5 min
Extended storage capacity: TF slot
Dimensions: 205 × 124 × 33 mm
Weight: 440 g
Protection degree: IP21
Operating temperature range: -20 to +60 °C
| Name | Value | |
|---|---|---|
| Weight, brutto [kg] | 0,44 | |
| Maximum operating temperature [°C] | 60 | |
| Minimum operating temperature [°C] | -20 | |
| Width [mm] | 205 | |
| Wi-Fi frequency | 2400 MHz | |
| Depth [mm] | 33 | |
| Height [mm] | 124 | |
