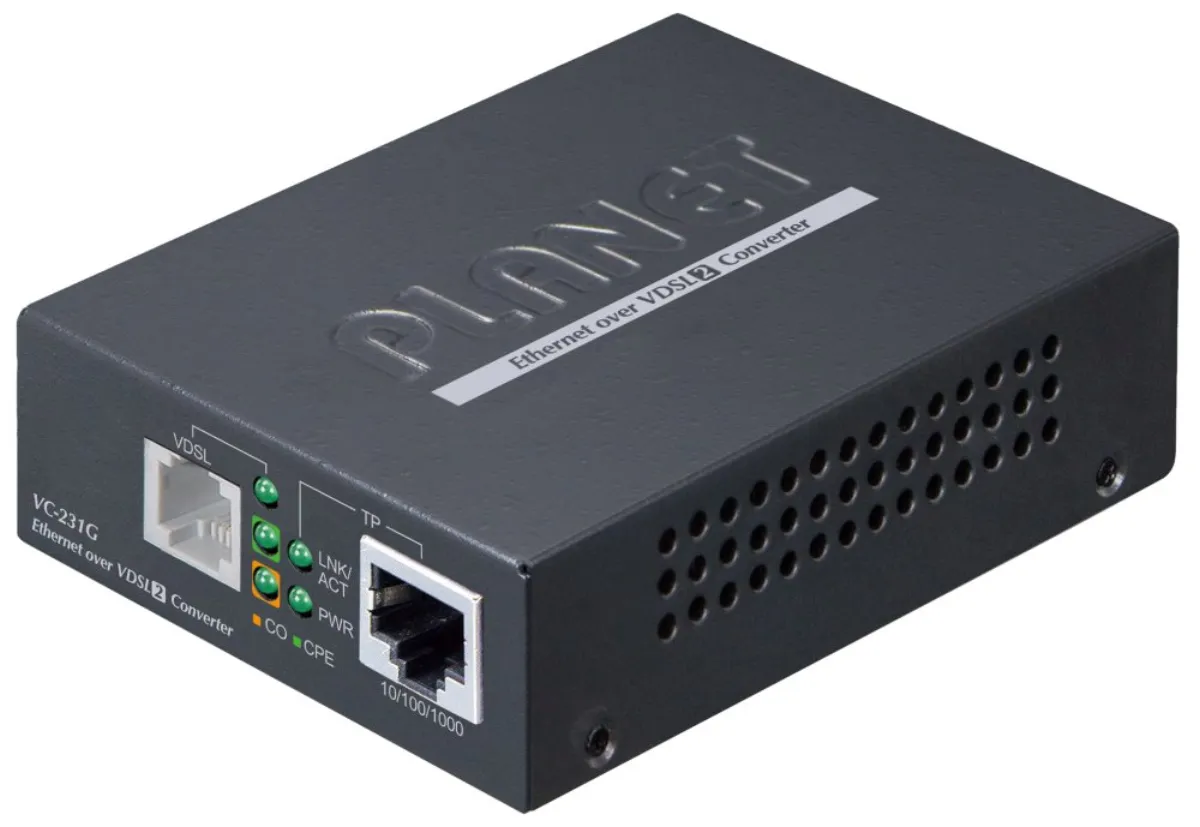

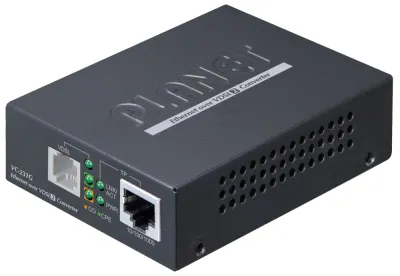

PLANET VC-231Gv2
Ethernet over telephone line ( VDSL2 technology). 1× LAN RJ-45, 1× VDSL2 RJ-11. Transparent bridge. G.993.2 VDSL2, G.993.5 G.Vectoring + G.INP. Power supply DC 5 V/ 2 A (power supply included). Capacity 200/200 Mbps at 200 m. Range up to 1.4 km. DIP switch settings, optional Master (CO) / Slave (CPE). Possible operation on VDSL O2 line.
LRE (Long Reach Ethernet) Ethernet converter to VDSL2 (Very-high-data-rate Digital Subscriber Line 2) Ethernet converter allows data to be transferred over a symmetrical pair of wires at speeds of up to 200 Mbit/s at 200 m or 21 Mbit/s at distances of up to 1.4 km, transmission speeds depending on the condition and quality of the line used. The device is universal as a master (CO) / slave (CPE) unit, mode setting by switch. The unit supports VDSL2 operating modes according to transmission profiles "17a", "30a" and " 35b ", selection according to "band Plan" and G.993.5 G.Vectoring & G.INP affecting symmetrical data transmission at higher speeds even on a parallel line.
With the help of an external splitter, voice service can be maintained on the telephone line without further wiring modifications. This allows the use of telephone cable lines originally intended for connections not only to subscribers but also between analog exchanges.
ISPs (internet service providers) are thus enabled to offer multimedia services, VOD (video on demand), VoIP (voice over IP), Video phone, IPTV, etc.

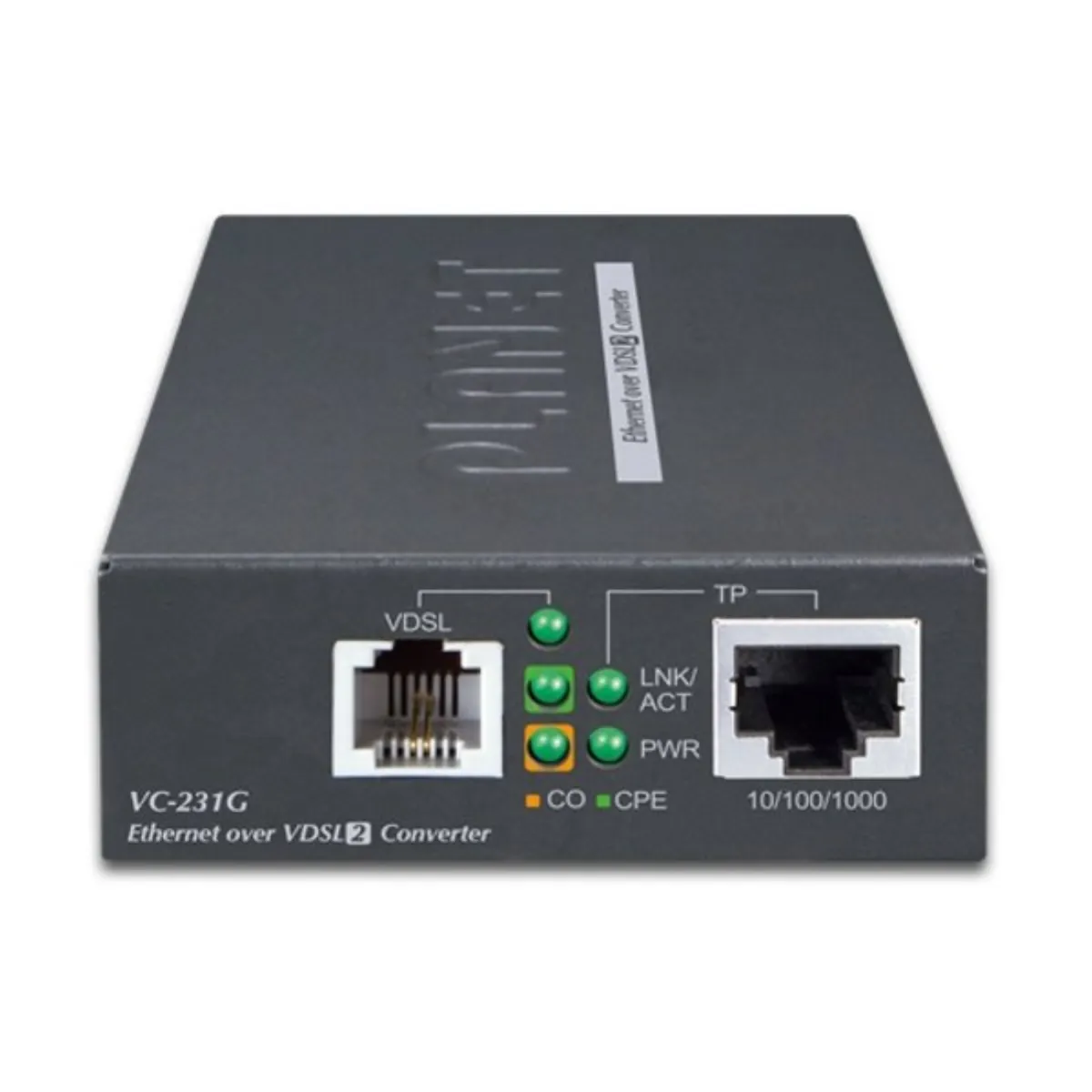

Ports
1× 10/1000Base-T, RJ-45 1× VDSL, RJ-11 Transmission support: 1K MAC addresses
Standards compliance
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3x
- IEEE 802.1p
Transparent for: IEEE 802.1Q VLAN tag
Standard
- ITU-T: G.993.1 - VDSL
- G.997.1
- G.993.2 - VDSL2 (profiles 17a/30a/35b)
- G.993.5 G. - Vectoring and G.INP
- G.998

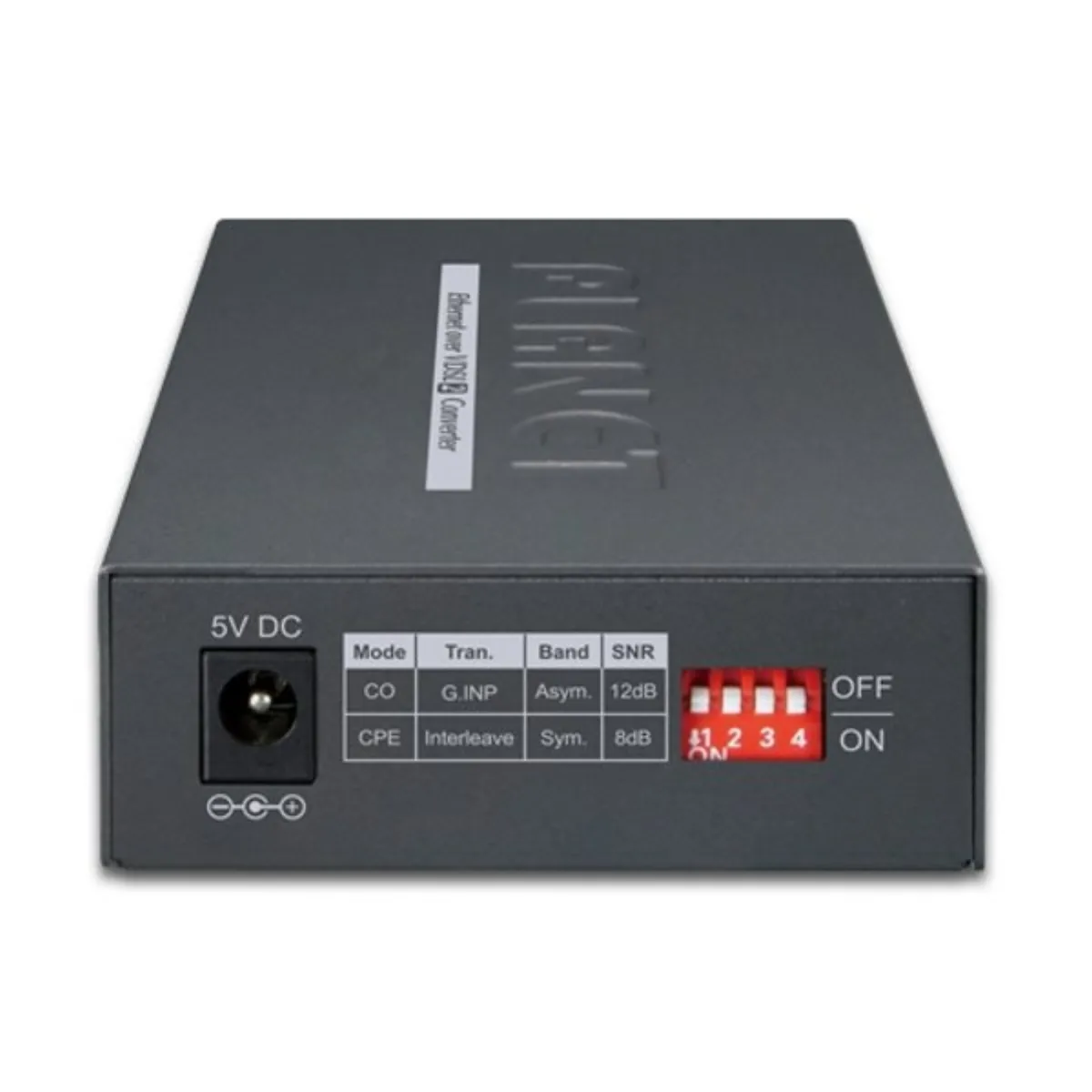

DIP switching
- CPE/CO selection
- modulation selection
- communication limit selection
- SNR selection
Power supply
- from external adapter
- 5 V/2 A (power supply included)
Operating temperature
- 0 to 50 °C
- humidity 5-95 %
Dimensions: 94 × 70.3 × 26.2 mm
Weight: 196 g
Can be installed in the chassis
- MC-700
- MC-1500
- MC-1500R
- MC-1500R48
Other downloads
| Name | Value | |
|---|---|---|
| Color | black | |
| Dimension [mm] | 97 × 70 × 26 mm | |
| Design | freestanding | |
| Maximum connection length | < 2km | |
| Conversion | LAN/RJ11 | |
| Interface | VDSL | |
| Speed for short lines <300 m | 200 MB/S | |
| Indoor use | Yes | |
| Wi-fi | No | |
| Port speed | 1 Gb/s | |
| Use | CPE modem/router | |
| RJ-45/RJ-11 count | 1 | |
| Weight, brutto [g] | 184 | |
